Trang chủ Ren cấy V-coil V-COIL Ren cấy V-COIL, gói bổ sung kiểu tự do S M 2.5 x 0.45 - 1.0 D (10 pcs.)

Ren cấy V-coil

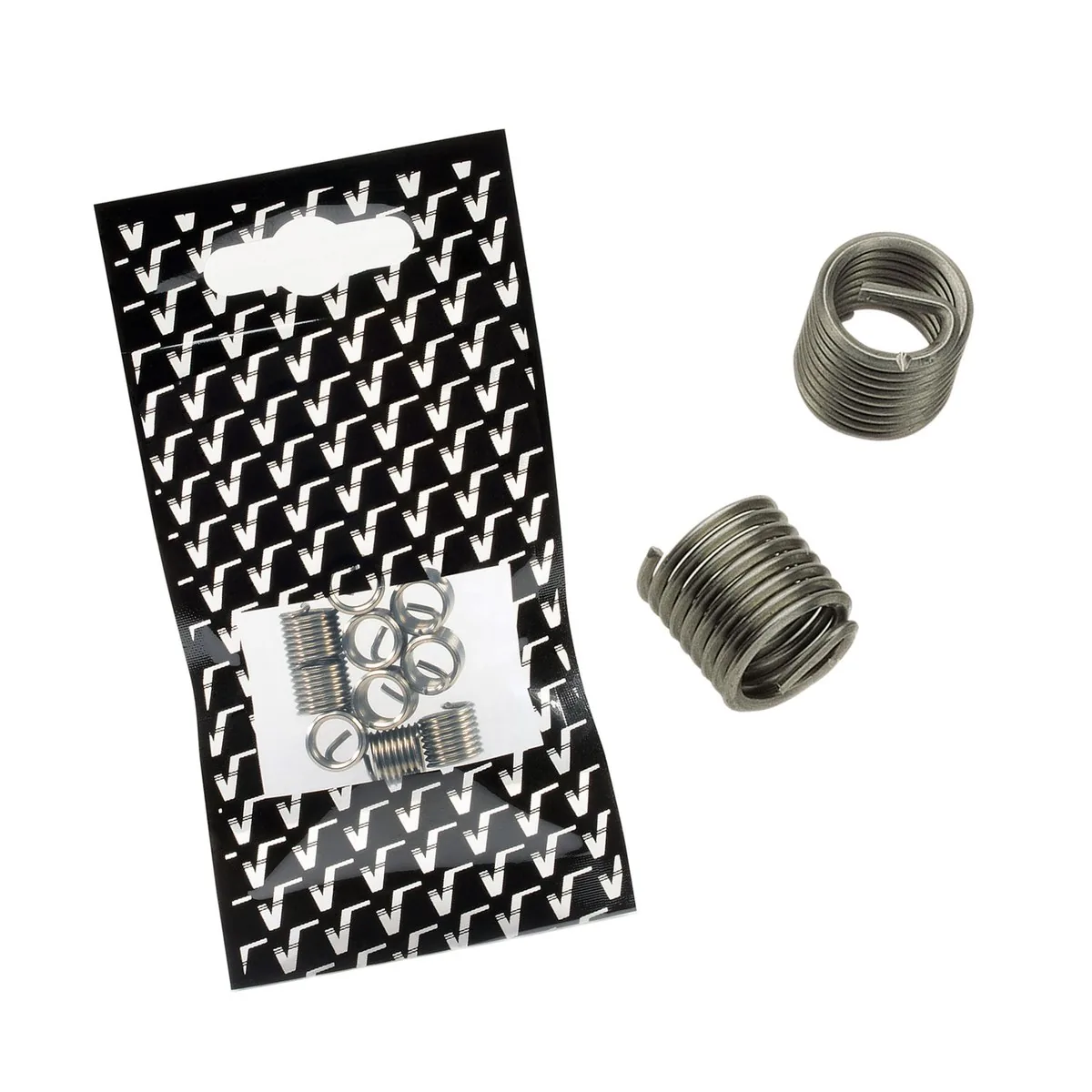

V-COIL Ren cấy V-COIL, gói bổ sung kiểu tự do S M 2.5 x 0.45 - 1.0 D (10 pcs.)

Name: V-COIL Ren cấy V-COIL, gói bổ sung kiểu tự do S M 2.5 x 0.45 - 1.0 D (10 pcs.)
Brand: VOLKEL
SKU: 40204
Price: 157000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

V-COIL Ren cấy V-COIL, gói bổ sung kiểu tự do S M 2.5 x 0.45 - 1.0 D (10 pcs.) VÖLKEL, mã 40204, phù hợp cho phục hồi và gia cường ren hỏng.

SKU: 40204

157.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

Reliable refill for M2.5 sửa ren work

In maintenance, assembly and service workshops, small threads can decide whether a component stays in operation. When an M2.5 ren trong is damaged or worn, this gói bổ sung provides the inserts you need to restore a clean, functional thread – as a practical addition to an existing V-COIL setup.

The Type S free running inserts are designed for consistent results in fine-sửa ren and for thread reinforcement (thread armour plating) in base materials with low shear strength. This makes the pack a solid option for mechanical engineering, metalworking and repair departments aiming to rework parts and reduce scrap.

Made from stainless thép to DIN 8140 with 1.0D length, the inserts fit compact components and applications with limited installation depth. The practical Self Service Hanging packaging (up to M12) supports tidy storage and quick access in day-to-day work.

Ứng dụng

sửa ren and reinforcement tasks typically include:

sửa ren: repair damaged or worn-out ren trong.
Thread armour plating: reinforce threads in materials with low shear strength.
Recovery of rejected items: rework parts affected by drilling or threading errors.

Advantages

serviceoriented
practical
convenient
with Self Service Hanging (up to M12)

Các bước thực hiện

Ensure the STI receiving thread is clean and free of chips.
Take one insert from the gói bổ sung.
Engage the tang into the slot of the correct installation tool.
Screw the insert into the STI thread in a controlled clockwise motion.
Seat the insert slightly below the surface.
Remove the installation tool.
Remove the tang with the appropriate tool if required.
Verify thread function with a matching screw.

Pack content

Pack content:

10x V-COIL Ren cấy V-COIL - Type S - free running M 2.5 x 0.45 – 1.0 D

(Note: installation tool and STI tools are not included.)

Đặc tính kỹ thuật

Standard: DIN 8140
Material: stainless thép
Tolerance: 2B
Dimension: M 2.5 x 0.45
Length: 1.0 D
Type: S (free running)
Packaging: Self Service Hanging (up to M12)
Pack size: 10 pcs.
EAN: 4022835402046
Article number: 40204

Câu hỏi thường gặp (FAQ)

Is this a complete repair kit?
số This is a gói bổ sung containing inserts only. Proper installation requires the correct V-COIL tools.

What does “free running” mean?
The insert does not apply a locking effect. The screw can be installed and removed normally after repair.

Why use inserts for reinforcement?
Inserts can improve load distribution and reduce wear, especially in materials with low shear strength.

Can I use these inserts with a different pitch?
số These inserts are designed specifically for M 2.5 x 0.45.

Need support choosing the right insert or tools?
Use the biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	metric ISO-thread
Tiêu chuẩn	DIN 8140
Vật liệu	from stainless steel
Tolerance	ISO2 (6H)
Kích thước	M 2.5 x 0.45
Chiều dài	1.0 x D
Packaging unit (piece)	10
EAN	4022835402046
Mã hàng	40204
Chuẩn ren	DIN 13
Quy cách đóng gói	10

Phụ kiện tùy chọn

SKU	Hình	Giá VNĐ	Tên sản phẩm & mô tả ngắn
08090		237.000	V-COIL Dụng cụ lắp ren cấy (Drive connector 1/4") M 2.5 x 0.45 V-COIL Dụng cụ lắp ren cấy (Drive connector 1/4") M 2.5 x 0.45 VÖLKEL, mã 08090, phù hợp cho sửa ren và lắp ren cấy.
