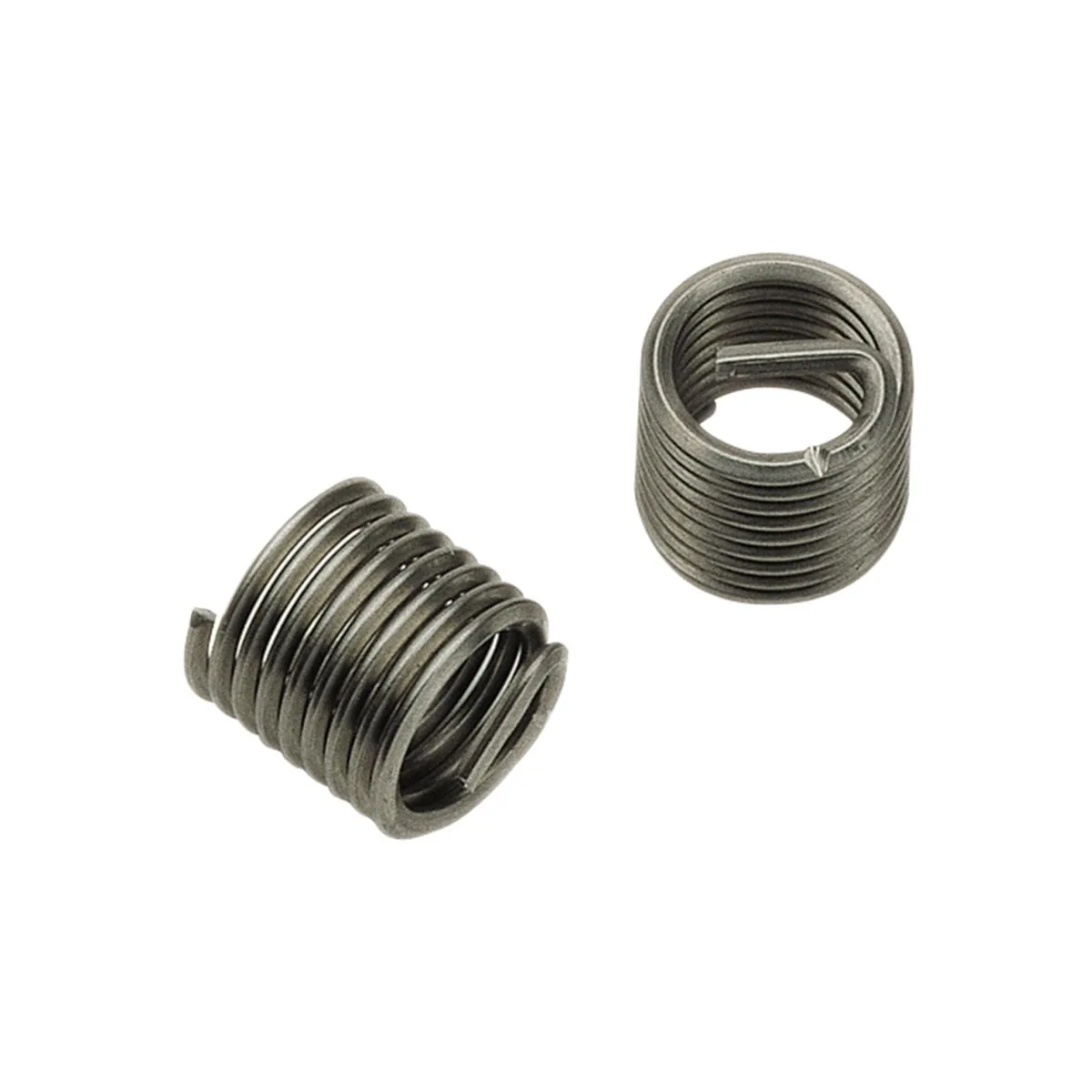

Ren cấy M 2.5 x 0.45 - 1.0 D V-COIL, bộ 100 cuộn

Name: Ren cấy M 2.5 x 0.45 - 1.0 D V-COIL, bộ 100 cuộn
Brand: VOLKEL
SKU: 07204
Price: 6000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

Ren cấy M 2.5 x 0.45 - 1.0 D V-COIL, bộ 100 cuộn, dùng để phục hồi và gia cường ren hỏng trong xưởng cơ khí và bảo trì.

SKU: 07204

6.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

V-COIL Ren cấy V-COIL kiểu tự do S M 2.5 x 0.45 - 1.0 D (100 pcs.)

You apply this sửa ren solution when thread engagement must be reliable after damage or wear. It is suitable for service environments where you need a repeatable repair process.

Metric ISO identifies ISO metric threads defined by the M designation and used across general engineering.

Ứng dụng

Restore damaged ren trong so you can reuse housings and components instead of scrapping them.
Use the insert system in maintenance, service repair, and small batch rework when thread engagement must be reliable.
Follow the correct preparation sequence so the insert seats without cross-threading or distortion.
Process: manual driving or assisted driving depending on your holder and machine setup
Use: cắt ren, taro lại ren, and làm sạch ren depending on condition

Lưu ý Use the correct installation sequence for the insert type named in the product name and keep the prepared thread free of burrs.

Lợi ích

Restores thread function in worn or stripped housings without oversize fasteners.
Spreads load over the thread flanks and can improve wear resistance versus a damaged base thread.
Useful for repeated assembly cycles in service and maintenance applications.
Enables standardized repair workflows when you use inserts to DIN 8140 where specified.

Hạn chế

Requires drilling and tapping to the insert system specification before installation.
Not suitable for rapid cycle production repairs where downtime must be minimal.

Các bước thực hiện

Assess the damaged thread and confirm that the repair system named in the product fits the base material and wall thickness.
Drill out the damaged thread to the required preparation diameter for the insert system you use.
Cut the STI thread with the matching STI tap and keep the tool aligned to the bore axis.
Clean the prepared thread and remove chips so the insert seats without distortion.
Install the insert with a suitable installation tool and stop when the insert sits at the required depth.
If applicable for the insert type, remove the drive feature according to your process standard.
Verify the repaired thread with a fastener or gauge before returning the part to service.

Phạm vi cung cấp

100 chiếc V-COIL Ren cấy V-COIL kiểu tự do S M 2.5 x 0.45 - 1.0 D (100 pcs.)

Đặc tính kỹ thuật

System: Ren cấy V-COIL or repair component
Thread system: Metric ISO

Câu hỏi thường gặp (FAQ)

When is a Ren cấy V-COIL the right repair approach? Use it when the original ren trong is stripped or worn and you need a durable repair for repeated assembly. It is common in maintenance and rework of housings and components. What does the thread designation in the product name mean? Metric ISO identifies ISO metric threads defined by the M designation and used across general engineering. Where can you find an overview of the V-COIL sửa ren process? Technical information V-COIL sửa ren as PDF What is an STI thread and why is it required? STI is a larger ren trong used to accept the insert outer diameter. You cut it with an STI tap matched to the insert system so the insert seats correctly. Where can you find technical information on Ren cấy V-COIL to DIN 8140? Technical information Ren cấy V-COIL DIN 8140 as PDF What checks should you do after installation? Confirm that the insert is seated at the intended depth and that the fastener engages smoothly without binding. If your process requires it, remove the drive feature and inspect the first thread turns. Can a repaired thread handle repeated tightening cycles? A properly installed insert provides a wear-resistant thread interface and it is well suited for service parts that see repeated assembly. Where can you find more product and application information in a catalog? VC 23 catalog as PDF

Do you need help selecting or using the product?
Use the biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	metric ISO-thread
Tiêu chuẩn	DIN 8140
Vật liệu	from stainless steel
Tolerance	ISO2 (6H)
Kích thước	M 2.5 x 0.45
Chiều dài	1.0 x D
Packaging unit (piece)	100
EAN	4022835072041
Mã hàng	07204
Chuẩn ren	DIN 13
Quy cách đóng gói	100

Phụ kiện tùy chọn

SKU	Hình	Giá VNĐ	Tên sản phẩm & mô tả ngắn
08090		237.000	V-COIL Dụng cụ lắp ren cấy (Drive connector 1/4") M 2.5 x 0.45 V-COIL Dụng cụ lắp ren cấy (Drive connector 1/4") M 2.5 x 0.45 VÖLKEL, mã 08090, phù hợp cho sửa ren và lắp ren cấy.
