V-COIL Ren cấy V-COIL kiểu tự do S M 2.2 x 0.45 - 1.5 D (100 pcs.)
You use this V-COIL sửa ren component to restore worn or stripped ren trong in housings and parts. It supports a controlled repair sequence so you can return components to service without changing the fastener size.
Metric ISO identifies ISO metric threads defined by the M designation and used across general engineering.
- Restore damaged ren trong so you can reuse housings and components instead of scrapping them.
- Use the insert system in maintenance, service repair, and small batch rework when thread engagement must be reliable.
- Follow the correct preparation sequence so the insert seats without cross-threading or distortion.
- Process: manual driving or assisted driving depending on your holder and machine setup
- Use: cắt ren, taro lại ren, and làm sạch ren depending on condition
Lưu ý Use the correct installation sequence for the insert type named in the product name and keep the prepared thread free of burrs.
- Restores thread function in worn or stripped housings without oversize fasteners.
- Spreads load over the thread flanks and can improve wear resistance versus a damaged base thread.
- Useful for repeated assembly cycles in service and maintenance applications.
- Enables standardized repair workflows when you use inserts to DIN 8140 where specified.
Hạn chế
- Requires drilling and tapping to the insert system specification before installation.
- Not suitable for rapid cycle production repairs where downtime must be minimal.

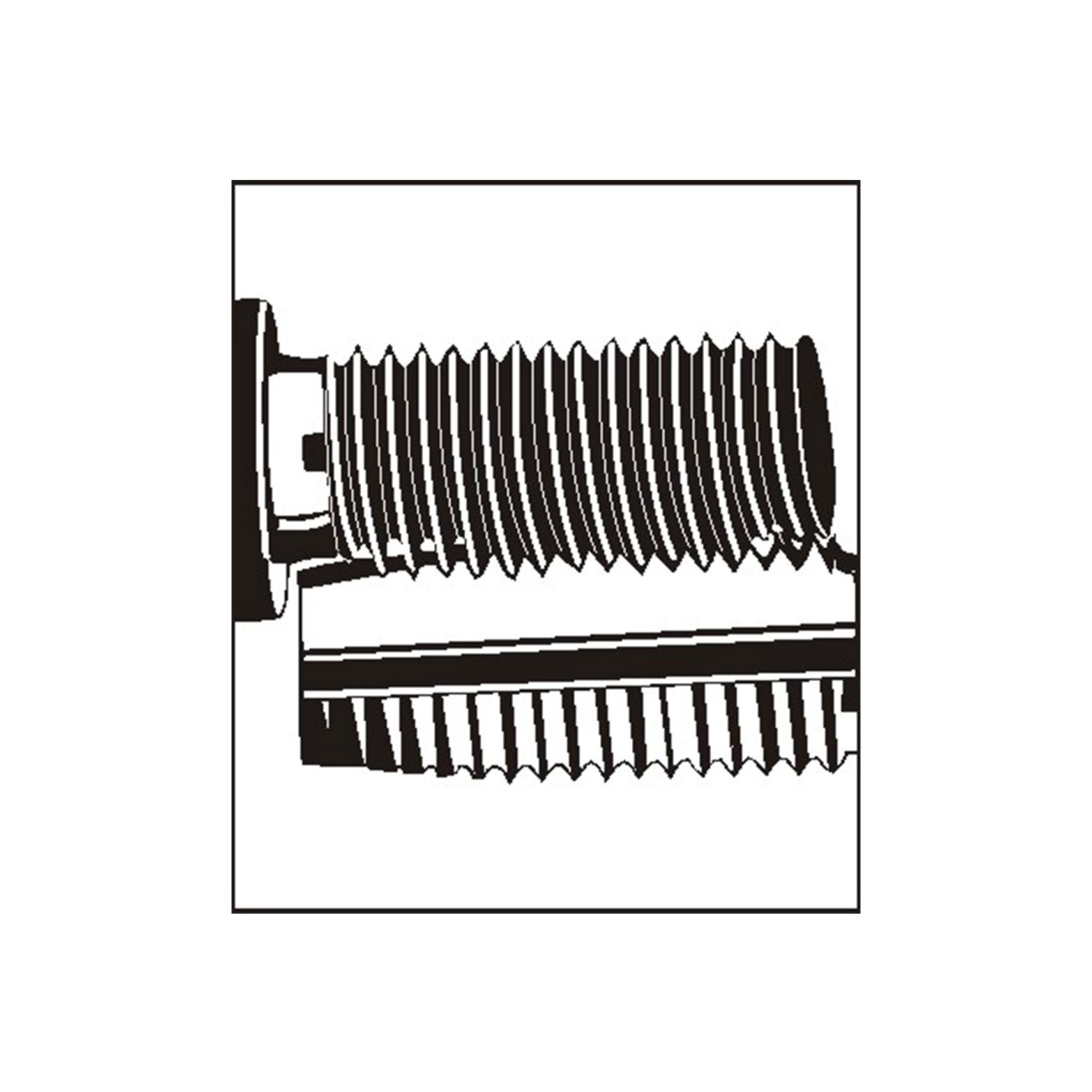

- Assess the damaged thread and confirm that the repair system named in the product fits the base material and wall thickness.

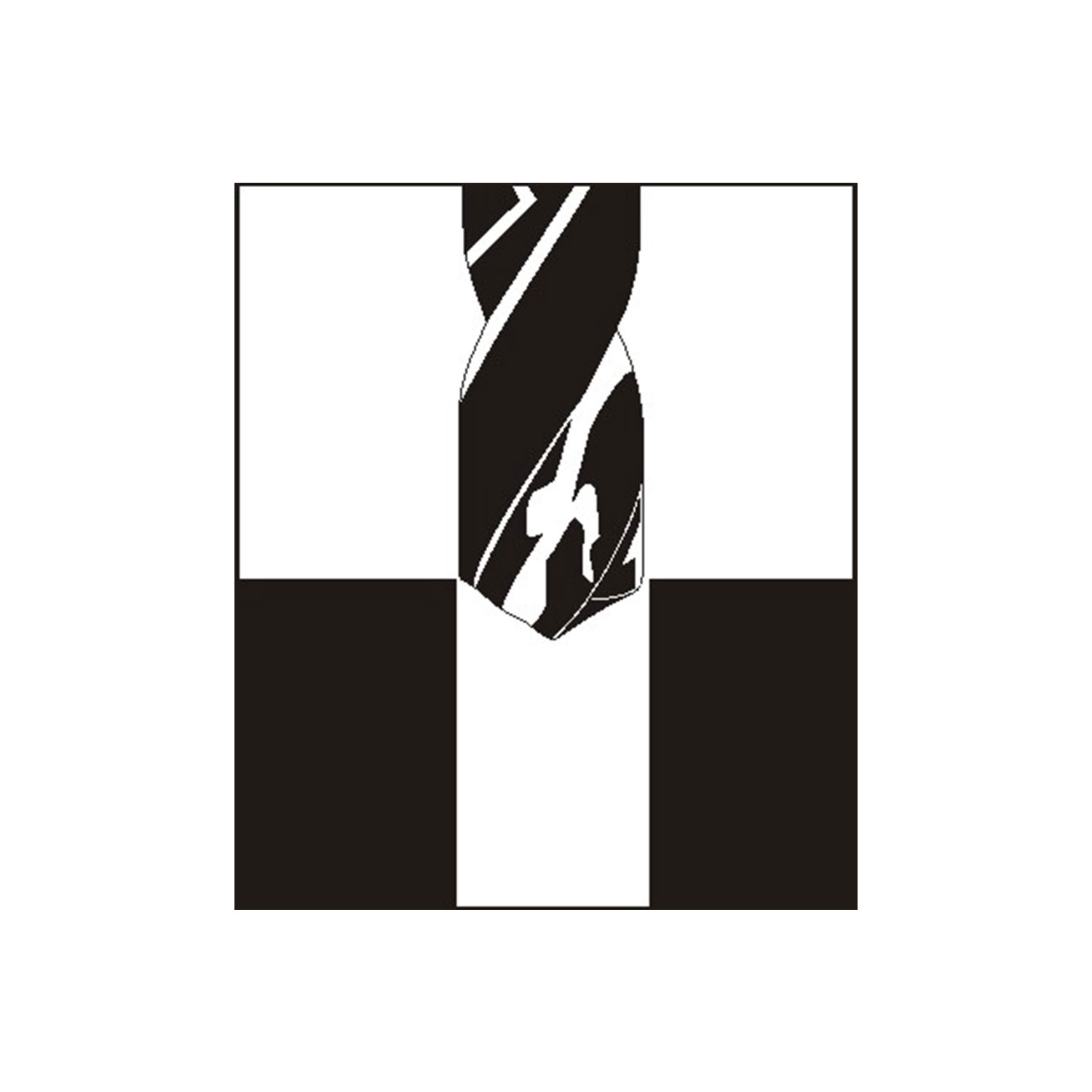

- Drill out the damaged thread to the required preparation diameter for the insert system you use.

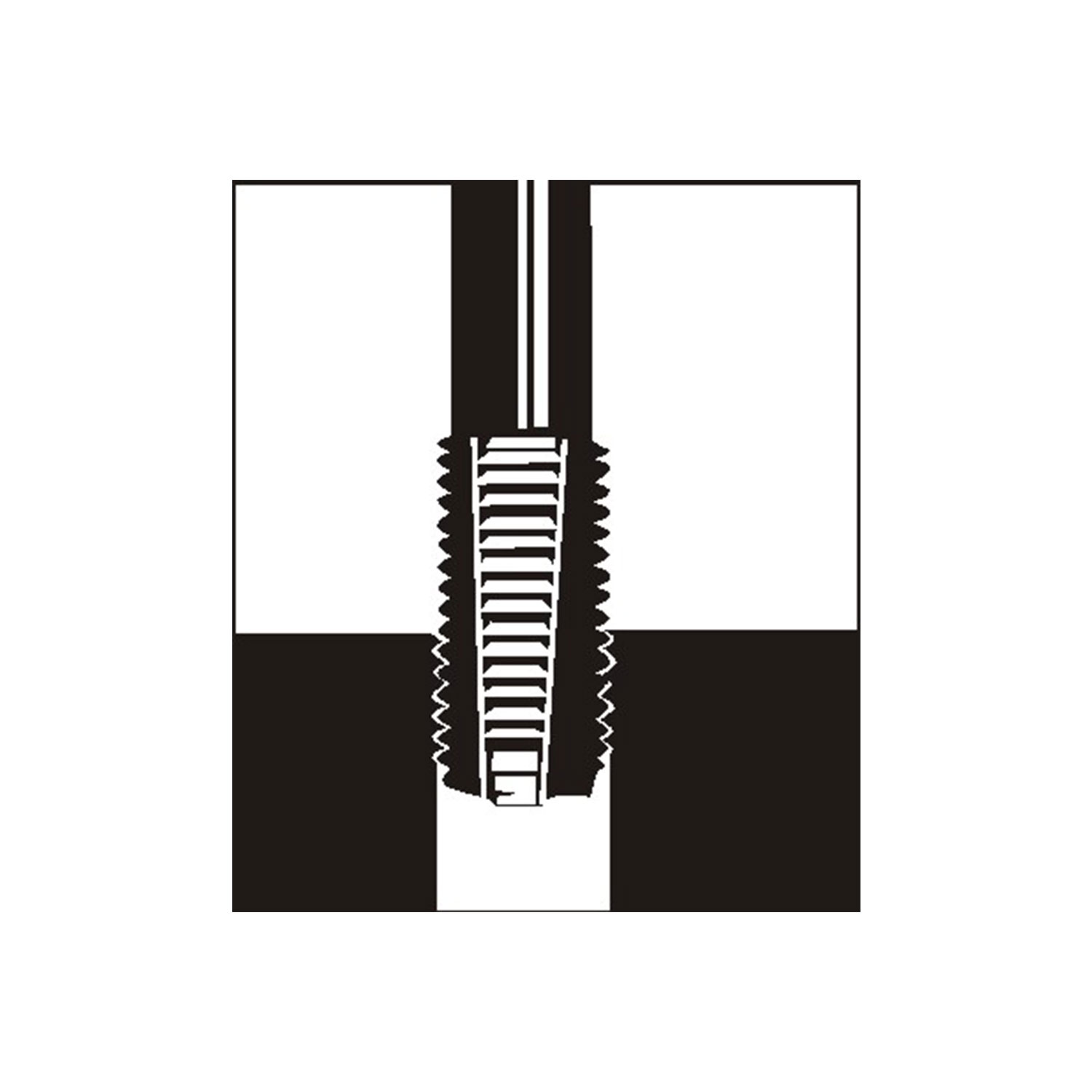

- Cut the STI thread with the matching STI tap and keep the tool aligned to the bore axis.
- Clean the prepared thread and remove chips so the insert seats without distortion.

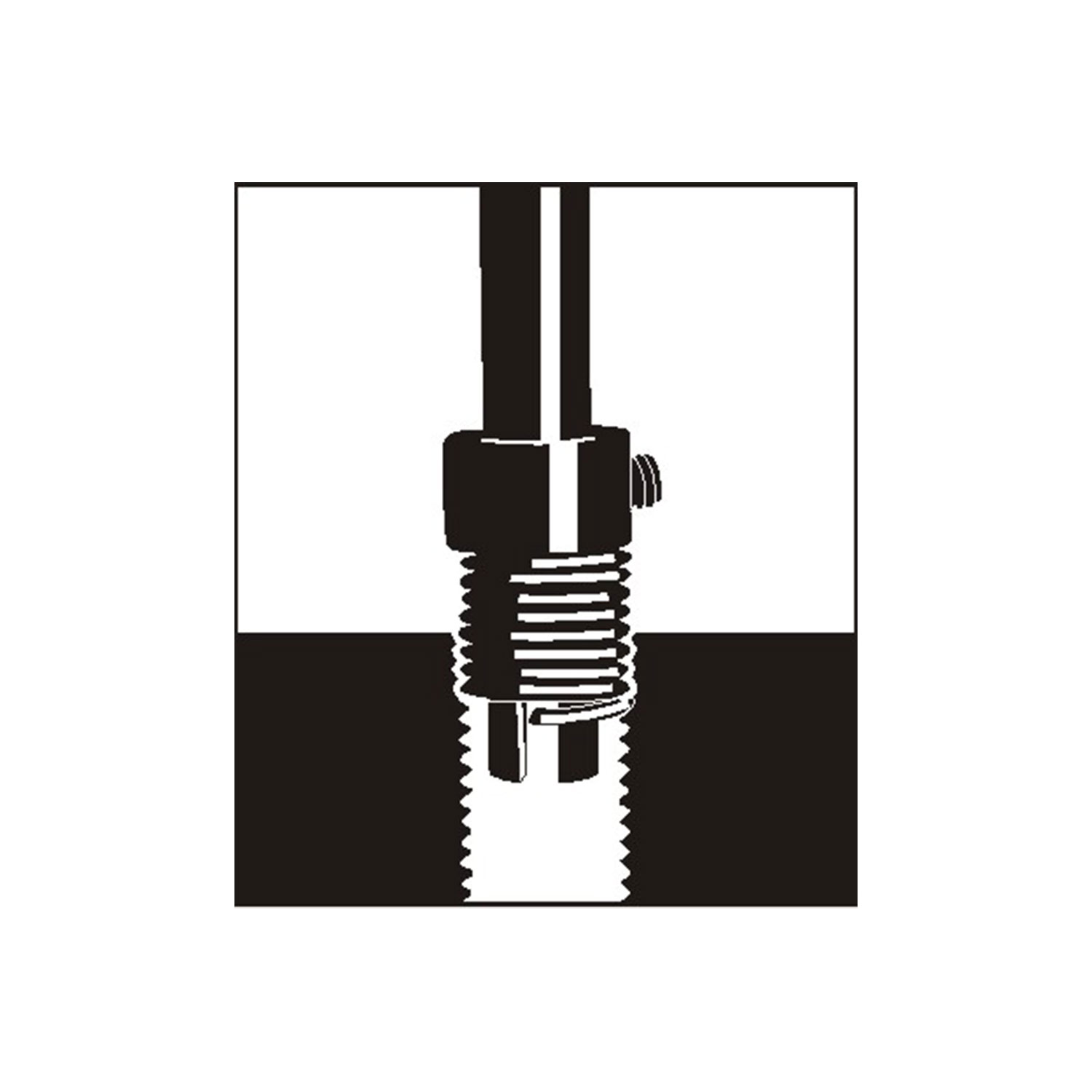

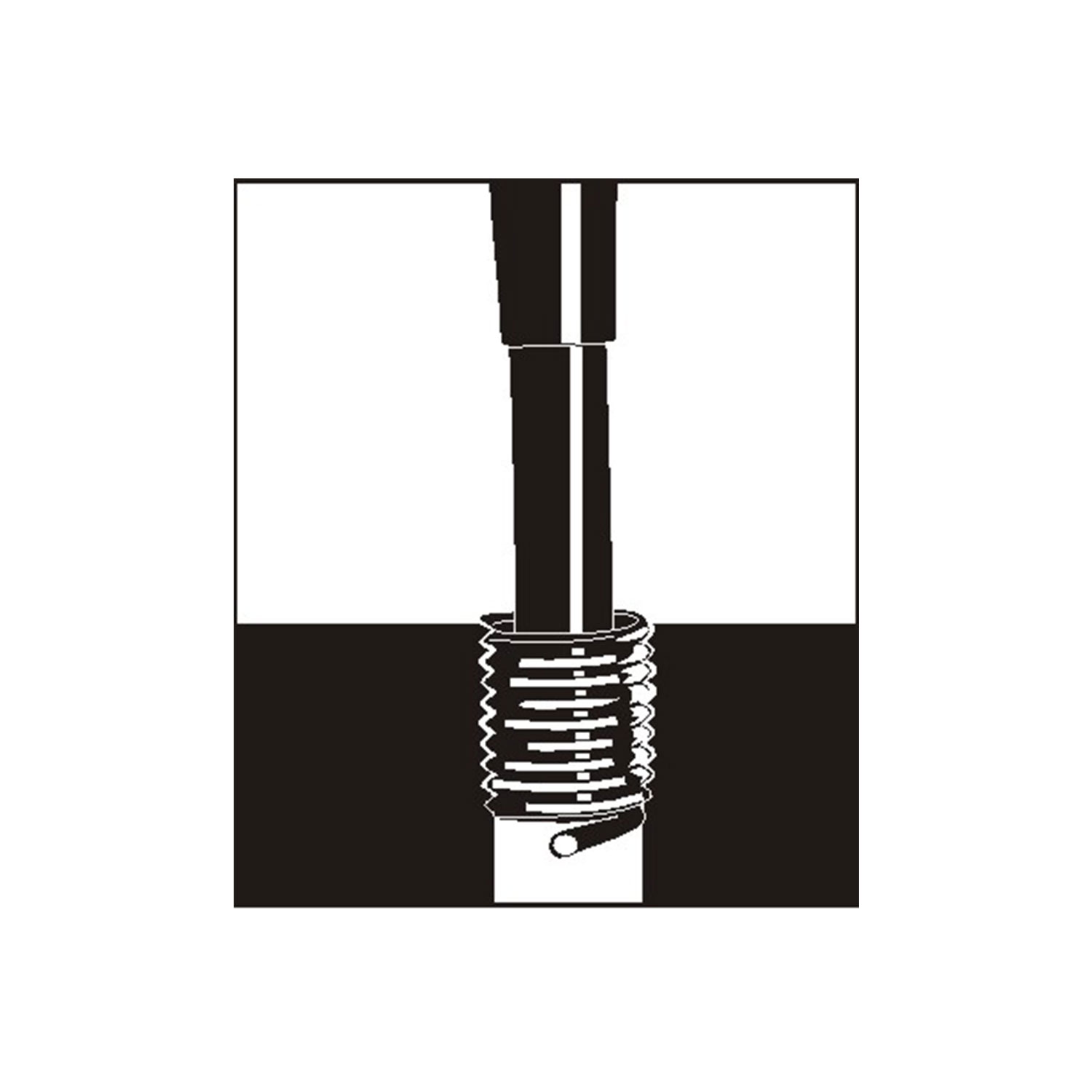

- Install the insert with a suitable installation tool and stop when the insert sits at the required depth.
- If applicable for the insert type, remove the drive feature according to your process standard.
- Verify the repaired thread with a fastener or gauge before returning the part to service.
- 100 chiếc V-COIL Ren cấy V-COIL kiểu tự do S M 2.2 x 0.45 - 1.5 D (100 pcs.)
- System: Ren cấy V-COIL or repair component
- Thread system: Metric ISO
- When is a Ren cấy V-COIL the right repair approach?
- Use it when the original ren trong is stripped or worn and you need a durable repair for repeated assembly. It is common in maintenance and rework of housings and components.
- What does the thread designation in the product name mean?
- Metric ISO identifies ISO metric threads defined by the M designation and used across general engineering.
- Where can you find an overview of the V-COIL sửa ren process?
- Technical information V-COIL sửa ren as PDF
- What is an STI thread and why is it required?
- STI is a larger ren trong used to accept the insert outer diameter. You cut it with an STI tap matched to the insert system so the insert seats correctly.
- Where can you find technical information on Ren cấy V-COIL to DIN 8140?
- Technical information Ren cấy V-COIL DIN 8140 as PDF
- What checks should you do after installation?
- Confirm that the insert is seated at the intended depth and that the fastener engages smoothly without binding. If your process requires it, remove the drive feature and inspect the first thread turns.
- Can a repaired thread handle repeated tightening cycles?
- A properly installed insert provides a wear-resistant thread interface and it is well suited for service parts that see repeated assembly.
- Where can you find more product and application information in a catalog?
- VC 23 catalog as PDF
