Bộ sửa ren V-COIL notch M 3 x 0.5 – 1.5 D

Name: Bộ sửa ren V-COIL notch M 3 x 0.5 – 1.5 D
Brand: VOELKEL
SKU: 09005
Price: 2236000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: CHLB Đức

Xuất xứ: CHLB Đức

Bộ sửa ren V-COIL notch M 3 x 0.5 – 1.5 D VÖLKEL, mã 09005, phù hợp cho sửa ren và lắp ren cấy.

SKU: 09005

2.236.000,0 đ

Trạng thái kho: Hết hàng

Giá tham khảo, gồm VAT

Mô tả

Bộ sửa ren V-COIL notch M 3 x 0.5 – 1.5 D

The tangless V-COIL notch sửa ren kit M 3 x 0.5 – 1.5 D gives you a reliable solution for thread reinforcement and sửa ren in one compact set. Like the familiar V-COIL inserts, V-COIL notch inserts are designed for durable ren trong — but with one key advantage: the risk of losing a tang during break-off is eliminated.

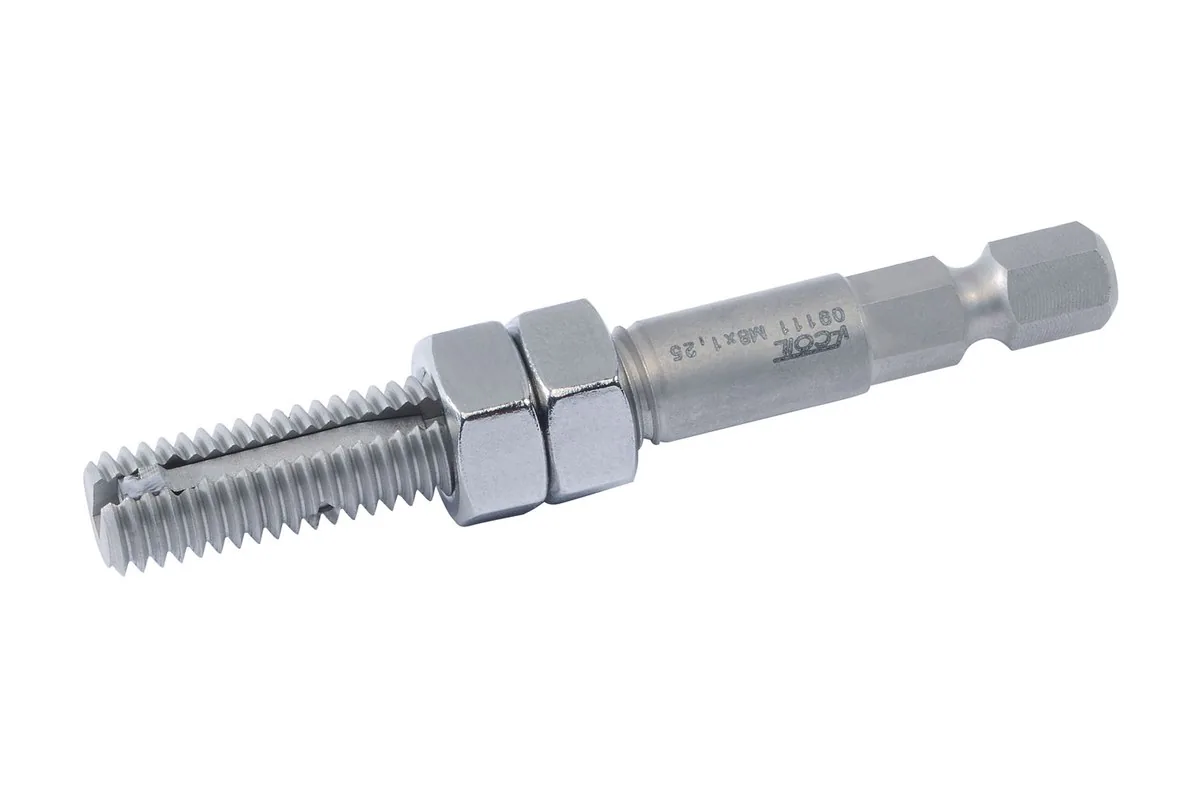

The installation is built around the dedicated V-COIL notch installation tool. It features a spring-loaded blade that engages the driver notch of the insert and holds it securely. Because the notches are present on both ends of the insert, you don’t need to worry about which end is facing forward during installation.

For consistent results, the installation tools include a depth stop nut which you set to the required screw-in depth using a lock nut. The tool’s ¼" hexagon drive means you can operate it with common bit holders — by hand, with cordless screwdrivers, or even on stationary machines. Once the target depth is reached, you simply unscrew the tool. The blade automatically retracts and releases the insert.

Ứng dụng

This kit is ideal when you need to repair a damaged M3 ren trong or reinforce a new thread for improved durability. The workflow is straightforward: drill, tap, install — without tang break-off.

sửa ren for damaged or worn ren trong
Thread reinforcement for long-lasting ren trong
Tangless system: no tang break-off, no risk of lost parts
¼" hex drive: usable by hand, cordless screwdriver, or machine

Advantages

Tangless inserts: you don’t need to break off a tang — nothing can get lost
Driver notches on both ends: no need to check installation direction
Spring-loaded blade on the installation tool for secure insert control
Depth stop nut with lock nut for defined screw-in depth
¼" hexagon drive compatible with common bit holders
Complete kit with drill, tap, installation tool and inserts

Step-by-Step Instructions

Drill: Drill the core hole (or drill out the thread to be repaired) using the V-COIL STI drill.
Tap: Cut the holding thread with the V-COIL STI tap.
Load the insert: Screw the V-COIL notch insert onto the installation tool (the spring-loaded blade engages the driver notch).
Install: Screw the insert into the holding thread. Set the depth using the depth stop nut.
Release: Unscrew the tool again. The blade retracts automatically and releases the insert.
Check: Verify the repaired thread using a suitable screw.

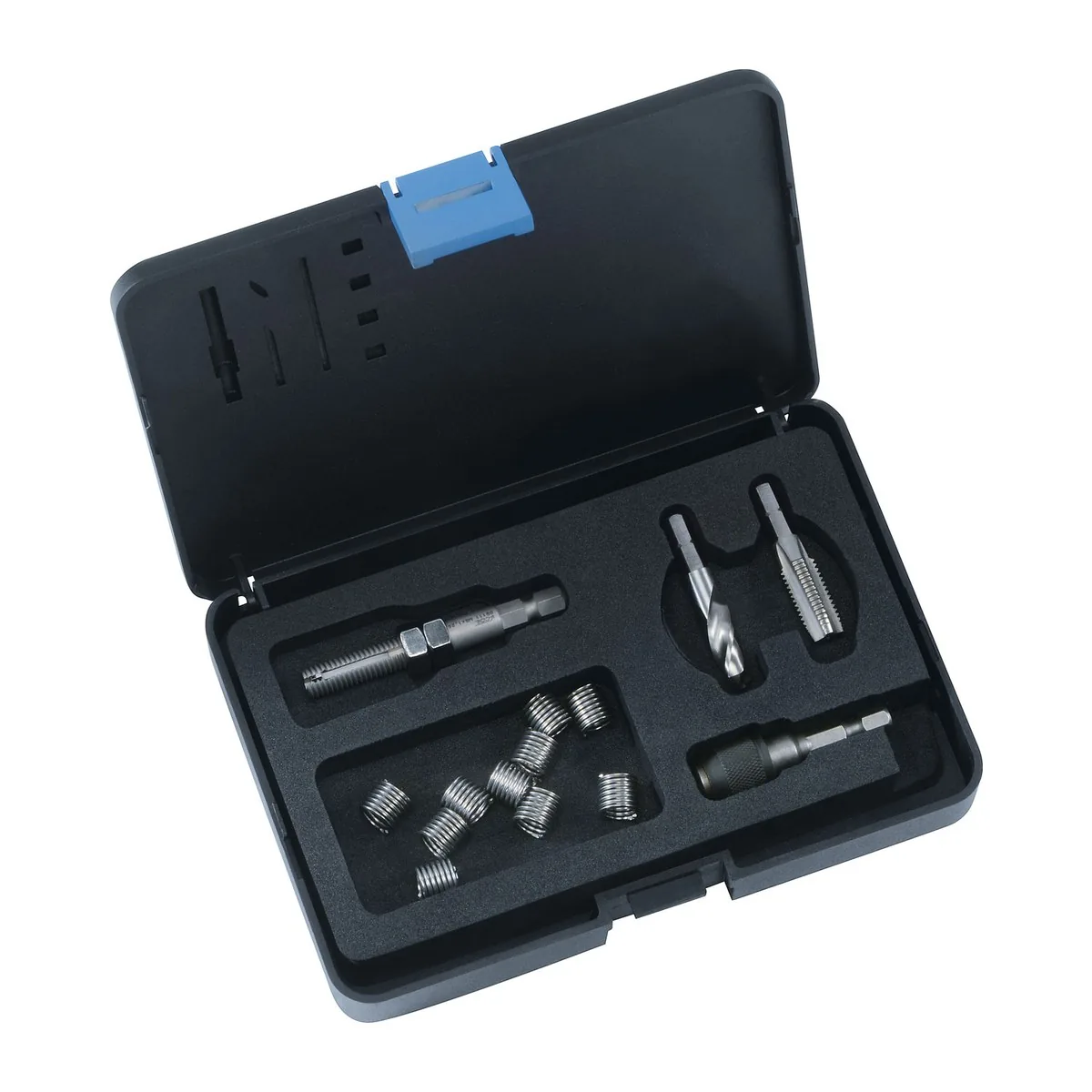

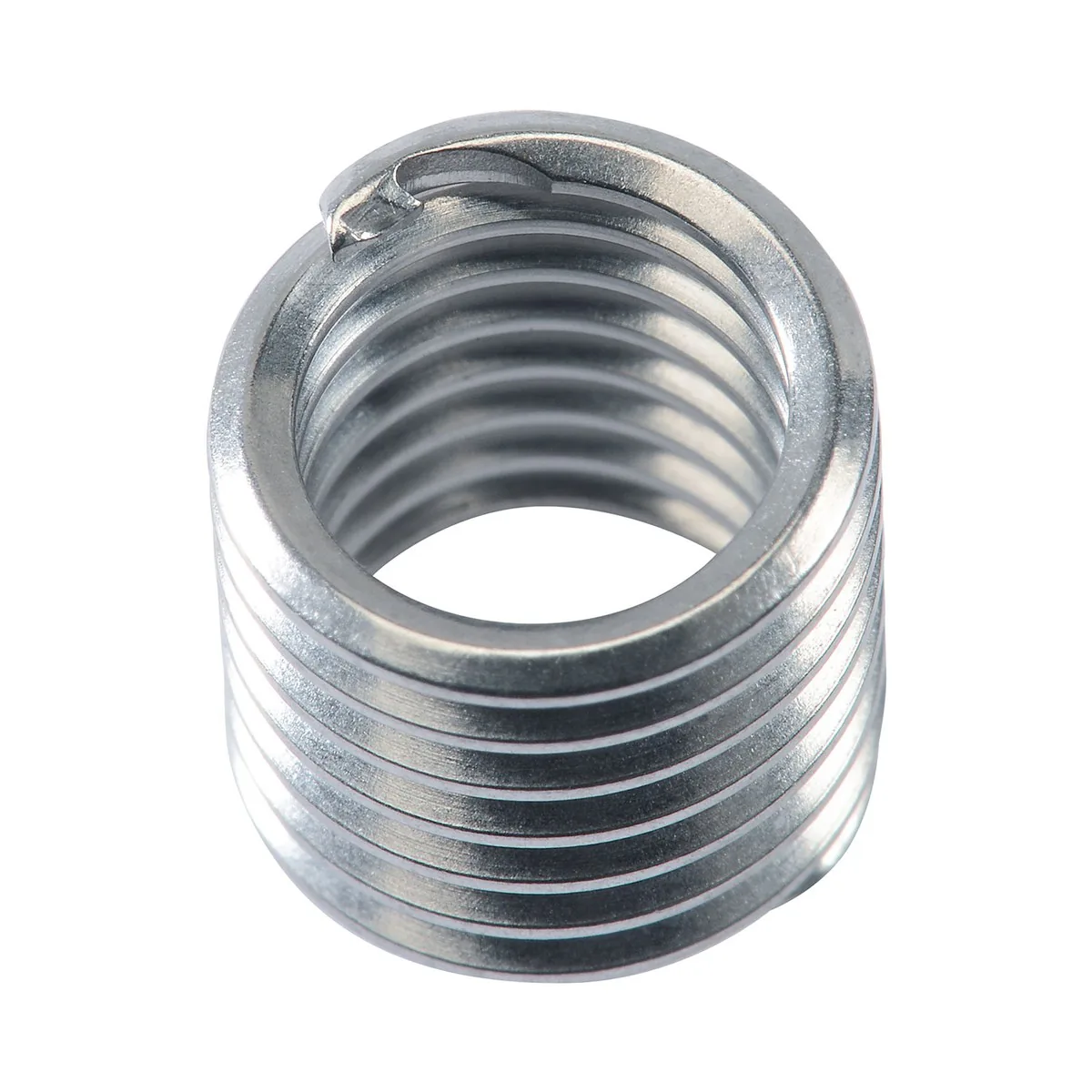

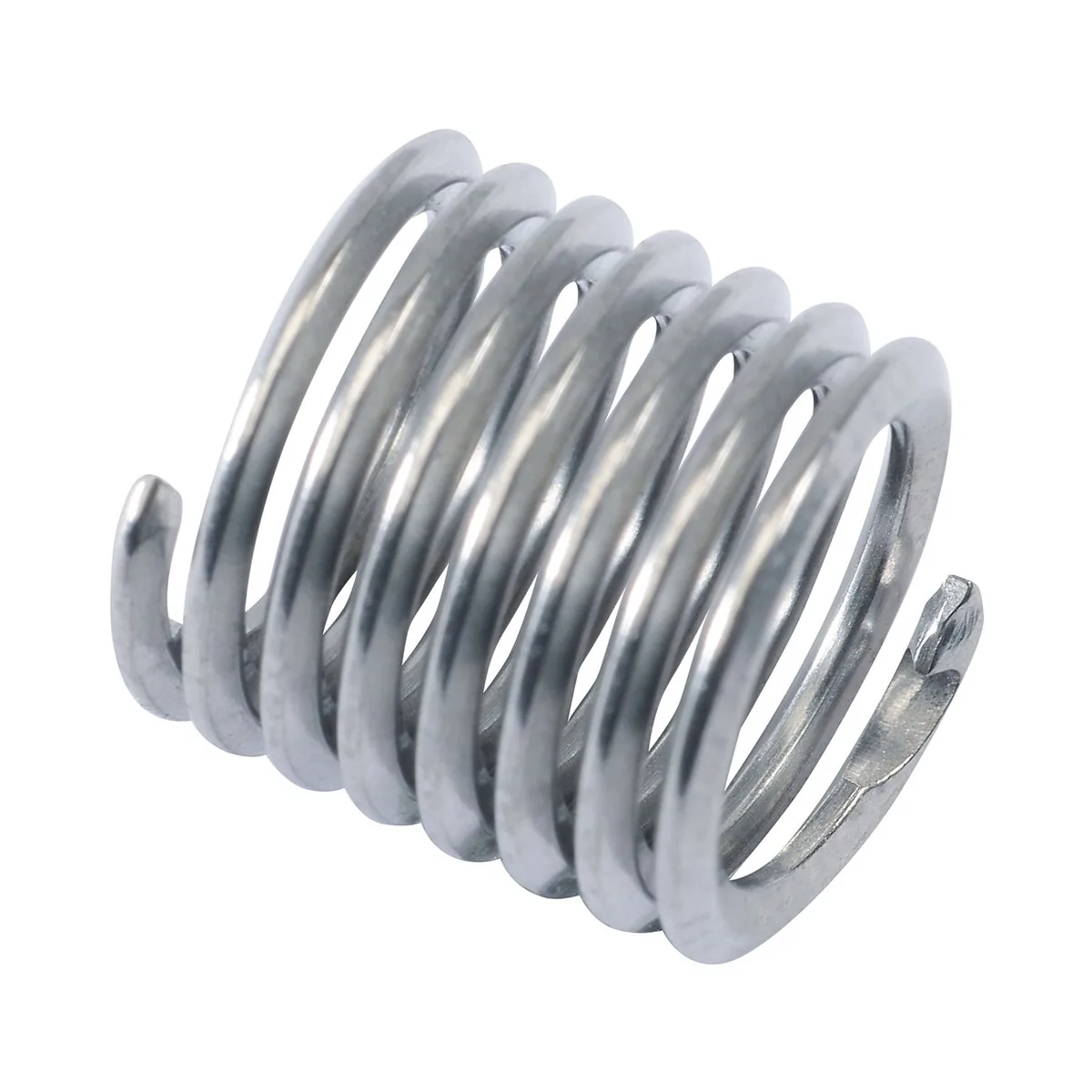

10 x Ren cấy V-COIL – type SN – tangless M 3 x 0.5 – 1.5 D (09305)
1 x Dụng cụ lắp ren cấy V-COIL notch M 3 x 0.5 (09105)

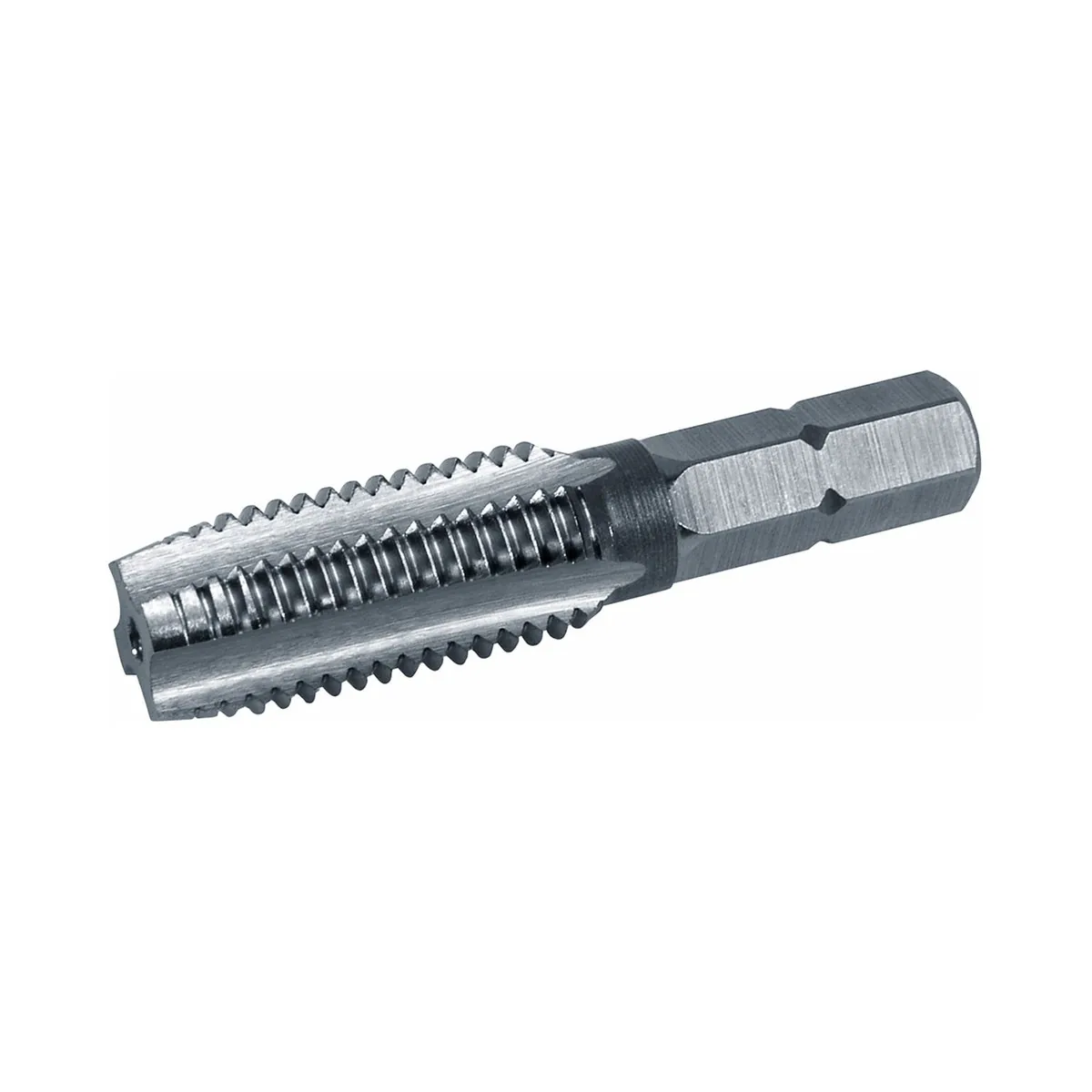

1 x STI HexTap V-COIL rapid Mũi taro máy Form D HSS-G – M 3 x 0.5 (03091)

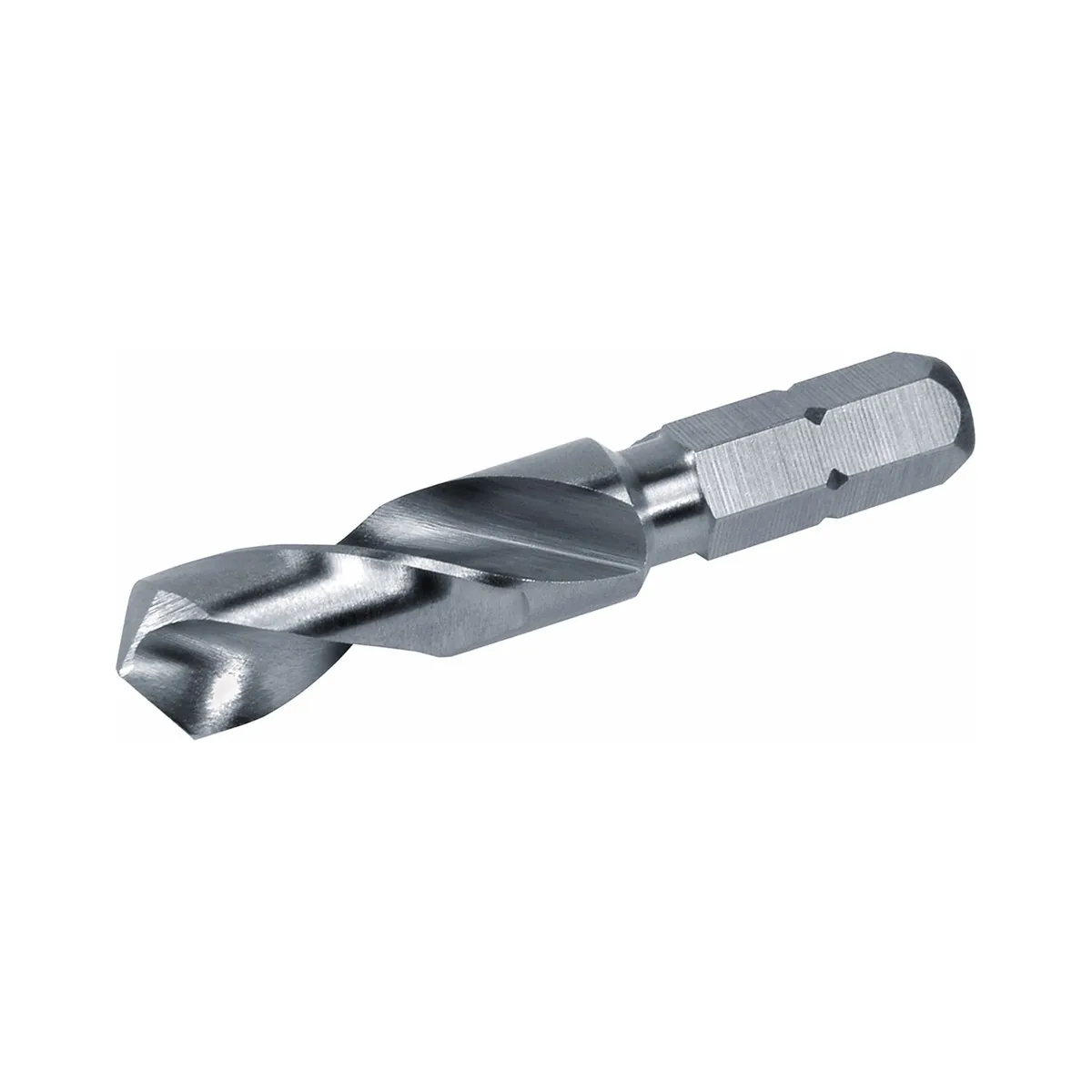

1 x V-COIL rapid STI Mũi khoan xoắn 3.2 mm (03081)
1 x 1/4" bit adapter

Đặc tính kỹ thuật

Thread type: ren hệ mét ISO
Application range: M 3 x 0.5
Insert length: 1.5 D
System: V-COIL notch, type SN, tangless
Drive (installation tool): ¼" hexagon (bit holder compatible)
EAN: 4022835090052
Item number: 09005

Vui lòng dùng biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	metric ISO-thread
EAN	4022835090052
Mã hàng	09005
Phạm vi ứng dụng	M 3 x 0.5

Phụ kiện tùy chọn

SKU	Giá VNĐ	Tên sản phẩm & mô tả ngắn
09105	1.369.000,0	Dụng cụ lắp ren cấy V-COIL notch M 3 x 0.5 Dụng cụ lắp/sửa ren phù hợp
03005	296.000,0	STI Mũi taro máy ngắn ISO 529 Form D HSS-G - M 3 x 0.5 Mũi STI tương thích
03091	181.000,0	STI HexTap V-COIL rapid Mũi taro máy Form D HSS-G - M 3 x 0.5 Mũi STI tương thích
03505	350.000,0	STI Mũi taro máy ISO 529 Form B HSSE - M 3 x 0.5 Mũi STI tương thích
03605	665.000,0	STI Mũi taro nén ren ISO 529 Form C HSSE - M 3 x 0.5 Mũi STI tương thích
03705	343.000,0	STI Mũi taro máy ISO 529 Form C 35° Spiral Flute HSSE - M 3 x 0.5 Mũi STI tương thích
05205	11.000,0	V-COIL Ren cấy V-COIL Screw locking type SL M 3 x 0.5 - 1.0 D (100 pcs.) Ren cấy tương thích
05305	11.000,0	V-COIL Ren cấy V-COIL Screw locking type SL M 3 x 0.5 - 1.5 D (100 pcs.) Ren cấy tương thích
