Trang chủ Bộ mũi taro ren trong Mũi taro máy set M4-M10, Form B, extra long - 150 mm - with reduced shank

Bộ mũi taro ren trong

Mũi taro máy set M4-M10, Form B, extra long - 150 mm - with reduced shank

Name: Mũi taro máy set M4-M10, Form B, extra long - 150 mm - with reduced shank
Brand: VOLKEL
SKU: 47933
Price: 4032000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

Mũi taro máy set M4-M10, Form B, extra long - 150 mm - with reduced shank VÖLKEL, mã 47933, phù hợp cho gia công ren trong.

SKU: 47933

4.032.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

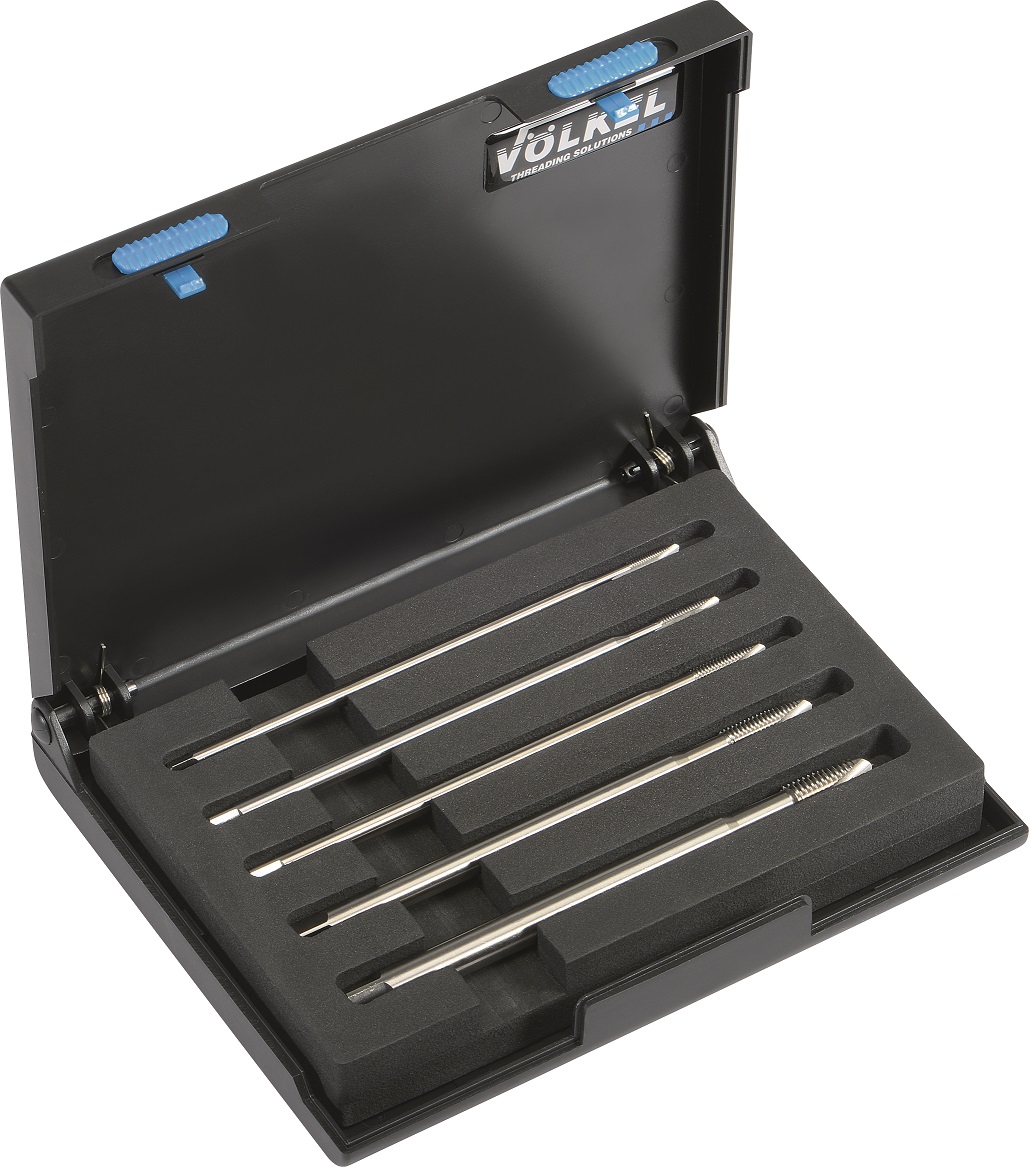

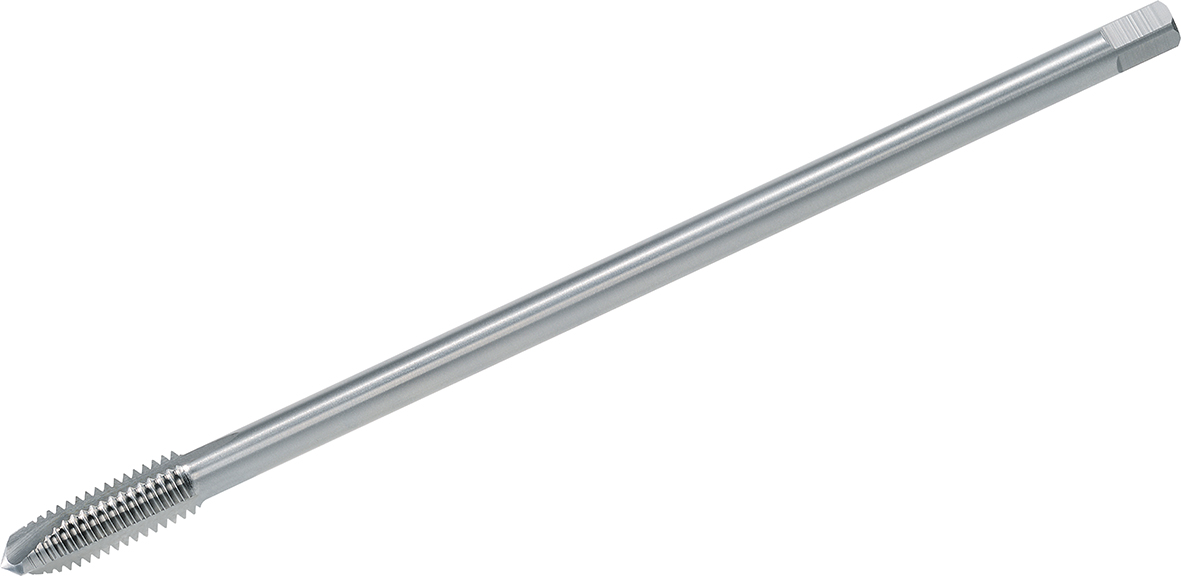

VÖLKEL Mũi taro máy Set M4–M10, Form B, extra long (150 mm) with reduced shank

This professional-grade Mũi taro máy set is your go-to solution for cutting ren trong in hard-to-reach places. The extra-long 150 mm reduced shank provides superior reach, while the Form B spiral point pushes chips forward for efficient cutting in lỗ thông. Made of premium HSS-Eit ensures long tool life and precision in non-alloyed and low-alloy steels up to 900 N/mm².

Application & Benefits

dùng cho ứng dụng thông dụng in workshop, repair, and production
Clean threading in lỗ thông thanks to spiral point design
Extra-long 150 mm shank for deep or obstructed thread positions
Made of premium HSS-E for consistent dimension and profile accuracy
For materials up to 900 N/mm², thép không hợp kim và thép hợp kim thấp

Contents (5 pcs)

M4 – 150 mm extra long, reduced shank
M5 – 150 mm extra long, reduced shank
M6 – 150 mm extra long, reduced shank
M8 – 150 mm extra long, reduced shank
M10 – 150 mm extra long, reduced shank

All threading tools and accessories are also available separately.

Technical Details

Thread type	ren hệ mét ISO DIN 13
Standard	DIN 376

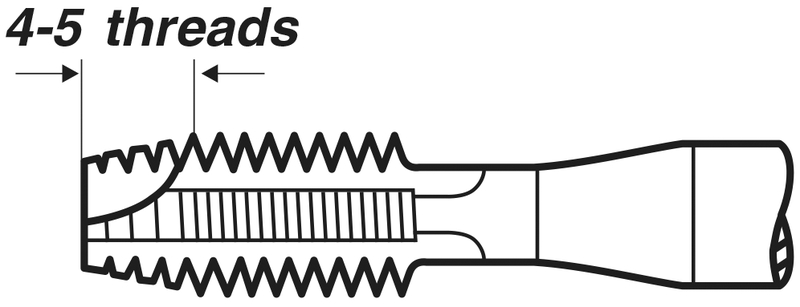

Form	B (spiral point) – for lỗ thông
Material	HSS-E
Tolerance	ISO 2 / 6H

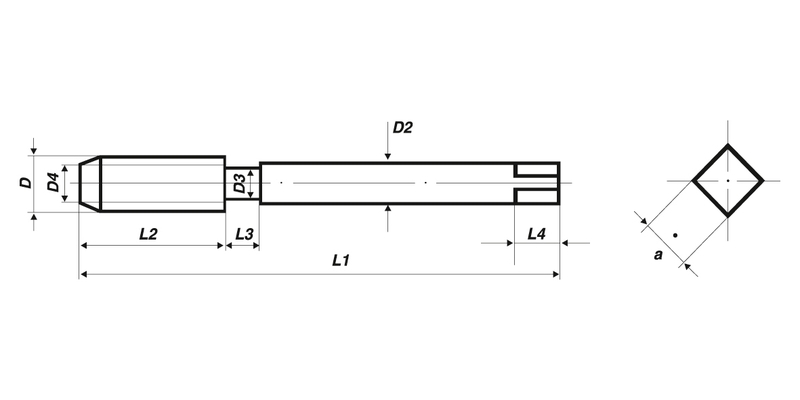

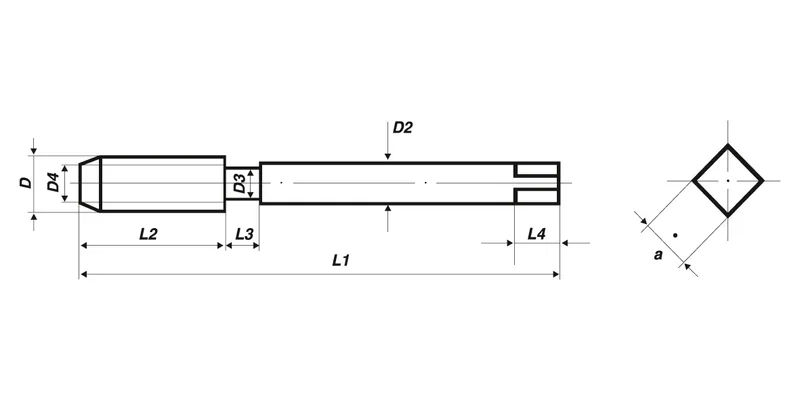

Total length	150 mm (extra long) with reduced shank
Range	M4–M10 (5 pcs)
EAN	4022835479338
Article số	47933

Step-by-Step Guide

Prepare the core hole: Drill the proper diameter and lightly chamfer the entry.
Clamp and align: Secure workpiece; insert tap and align axially. The long shank provides clearance.
Apply lubrication: Generously use cutting oil; reapply as needed during cutting.
Cut the thread: Maintain constant speed and feed. Form B drives chips forward—no reverse needed.
Inspect: Clean and check the thread using a screw or gauge.

FAQ

Can this set be used on a bench drill?
Yes, as long as the spindle has reverse function or controlled feed. Always ensure good lubrication.

Why is the tool extra long?
It improves accessibility in deep or recessed thread positions—especially useful in assembly or maintenance work.

Is Form B suitable for lỗ bít?
No, Form B is optimized for lỗ thông. Use Form C for lỗ bít.

What’s the correct lubrication?
Use cutting oil suitable for thép; for tough steels, use active oils to minimize friction.

What tolerance can I expect?
Threads meet ISO 2 / 6H for standard fit and accuracy.

Have questions or need matching holders and cutting data? Contact us via our biểu mẫu liên hệ.
