OS 22 Oil Sump Repair Bộ sửa ren M 13x1.5 – M 24x1.5

• Cut ren trong in components used in mechanical engineering and plant service.
• Process: manual driving or assisted driving depending on your holder and machine setup
• Use: cắt ren, taro lại ren, and làm sạch ren depending on condition
• Use a suitable Chất bôi trơn cắt gọt ren for the work material and keep the tool aligned to the axis.

Lưu ý Use cutting fluid suitable for the work material and keep the tool aligned during the first turns.

• Supports consistent internal threading when alignment is correct
• Usable across common workshop and maintenance processes
• Helps reduce rework through repeatable tool geometry
• Allows controlled fit when you choose the correct thread designation

• Limited by work material hardness and by the stability of your clamping setup
• Practical speed is limited by manual handling and by access conditions at the workpiece

1. Prepare the hole and remove burrs so the tool starts straight.
2. Clamp the workpiece securely and align the tool to the hole axis.
3. Use a suitable holder or drive and apply cutting fluid for the work material.
4. Start the thread with controlled feed and keep the tool guided through the first turns.
5. Continue with steady torque and clear chips from the cutting area as needed.
6. Reverse to remove the tool, then clean the thread and the tool flutes.
7. Check the thread with the intended fastener or a suitable gauge and protect the part.

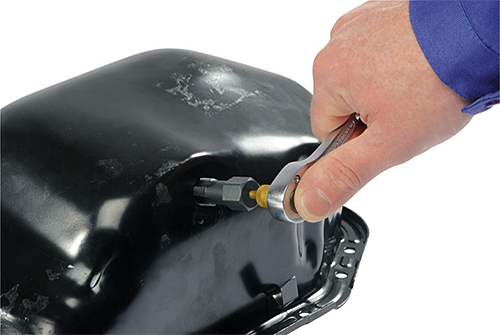

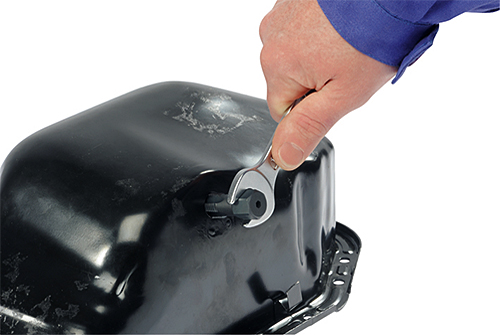

• sửa ren of defective or worn out ren xả dầu
• Recovery of rejected items
• for new highly stable and long-lasting ren trong

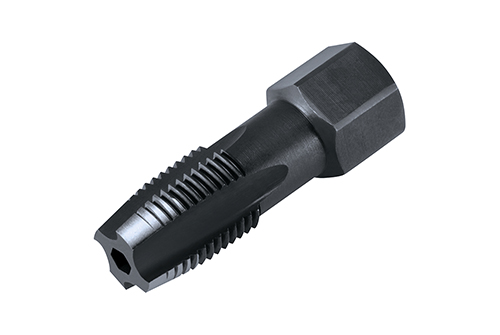

• with HexTap OS

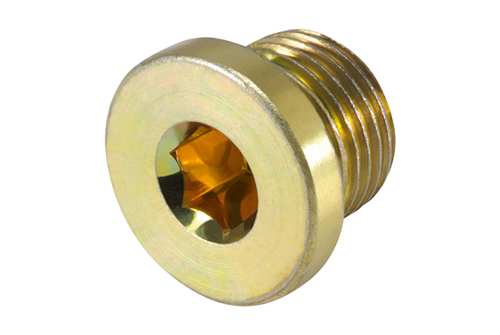

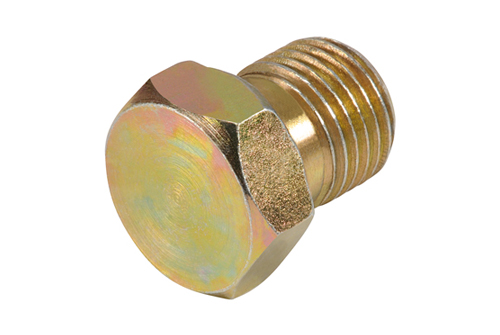

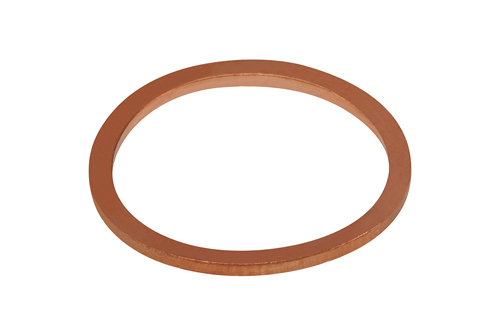

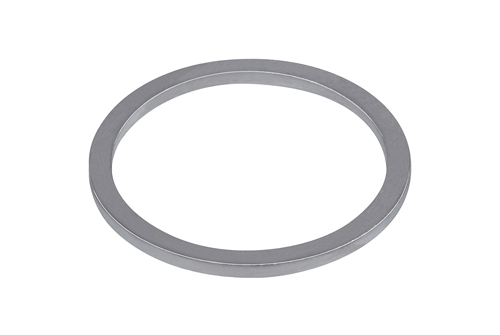

• with oil drain screws and retainer rings made from copper or aluminium
• available for M13x1.5 up to M24x.15

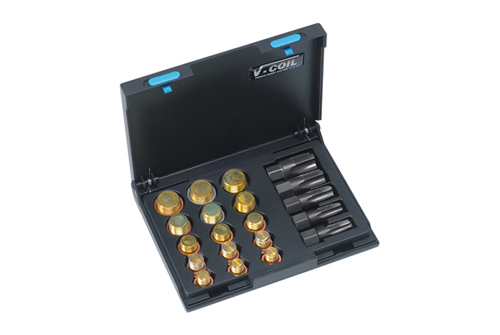

• assortment with the most popular dimensions in an attractive and functional case

Advantages:

• high stock availability
• higher load capacity after the repair by better thread properties
• temperature and corrosion resistance
• best price

Contents:

• 1x HexTap OS, Multi-Drive, HSS-G, M 13 x 1.5 VÖLKEL 19002
• 1x HexTap OS, Multi-Drive, HSS-G, M 15 x 1.5 VÖLKEL 19003
• 1x HexTap OS, Multi-Drive, HSS-G, M 17 x 1.5 VÖLKEL 19004
• 1x HexTap OS, Multi-Drive, HSS-G, M 20 x 1.5 VÖLKEL 19005
• 1x HexTap OS, Multi-Drive, HSS-G, M 24 x 1.5 VÖLKEL 19006

• Product type: Tool
• Thread designation: M

How do you select the correct thread designation for this product Match the thread designation in the product name to the mating fastener or component standard, then confirm that your workpiece material and process setup suit the tool type. If you work with mixed standards, separate your tooling by thread family to avoid mix ups. What holder or drive concept do you need Use a holder that clamps the tool concentrically and supports straight alignment to the workpiece axis. For manual work, choose a stable hand drive that lets you feel torque changes. For machine use, verify reverse capability and consistent feed. Which hole preparation checks matter most Prepare the entry edge, remove burrs, and keep the hole clean so the tool starts straight. In lỗ bít, confirm that there is enough depth for the tool lead and chip space. In lỗ thông, support chip evacuation out of the exit side. How do you reduce the risk of misalignment Start the tool with the axis visually aligned, then guide it through the first turns with low torque. Use stable workholding and avoid side load. If a thread feels tight early, remove the tool, clean chips, and inspect the entry. Can you use this in repair work Yes, for many workshop repairs you can use the tool to restore a usable thread when the base material is still intact. Clean damage first and avoid forcing, since distorted threads can increase torque and edge wear. For heavily stripped threads, a sửa ren insert system can be the better option. Where can you find the full VÖLKEL catalog section for this product family VD 23 catalog as PDF
