GO Ring gauges, 7-chiếc set in sturdy plastic case M 3 - M 12

Name: GO Ring gauges, 7-chiếc set in sturdy plastic case M 3 - M 12
Brand: VOLKEL
SKU: 16491
Price: 12232000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

GO Ring gauges, 7-chiếc set in sturdy plastic case M 3 - M 12 VÖLKEL, mã 16491, phù hợp cho kiểm tra độ chính xác của ren.

SKU: 16491

12.232.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

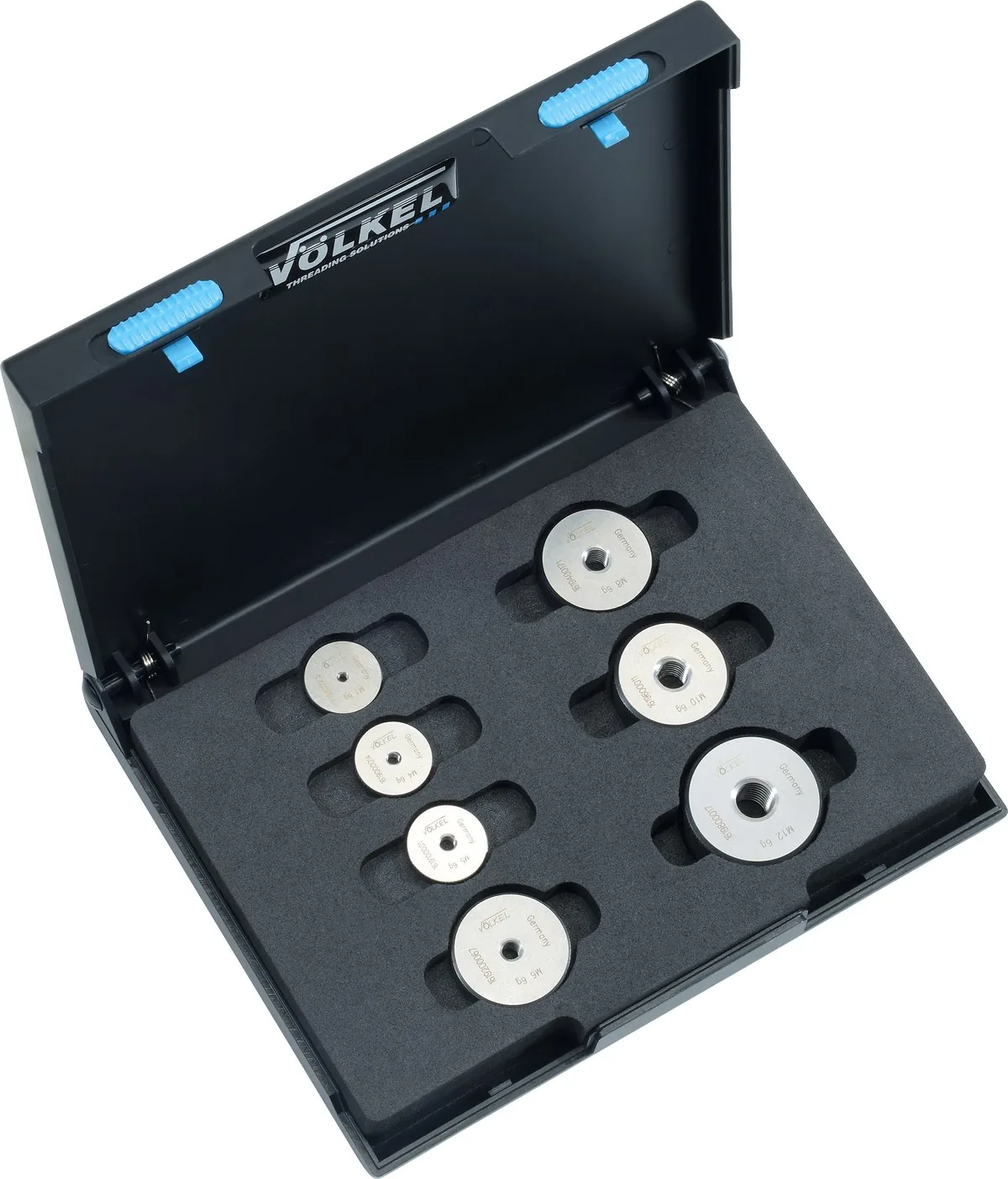

VÖLKEL GO Ring gauges, 7-chiếc set in sturdy plastic case M 3 - M 12

A GO Dưỡng kiểm ren ngoài is a precise measuring instrument for the quick and reliable inspection of ren ngoài. This 7-chiếc set in a sturdy plastic case provides you with the most common metric sizes from M3 to M12 to ensure the quality of your manufactured parts. The ring gauge must be able to be screwed over the entire length of the thread to confirm dimensional accuracy.

1x GO Ring gauge, metric M3 (16188)
1x GO Ring gauge, metric M4 (16190)
1x GO Ring gauge, metric M5 (16191)
1x GO Ring gauge, metric M6 (16192)
1x GO Ring gauge, metric M8 (16194)
1x GO Ring gauge, metric M10 (19196)
1x GO Ring gauge, metric M12 (19198)

Technical Data

Number of chiếc: 7-chiếc set
Thread type: ren hệ mét ISO DIN 13
Nominal size: M3 - M12
Packaging: Sturdy plastic case

Instructions for Use

Checking with the GO Dưỡng kiểm ren ngoài:
The GO Dưỡng kiểm ren ngoài must be possible to manually screw into the entire thread of the part (without using excessive force). If you are unable to do so, the thread does not meet the requested standards (=scrap).

Important note: The reference temperature for parts and gauges is 20° Celsius.

Câu hỏi thường gặp (FAQ)

Q: What is a GO Dưỡng kiểm ren ngoài?

A: A GO Dưỡng kiểm ren ngoài is a test tool designed specifically for checking ren ngoài (on bolts, screws, etc.) to ensure they are not too large and are within the specified tolerances.

Q: How does a GO ring gauge differ from a GO/NO-GO ring gauge?

A: A GO ring gauge by itself checks the maximum tolerance of the ren ngoài. In contrast, a separate NO-GO ring gauge would check the minimum tolerance. A thread is considered "good" if it fits into the GO ring gauge over its entire length and either does not fit into the NO-GO ring gauge at all, or only fits into the first 1-2 threads.

Q: What types of threads is this set suitable for?

A: This set is designed for ren hệ mét ISO according to DIN 13 from M3 to M12. It is a universal tool for quality control in many applications.

Q: What does the reference temperature of 20° Celsius mean?

A: The 20°C reference temperature is the standard at which all threads and gauges are calibrated and tested. Temperature differences can cause the material to expand or contract, which would distort the measurement result.

Q: How should I best store the ring gauges?

A: The ring gauges should be stored in their supplied plastic case in a dry, clean, and dust-free place. This protects them from corrosion and damage, ensuring their precision and longevity.
