Bộ sửa ren, 36 x 1,5 - 1,5D

• Repair one specified ren trong size with a matched service kit for workshop and field use.
• Restore threads in housings, covers, and machine parts instead of replacing the whole component.
• Support maintenance, installation, and small batch rework with a ready to use insert system.
• Use where durable ren trong function is required after damage, wear, or pull out.

Lưu ý Check that the repair size in the kit matches the original thread designation before drilling and STI tapping.

• Matched repair components reduce setup effort for the specified thread size.
• Practical for maintenance and service jobs where speed and completeness matter.
• Restores thread function while keeping the original fastening size in service.
• Portable kit format helps storage and jobsite handling.

• The kit is limited to the single thread size and insert length stated in the product name.
• It is aimed at professional repair steps rather than casual use without thread preparation knowledge.

1. Confirm that the damaged thread matches the kit designation shown in the product name.
2. Prepare the hole for the repair sequence and keep the drilling axis aligned to the original thread position.
3. Cut the required STI mounting thread with the tap from the repair system.
4. Clean the threaded hole thoroughly so the insert can seat without obstruction.
5. Install the Ren cấy V-COIL with the matching tool from the kit until the seating position is correct.
6. Finish the insert according to the system method and verify the fit with the intended mating fastener.

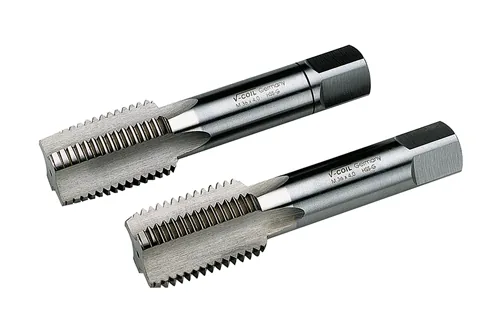

• 1x STI-Taps, set of 2 pcs., HSS-G, 36 x 1.5 VÖLKEL 03063
• 10x Ren cấy V-COIL - type S - free running M 36 x 1.5 – 1.5
• 1x Dụng cụ lắp ren cấy with Hexagon Drive, 36 x 1.5 VÖLKEL 08037

• Product type: sửa ren kit
• Insert length: 1,5D
• Standard: DIN 8140
• Included groups: installation tools and Ren cấy V-COIL
