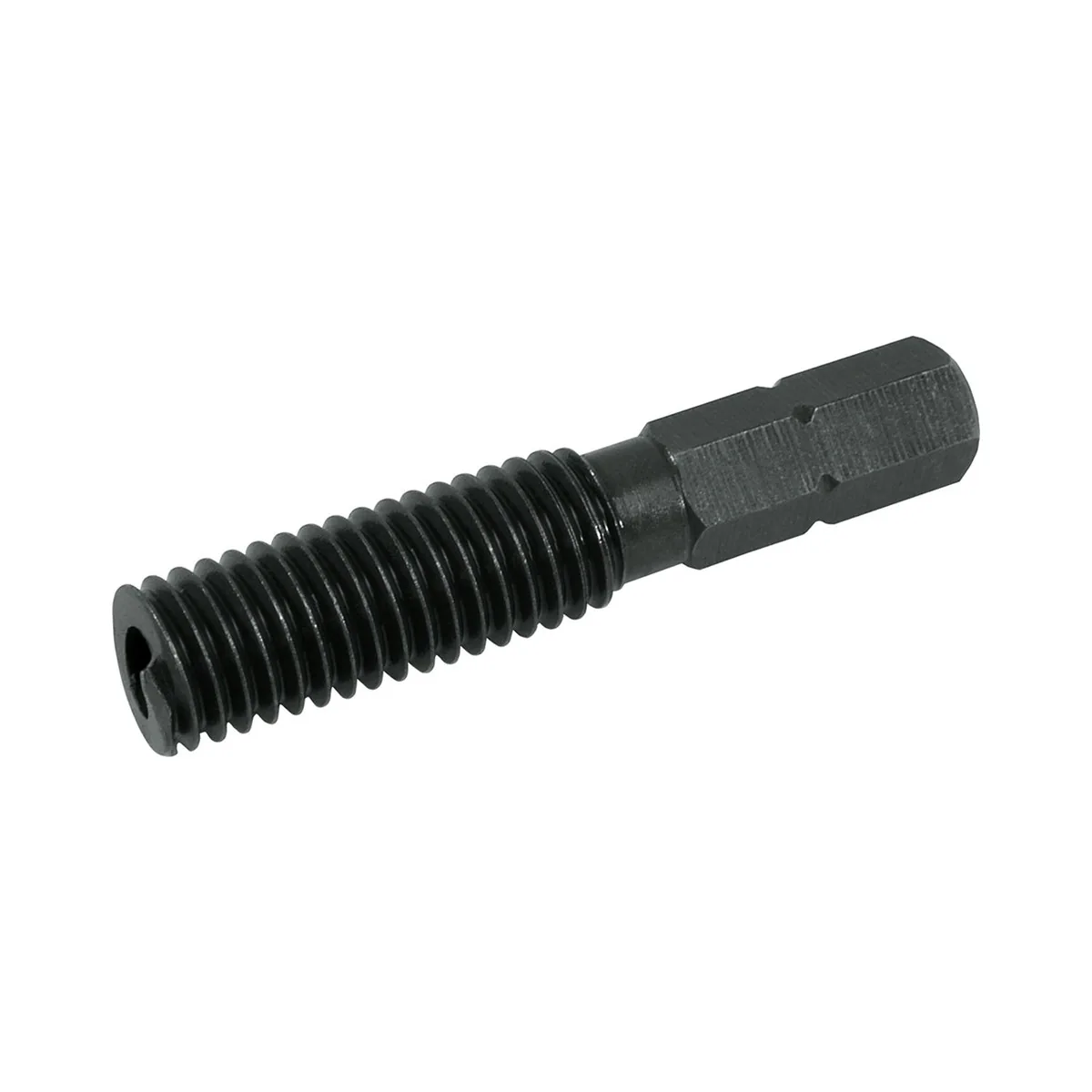

V-COIL Inserting Tool (Drive connector 1/4") UNC 1/4

Name: V-COIL Inserting Tool (Drive connector 1/4") UNC 1/4
Brand: VOLKEL
SKU: 08195
Price: 214400.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

V-COIL Inserting Tool (Drive connector 1/4") UNC 1/4 by VÖLKEL, item no. 08195, suitable for thread repair and insert installation.

SKU: 08195

214.400 đ

Stock status: Hết hàng

Price includes VAT

Description

V-COIL Inserting Tool (Drive connector 1/4"), UNC 1/4

The V-COIL Inserting Tool UNC 1/4 enables fast, controlled, and reliable installation of wire thread inserts. Thanks to the 1/4" square drive connector, it can be used with a ratchet, cordless screwdriver, or torque wrench – ideal for workshops, assembly, and industrial applications.

Application Range

For wire thread inserts size UNC 1/4
Ideal for repair, mechanical engineering, automotive, and metalworking
Suitable for aluminium, steel, cast iron and technical plastics
Compatible with V-COIL and equivalent systems

Usage

Installation steps:

Drill the core hole, cut the thread and clean thoroughly.
Fully screw the insert onto the inserting tool.
Align straight with the thread entrance.
Install the insert carefully and pull off the tool.

Step-by-step Instructions

Prepare the core hole: Drill, cut thread, clean.
Mount the insert: Place the wire thread insert onto the tool.
Align: Position vertically at the thread entrance.
Install: Turn evenly without tilting.
Check: Ensure correct seating and remove tool.

Technical Data

Size: UNC 1/4
Drive Connector: 1/4" square
Material: High-strength precision steel
Compatible with: V-COIL & equivalent systems
Article Number: 08195
EAN: 4022835081951

Frequently Asked Questions (FAQ)

1. Which thread type is this tool suitable for?

This tool is specifically designed for wire thread inserts size UNC 1/4.

2. Can I use the tool with a cordless screwdriver?

Yes, but only at low speed. For maximum precision, a ratchet or torque wrench is recommended.

3. What if the insert is difficult to screw onto the tool?

Usually the wire insert is slightly deformed. Replace it with a new one.

4. How do I know if the insert is correctly positioned?

The insert must engage cleanly with the driver and screw on evenly without tilting.

5. Is the tool suitable for deep installation areas?

Yes, as long as the wire thread insert has the appropriate length.

6. Can I use this UNC 1/4 tool with metric inserts?

No, UNC and metric inserts differ in pitch and geometry.

7. How should I maintain the tool?

Clean after use, lightly oil, and store in a dry place to prevent corrosion.

8. What if the insert is installed crooked?

Remove the tool, discard the insert, and restart with proper thread preparation.

Scope of Delivery

1× V-COIL Inserting Tool, 1/4", UNC 1/4 (Art.-No. 08195)

Questions or need an offer?
Use the contact form.

Specifications

Standard	Works Standard
Size	UNC 1/4
Drive connector	1/4"
EAN	4022835081951
Item number	08195
Application	UNC 1/4
