Thread Repair Kits, 22 x 2,5 - 1,5D

This thread repair kit is a versatile tool for:

• Thread Repair: Restoration of damaged or worn threads. Instead of replacing expensive components, you can repair the thread quickly and efficiently.
• Thread Reinforcement: Ideal for reinforcing threads in materials with low shear strength (e.g., aluminum, magnesium alloys, plastics, or cast iron). The insert made of high-strength, stainless steel creates a significantly more stable and wear-free thread.
• Scrap Recovery: You can correct incorrectly drilled or cut threads and thus save rejected parts.
• New High-Strength and Durable Threads: The result is threads that are often stronger and more resilient than the original thread in the base material.
• Ideal for Maintenance, Assembly, and Small Batch Production: Due to its versatility and ease of use, the kit is perfect for daily use in the workshop.

• Complete Solution: The kit contains all necessary tools for thread repair in one case: STI tap, thread inserts, and hand installation tool.
• Flexible Readiness for Use: Especially for common and even marginal dimensions like M22x2.5. High stock availability for standard and marginal dimensions.
• Optimized for Manual Use: The included tools are designed for manual repair, offering you flexibility and independence from machines.
• Higher Thread Load Capacity: After repair, threads are often stronger and more resistant to wear, corrosion, and temperature, thanks to the properties of the stainless steel thread inserts.
• Corrosion and Temperature Resistance: The stainless steel thread inserts provide excellent protection in demanding environments.
• Favorable Price & Appealing Functional Packaging: A cost-effective solution in a robust metal case for organization and protection.

The kit for the dimension M 22 x 2.5 (coarse thread) and an insert length of 1.5 D (1.5 times nominal diameter) contains the essential components:

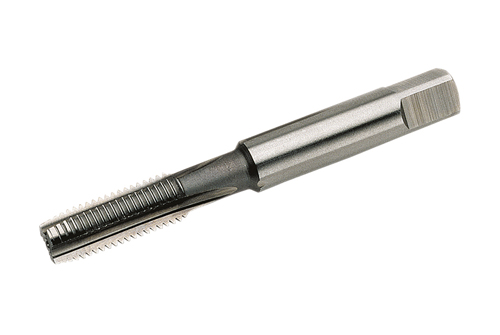

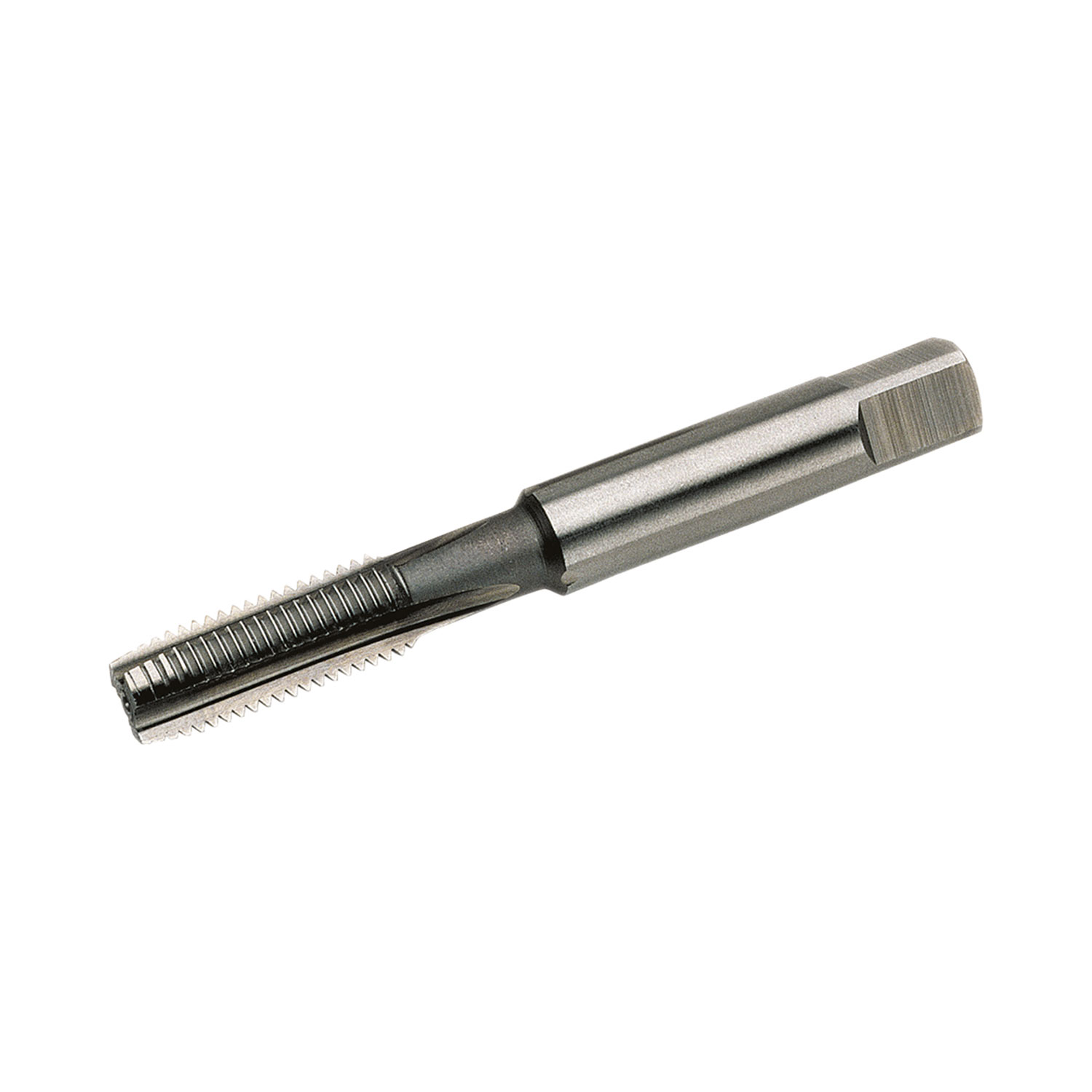

• 1x STI Single Cut Tap, Form D, HSS-G, M 22 x 2.5 (VÖLKEL 03041):
  • This is the special tap (Screw Thread Insert) that cuts the receiving thread (also called STI thread) for the thread insert. It has a larger dimension and a specific geometry compared to a standard M22 tap.
  • Form D: Typically a spiral flute (often approx. 45-50° helix) for efficient chip removal to the rear (ideal for blind holes, but also usable in through holes).
  • HSS-G: Made of ground high-speed steel for sharp cutting edges and precise threads.

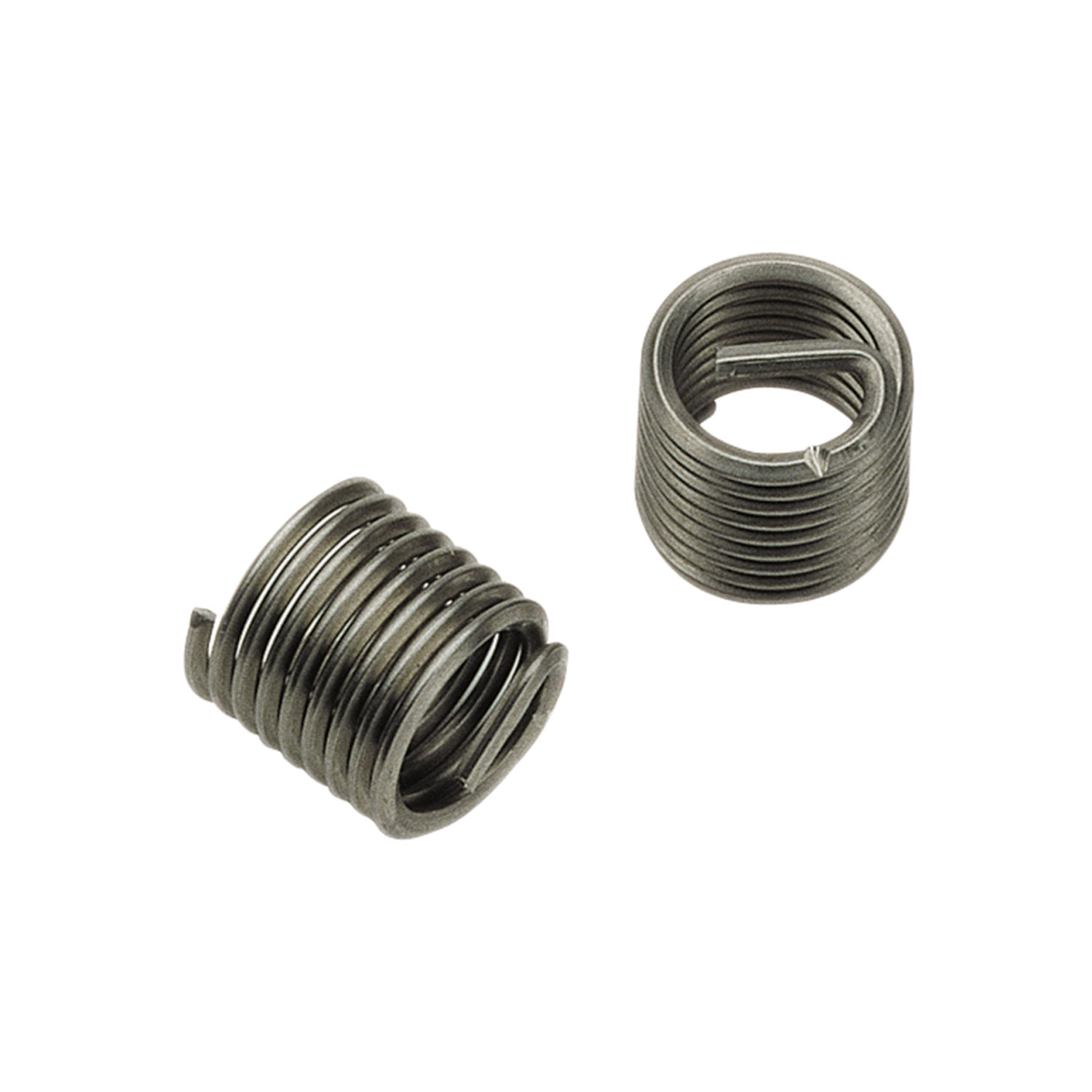

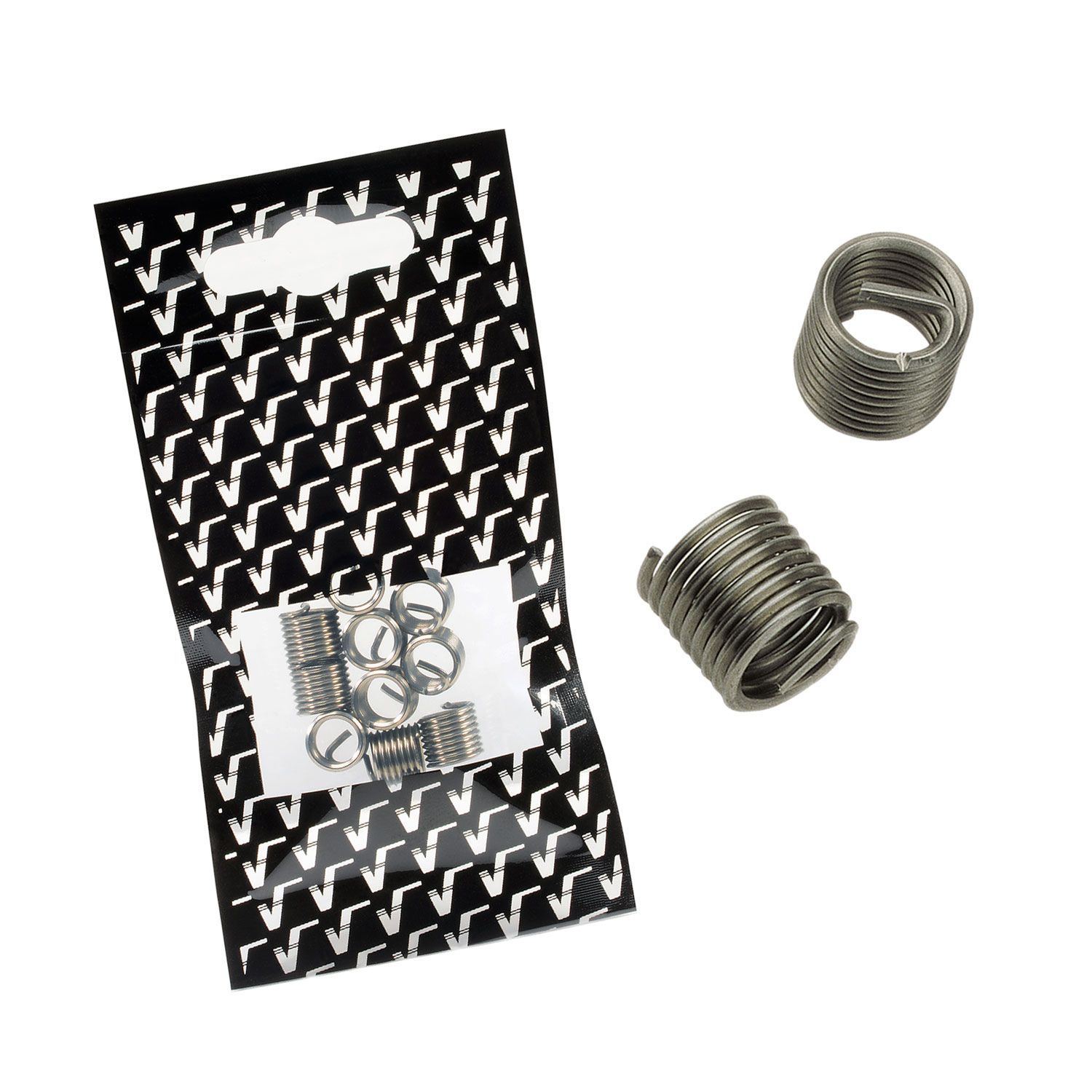

• 5x Thread Inserts - Type S - free running M 22 x 2.5 – 1.5 D:
  • These helical inserts made of stainless steel form the new, high-strength internal thread M 22 x 2.5.
  • Type S ("free running"): Means that the thread within the insert runs smoothly and does not have any thread-locking elements (as in Type SL).
  • 1.5 D: The length of the thread insert is 1.5 times the nominal diameter (1.5 x 22 mm = 33 mm). This is a common length that ensures high load-bearing capacity of the thread.
  • DIN 8140, Tolerance ISO 2 (6H): The inserts comply with standards for metric threads (6H for the internal thread in the insert) and the inserts themselves.

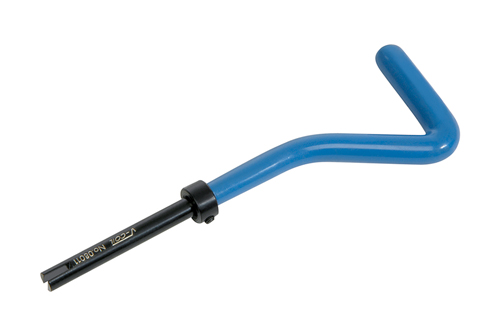

• 1x Hand Installation Tool with Locking Ring, No. 22 (VÖLKEL 08022):
  • The special tool for precise and controlled manual screwing in of thread inserts.
  • The locking ring allows setting the installation depth to ensure the thread insert sits flush or slightly below the workpiece surface.
  • No. 22: The size of the installation tool is matched to M 22 x 2.5 thread inserts.

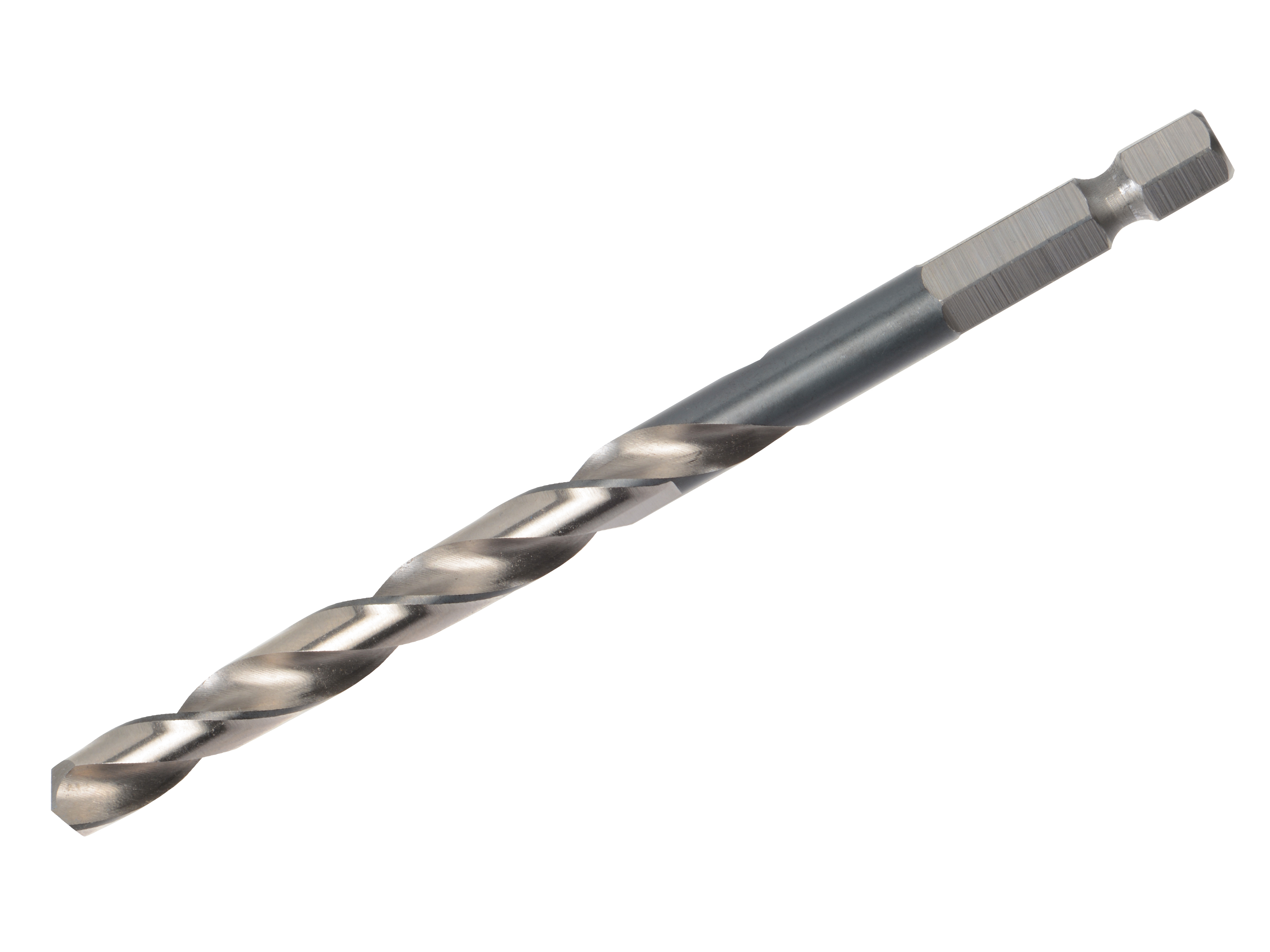

1. Drilling Out: The damaged thread is drilled out to the core hole dimension required for the STI thread using a special spiral drill bit (not included in the kit, as the focus is on thread cutting).
2. Thread Cutting: With the included STI single cut tap, the larger STI receiving thread is cut into the drilled hole.
3. Inserting: The thread insert is precisely screwed into the newly cut STI thread using the hand installation tool.
4. Tang Breaking: The driving tang of the thread insert (the small hook that the installation tool engages with) is broken off after installation with a tang break tool (not included in the kit, but available as a separate tool).
5. Finished: The new, high-strength thread in original size is ready for use.

This kit is an investment in the longevity of your components and the efficiency of your repair processes.
