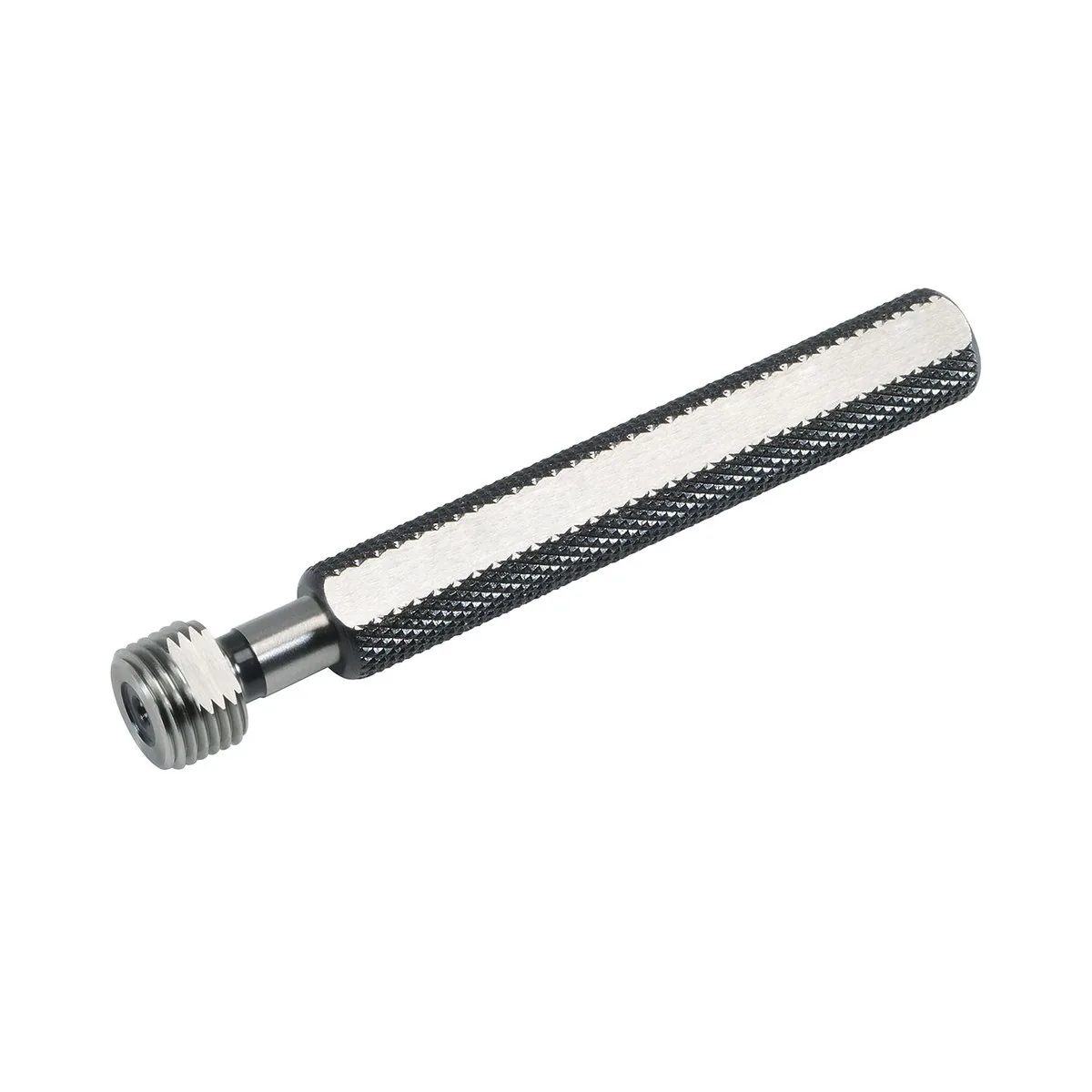

Precision Thread Plug Gauge - NPT 1/8 x 27 by VÖLKEL, item no. 16136, suitable for thread inspection and quality control.
The VÖLKEL Precision Thread Plug Gauge is a combined GO and NO-GO plug gauge for NPT 1/8 x 27 female threads. It provides reliable thread verification in line with international standards.
The reference temperature for parts and gauges is 20° Celsius. On request, VÖLKEL will issue a factory calibration certificate (price on request). Calibration is performed in an independent measurement laboratory using IAC thread scanners to the applicable specifications and standards (DIN, ISO, ANSI). ➜ Watch the video: Plug gauge – application
Use the GO side to confirm dimensional conformity; the NO-GO side must not fully engage. This ensures fit and function per drawing and standard.
Calibration is performed in a measurement laboratory separate from VÖLKEL using IAC thread scanners, following the defined specifications and standards (DIN, ISO, ANSI) for the respective specimen. A factory calibration certificate can be issued upon request.
Q1: What does GO and NO-GO mean?
A: GO verifies that the thread is within tolerance; NO-GO ensures the upper tolerance is not exceeded (must not fully engage).
Q2: Why 20 °C reference temperature?
A: Dimensions vary with temperature. 20 °C ensures comparable, standards-compliant results.
Q3: Can I use tools to drive the gauge?
A: No. Always insert by hand to avoid damage and false results.
Q4: Both GO and NO-GO engage fully—what now?
A: The thread is oversize/out of tolerance. Quarantine the part and rework or recheck.
Q5: How often should I calibrate?
A: Typically annually or condition-based when deviations occur.
Q6: NPT vs. NPTF—what’s the difference?
A: NPT typically needs sealant; NPTF is a dryseal design and may seal without additional sealant. Follow drawing/standard.
Got questions about the plug gauge or need advice on inspection tools? Reach out via our contact form.
.accordion-container { margin-top: 20px; border: 1px solid #e0e0e0; border-radius: 5px; overflow: hidden; } .accordion-item { margin-bottom: 0; border-bottom: 1px solid #eee; } .accordion-item:last-child { border-bottom: none; } .accordion-header { padding: 15px 20px; background-color: #f8f8f8; cursor: pointer; display: flex; align-items: center; justify-content: space-between; font-weight: 600; color: #333; transition: background-color 0.2s ease; } .accordion-header h3 { margin: 0; font-size: 1.1em; color: inherit; } .accordion-header::marker, .accordion-header::-webkit-details-marker { display: none; } .accordion-header::after { content: '\25BC'; font-size: 0.8em; transition: transform 0.2s ease; margin-left: 10px; } details[open] > summary.accordion-header::after { transform: rotate(-180deg); } .accordion-header:hover { background-color: #f0f0f0; } .accordion-content { padding: 15px 20px; background-color: #ffffff; line-height: 1.6; color: #555; } .accordion-content p, .accordion-content ul, .accordion-content ol { margin-bottom: 10px; } .accordion-content p:last-child, .accordion-content ul:last-child, .accordion-content ol:last-child { margin-bottom: 0; } .accordion-content a { color: var(--primary-color, #007bff); text-decoration: none; } .accordion-content a:hover { text-decoration: underline; }
| Type of thread | american tapered pipe thread, taper 1:16 |
|---|---|
| Standard | ANSI /ASME B 1.20.1 |
| Size | NPT 1/8 x 27 |
| Item number | 16136 |
| Gauge dimension | ANSI /ASME B 1.20.1 |
| Thread standard | ANSI B1.20.1 |
