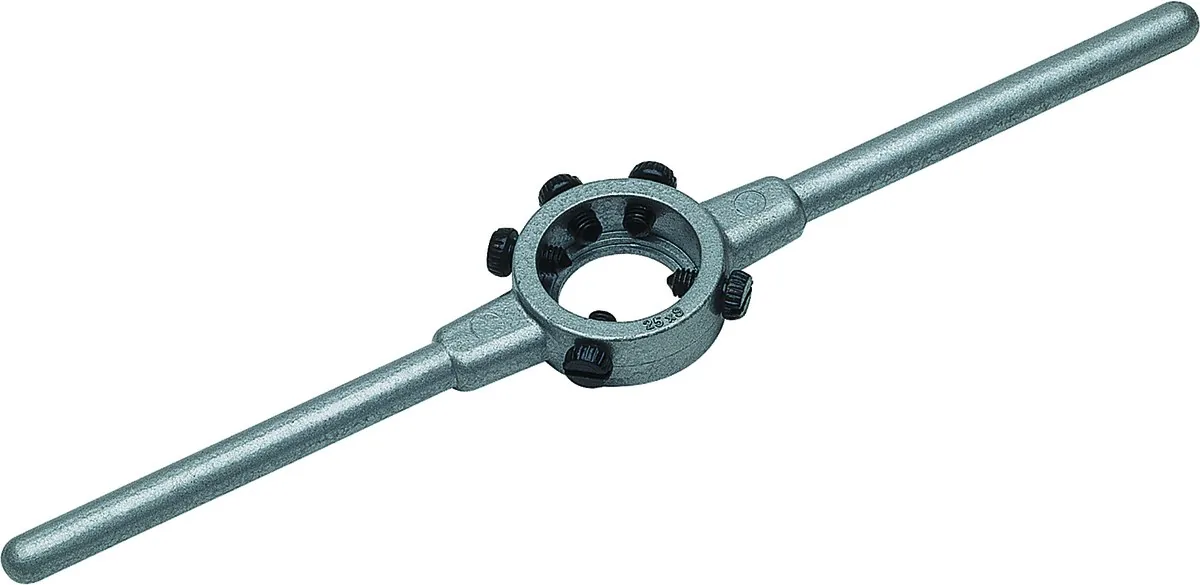

Die Stock Holder Zinc Die-Cast 20 x 5 mm (5 Pieces)

Name: Die Stock Holder Zinc Die-Cast 20 x 5 mm (5 Pieces)
Brand: VOLKEL
SKU: 15002
Price: 152000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews)

Sold: 0

Imported from: Germany

Origin: Made in Germany

Die Stock Holder Zinc Die-Cast 20 x 5 mm (5 Pieces) by VÖLKEL, item no. 15002, suitable for holding and driving taps or dies by hand.

SKU: 15002

152.000 đ

Price includes VAT

Description

Die Stock Holder Zinc Die-Cast 20 x 5 mm (5 Pieces)

You select this die stock when round dies need a simple holder for external thread work and repair. It supports clamping, alignment, and manual feed during the threading operation rather than performing the cut itself. The stated holder size helps you match it to the die body before setup.

The M designation identifies metric ISO threads that are standard across general engineering, maintenance, and machine building. Zinc die cast construction keeps the holder body practical and light for manual handling.

Application

Clamp a round die securely so you can guide an external thread operation with controlled manual feed.
Support alignment at the thread start when you are cutting a new external thread or reworking an existing one.
Use in workshop repair, maintenance, and fabrication where manual die handling must remain stable.
Keep the die secured by the clamp screws so the holder and die act as one assembly during use.

Note Confirm that the die outside diameter and thickness match the holder size before you clamp the die.

Benefits

Clamps the round die securely for more controlled manual handling.
Supports a square thread start when you align the holder correctly.
Simple construction is easy to clean and keep ready for workshop use.
Suitable for external thread cutting and thread chasing with matching round dies.

Drawbacks

The holder only fits round dies that match the stated holder size.
It is intended for manual handling, not for improvised high speed powered use.

Step by step

Clean the holder and the round die seating area before assembly.
Insert the round die into the holder with the lead side oriented for the intended cut direction.
Tighten the clamp screws evenly so the die sits securely in the central body.
Place the holder square to the workpiece and start the die carefully on the prepared rod or thread end.
Guide the holder with steady torque so the die advances without tilting.
Remove the die after the pass, clean the holder, and protect the clamping surfaces for the next job.

Scope of supply

1 piece Die Stock Zinc die cast 20 x 5 mm

Technical features

Product type: Die stock
Holder size: 20 x 5 mm
Construction: Zinc die cast
Intended tool: Round dies

Frequently asked questions (FAQ)

How do you choose the correct die stock?

Match the holder size stated in the product name to the outside diameter and thickness of the round die you plan to clamp.

Can you use this holder for new threads and for thread repair?

Yes. A die stock is used both for cutting new external threads and for chasing or restoring existing ones when a matching round die is installed.

Why does square alignment matter so much?

If the die starts tilted, the external thread can cut unevenly and the holder will be harder to control throughout the pass.

Where can you read more about round dies and external thread cutting?

Technical information round dies as PDF

What should you check after clamping the die?

Check that the die sits flat, the lead side faces the intended start direction, and the clamp screws hold it securely without movement.

Where can you find the full threading tools catalog?

VD 23 catalog as PDF

Is this a powered production holder?

No. This style is intended for controlled manual handling rather than improvised high speed power use.

Do you need help selecting or using the product?
Use the contact form.
