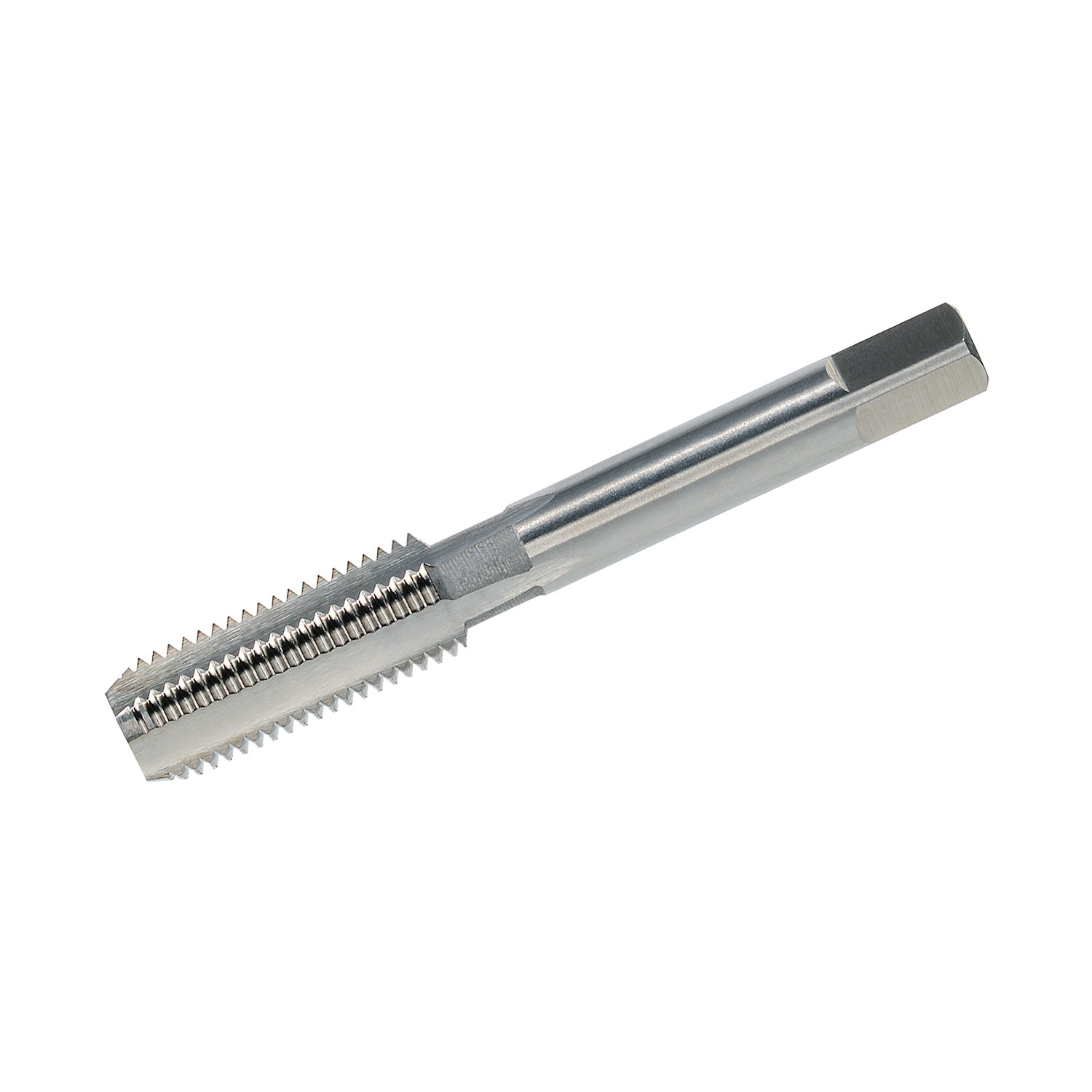

Hand Tap set of 2 pieces DIN 2181 HSS-G - M 5 x 0.5

• Cutting of internal threads in steels and common engineering materials within the limits of the chosen execution
• Use for series work, repair tasks, and general machining in mechanical engineering and metal fabrication
• Suitable for through holes and blind holes depending on the geometry stated in the product name
• Use with a suitable tap wrench to guide the tool straight and to control torque by hand
• Process: manual driving or assisted driving depending on your holder and machine setup
• Use: thread cutting, re tapping, and thread cleaning depending on condition

Note Keep the tool clean and lightly oiled after use to prevent corrosion and to protect cutting edges.

• Defined cutting geometry supports predictable thread form
• Clear variant identification via standard and form in the product name
• Suitable for workshop and series processes when lubrication and alignment are controlled
• Supports rework and maintenance tasks without changing the workpiece design

• Tool life can drop in very hard or abrasive materials if the selected execution is not matched to the application
• Not suitable for high performance applications when process parameters are not optimised

1. Confirm the thread designation, standard, and execution in the product name against your drawing and material specification.
2. Prepare the pre hole and entry chamfer according to your process specification and remove burrs from the opening.
3. Mount the tap in a suitable tap wrench and secure the clamping so the tool cannot slip under load.
4. Apply a suitable cutting lubricant or coolant for the workpiece material and ensure the entry area is wet.
5. Start the cut with the tool aligned to the hole axis and keep the alignment stable through the first turns or revolutions.
6. Continue the pass while monitoring torque and remove the tool if chips accumulate and increase cutting resistance.
7. Retract the tool, clean chips from the flutes, and inspect the thread before the part moves to the next operation.

• 1 set, consisting of 2 pieces, as stated in the product name

• Type: Hand tap
• Standard: DIN 2181
• Thread system: ISO metric
• Tool material: HSS-G
• Surface finish: Ground
• Tolerance class: ISO metric internal thread tolerance 6H

How do you choose the correct variant for your thread and workpiece?

You match the thread designation, standard, and geometry in the product name to your drawing and hole type. You also consider the workpiece material and whether the hole is through or blind, because these factors influence chip transport and torque.

Which holder type do you typically use with this tap?

You use a tap wrench that clamps the square drive securely and lets you keep the axis straight. In tight spaces you may also use a compact wrench as long as it supports stable guidance.

How do you reduce the risk of broken taps and damaged threads?

You keep the tool aligned, use a suitable lubricant, and monitor torque so you can stop before overload. You also remove chips from the flutes and avoid starting on burrs or hard scale.

Where can you find detailed guidance for manual tapping?

Use the PDF for consolidated notes on selection and handling. Technical information hand taps as PDF

Do you need cutting lubricant or coolant for this tap?

Yes, you use a lubricant or coolant matched to the workpiece material to reduce friction and to control heat. Stable lubrication also helps keep thread flank quality consistent.

How do you maintain and store the tap after use?

You clean chips from the flutes, dry the tool, and apply a light corrosion protection film. You store it so cutting edges are protected from contact and impact.

Where can you find additional technical data and the full range?

Use the catalog for overview tables and selection guidance. VD 23 catalog as PDF
