Sanitary Set - G 1/4 - 3/4" - Taps + Hexagon Die Nuts

Application:

• Recutting and cleaning damaged BSP (G) threads
• Ideal for typical sanitary installations
• Suitable for maintenance, repair and assembly work
• Hexagon die nuts according to DIN 382 made of HSS
• Short machine taps according to DIN 5157, Form D, HSS-G

Advantages:

• Practical set with the most common sanitary thread sizes
• No special holding tools required
• Clean and precise thread results
• Includes cutting gel for improved cutting performance
• Compact and functional storage

1. Identify the thread:
   Determine the BSP thread size (e.g. G 1/2 × 14) and select the matching tap or hexagon die nut from the set.
2. Prepare the workpiece:
   Clean the existing thread and surrounding area from dirt, corrosion or residues to ensure proper alignment.
3. Apply cutting gel:
   Apply the included cutting gel to the tool and the thread to reduce friction and improve cutting quality.
4. Recut or clean the thread:
   Carefully guide the tap or die nut straight into the thread and turn evenly using suitable hand tools.
5. Remove the tool:
   Unscrew the tool completely after reaching the required depth and clean the thread from residues.
6. Final inspection:
   Check the thread using a suitable fitting. The thread should run smoothly and seat correctly.

• Thread type: G (BSP)
• Thread range: G 1/4 – G 3/4
• Material: HSS / HSS-G
• Die nuts: DIN 382
• Taps: DIN 5157, Form D
• Application: Hand use
• Article number: 48650
• EAN: 4022835486503

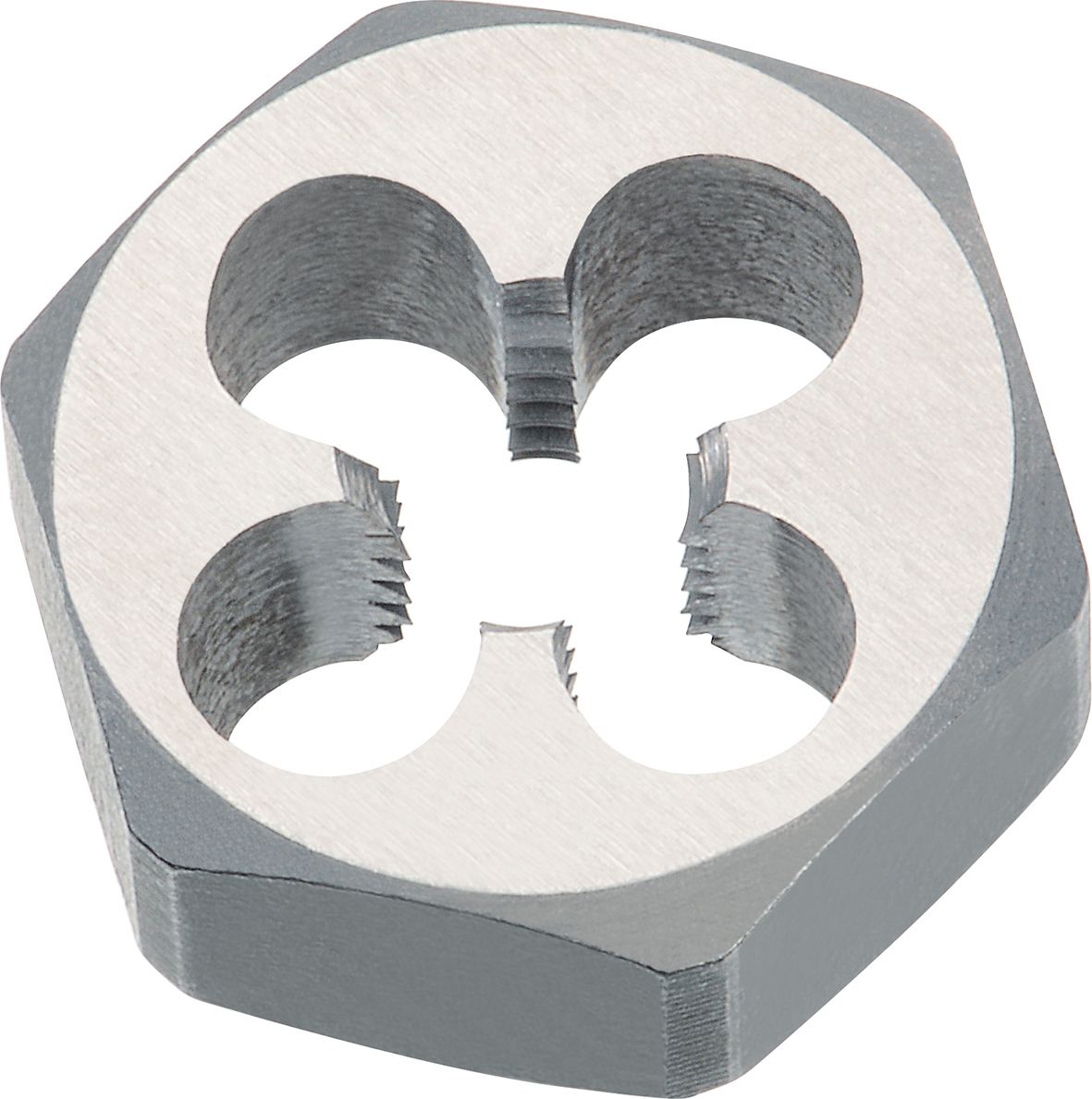

• Hexagon Die Nut DIN 382 HSS G (BSP) 1/4 × 19 (25514)
• Hexagon Die Nut DIN 382 HSS G (BSP) 3/8 × 19 (25516)
• Hexagon Die Nut DIN 382 HSS G (BSP) 1/2 × 14 (25518)
• Hexagon Die Nut DIN 382 HSS G (BSP) 3/4 × 14 (25522)

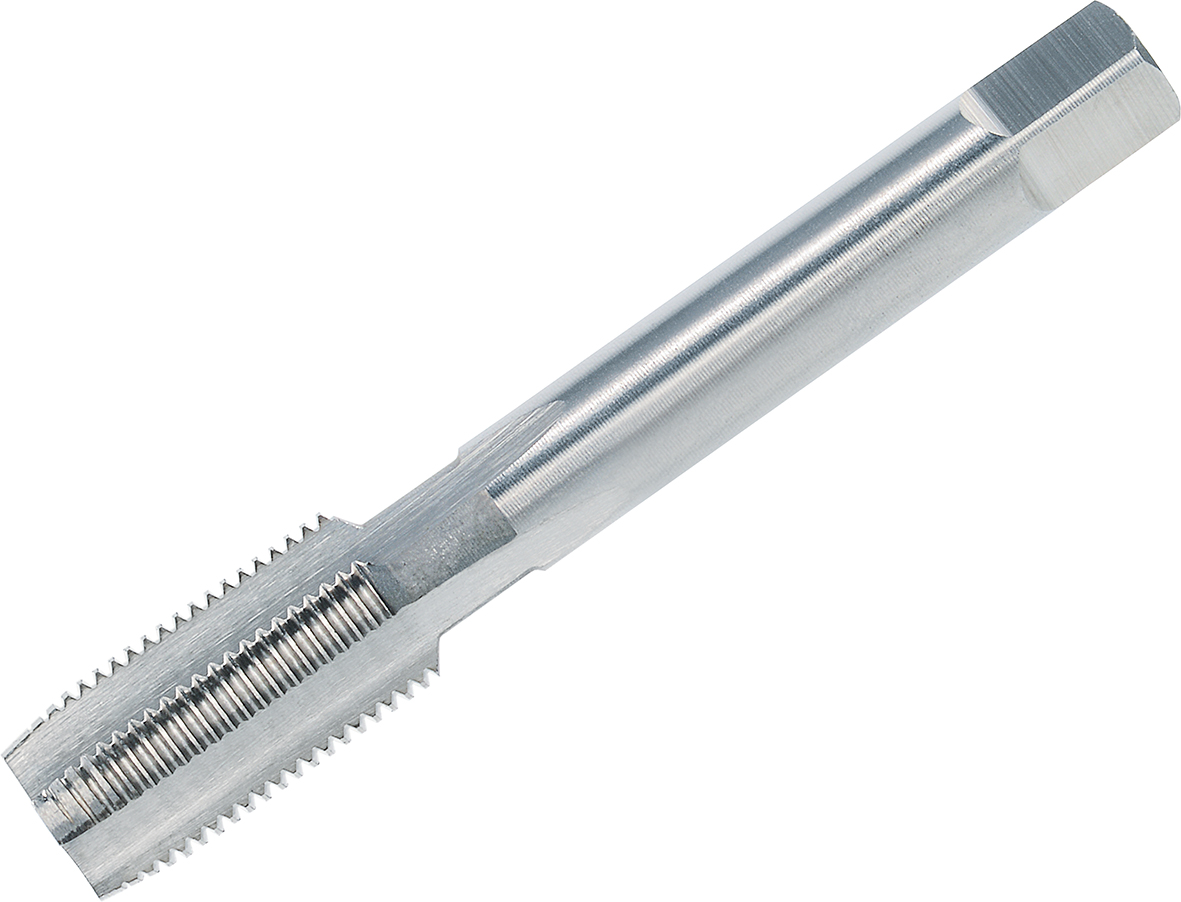

• Short Machine Tap DIN 5157 Form D HSS-G G (BSP) 1/4 × 19 (65314)
• Short Machine Tap DIN 5157 Form D HSS-G G (BSP) 3/8 × 19 (65316)
• Short Machine Tap DIN 5157 Form D HSS-G G (BSP) 1/2 × 14 (65318)
• Short Machine Tap DIN 5157 Form D HSS-G G (BSP) 3/4 × 14 (65322)

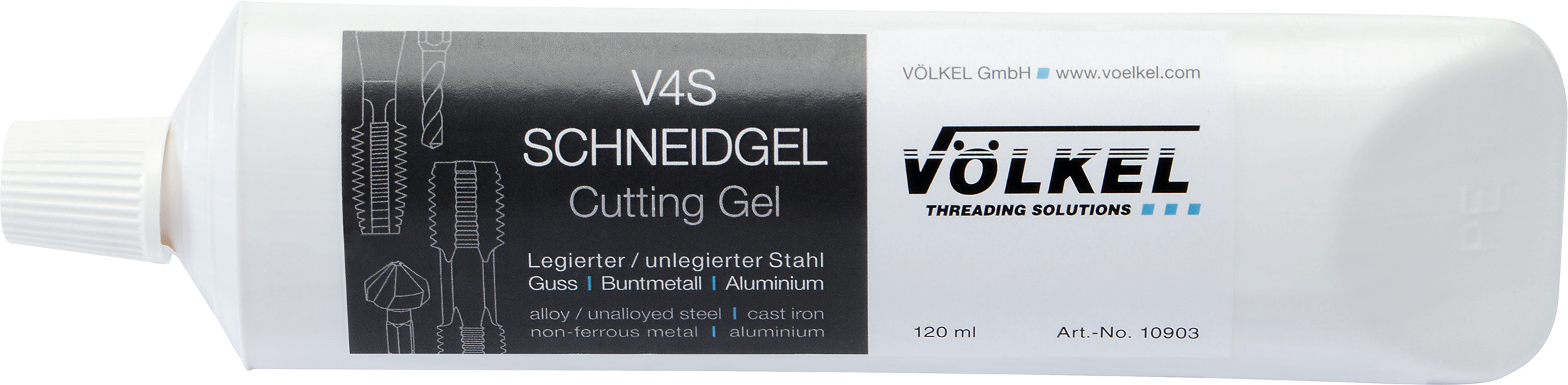

• Cutting Gel V4S, 120 ml (10903)

Is the set suitable for BSP threads only?
Yes, the set is specifically designed for G (BSP) threads. It is optimised for the most common sanitary thread sizes.

Can the tools be used in confined spaces?
Yes, the short taps and hexagon die nuts allow controlled work even in limited installation spaces.

Do I need special holders?
No, the tools can be operated with standard hand tools such as spanners or tap wrenches.

Does the cutting gel have to be used?
Using cutting gel is recommended to improve cutting quality and reduce tool wear, especially in steel fittings.

Are replacement tools available?
Yes, all taps, die nuts and accessories included in the set can be ordered individually.
