Sanitary Set - G 1/4 - 3/4" - HexTap + Hexagon Die Nuts

• for general sanitary and installation applications
• for cleaning and rethreading damaged pipe threads
• practical set with the most common sizes used in the sanitary sector
• suitable for maintenance, repair and installation work

Key advantages:

• HexTap DS double-ended design for high efficiency
• Multi-Drive design for flexible use with standard hand tools
• Hexagon die nuts according to DIN 382
• no special holders required
• HSS / HSS-G quality for long tool life
• cutting gel included for clean cutting results

1. Identify the thread:
   Determine the pipe thread size (e.g. G 1/2 or G 3/4) and select the matching tool from the set.
2. Prepare the work area:
   Clean the existing thread from dirt, deposits or corrosion to ensure proper tool guidance.
3. Apply cutting gel:
   Apply the supplied cutting gel evenly to the tool and the thread to reduce friction and improve surface quality.
4. Align the tool:
   Position the HexTap DS or hexagon die nut straight onto the thread and ensure correct alignment.
5. Rethread or clean:
   Turn the tool evenly using a ratchet, wrench or open-end spanner. Work in a controlled manner without tilting.
6. Remove the tool:
   Unscrew the tool completely after machining and clean the thread from residues.
7. Check the result:
   Test the thread with a suitable fitting or pipe connection to ensure smooth and accurate engagement.

• Thread type: Pipe thread G (BSP)
• Thread range: G 1/4 – G 3/4
• Taps: HexTap type DS, form C
• Die nuts: Hexagon, DIN 382
• Material: HSS / HSS-G
• Item number: 48651
• EAN: 4022835486510

Included:

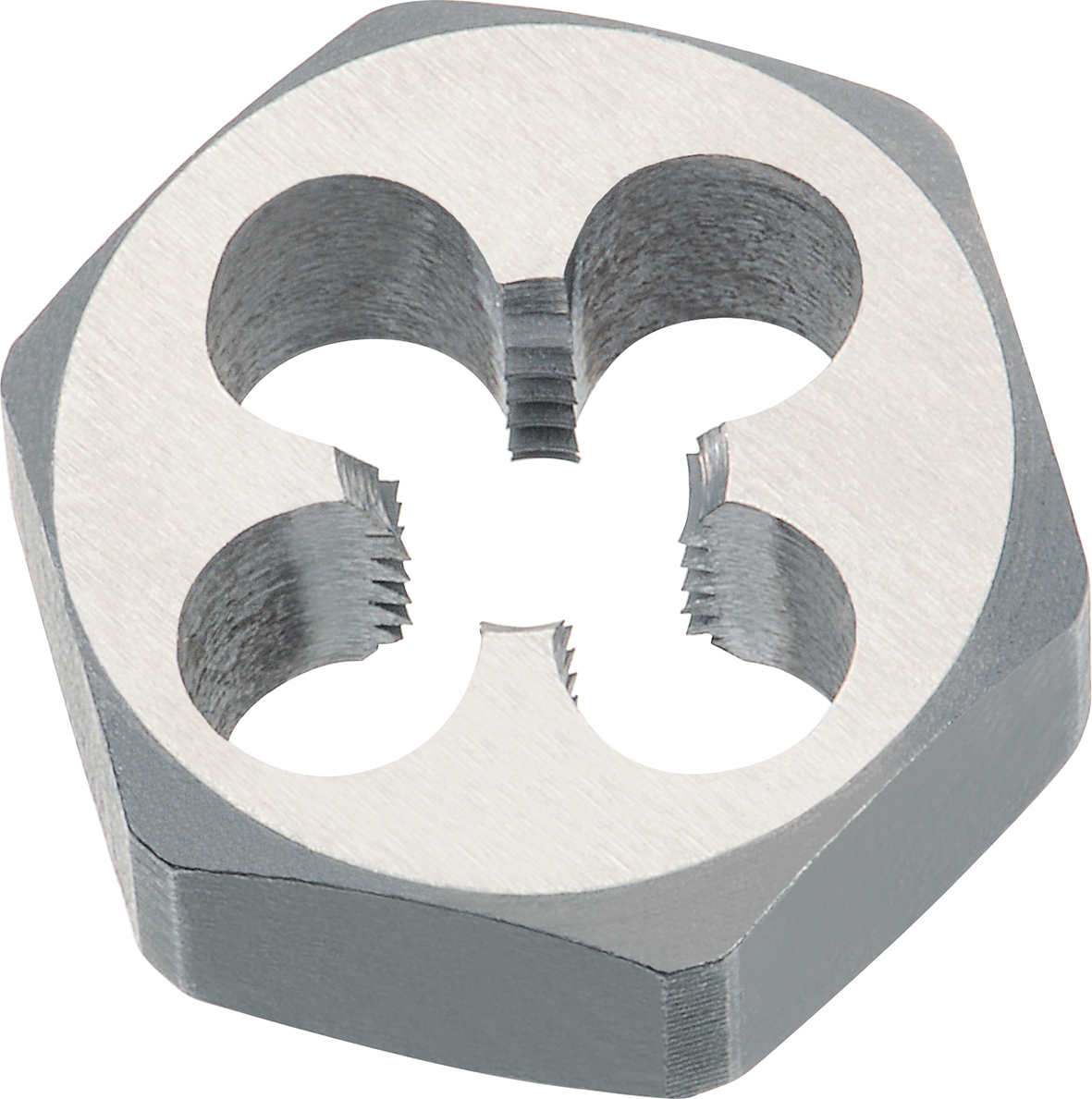

• 1× Hexagon die nut DIN 382 HSS – G 1/4 × 19 (25514)
• 1× Hexagon die nut DIN 382 HSS – G 3/8 × 19 (25516)
• 1× Hexagon die nut DIN 382 HSS – G 1/2 × 14 (25518)
• 1× Hexagon die nut DIN 382 HSS – G 3/4 × 14 (25522)

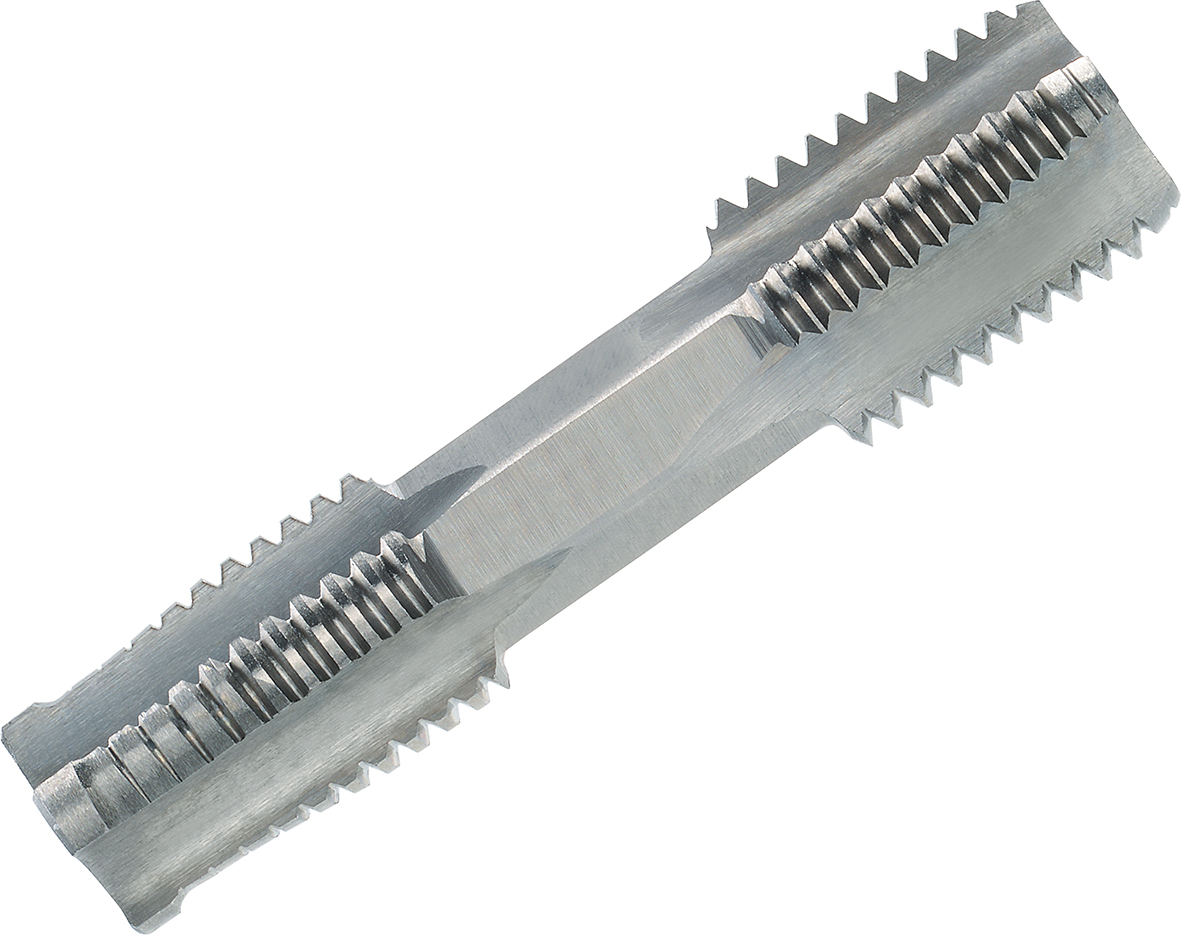

• 1× HexTap DS double-ended tap, Multi-Drive, HSS-G – G 1/4 × 19 (67871)
• 1× HexTap DS double-ended tap, Multi-Drive, HSS-G – G 3/8 × 19 (67872)
• 1× HexTap DS double-ended tap, Multi-Drive, HSS-G – G 1/2 × 14 (67873)
• 1× HexTap DS double-ended tap, Multi-Drive, HSS-G – G 3/4 × 14 (67874)

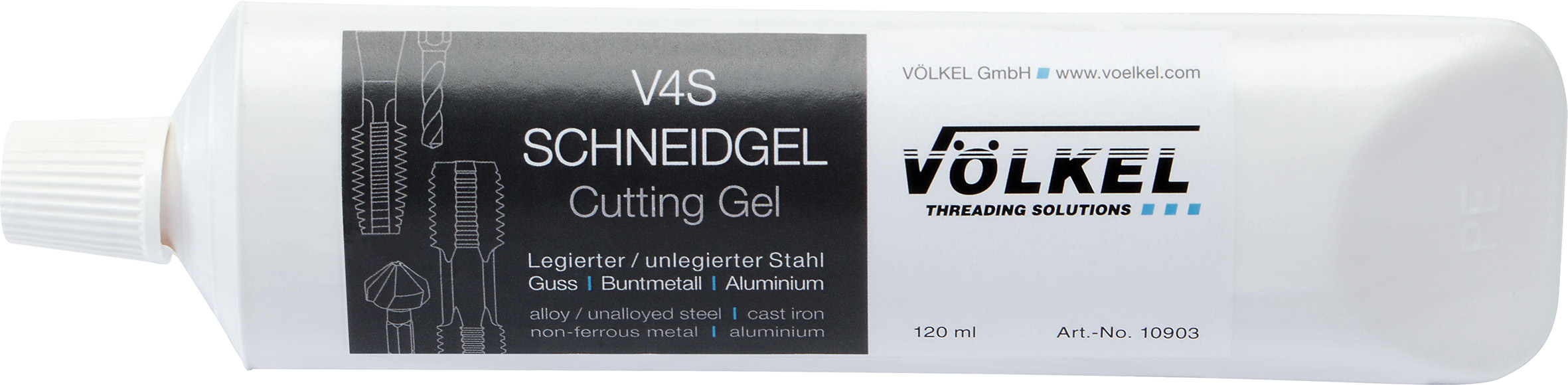

• 1× Cutting gel V4S, 120 ml (10903)

What applications is this sanitary set suitable for?

The set is ideal for typical sanitary work such as cleaning, rethreading and repairing damaged pipe threads.

Which thread types can be machined?

The set is designed for pipe threads G (BSP) from G 1/4 to G 3/4.

Do I need special holders or machines?

No. All tools can be used with standard hand tools such as ratchets, spanners or open-end wrenches.

Is the set suitable for repair work?

Yes, it is particularly well suited for cleaning and reworking damaged threads.

Why is cutting gel included?

The cutting gel reduces friction, improves surface quality and helps extend tool life.

Can the individual tools be reordered?

Yes, all included HexTap DS taps and hexagon die nuts are also available individually.
