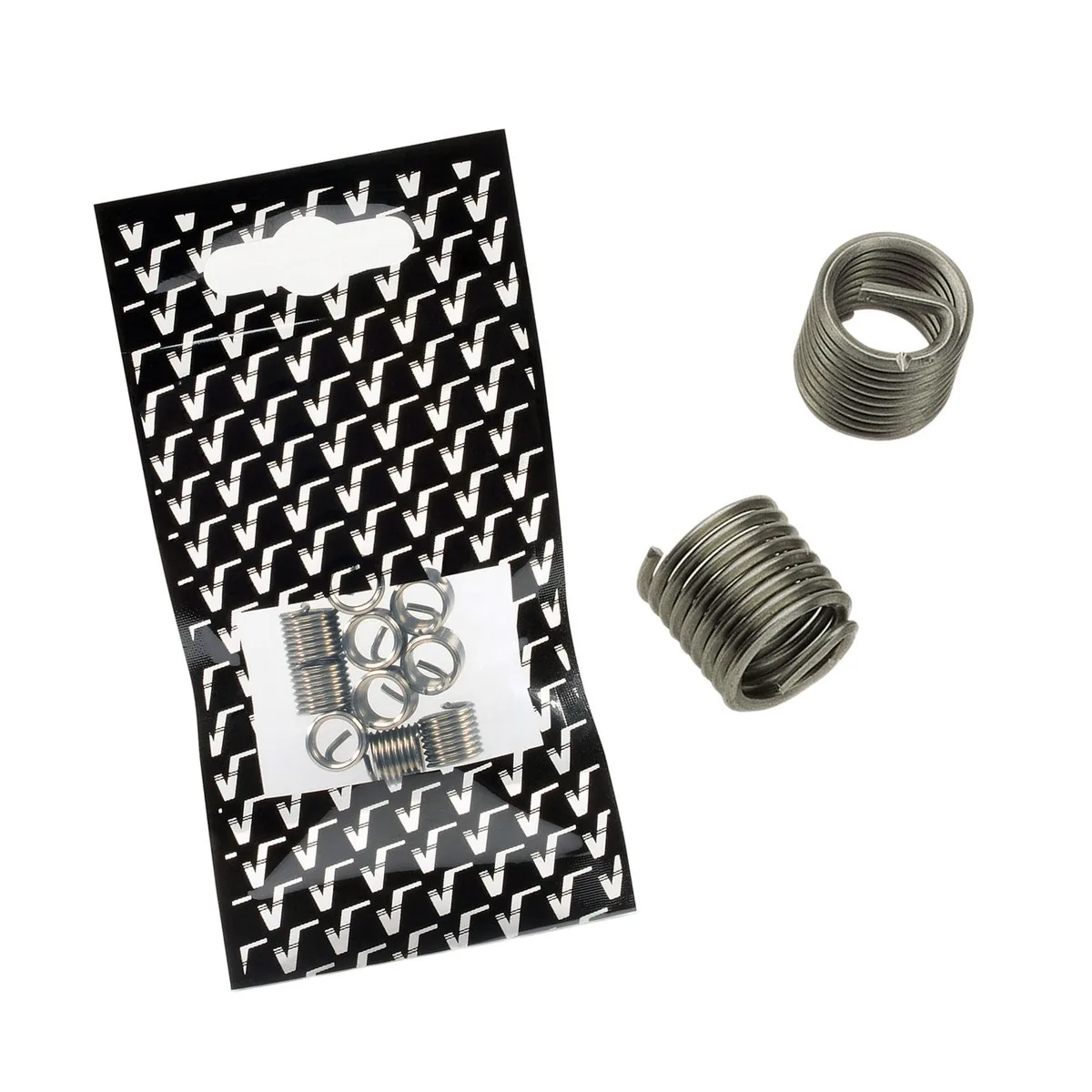

Trang chủ Ren cấy V-coil V-COIL Ren cấy V-COIL, gói bổ sung kiểu tự do S BSF 1" x 10 - 2.0 D (5 pcs.)

Ren cấy V-coil

V-COIL Ren cấy V-COIL, gói bổ sung kiểu tự do S BSF 1" x 10 - 2.0 D (5 pcs.)

Name: V-COIL Ren cấy V-COIL, gói bổ sung kiểu tự do S BSF 1" x 10 - 2.0 D (5 pcs.)
Brand: VOLKEL
SKU: 44476
Price: 1242000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

V-COIL Ren cấy V-COIL, gói bổ sung kiểu tự do S BSF 1" x 10 - 2.0 D (5 pcs.) VÖLKEL, mã 44476, phù hợp cho phục hồi và gia cường ren hỏng.

SKU: 44476

1.242.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

V-COIL Ren cấy V-COIL, gói bổ sung kiểu tự do S BSF 1" x 10 - 2.0 D (5 pcs.)

You use V-COIL Ren cấy V-COIL, gói bổ sung kiểu tự do S BSF 1" x 10 - 2.0 D (5 pcs.) when an ren trong is damaged and you need a defined thread interface again. It is used in maintenance and plant engineering where components are refurbished instead of replaced.

BSF means British Standard Fine, a Whitworth based fine inch thread series used on legacy designs and fittings.

Ứng dụng

Restoration of stripped ren trong in housings, brackets, and machine components.
Maintenance work where a defined thread is required again without replacing the full component.
Use when you can access the hole axis for drilling, tapping, and insert installation.
Thread system context: restore a usable BSF interface for the specified fastener or fitting.

Lưu ý Clean threads and tools before use, apply suitable lubrication for cutting operations, and stop if resistance rises sharply.

Lợi ích

Restores a defined ren trong interface in a damaged component.
Supports repeatable assembly cycles when installation is done correctly.
Useful for refurbishment work where parent material is limited in strength or thickness.
Helps standardize repair steps in service and maintenance operations.

Hạn chế

Not a substitute for structural repair when the surrounding material is cracked or elongated.
Not intended for high performance applications without verifying load case and installation quality.

Các bước thực hiện

Assess the damage and confirm that parent material is suitable for a repair insert.
Drill out the damaged thread with the correct preparation tool for the system.
Tap the prepared hole with the matching insert tap while keeping alignment to the axis.
Clean chips and debris from the tapped hole so the insert can seat correctly.
Install the insert with the correct insertion tool and maintain steady alignment.
Verify functional assembly with the mating fastener and clean the area after installation.

Phạm vi cung cấp

5 chiếc V-COIL Ren cấy V-COIL, gói bổ sung kiểu tự do S BSF 1" x 10 - 2.0 D (5 pcs.)

Đặc tính kỹ thuật

Product type: Thread Insert
Thread designation: BSF

Câu hỏi thường gặp (FAQ)

When is a sửa ren insert the right option? Use it when the original ren trong is stripped or repeatedly fails in service. The insert can restore a defined thread interface when installed correctly. Where can you find an overview of the V-COIL sửa ren process? This reference explains the system concept and process flow: Technical information V-COIL sửa ren as PDF What is the key selection point for a repair kit? Match the kit to the thread designation and the required insert length concept. Also check access for drilling, tapping, and insertion along the hole axis. Where do you find standard context for Ren cấy V-COIL to DIN 8140? Use this document for insert type selection and standard background: Technical information Ren cấy V-COIL DIN 8140 as PDF How do you avoid cross threading during insertion? Keep the insertion tool aligned with the hole axis and start gently. Stop if resistance rises sharply and verify that the tapped thread is clean. Where do you find the matching catalog for additional variants and reference data? Use the catalog for additional information and product family context: VC 23 catalog as PDF

Do you need help selecting or using the product?
Use the biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	British Standard Fine Thread
Tiêu chuẩn	DIN 8140
Vật liệu	from stainless steel
Tolerance	medium
Kích thước	BSF 1" x 10
Chiều dài	2.0 x D
Packaging unit (piece)	5
EAN	4022835444763
Mã hàng	44476
Chuẩn ren	BS 84
Quy cách đóng gói	5
