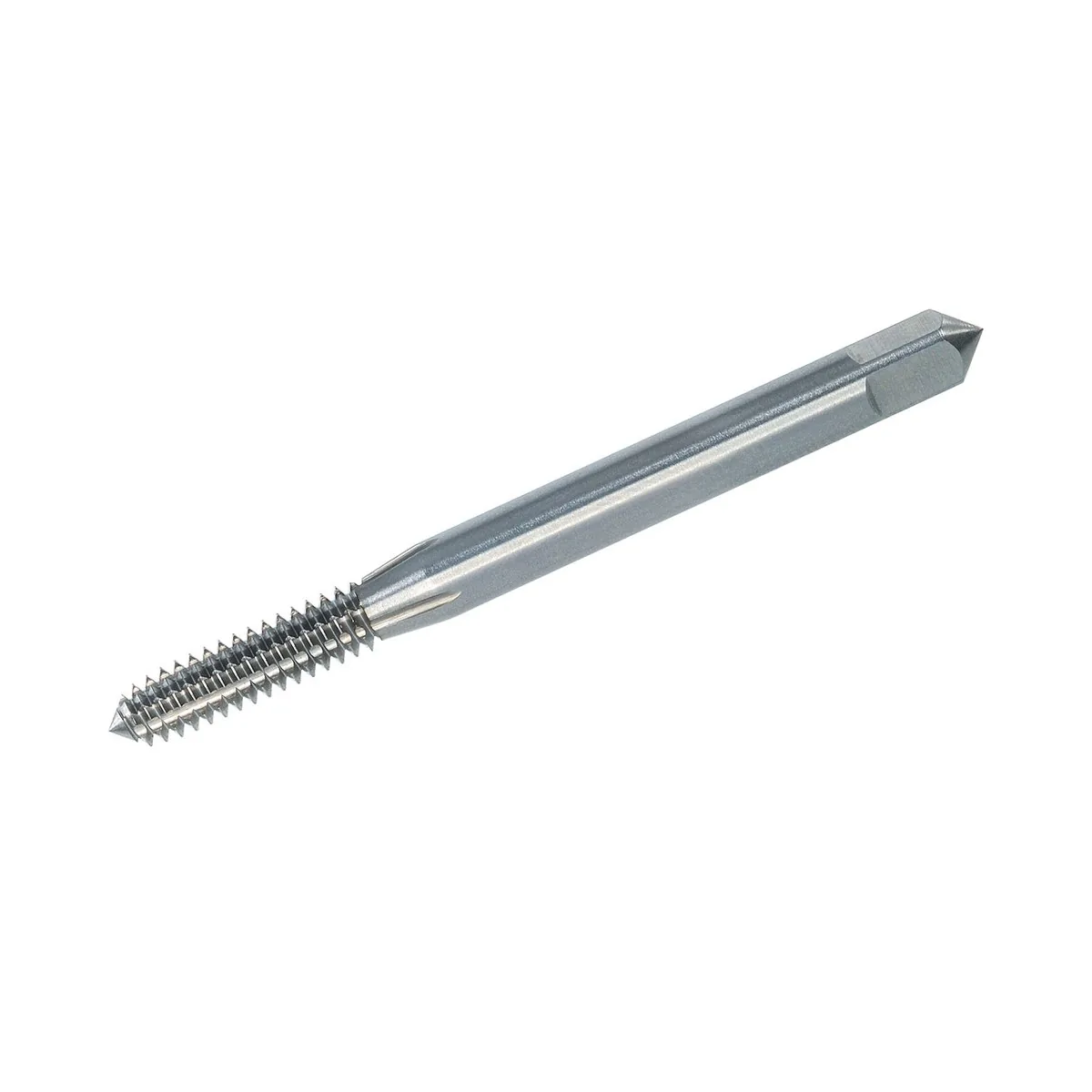

Mũi taro nén ren with oil groove JIS B-4430 HSSE - M 8 x 1.25

Name: Mũi taro nén ren with oil groove JIS B-4430 HSSE - M 8 x 1.25
Brand: VOLKEL
SKU: 90946
Price: 690000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

Mũi taro nén ren with oil groove JIS B-4430 HSSE - M 8 x 1.25 VÖLKEL, mã 90946, phù hợp cho gia công ren trong.

SKU: 90946

690.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

Mũi taro nén ren with oil groove JIS B-4430 HSSE - M 8 x 1.25

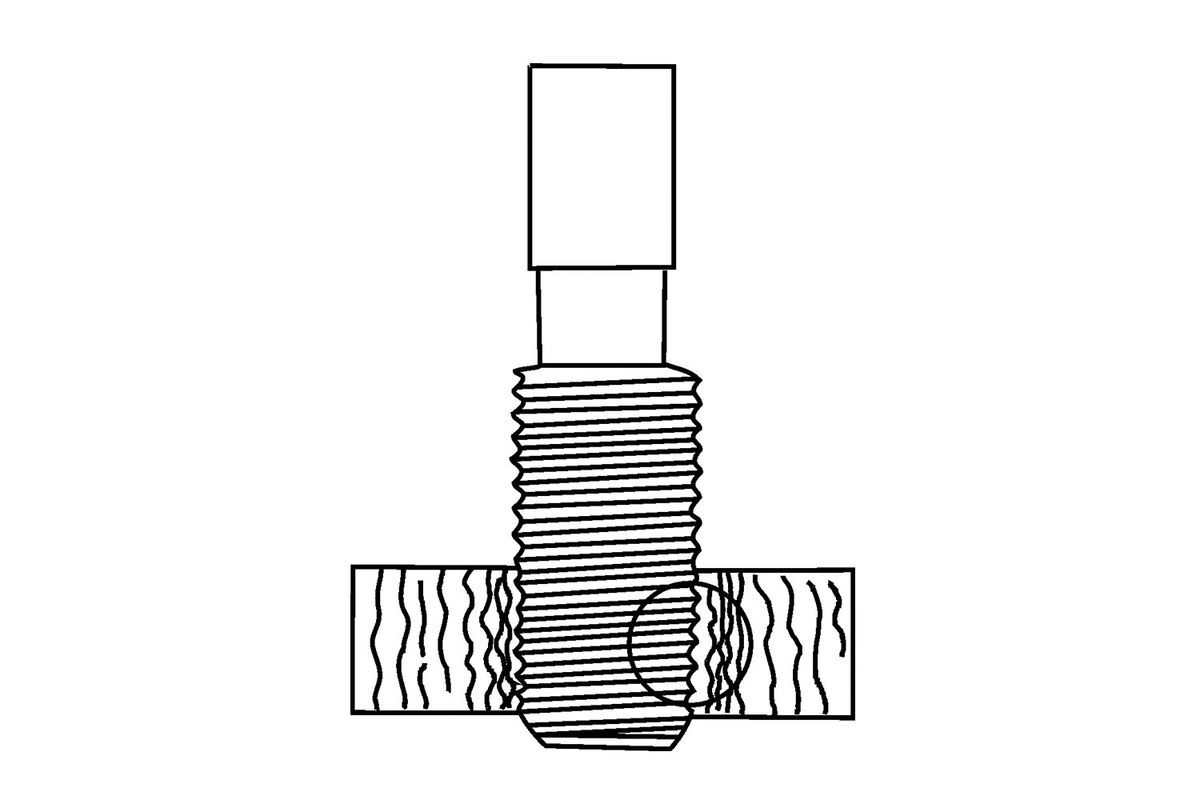

You create ren trong using a thread forming tap when you need chipless production and stable thread geometry in suitable ductile materials.

Select the tool by the thread designation and standard stated in the product name and use a suitable tapping chuck for alignment. Lubrication is critical for forming to control torque and friction.

Ứng dụng

Form ren trong in ductile materials where chip control is critical.
Use in a machine tool with a suitable tapping chuck to maintain alignment and reduce runout.
Use high lubricity lubrication, especially for oil groove executions, to reduce friction during forming.
Process: manual driving or assisted driving depending on your holder and machine setup.
Use: cắt ren, taro lại ren, and làm sạch ren depending on condition.

Lưu ý Thread forming requires correct pre hole preparation and lubrication. Monitor torque and stop if friction rises.

Lợi ích

Improves process reliability where chip evacuation is difficult.
Often enables higher productivity in suitable materials due to continuous forming.
Good option for nonferrous metals and other ductile alloys, depending on conditions.
Stable tap body supports alignment in machine holders.

Hạn chế

Not suitable for brittle materials with low ductility where forming can cause cracking.
Requires precise pre hole preparation and strong lubrication to control torque.

Các bước thực hiện

Ensure the pre hole is drilled and deburred and that the entry is chamfered.
Clamp the workpiece so the hole axis stays aligned with the spindle.
Mount the fluteless tap in a suitable tapping chuck to control alignment.
Apply high lubricity Chất bôi trơn cắt gọt ren to the tool and to the hole entry area.
Start the forming process with controlled feed so the tap follows the hole axis.
Monitor torque and stop if friction increases unexpectedly.
Retract the tap following your machine sequence and keep the hole clean from debris.
Clean the tool and verify thread fit with the matching screw or a gauge.

Phạm vi cung cấp

1 chiếc: tool as specified by the product name

Đặc tính kỹ thuật

Product type: Mũi taro nén ren for thread forming
Standard: JIS B-4430
Thread designation: M 8 x 1.25
Thread system: Metric ISO
Tool material: HSSE, HSS
Design feature: Oil groove
Tool principle: Thread forming

Câu hỏi thường gặp (FAQ)

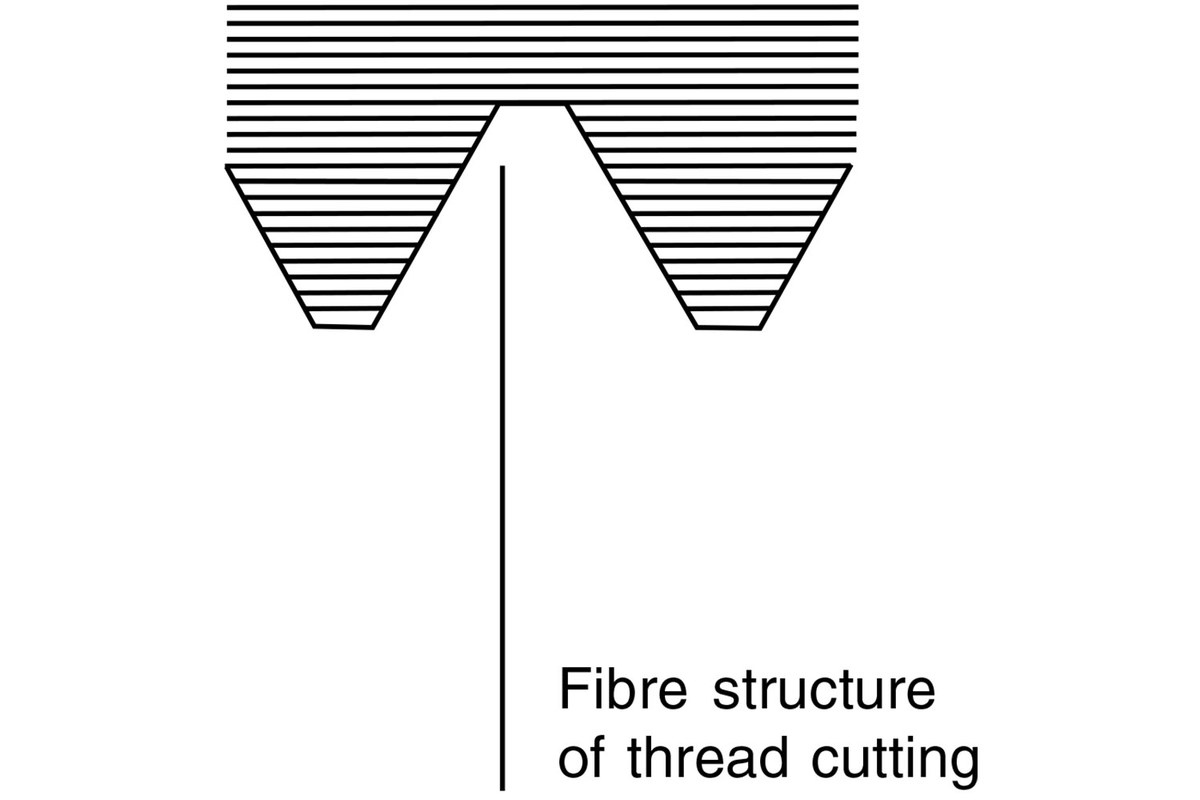

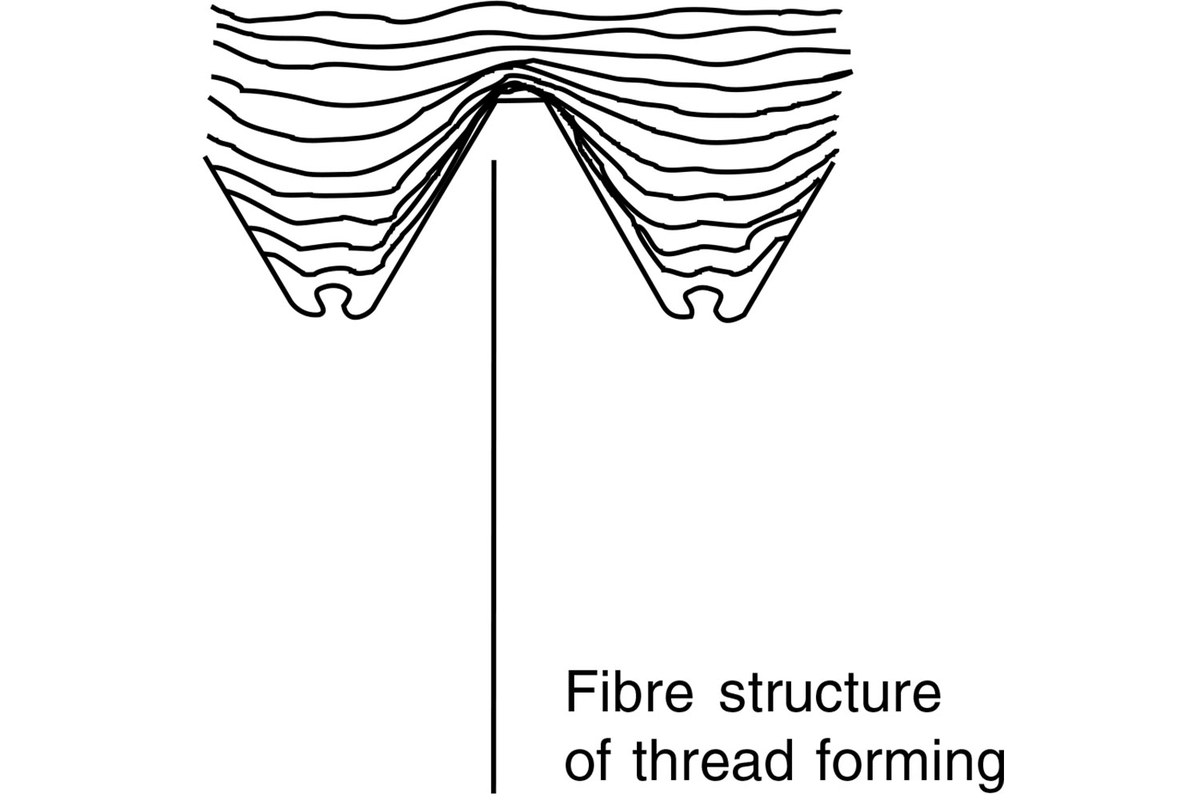

What is the difference between a thread forming tap and a cutting tap? A thread forming tap displaces material to form the thread profile and does not produce chips, while a cutting tap removes material and produces chips. Which materials are suitable for thread forming? Thread forming is best suited for ductile materials, and it is generally not suitable for brittle materials where forming can cause cracking. Why is lubrication critical for fluteless taps? Lubrication reduces friction and forming torque, which supports a stable process and helps protect the thread surface. Which holder is recommended for a Mũi taro nén ren? Use a suitable tapping chuck or holder that keeps runout low and maintains alignment during the full engagement. Where can you find additional technical information on fluteless machine taps? Use this PDF for principle and process notes for fluteless taps: Technical information fluteless machine taps as PDF How do you verify the thread after forming? Clean the hole and check fit with the matching screw, and use inspection when the application requires controlled fit. Where can you find more VÖLKEL threading tool information for selection and application? Use this catalog for product range and selection help: VD 23 catalog as PDF

Do you need help selecting or using the product?
Use the biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	metric ISO-thread
Tiêu chuẩn	JIS B-4430
Vật liệu	HSSE
Tolerance	ISO2X (6HX)
Kích thước	M 8 x 1.25
Overall length (L1)	70 mm
Thread length (L2)	20 mm
Core hole diameter (D1)	7.45 mm
Shank diameter (D2)	6.2 mm
Drive connector	5.0 mm
EAN	4022835909460
Mã hàng	90946
Phạm vi ứng dụng	for through and blind holes
Chuẩn ren	DIN 13
