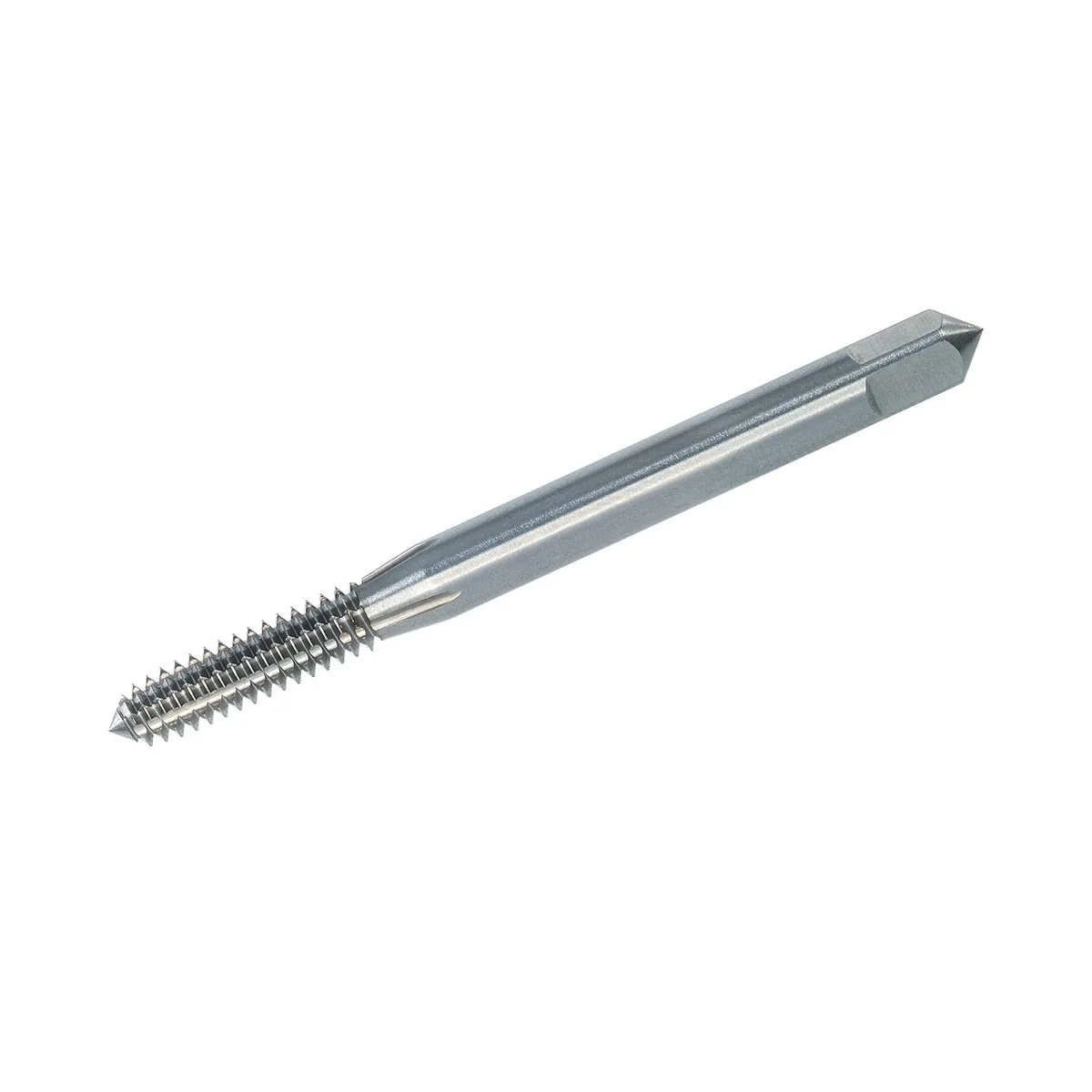

Mũi taro nén ren with oil groove JIS B-4430 HSSE - M 5 x 0.8

• Form ren trong in ductile materials where chip control is critical.
• Use in a machine tool with a suitable tapping chuck to maintain alignment and reduce runout.
• Use high lubricity lubrication, especially for oil groove executions, to reduce friction during forming.
• Process: manual driving or assisted driving depending on your holder and machine setup.
• Use: cắt ren, taro lại ren, and làm sạch ren depending on condition.

Lưu ý Thread forming requires correct pre hole preparation and lubrication. Monitor torque and stop if friction rises.

• Improves process reliability where chip evacuation is difficult.
• Often enables higher productivity in suitable materials due to continuous forming.
• Good option for nonferrous metals and other ductile alloys, depending on conditions.
• Stable tap body supports alignment in machine holders.

• Not suitable for brittle materials with low ductility where forming can cause cracking.
• Requires precise pre hole preparation and strong lubrication to control torque.

1. Ensure the pre hole is drilled and deburred and that the entry is chamfered.
2. Clamp the workpiece so the hole axis stays aligned with the spindle.
3. Mount the fluteless tap in a suitable tapping chuck to control alignment.
4. Apply high lubricity Chất bôi trơn cắt gọt ren to the tool and to the hole entry area.
5. Start the forming process with controlled feed so the tap follows the hole axis.
6. Monitor torque and stop if friction increases unexpectedly.
7. Retract the tap following your machine sequence and keep the hole clean from debris.
8. Clean the tool and verify thread fit with the matching screw or a gauge.

• 1 chiếc: tool as specified by the product name

• Product type: Mũi taro nén ren for thread forming
• Standard: JIS B-4430
• Thread designation: M 5 x 0.8
• Thread system: Metric ISO
• Tool material: HSSE, HSS
• Design feature: Oil groove
• Tool principle: Thread forming
