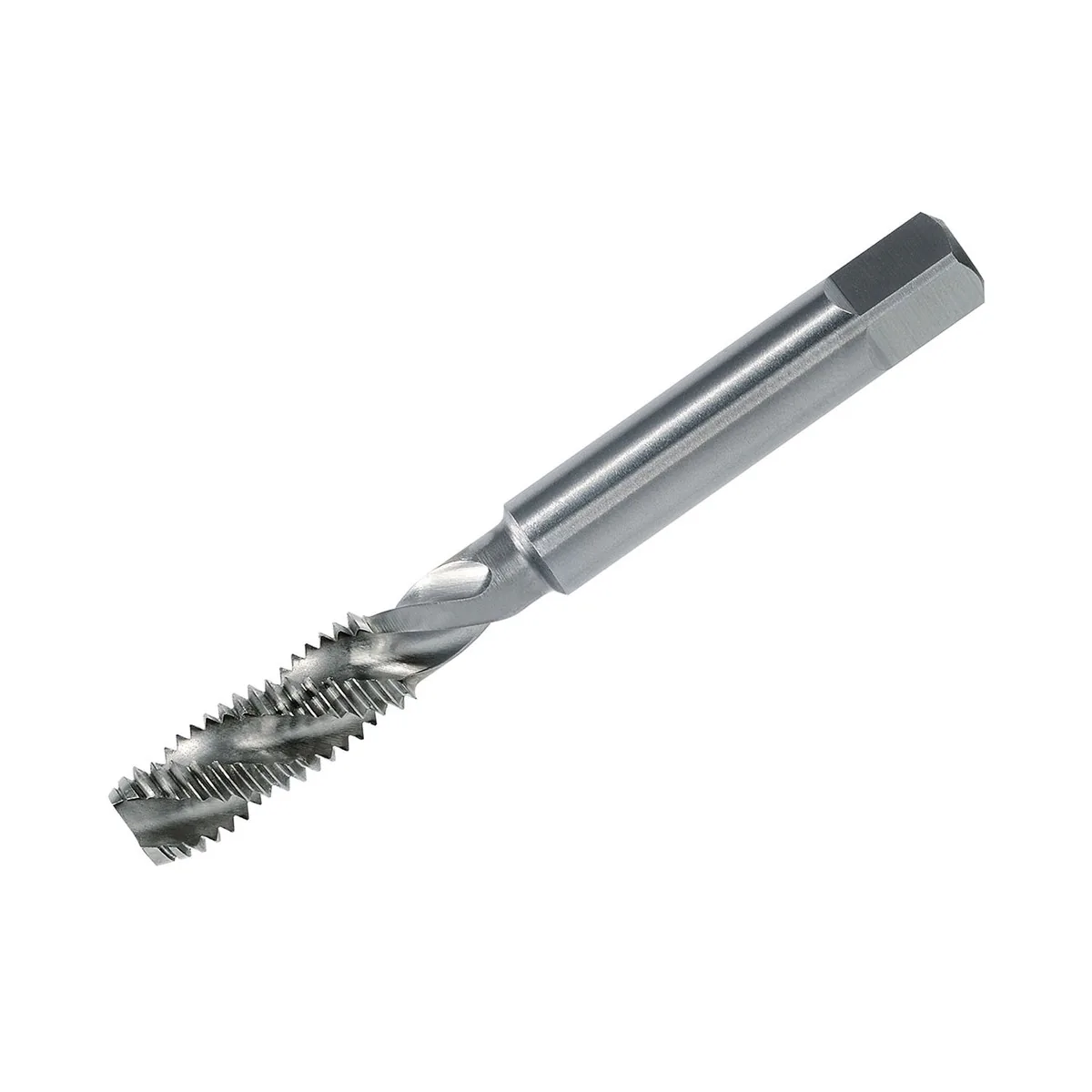

Mũi taro máy ISO 529 Form C 35° Spiral Flute HSS-G - M 12 x 1.75

• Cut ren trong in a machine setup where repeatability and controlled feed are required.
• Process: manual driving or assisted driving depending on your holder and machine setup
• Use: cắt ren, taro lại ren, and làm sạch ren depending on condition
• Use a suitable tapping chuck or rigid holder and keep axial alignment to reduce side load.
• Manage lubrication and chip evacuation to limit torque and improve thread surface quality.
• Spiral flute designs support chip evacuation out of lỗ bít when used with appropriate process parameters.

Lưu ý Use suitable cutting fluid and stop if torque rises unexpectedly, then inspect alignment and chip evacuation.

• Supports repeatable threading in machine assisted processes
• Designed for controlled feed and consistent thread quality
• Efficient for production workflows when a stable setup is available
• Ground tool geometry can support consistent cutting action

• Tool performance depends on correct lubrication and chip evacuation in the hole
• Requires careful alignment to avoid damage to the first threads

1. Prepare the hole according to the specified thread standard and add an entry chamfer.
2. Clamp the workpiece rigidly and ensure the spindle axis is aligned to the hole.
3. Mount the tap in a suitable tapping chuck or rigid holder.
4. Apply a tapping Chất bôi trơn cắt gọt ren appropriate for the material and process.
5. Set a controlled feed that matches the thread pitch and start the cut.
6. Maintain lubrication and monitor chip evacuation from the flutes.
7. Retract the tap under control after reaching the required thread depth.
8. Clean the thread and verify the functional fit.

• 1 chiếc Mũi taro máy ISO 529 Form C 35° Spiral Flute HSS-G - M 12 x 1.75

• Product type: Mũi taro máy
• Standard: ISO 529
• Tool material: HSS-G
• Thread designation: M 12 x 1.75
• Thread system: ren hệ mét ISO
• Chamfer form: Form C
• Flute design: Spiral flute

How do you select the correct thread designation for this tool
Match the designation M 12 x 1.75 to the drawing and mating part, then confirm that the hole type and process match the tool design.

Which holder is typically used for machine tapping
A tapping chuck or rigid holder is commonly used, and alignment to the hole axis is critical to prevent side load on the tap.

How do you reduce the risk of tap breakage
Keep alignment, use suitable lubrication, avoid side loading, and clear chips from the flutes so torque does not rise suddenly.

Which workpiece materials are typical for this threading tool
cắt ren tools are commonly used in steels, cast iron, and many non ferrous alloys, but you should adapt Chất bôi trơn cắt gọt ren choice and process control for hard, sticky, or abrasive materials.

What does ren hệ mét ISO mean in the thread designation
M indicates a ren hệ mét ISO system used widely in general mechanical engineering.

Do you need lubrication and how do you manage chips
Use a cutting fluid suitable for the material to reduce friction, and clear chips from the flutes during the process to keep torque stable.

Where can you find additional technical information for selection and standards
For an overview of threading tools and related standards, refer to the VD 23 catalog as PDF.
