Mũi taro ren tay (tạo ren trong) set of 2 chiếc DIN 2181 HSS-G - M 75 x 4.0

Name: Mũi taro ren tay (tạo ren trong) set of 2 chiếc DIN 2181 HSS-G - M 75 x 4.0
Brand: VOLKEL
SKU: 28053
Price: 65227000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

Mũi taro ren tay (tạo ren trong) set of 2 chiếc DIN 2181 HSS-G - M 75 x 4.0 VÖLKEL, mã 28053, phù hợp cho gia công ren trong.

SKU: 28053

65.227.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

Mũi taro ren tay (tạo ren trong) set of 2 chiếc DIN 2181 HSS-G - M 75 x 4.0

Use this Mũi taro ren tay (tạo ren trong) when you need tactile feedback during cắt ren, such as in maintenance and assembly operations.

For repeatable results, align the tool to the hole axis, use a suitable cutting fluid, and keep chips cleared from the cutting area. M denotes ISO metric thread designation used for common metric screw threads in machine building and maintenance. HSS-G indicates a ground high speed thép tool, typically selected when edge definition and repeatability matter.

Ứng dụng

Cut ren trong in components used in mechanical engineering and plant service.
Process: manual driving or assisted driving depending on your holder and machine setup
Use: cắt ren, taro lại ren, and làm sạch ren depending on condition
Use stable workholding, because movement during the start often causes oversize threads.

Lưu ý Use cutting fluid suitable for the work material and keep the tool aligned during the first turns.

Lợi ích

Supports consistent internal threading when alignment is correct
Usable across common workshop and maintenance processes
Helps reduce rework through repeatable tool geometry
Allows controlled fit when you choose the correct thread designation

Hạn chế

Not suitable for every work material without correct cutting fluid and stable alignment
Requires careful handling to avoid edge damage in busy shop environments

Các bước thực hiện

Prepare the hole and remove burrs so the tool starts straight.
Clamp the workpiece securely and align the tool to the hole axis.
Use a suitable holder or drive and apply cutting fluid for the work material.
Start the thread with controlled feed and keep the tool guided through the first turns.
Continue with steady torque and clear chips from the cutting area as needed.
Reverse to remove the tool, then clean the thread and the tool flutes.
Check the thread with the intended fastener or a suitable gauge and protect the part.

Phạm vi cung cấp

2 chiếc Mũi taro ren tay (tạo ren trong) set of 2 chiếc DIN 2181 HSS-G - M 75 x 4.0

Đặc tính kỹ thuật

Product type: Mũi taro ren tay (tạo ren trong)
Standard: DIN 2181
Thread designation: M
Tool material: HSS-G

Câu hỏi thường gặp (FAQ)

How do you select the correct thread designation for this product Match the thread designation in the product name to the mating fastener or component standard, then confirm that your workpiece material and process setup suit the tool type. If you work with mixed standards, separate your tooling by thread family to avoid mix ups. What holder or drive concept do you need Use a holder that clamps the tool concentrically and supports straight alignment to the workpiece axis. For manual work, choose a stable hand drive that lets you feel torque changes. For machine use, verify reverse capability and consistent feed. Where do you find more technical information for this tool type Technical information Mũi taro ren tay (tạo ren trong) as PDF Which hole preparation checks matter most Prepare the entry edge, remove burrs, and keep the hole clean so the tool starts straight. In lỗ bít, confirm that there is enough depth for the tool lead and chip space. In lỗ thông, support chip evacuation out of the exit side. How do you reduce the risk of misalignment Start the tool with the axis visually aligned, then guide it through the first turns with low torque. Use stable workholding and avoid side load. If a thread feels tight early, remove the tool, clean chips, and inspect the entry. Can you use this in repair work Yes, for many workshop repairs you can use the tool to restore a usable thread when the base material is still intact. Clean damage first and avoid forcing, since distorted threads can increase torque and edge wear. For heavily stripped threads, a sửa ren insert system can be the better option. Where can you find the full VÖLKEL catalog section for this product family VD 23 catalog as PDF

Do you need help selecting or using the product?
Use the biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	metric-fine ISO-thread
Tiêu chuẩn	DIN 2181
Vật liệu	HSS-G
Tolerance	ISO2 (6H)
Kích thước	M 75 x 4.0
Overall length (L1)	240 mm
Thread length (L2)	60 mm
Core hole diameter (D1)	71.0 mm
Shank diameter (D2)	50.0 mm
Drive connector	39.0 mm
EAN	4022835280538
Mã hàng	28053
Type of flute	straight fluted
Phạm vi ứng dụng	for through and blind holes
Chuẩn ren	DIN 13

Phụ kiện tùy chọn

SKU	Hình	Giá VNĐ	Tên sản phẩm & mô tả ngắn
28053-1		32.614.000	Mũi taro ren tay (tạo ren trong) Rougher DIN 2181 HSS-G - M 75 x 4.0 Mũi taro ren tay (tạo ren trong) Rougher DIN 2181 HSS-G - M 75 x 4.0 VÖLKEL, mã 28053-1, phù hợp cho gia công ren trong.

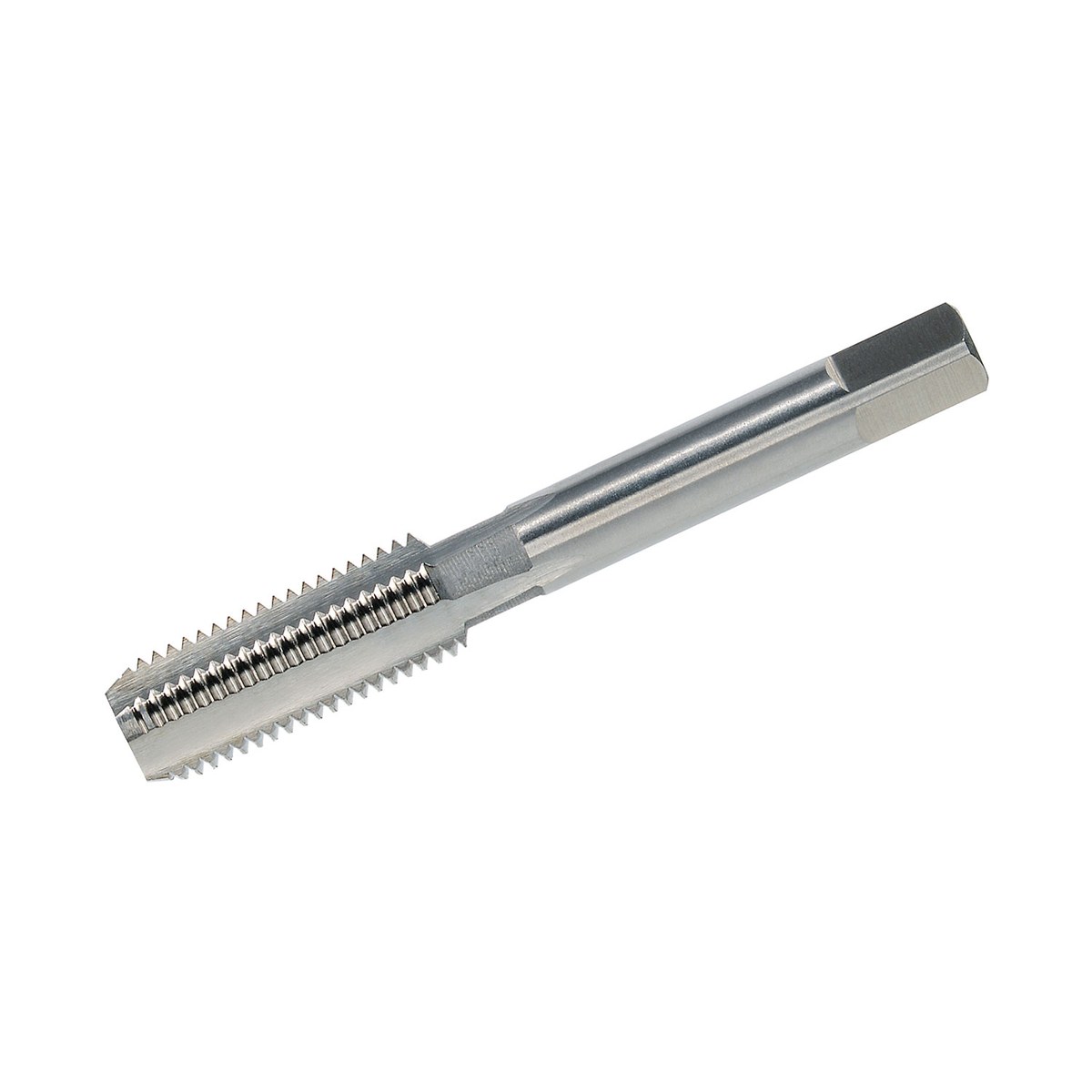

28053-2		32.614.000	Mũi taro ren tay (tạo ren trong) Finisher DIN 2181 HSS-G - M 75 x 4.0 Mũi taro ren tay (tạo ren trong) Finisher DIN 2181 HSS-G - M 75 x 4.0 VÖLKEL, mã 28053-2, phù hợp cho gia công ren trong.
