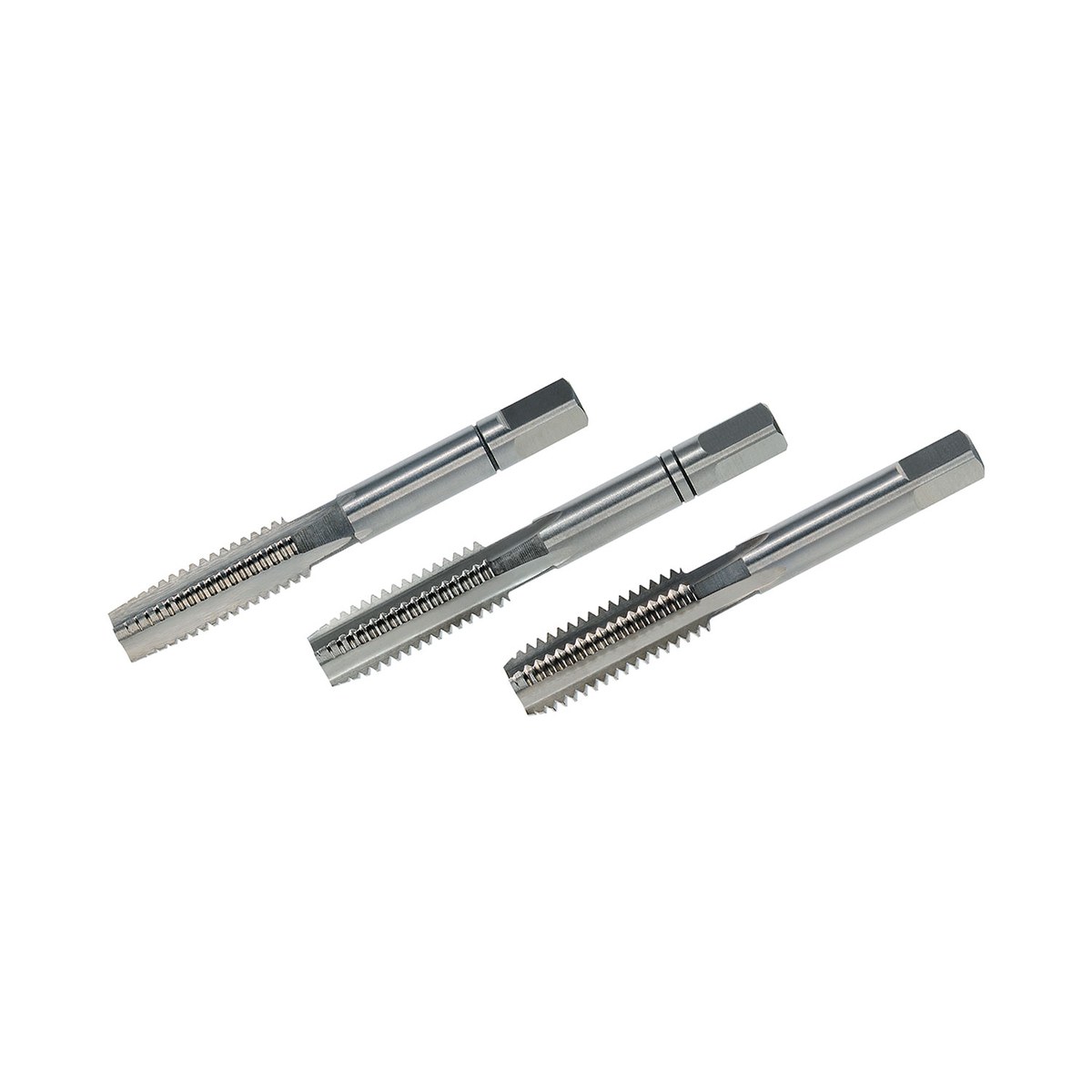

Mũi taro ren tay (tạo ren trong) set of 3 chiếc DIN 352 HSS-G - M 15 x 2.0

A Mũi taro ren tay (tạo ren trong) set typically consists of three sequential tools: a taper tap, a plug tap, and a bottoming tap. These are used step by step to cut an ren trong into a pre-drilled hole. The three-stage process allows for gradual material removal, ensuring high precision and a long tool life.

This set is intended for manual use with a Tay quay taro and is excellent for use in thép không hợp kim và thép hợp kim thấp up to a strength of 900 N/mm². It is suitable for both lỗ thông and lỗ bít.

• DIN 352: A German industrial standard that specifies the dimensions and specifications of Mũi taro ren tay (tạo ren trong). It guarantees that the set complies with the technical requirements for hand tools.
• DIN 13: The standard for ren hệ mét ISO, which defines the thread profile (in this case M 15 x 2.0). M 15 stands for the nominal diameter of 15 mm, and 2.0 is the thread pitch in millimeters.
• HSS-G: Stands for "High-Speed thép Ground". This means the tap is made from high-performance high-speed thép and is additionally ground. The ground finish (G) ensures higher precision, a better surface quality, and a longer service life compared to a rolled finish.
• Tolerance ISO 2 / 6H: This refers to the thread tolerance class. ISO 2 / 6H is a standard tolerance for metric threads that ensures a medium fit. H stands for the basic deviation of the nut, and tolerance class 6 is the most commonly used for general purposes.

lỗ thông are bores that go completely through a workpiece. When cutting threads in these holes, chips can fall out freely at the bottom.

lỗ bíton the other hand, are bores that do not go all the way through the workpiece. The thread ends at a certain point. Here, it is important to ensure that the chips do not jam the tool, which is why a tap set with different leads (taper, plug, bottoming) is ideal for cleanly cutting the thread and guiding the chips upwards.

Follow these steps to cut a precise ren trong:

1. Preparation: Drill a core hole with the appropriate diameter (typically 13.0 mm for M15x2.0). The hole should be clean and deburred.

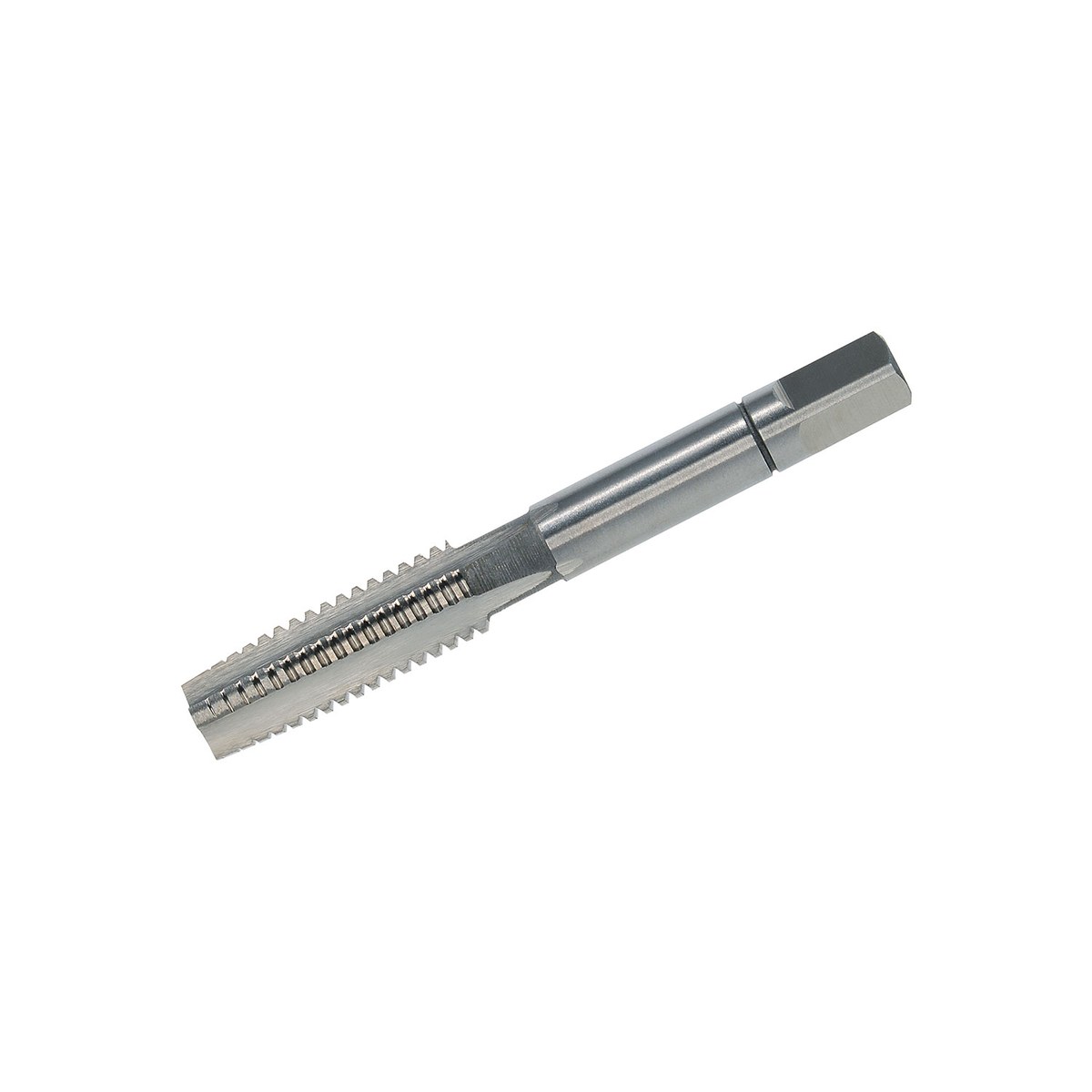

2. Taper Tap: Insert the taper tap (marked with one ring on the shank) vertically into the Tay quay taro and begin cutting the thread with light, even pressure. Turn the tap clockwise. Use cutting oil throughout the process.

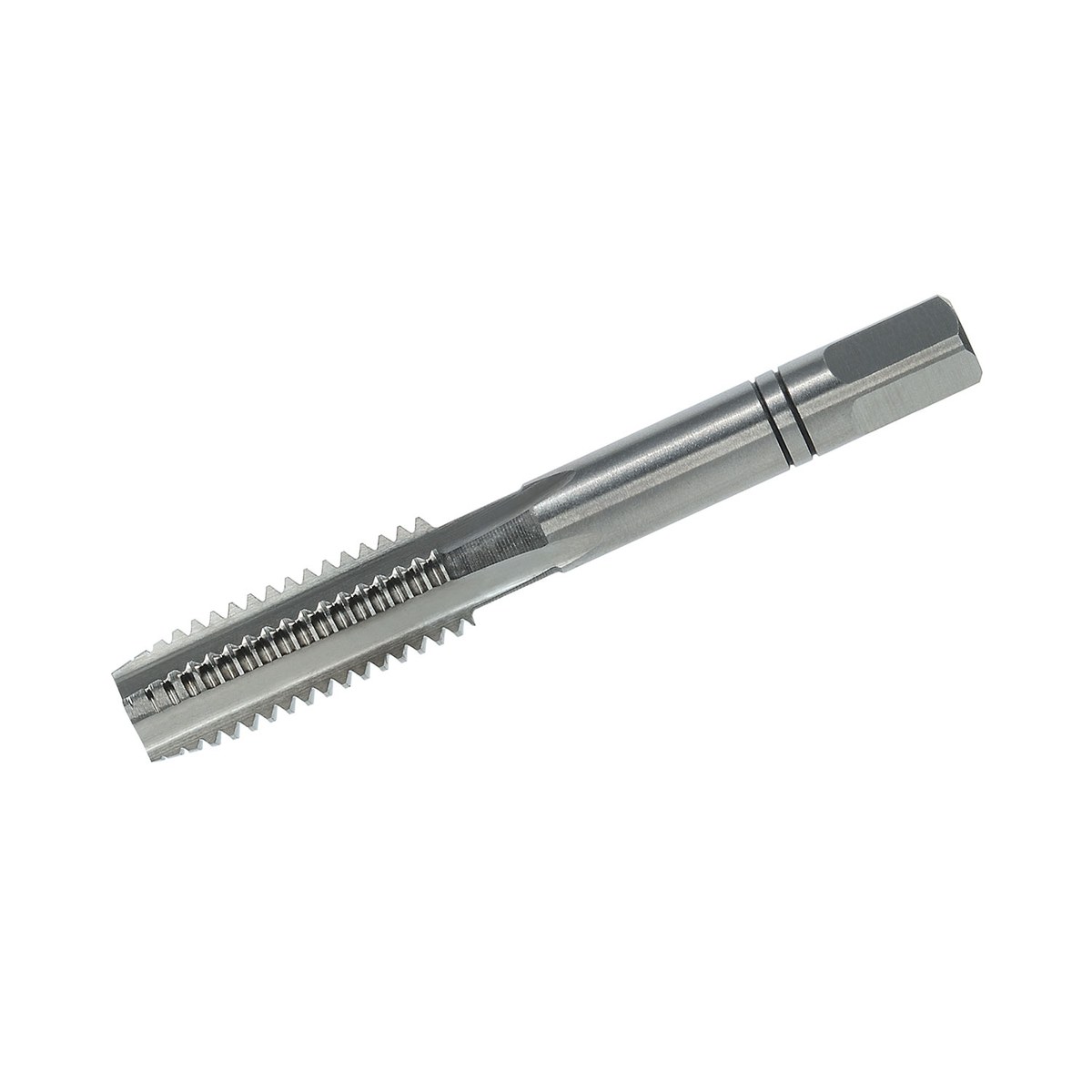

3. Plug Tap: Once the taper tap has pre-cut the thread, switch to the plug tap (with two rings) and repeat the process.

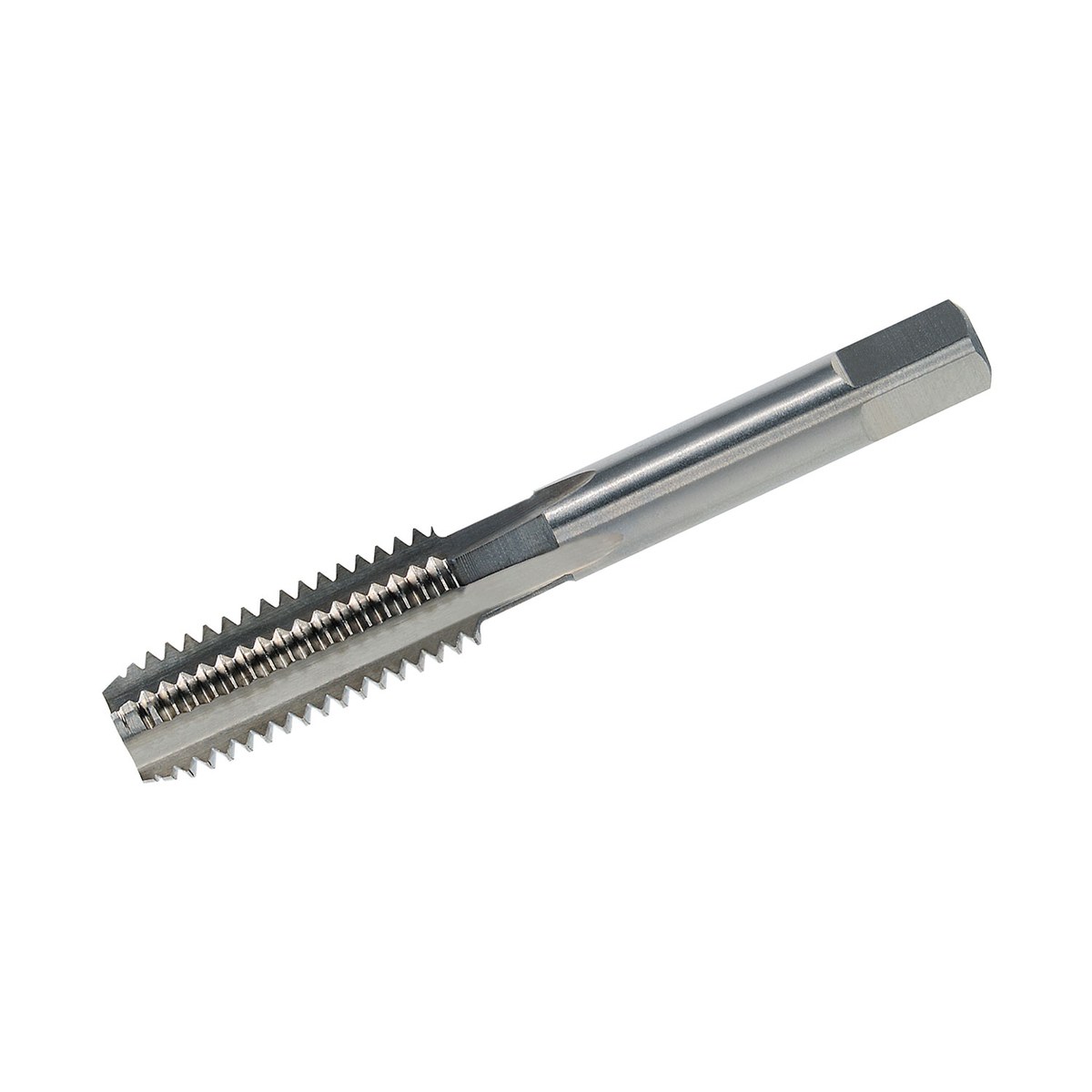

4. Bottoming Tap: Finish the process with the bottoming tap (without a ring) to create the final, precise thread.

1. Why do I need a 3-chiếc set?

A 3-chiếc set allows for the progressive cutting of the thread. Each tap removes only a small amount of material, which reduces the required force, increases accuracy, and extends the life of the tools.

2. What is the difference between HSS and HSS-G?

HSS-G (Ground) is a higher-quality version of HSS (Rolled). The ground surface is more precise and smoother, leading to cleaner thread cuts and better performance.

3. Can I use this set for stainless thép?

This set is designed for well-machinable steels up to 900 N/mm². For stainless thép or other difficult-to-machine materials, special taps with a suitable alloy and coating are required.

4. What Tay quay taro do I need for this set?

You need a Tay quay taro that can accommodate the 9 mm square drive. VÖLKEL offers suitable tap wrenches.

5. What does the tolerance 6H mean?

Tolerance class 6H is a standard tolerance for ren hệ mét ISO. It ensures a medium fit that is sufficient for most screw connections.
