Mũi taro ren tay (tạo ren trong) Rougher DIN 352 HSS-G - M 4 x 0.7

Name: Mũi taro ren tay (tạo ren trong) Rougher DIN 352 HSS-G - M 4 x 0.7
Brand: VOLKEL
SKU: 27330-1
Price: 89000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

Mũi taro ren tay (tạo ren trong) Rougher DIN 352 HSS-G - M 4 x 0.7 VÖLKEL, mã 27330-1, phù hợp cho gia công ren trong.

SKU: 27330-1

89.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

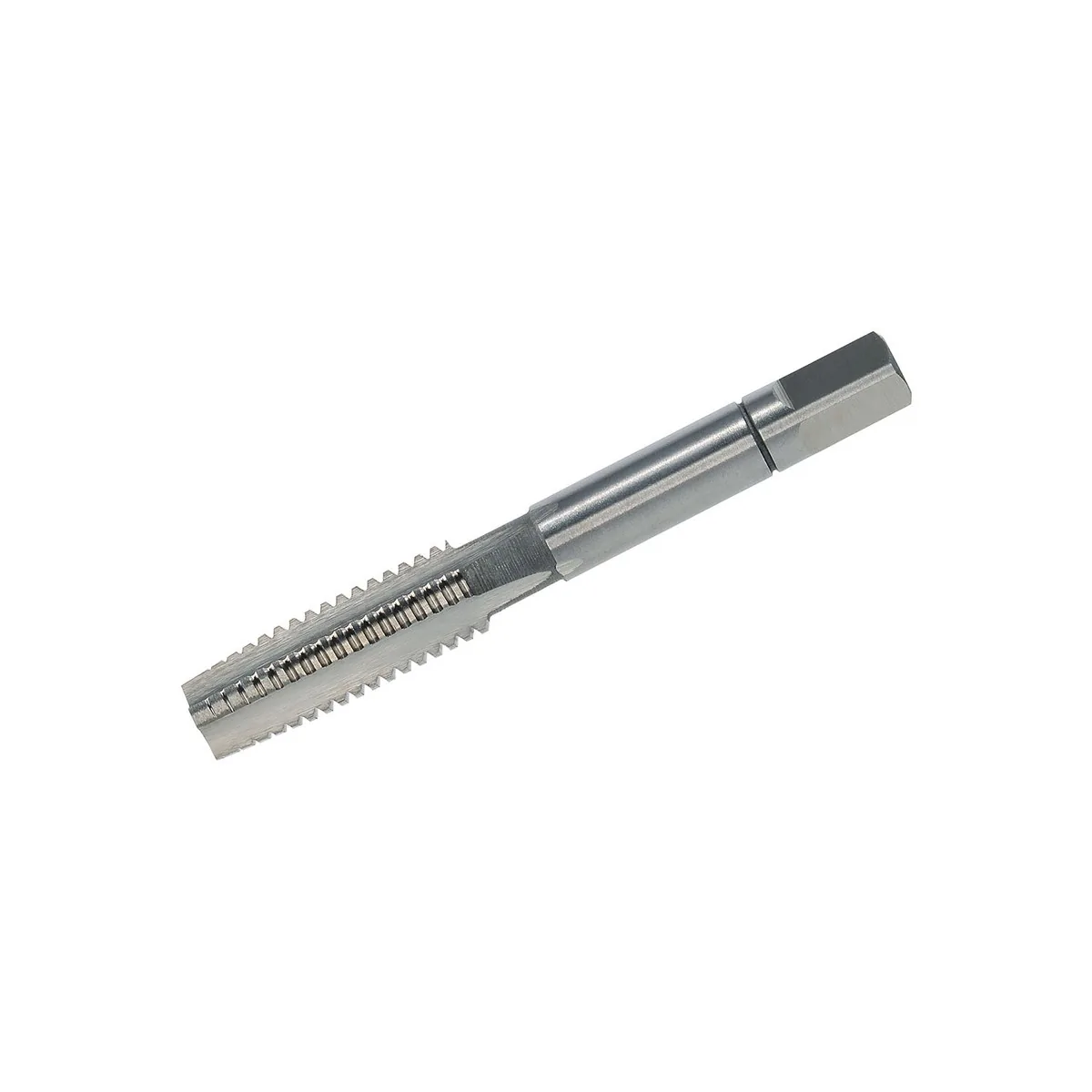

VÖLKEL Mũi taro ren tay (tạo ren trong) Rougher DIN 352 HSS-G – M 4 x 0.7

The VÖLKEL Mũi taro ren tay (tạo ren trong) Rougher (DIN 352 HSS-G) is designed for precise hand tapping of M4 x 0.7 ren trong. It is suitable for general use in non-abrasive materials up to 900 N/mm²including thép không hợp kim và thép hợp kim thấpand works in both through and lỗ bít. Ground HSS-G cutting edges ensure dimensional accuracy and long tool life at an attractive price point.

Application & Benefits

For general use in workshop and assembly
Non-abrasive materials up to 900 N/mm²
Suitable for thép không hợp kim và thép hợp kim thấp
For through and lỗ bít
Optimised for hand tapping
Ground HSS-G geometry for clean threads and durability
Great value: €2.40 per chiếc

Step-by-Step (Hand Tapping Guide)

Prepare: Drill the correct tapping size, deburr and clean the bore.
Secure: Clamp the workpiece firmly to avoid tilt or misalignment.
Lubricate: Apply cutting oil/paste to bore and tap to reduce friction.
Align & start: Keep the tap perpendicular and turn it evenly clockwise by hand.
Cut to depth: Continue with steady pressure until the target depth is reached.
Finish: Back the tap out, clean the bore and check with a matching screw or gauge.

Tip: For premium results, use a rougher, intermediate and finisher sequence where applicable.

Technical Details

Thread form	ren hệ mét ISO DIN 13
Standard	DIN 352
Material	HSS-G
Tolerance	ISO 2 / 6H
size	M 4 x 0.7
Overall length (L1)	45 mm
Thread length (L2)	13 mm
Shank diameter (D2)	4.5 mm
Drive	Square 3.4 mm
Article number	27330-1
Product page	Open link
Price	€2.40

FAQ

Can I use this tap in a machine?
This model is primarily intended for hand use. For machine operations, consider taps to DIN 371/376.

Do I need cutting fluid?
Yes. Cutting fluid improves surface finish and extends tool life.

What distinguishes a rougher tap?
The rougher is the first tap in a set and opens the thread profile before intermediate and finisher taps complete it.

How long will the tool last?
With correct lubrication and alignment, the HSS-G tap provides long service life and repeatable accuracy.

Is it supplied individually?
Yes. Single chiếc, article số 27330-1, price €2.40.

Need assistance or matching intermediate and finisher taps? Contact us via the biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	metric ISO-thread
Tiêu chuẩn	DIN 352
Vật liệu	HSS-G
Tolerance	ISO2 (6H)
Kích thước	M 4 x 0.7
Overall length (L1)	45 mm
Thread length (L2)	13 mm
Core hole diameter (D1)	3.3 mm
Shank diameter (D2)	4.5 mm
Drive connector	3.4 mm
Mã hàng	27330-1
Type of flute	straight fluted
Phạm vi ứng dụng	for through and blind holes
Chuẩn ren	DIN 13
