Mũi taro ren tay (tạo ren trong) set of 2 chiếc DIN 2181 HSS-G - M 36 x 2.0

Name: Mũi taro ren tay (tạo ren trong) set of 2 chiếc DIN 2181 HSS-G - M 36 x 2.0
Brand: VOLKEL
SKU: 26552
Price: 5807000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

Mũi taro ren tay (tạo ren trong) set of 2 chiếc DIN 2181 HSS-G - M 36 x 2.0 VÖLKEL, mã 26552, phù hợp cho gia công ren trong.

SKU: 26552

5.807.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

Mũi taro ren tay (tạo ren trong) set of 2 chiếc DIN 2181 HSS-G - M 36 x 2.0

You use this Mũi taro ren tay (tạo ren trong) set for cutting ren trong in lỗ thông or lỗ bít depending on execution in the designation M 36 x 2.0. The tap follows DIN 2181 HSS-G - M 36, so you select it by matching thread type and tolerance requirements from the drawing.

Thread quality depends on correct hole preparation, alignment in the first turns, and lubrication matched to the workpiece material. If you encounter heavy cutting load or poor chip evacuation, stop and correct the setup rather than forcing the tool.

Ứng dụng

Cut ren trong in prepared holes for fasteners and fittings depending on execution
Restore worn ren trong during maintenance and overhaul tasks
Use in mechanical engineering, assembly, and service operations where thread fit is function critical
Hold the square drive in a suitable Tay quay taro and keep the tool aligned to the bore axis
Process: manual driving or assisted driving depending on your holder and machine setup
Use: cắt ren, taro lại ren, and làm sạch ren depending on condition

Lưu ý Select the variant that matches the thread standard, hand direction, and tolerance requirements stated in your drawing.

Lợi ích

Produces ren trong suitable for mechanical fastening and sealing applications depending on thread form
Set format supports a staged approach when the execution uses more than one tap
Standard based geometry supports interchangeability when the matching standard is used
Tool thép grade supports stable cutting edges for typical workshop materials depending on execution

Hạn chế

Limited performance in very hard, abrasive, or heat treated materials depending on tool grade and coating
Not suitable for high volume production where cycle time and tool life must be maximized

Các bước thực hiện

Confirm the thread specification in the product name and match it to the drawing requirement
Prepare the hole according to your drilling and chamfering process specification
Select the correct tap from the set according to the execution and tool markings
Align the tap square to the hole axis before you start the first turns
Apply a Chất bôi trơn cắt gọt ren suited to the workpiece material and tap type
Drive the tap with steady control and clear chips regularly to reduce cutting load
Continue until the required thread depth is reached according to your process plan
Reverse the tool out, remove chips from the thread, and clean the tap before storage

Phạm vi cung cấp

2 chiếc: Mũi taro ren tay (tạo ren trong) as supplied in the set execution

Đặc tính kỹ thuật

Tool type: Mũi taro ren tay (tạo ren trong) set
Standard: DIN 2181 HSS-G - M 36
Material: HSS-G
Thread system: Metric
Manufacturing: Ground flutes (G)
Tolerance: ISO 2 (6H)
Thread designation: M 36 x 2.0

Câu hỏi thường gặp (FAQ)

What is the practical benefit of a Mũi taro ren tay (tạo ren trong) set? A set can support a staged approach where you start the thread and then finish it with a second tool depending on the set execution. This can help you control cutting load and thread quality in manual work. How do you prepare the hole before tapping? Follow your drawing and process plan for drilling and chamfering. Correct preparation supports alignment and helps the tap enter without damaging the first threads. Which Chất bôi trơn cắt gọt ren should you use? Choose Chất bôi trơn cắt gọt ren based on workpiece material and the tap type. In many workshop cases, cutting oil supports thread quality, while emulsions may be used when your process requires it. What reduces the risk of tap breakage? Keep the tap square in the start, drive it with steady control, and clear chips often enough that cutting load stays stable. Stop if resistance rises sharply and correct the setup before continuing. How do you check the finished thread? Use a suitable gauge, a mating screw, or the inspection method defined in your quality plan. If fit is tight, check hole preparation, alignment, and tool condition before reworking. Where can you find additional technical information for this tool type? Use the technical information document for background on geometry terms, selection logic, and handling notes. Technical information Mũi taro ren tay (tạo ren trong) as PDF What is a sensible inspection method after cutting? Use the inspection method defined in your quality plan and check fit and surface. If you see tearing or tight fit, review alignment, lubrication, and tool condition. Where can you find the full VÖLKEL catalog for selection support? Use the catalog for the complete range, execution variants, and reference tables. VD 23 catalog as PDF

Do you need help selecting or using the product?
Use the biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	metric-fine ISO-thread
Tiêu chuẩn	DIN 2181
Vật liệu	HSS-G
Tolerance	ISO2 (6H)
Kích thước	M 36 x 2.0
Overall length (L1)	125 mm
Thread length (L2)	40 mm
Core hole diameter (D1)	34.0 mm
Shank diameter (D2)	28.0 mm
Drive connector	22.0 mm
EAN	4022835265528
Mã hàng	26552
Type of flute	straight fluted
Phạm vi ứng dụng	for through and blind holes
Chuẩn ren	DIN 13

Phụ kiện tùy chọn

SKU	Hình	Giá VNĐ	Tên sản phẩm & mô tả ngắn
26552-1		2.902.000	Mũi taro ren tay (tạo ren trong) Rougher DIN 2181 HSS-G - M 36 x 2.0 Mũi taro ren tay (tạo ren trong) Rougher DIN 2181 HSS-G - M 36 x 2.0 VÖLKEL, mã 26552-1, phù hợp cho gia công ren trong.

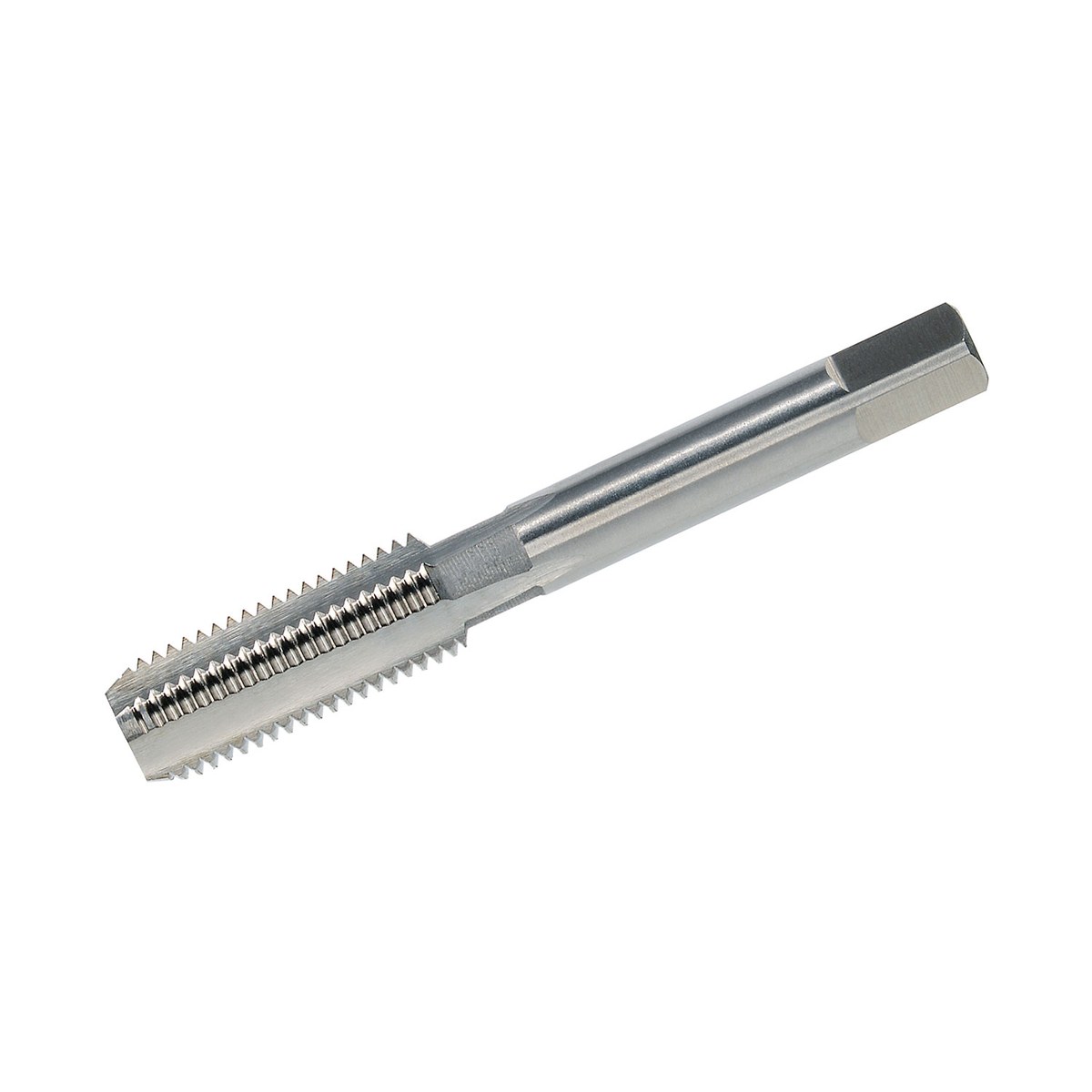

26552-2		2.902.000	Mũi taro ren tay (tạo ren trong) Finisher DIN 2181 HSS-G - M 36 x 2.0 Mũi taro ren tay (tạo ren trong) Finisher DIN 2181 HSS-G - M 36 x 2.0 VÖLKEL, mã 26552-2, phù hợp cho gia công ren trong.
