Mũi taro ren tay (tạo ren trong) set of 2 chiếc DIN 2181 HSS-G - M 24 x 0.5

Name: Mũi taro ren tay (tạo ren trong) set of 2 chiếc DIN 2181 HSS-G - M 24 x 0.5
Brand: VOLKEL
SKU: 26501
Price: 2220000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

Mũi taro ren tay (tạo ren trong) set of 2 chiếc DIN 2181 HSS-G - M 24 x 0.5 VÖLKEL, mã 26501, phù hợp cho gia công ren trong.

SKU: 26501

2.220.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

Mũi taro ren tay (tạo ren trong) set of 2 chiếc DIN 2181 HSS-G - M 24 x 0.5

You cut or restore ren trong by hand with a two chiếc Mũi taro ren tay (tạo ren trong) set. This is common in maintenance and fitting work where a machine process is not practical.

Select the set by the thread designation and standard stated in the product name and use a suitable Tay quay taro. Cutting fluid and square alignment at the start are key drivers for thread quality.

Ứng dụng

Cut ren trong by hand in maintenance, fitting work, and workshop production.
Use with a Tay quay taro to control torque and keep the tap aligned to the hole axis.
Use suitable cutting fluid and remove chips from the flutes to avoid scoring of the new thread.
Process: manual driving or assisted driving depending on your holder and machine setup.
Use: cắt ren, taro lại ren, and làm sạch ren depending on condition.

Lưu ý Core hole quality and alignment have a direct effect on thread accuracy. Use cutting fluid suitable for the material.

Lợi ích

Two stage set supports progressive cắt ren in manual operations.
Good control in maintenance and fitting work when machine access is limited.
Ground HSS-G execution supports consistent thread geometry when used correctly.
Compatible with standard tap wrenches for workshop use.

Hạn chế

Cutting load increases in hard materials and can require a different tap material or geometry.
Manual tapping is slower and more operator dependent than machine tapping.

Các bước thực hiện

Check that the core hole is drilled and deburred and that the entry is lightly chamfered.
Clamp the workpiece securely so the hole axis stays stable during threading.
Mount the first tap in a Tay quay taro and apply suitable cutting fluid to the hole.
Align the tap to the hole axis and start cutting with controlled torque.
Advance the tap gradually and reverse briefly at intervals to clear chips from the flutes.
Remove the first tap and clean the hole to remove chips and residual fluid.
Mount the second tap and repeat the cutting process to bring the thread to final form.
Remove the tap, clean the new thread, and check fit with the matching screw.

Phạm vi cung cấp

2 chiếc: tools as specified by the product name

Đặc tính kỹ thuật

Product type: Mũi taro ren tay (tạo ren trong) set
Standard: DIN 2181
Thread designation: M 24 x 0.5
Thread system: Metric ISO
Tool material: HSS-G, HSS
Manufacturing type: Ground
Tolerance class: ISO 2 (6H)

Câu hỏi thường gặp (FAQ)

How do you select the correct Mũi taro ren tay (tạo ren trong) set for your thread? Match the thread designation and standard in the product name to your required ren trong and the mating screw. Which wrench is suitable for Mũi taro ren tay (tạo ren trong)? Use a Tay quay taro that holds the square drive securely and supports controlled torque and alignment. What is the most common cause of poor thread quality when hand tapping? Misalignment at the start is common, so focus on keeping the tap square to the hole axis and keeping the hole clean from chips. How do you reduce the risk of tap breakage in manual use? Use suitable cutting fluid, avoid side loading, and stop if torque rises suddenly so you can check alignment and chip evacuation. Where can you find technical background on Mũi taro ren tay (tạo ren trong) and handling? Use this PDF for technical notes and general handling guidance: Technical information Mũi taro ren tay (tạo ren trong) as PDF How do you verify the thread after tapping? Clean the hole and check fit with the matching screw, and use a suitable inspection method when fit is critical. Where can you find more VÖLKEL threading tool information for selection and application? Use this catalog for product range and selection help: VD 23 catalog as PDF

Do you need help selecting or using the product?
Use the biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	metric-fine ISO-thread
Tiêu chuẩn	DIN 2181
Vật liệu	HSS-G
Tolerance	ISO2 (6H)
Kích thước	M 24 x 0.5
Overall length (L1)	90 mm
Thread length (L2)	22 mm
Core hole diameter (D1)	23.5 mm
Shank diameter (D2)	18.0 mm
Drive connector	14.5 mm
EAN	4022835265016
Mã hàng	26501
Type of flute	straight fluted
Phạm vi ứng dụng	for through and blind holes
Chuẩn ren	DIN 13

Phụ kiện tùy chọn

SKU	Hình	Giá VNĐ	Tên sản phẩm & mô tả ngắn
26501-1		1.110.000	Mũi taro ren tay (tạo ren trong) Rougher DIN 2181 HSS-G - M 24 x 0.5 Mũi taro ren tay (tạo ren trong) Rougher DIN 2181 HSS-G - M 24 x 0.5 VÖLKEL, mã 26501-1, phù hợp cho gia công ren trong.

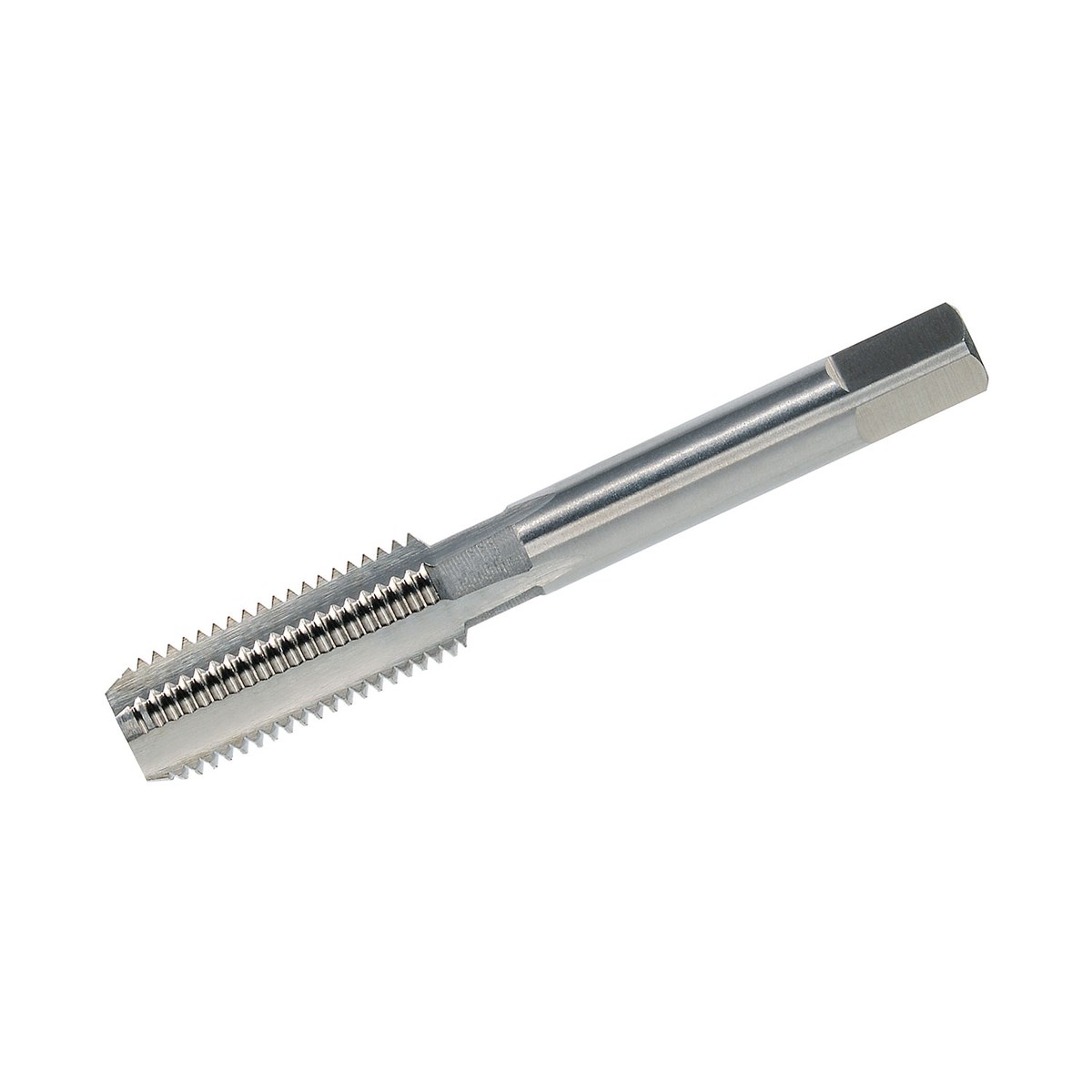

26501-2		1.110.000	Mũi taro ren tay (tạo ren trong) Finisher DIN 2181 HSS-G - M 24 x 0.5 Mũi taro ren tay (tạo ren trong) Finisher DIN 2181 HSS-G - M 24 x 0.5 VÖLKEL, mã 26501-2, phù hợp cho gia công ren trong.
