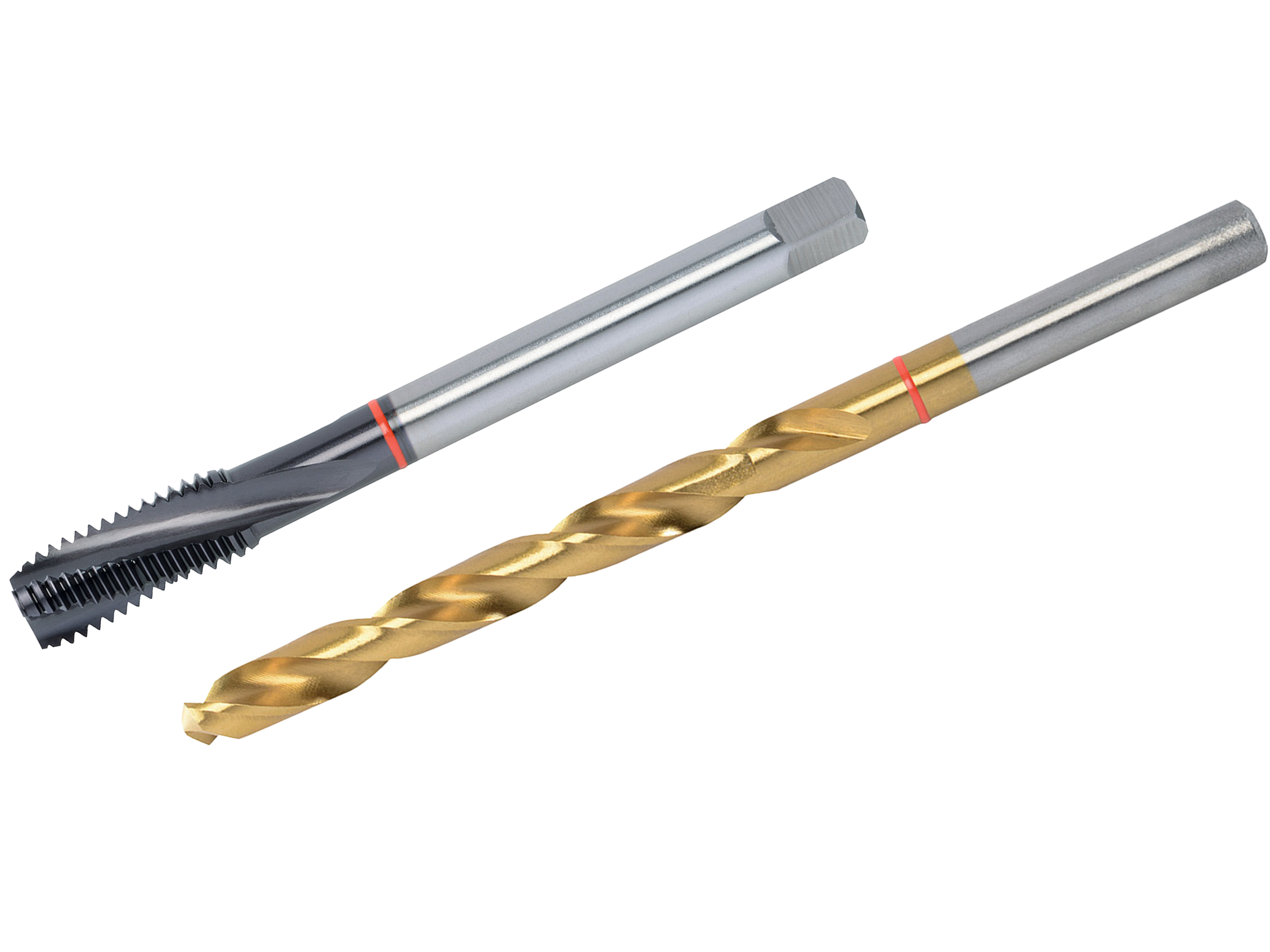

The RED RING TwinBox Set combines a premium machine tap DIN 376 Form C (15° spiral flute) with a matching HSS-CO-TiN twist drill. Designed for short-chipping and hard-to-machine materials with tensile strength up to 1200 N/mm². The TiALN coating enhances surface hardness and reduces friction for longer tool life.
For short-chipping materials from 1200 N/mm² tensile strength
| Thread type | Metric ISO thread |
| Standard | DIN 376 |
| Form | Form C (15° spiral flute) |
| Material | HSSE-PM |
| Tolerance | ISO2 (6H) |
| Nominal size | M14 x 2.0 |
| Overall length (L1) | 110 mm |
| Thread length (L2) | 30 mm |
| Core hole diameter (D1) | 12.0 mm |
| Shank diameter (D2) | 11.0 mm |
| Drive | 9.0 mm |
| Coating | TiALN |
| EAN | 4022835361978 |
| Article number | 36197 |
What materials can it machine?
Ideal for short-chipping, prehardened steels and other high-strength materials.
What is the TiALN coating?
A Titanium Aluminum Nitride layer that improves wear resistance and reduces friction.
Is it suitable for blind holes?
Yes, the 15° spiral flute is designed for blind hole applications.
Can it be used on machines?
Yes, perfect for CNC or conventional tapping machines.

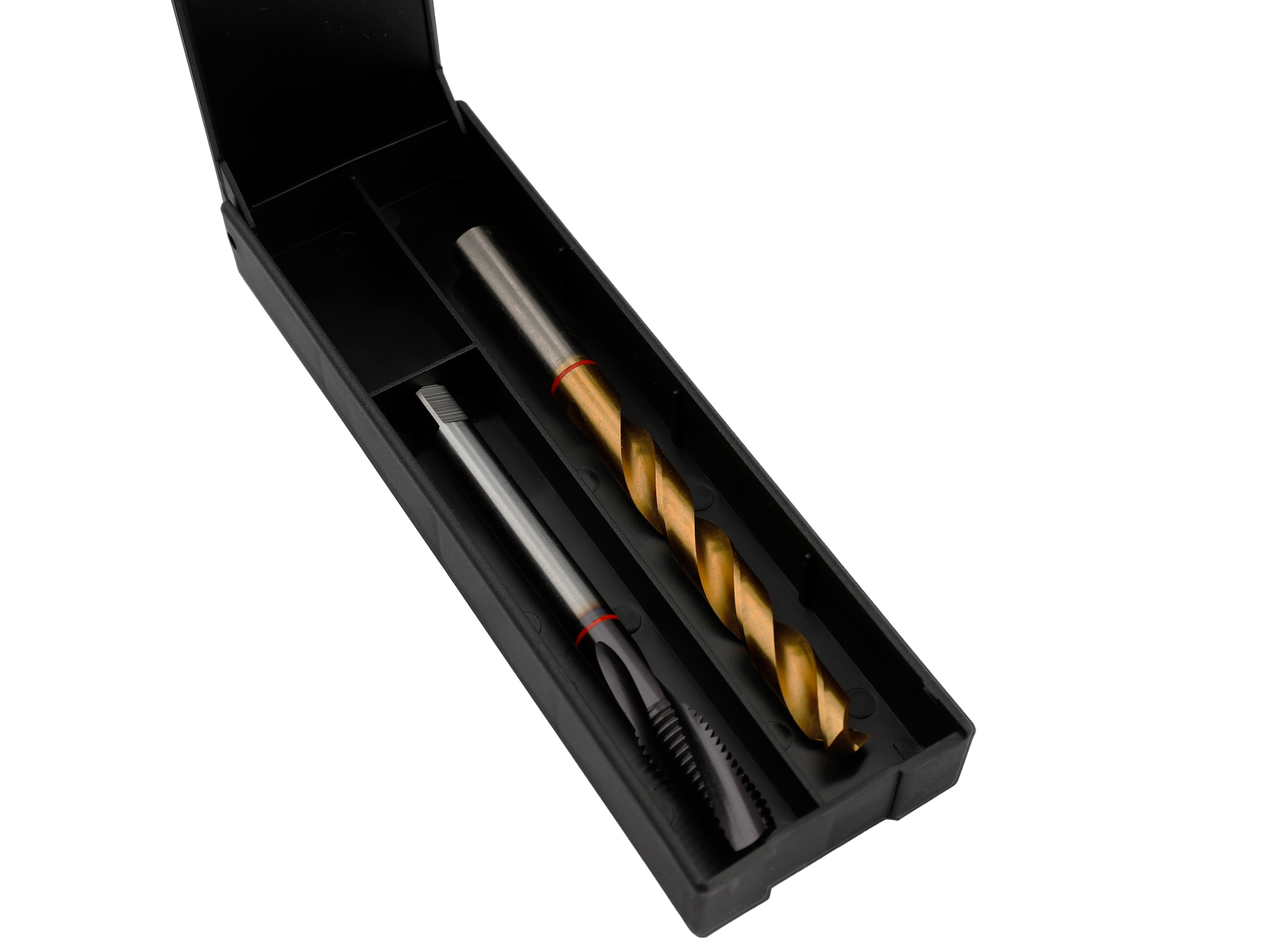

Is the drill included?
Yes, the set includes both the tap and the matching twist drill.
Questions about use or compatibility? Our team is happy to help – use the contact form.
| Type of thread | metric ISO-thread |
|---|---|
| Standard | DIN 376 |
| Form | Form C |
| Material | HSSE-PM |
| Tolerance | ISO2 (6H) |
| Size | M 14 x 2.0 |
| Overall length (L1) | 110 mm |
| Thread length (L2) | 30 mm |
| Core hole diameter (D1) | 12.0 mm |
| Shank diameter (D2) | 11.0 mm |
| Drive connector | 9.0 mm |
| EAN | 4022835361978 |
| Item number | 36197 |
| Type of flute | 15° Spiral Flute |
| Application | for through and blind holes |
| Thread standard | DIN 13 |
| Coating | TiALN |
