Cặp taro máy + mũi khoan

standard TwinBox Machine Tap + Twist Drill, DIN 376, HSS-E, M 12 x 1.75

Name: standard TwinBox Machine Tap + Twist Drill, DIN 376, HSS-E, M 12 x 1.75
Brand: VOLKEL
SKU: 38596
Price: 704000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews)

Sold: 0

Imported from: Germany

Origin: Made in Germany

standard TwinBox Machine Tap + Twist Drill, DIN 376, HSS-E, M 12 x 1.75 by VÖLKEL, item no. 38596, suitable for metal drilling and tap hole preparation.

SKU: 38596

704.000 đ

Price includes VAT

Description

standard TwinBox Machine Tap + Twist Drill, DIN 376, HSS-E, M 12 x 1.75

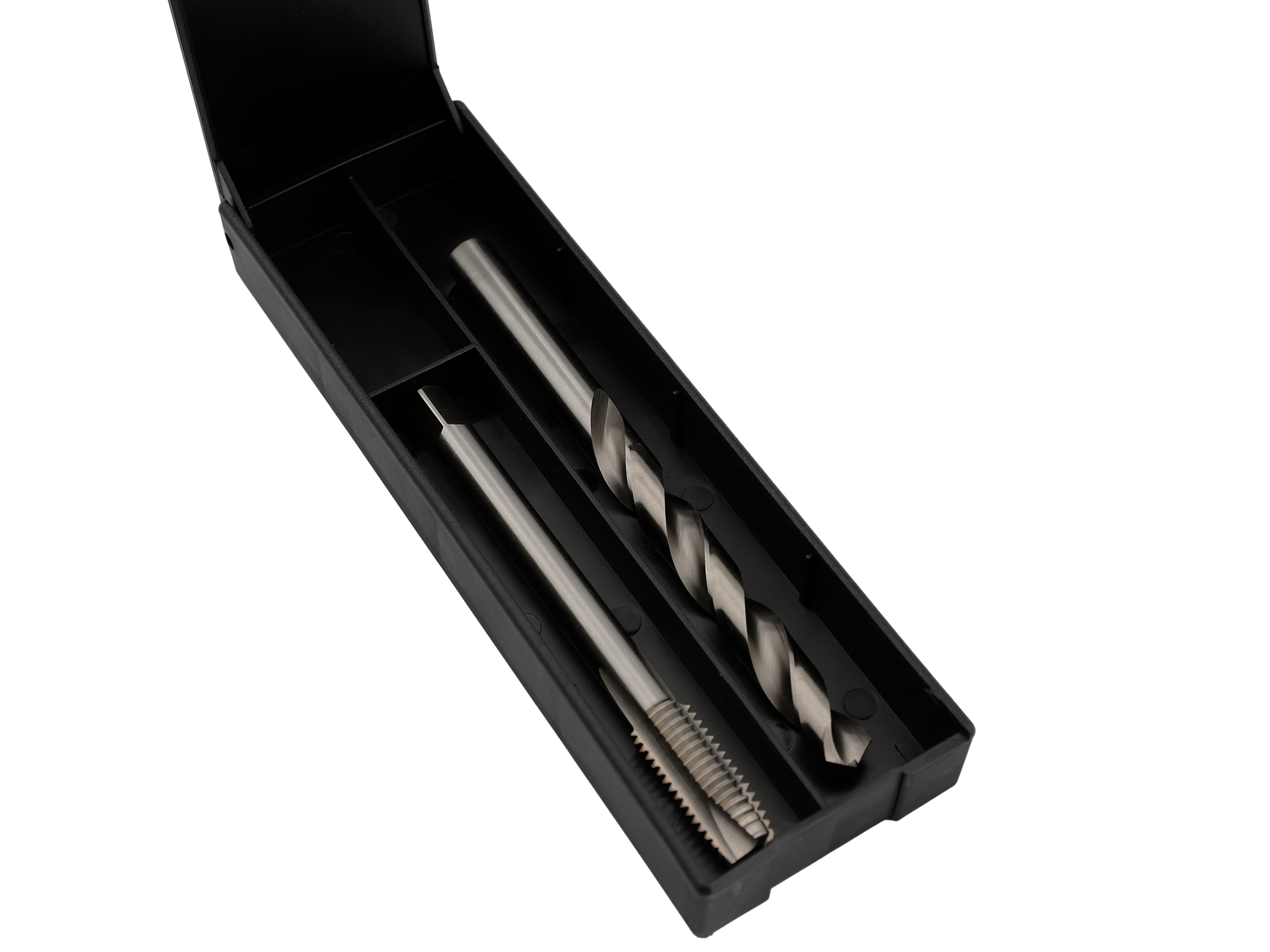

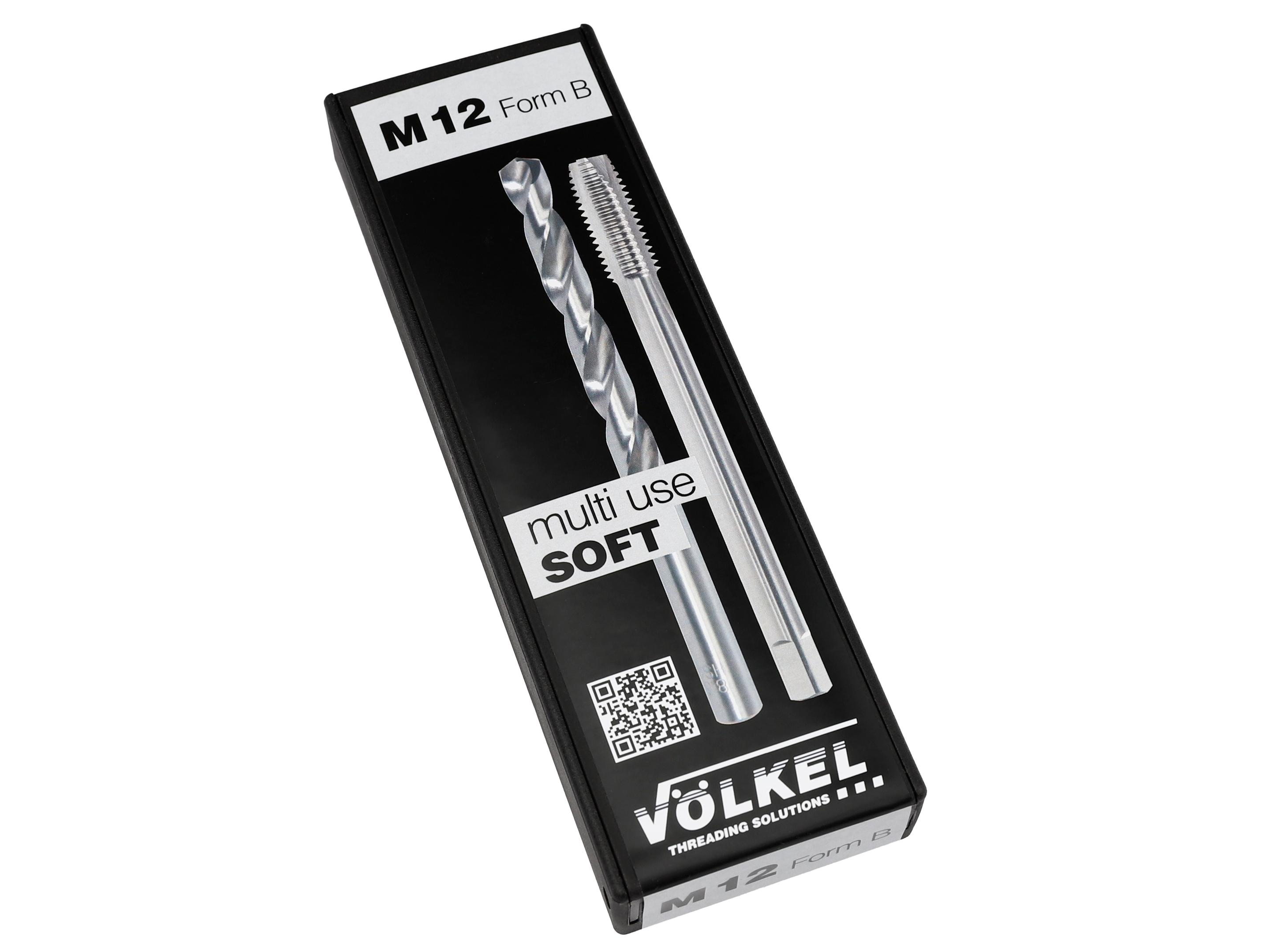

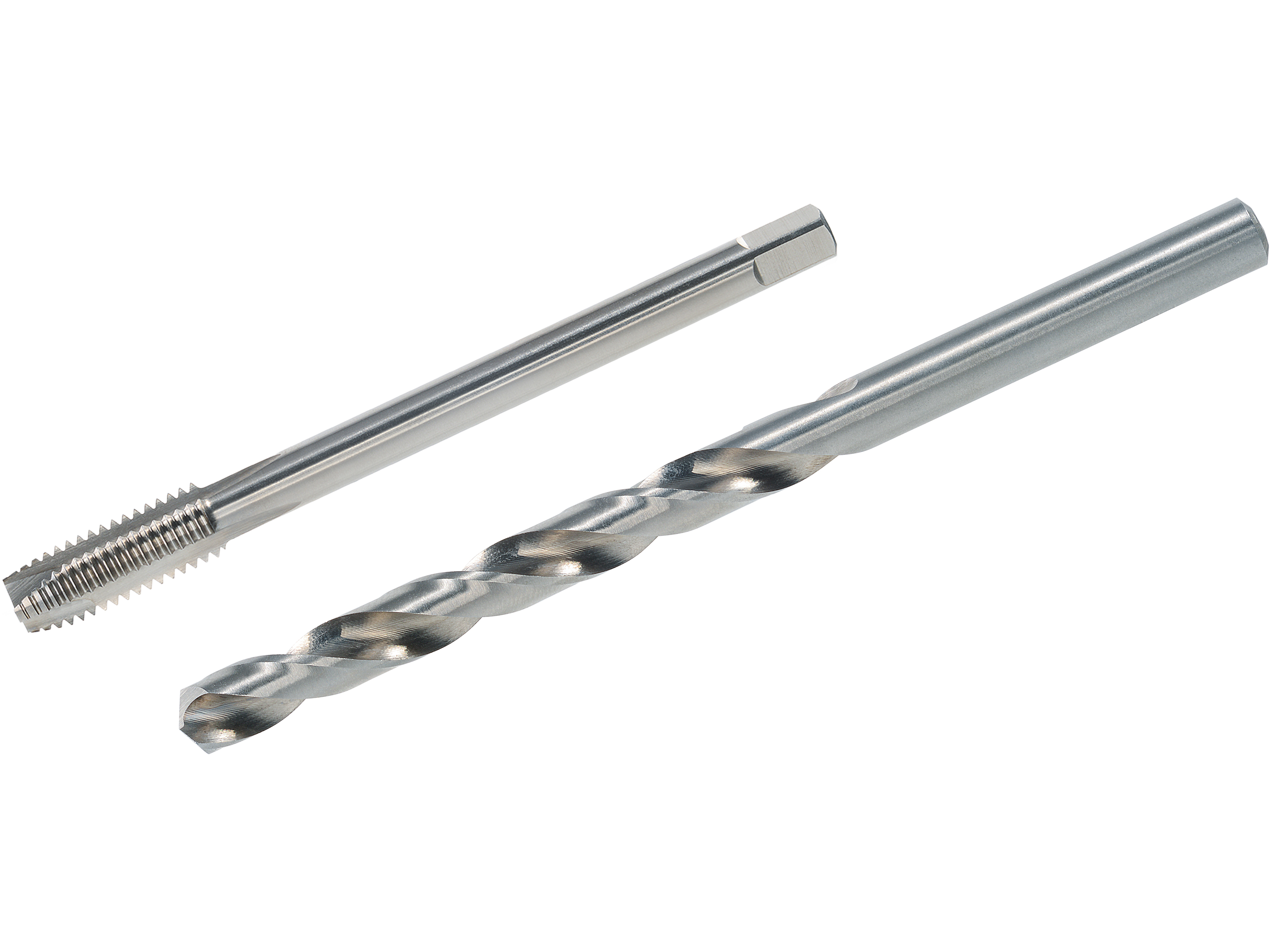

With standard TwinBox Machine Tap + Twist Drill, DIN 376, HSS-E, M 12 x 1.75 you cut an internal thread in a predrilled hole and keep the process stable through correct alignment and lubrication. This TwinBox execution combines a machine tap and a twist drill in one compact pack.

Plan the operation with suitable cutting fluid and a stable holder so the tap enters straight and the chips can evacuate without jamming.

Application

Use the set when you want a matched drill and tap pairing for a defined thread designation.
Use for ISO metric threads as designated in the product name.

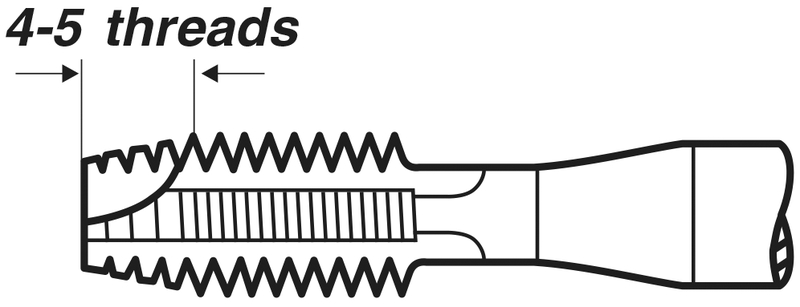

Use for blind holes or through holes based on lead form and flute geometry.
Use a drilling and tapping setup that keeps both tools square to the surface.
Process: manual driving or assisted driving depending on your holder and machine setup
Use: thread cutting, re tapping, and thread cleaning depending on condition

Note Verify the exact designation and ring execution in the product name before use. VÖLKEL uses and recommends spiral drills from LÖHER. LÖHER product catalog as PDF

Benefits

Matched drill and tap pairing reduces setup uncertainty in the field.
Consistent internal thread geometry when the tool is guided square to the surface.
Simple inspection using a suitable screw or gauge after cleaning the thread.
Efficient chip transport supported by flute design when correct cutting fluid is used.
Suitable for repeatable workflows in maintenance and serial production setups.

Drawbacks

Not suitable for hard to machine materials without defined cutting data and stable machine rigidity.
Not intended for high output production where dedicated high performance tooling is required.

Step by step

Identify the correct thread designation on the box and confirm it matches the drawing.
Secure the workpiece and mark the drilling location so the tool starts on center.
Drill the hole with the matched twist drill using suitable cutting fluid.
Deburr the entry so the tap lead can start without edge damage.
Clamp the tap in a stable holder and align it square to the surface.
Start tapping with steady feed and maintain lubrication through the cut.
Reverse out to clear chips when resistance increases and keep the hole clean.
Clean the thread and verify fit with the intended fastener or a gauge.

Scope of supply

The provided product data does not include an itemized scope of supply for standard TwinBox Machine Tap + Twist Drill, DIN 376, HSS-E, M 12 x 1.75. The product name indicates a combined tap and twist drill execution, but individual quantities are not listed.

Technical features

Product type: machine tap
Thread designation: M 12 x 1.75
Thread system: ISO metric

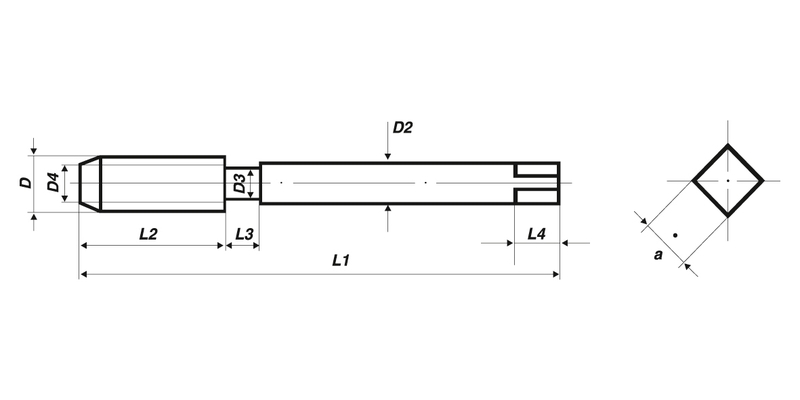

Standard: DIN 376
Tool material: HSS-E, HSS
Tolerance class: ISO 2 (6H)

Frequently asked questions (FAQ)

How do you select the correct variant for your drawing Match the thread designation in the product name to the drawing and the mating fastener. Confirm thread series, pitch, and class of fit before you start, especially for inch based threads. Where can you find an overview of the TwinBox concept Use this PDF for orientation and the ring system overview. TwinBox overview as PDF Is this tap suitable for blind holes or through holes The suitability depends on flute geometry and lead form noted in the product name. Spiral flute execution is typically chosen for blind holes because chips are transported out of the hole. Which TwinBox execution is referenced by the ring term in the product name Use this PDF for the execution specific differentiation and handling notes. Standard TwinBox as PDF Which tolerance class do you typically achieve The typical tolerance class for this execution is ISO 2 (6H) when the process is set up correctly and the hole preparation matches the thread system. Do you need cutting fluid Yes, use suitable cutting fluid for the material to reduce friction and control chip formation. Keep lubrication consistent from start to finish and clean the tool after use. Which tools do you need in addition to the kit You typically need a suitable holder for the tap and a stable drilling setup. Use clamping that keeps the tool axis square to the surface and prevents wobble. Where can you find the VÖLKEL catalog for additional variants and technical context Use the catalog for the full program and selection guidance. VD 23 catalog as PDF

Do you need help selecting or using the product?
Use the contact form.

Specifications

Type of thread	metric ISO-thread DIN 13
Standard	DIN 376
Form	Form
Material	HSS-E
Tolerance	ISO 2 /6H
Size	Nominal diameter D M 12 x 1.75
EAN	4022835385967
Item number	38596
