Home Cặp taro máy + mũi khoan GREEN RING TwinBox Machine Tap + Twist Drill, DIN 371, HSS-E, M 5 x 0.8

Cặp taro máy + mũi khoan

GREEN RING TwinBox Machine Tap + Twist Drill, DIN 371, HSS-E, M 5 x 0.8

Name: GREEN RING TwinBox Machine Tap + Twist Drill, DIN 371, HSS-E, M 5 x 0.8
Brand: VOLKEL
SKU: 35392
Price: 486000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews)

Sold: 0

Imported from: Germany

Origin: Made in Germany

GREEN RING TwinBox Machine Tap + Twist Drill, DIN 371, HSS-E, M 5 x 0.8 by VÖLKEL, item no. 35392, suitable for metal drilling and tap hole preparation.

SKU: 35392

486.000 đ

Price includes VAT

Description

GREEN RING TwinBox Machine Tap + Twist Drill M5 × 0.8 | VÖLKEL

GREEN RING TwinBox Machine Tap + Twist Drill, DIN 371, HSS-E, M 5 × 0.8

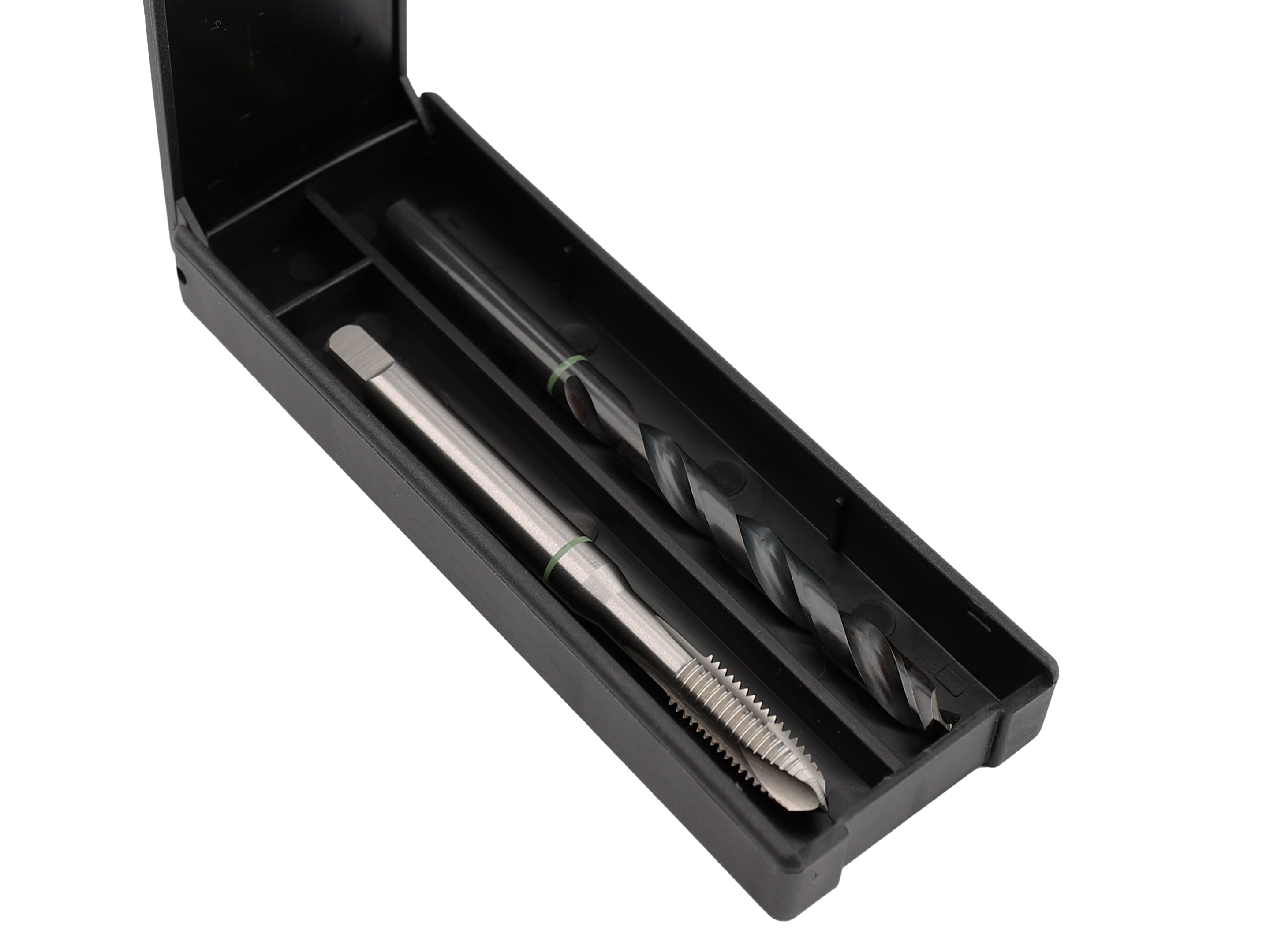

The GREEN RING TwinBox M5 × 0.8 combines a precision machine tap and a matching twist drill in one compact set – perfectly suited for reliable and clean thread production in through holes. Designed for universal use, this kit is ideal for workshops, assembly tasks and maintenance operations.

Application

for general use

non-abrasive materials up to 1000 N/mm²
unalloyed and low-alloy steels
malleable cast iron and zinc alloys
ideal for producing through holes

Advantages

tap and drill combined in a compact TwinBox
high-quality HSS-E machine tap for increased durability
precisely matched drill diameter for clean core holes

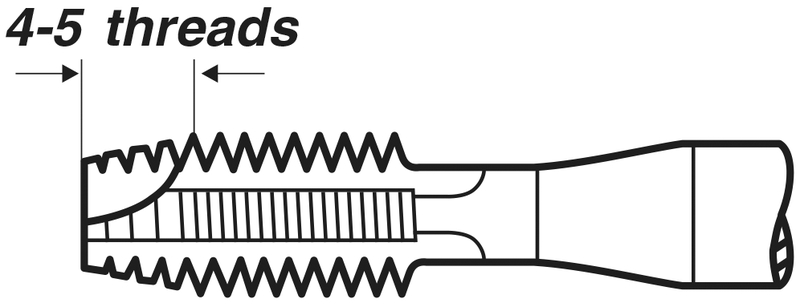

reliable chip removal thanks to Form B geometry
suitable for machine and manual use
ideal for maintenance, repair and small production runs

Step-by-Step Instructions

Prepare the workpiece: Ensure the surface is clean, flat and securely clamped.
Drill the core hole: Use the included 4.2 mm twist drill (HSS-Co, DIN 338) and apply cutting fluid.
Position the tap: Align the GREEN RING machine tap M5 × 0.8 perpendicular to the drilled hole.
Cut the thread: Apply consistent pressure and cutting fluid while tapping steadily.
Check the result: Test the newly cut M5 thread with a suitable screw.

More technical details can be found in the Technical Information – Machine Taps (PDF).

Technical Data

Thread Type: Metric ISO Thread DIN 13
Nominal Size: M5 × 0.8
Material: HSS-E
Form: Form B
Tolerance: ISO 2 / 6H
Norm: DIN 371
EAN: 4022835353928
Item Number: 35392
Included Drill: 4.2 mm HSS-Co Twist Drill DIN 338

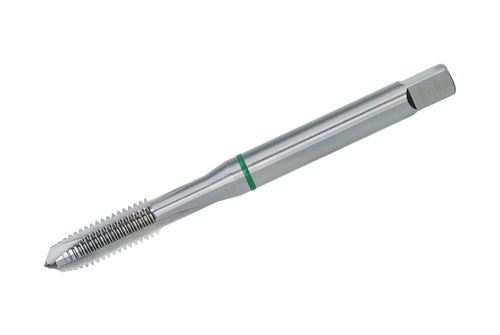

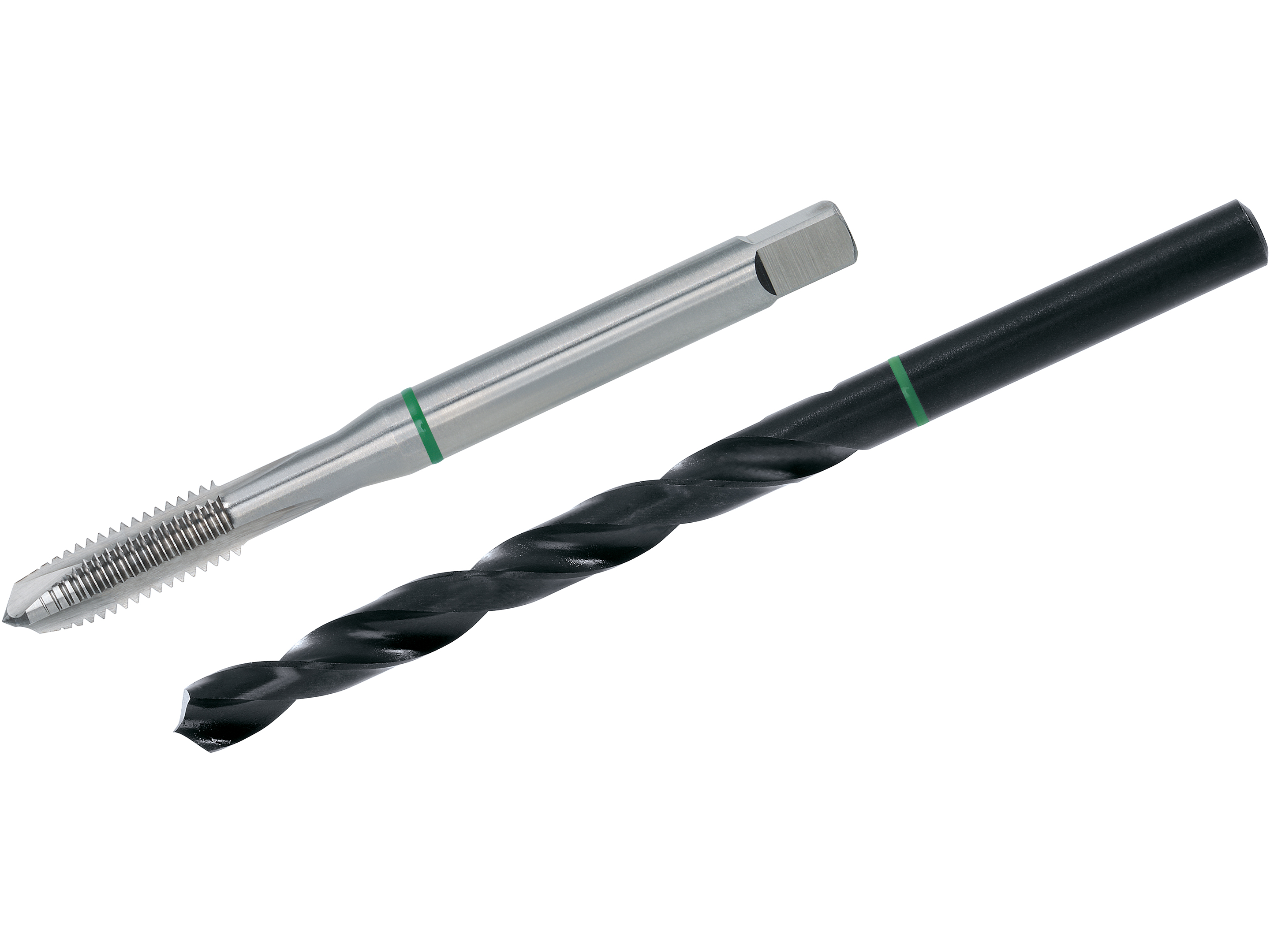

1× GREEN RING Machine Tap, DIN 371, HSS-E, M 5 × 0.8 (35334)
1× Twist Drill 4.2 mm (HSS-Co, DIN 338)

Videos

Specifications

Type of thread	metric ISO-thread DIN 13
Standard	DIN 371
Form	Form
Material	HSS-E
Tolerance	ISO 2 /6H
Size	Nominal diameter D M 5 x 0.8
EAN	4022835353928
Item number	35392
