V-COIL Wire thread insert Free running type S UNF 7/8 x 14 - 3.0 D (10 pcs.)

★ 0.0 (0 reviews) • Sold 0

Views: 0

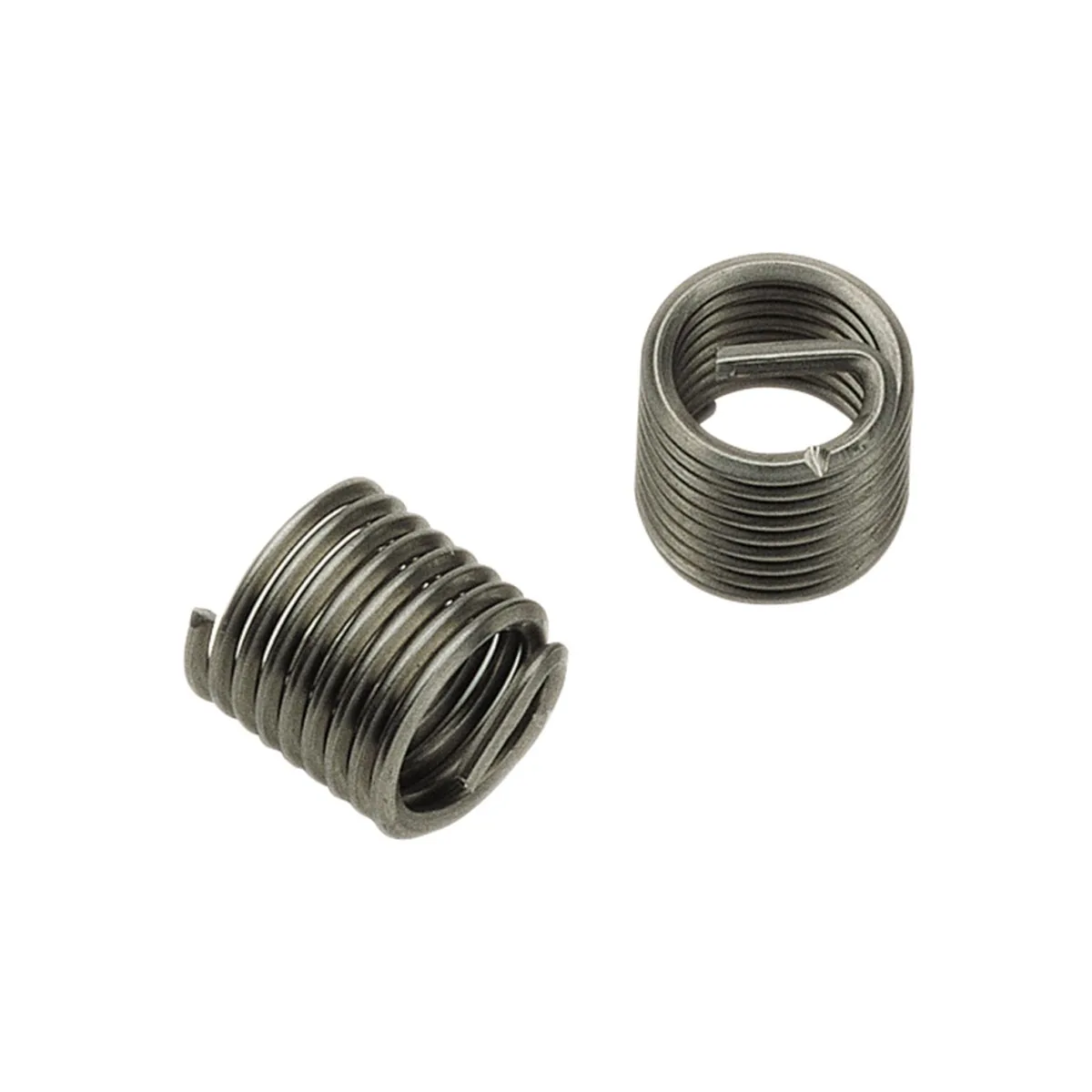

V-COIL Wire thread insert Free running type S UNF 7/8 x 14 - 3.0 D (10 pcs.) by VÖLKEL, item no. 08635, suitable for thread repair and reinforcement.

SKU: 08635

257.600 đ

Stock status: Hết hàng

Price includes VAT

Description

Application:

Thread Repair of damaged or worn-out threads
Thread Armour Plating for material with low shear strength
Recovery of rejected items

Advantages:

produced from precision profiled austenitic stainless steel wire wound into a helical spiral
spring like appearance
for high strength and long-lasting internal threads
higher temperature and corrosion resistance
higher load capacity after the repair by better thread properties
can generally be incorporated into existing designs where no previous provision has been made
position is maintained by the action of radial pressure between their coils and the flanks of the tapped hole

Specifications

Type of thread	Unified Fine Thread
Standard	DIN 8140
Material	from stainless steel
Tolerance	2B
Size	UNF 7/8 x 14
Length	3.0 x D
Packaging unit (piece)	10
EAN	4022835086352
Item number	08635
Thread standard	ANSI B 1.1
Packing unit (pcs.)	10
