V-COIL Wire thread insert Free running type S M 8 x 1.25 - 1.0 D (100 pcs.)

• Restore damaged internal threads so you can reuse housings and components instead of scrapping them.
• Use the insert system in maintenance, service repair, and small batch rework when thread engagement must be reliable.
• Follow the correct preparation sequence so the insert seats without cross-threading or distortion.
• Process: manual driving or assisted driving depending on your holder and machine setup
• Use: thread cutting, re tapping, and thread cleaning depending on condition

Note Use the correct installation sequence for the insert type named in the product name and keep the prepared thread free of burrs.

• Restores thread function in worn or stripped housings without oversize fasteners.
• Spreads load over the thread flanks and can improve wear resistance versus a damaged base thread.
• Useful for repeated assembly cycles in service and maintenance applications.
• Enables standardized repair workflows when you use inserts to DIN 8140 where specified.

• Requires drilling and tapping to the insert system specification before installation.
• Not suitable for rapid cycle production repairs where downtime must be minimal.

1. Assess the damaged thread and confirm that the repair system named in the product fits the base material and wall thickness.

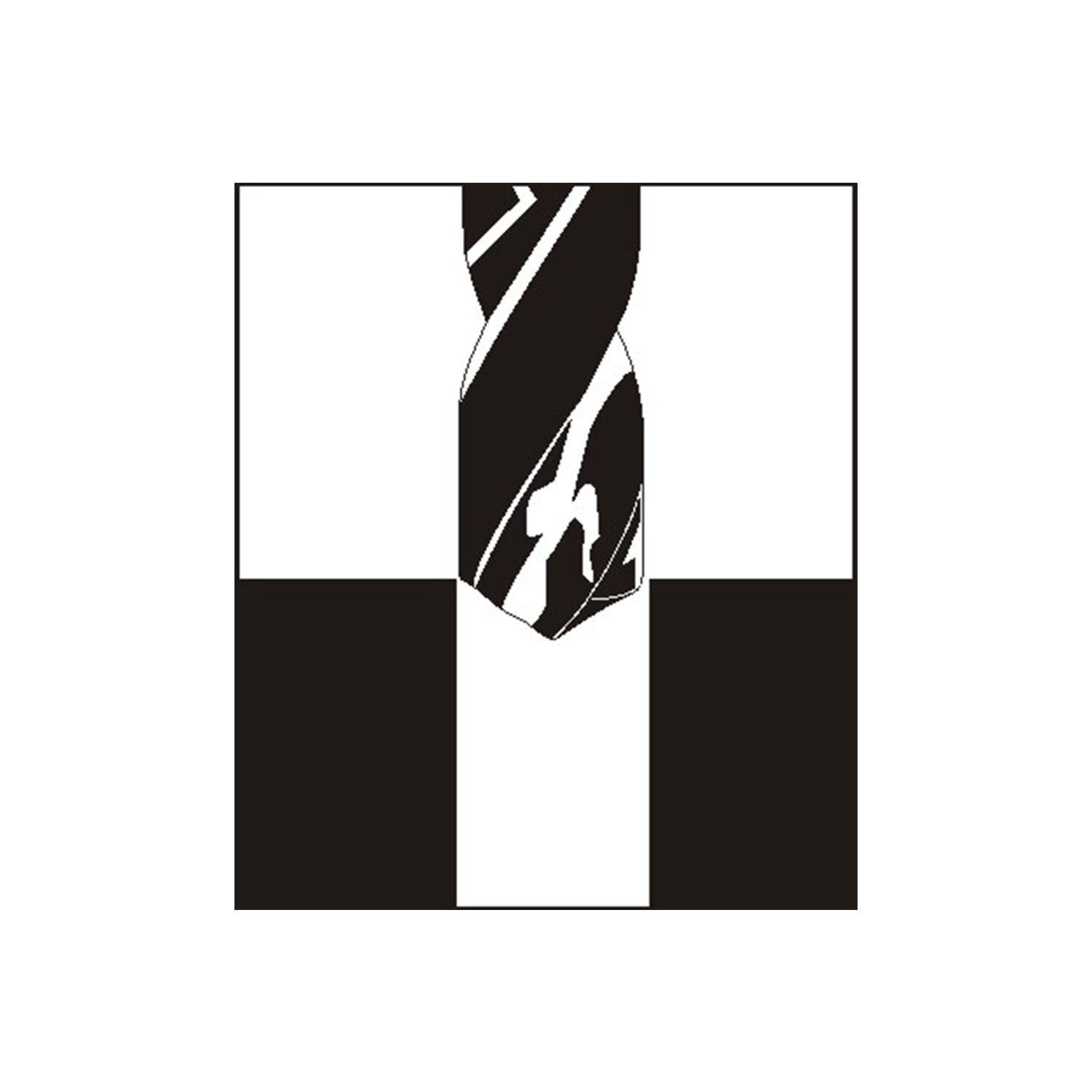

2. Drill out the damaged thread to the required preparation diameter for the insert system you use.

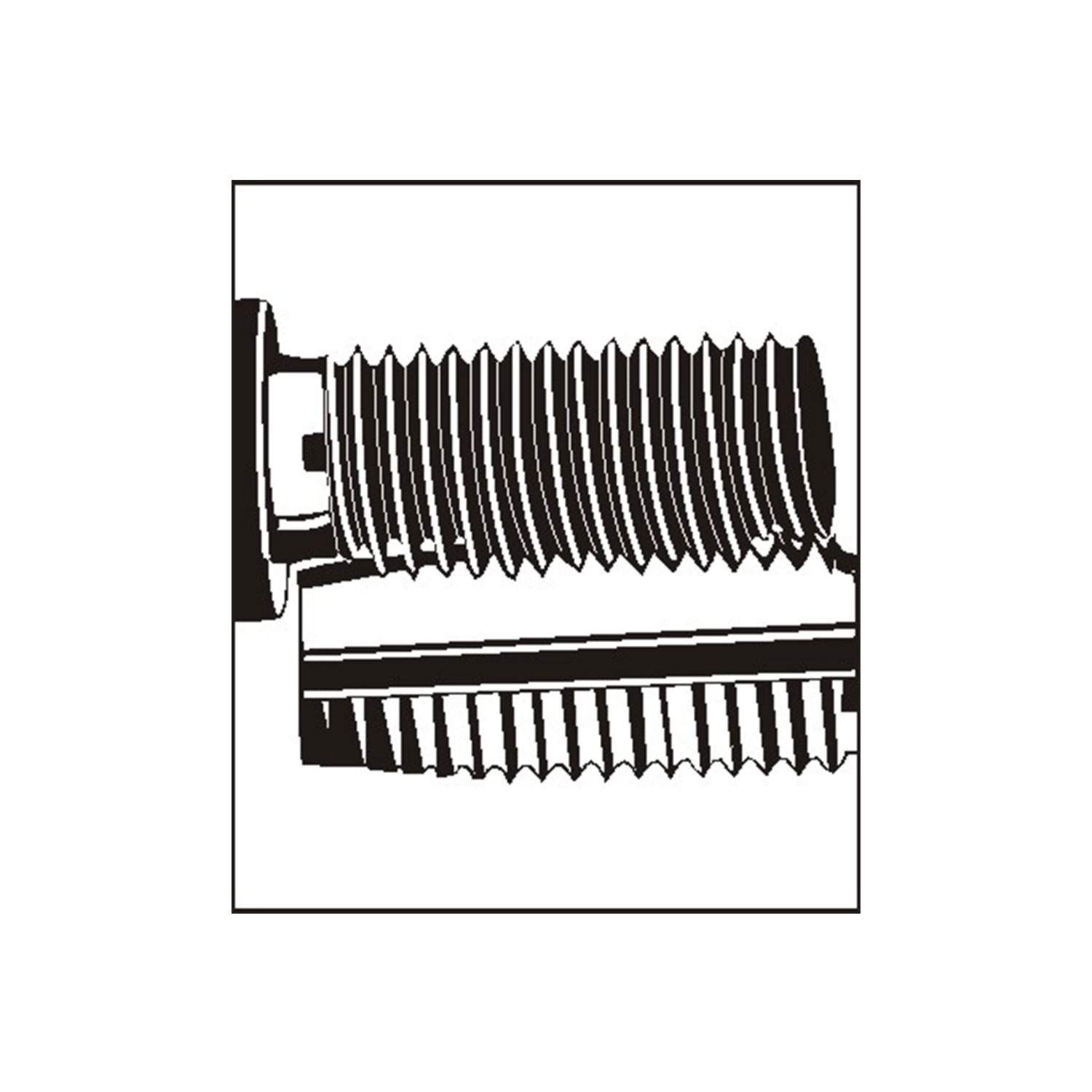

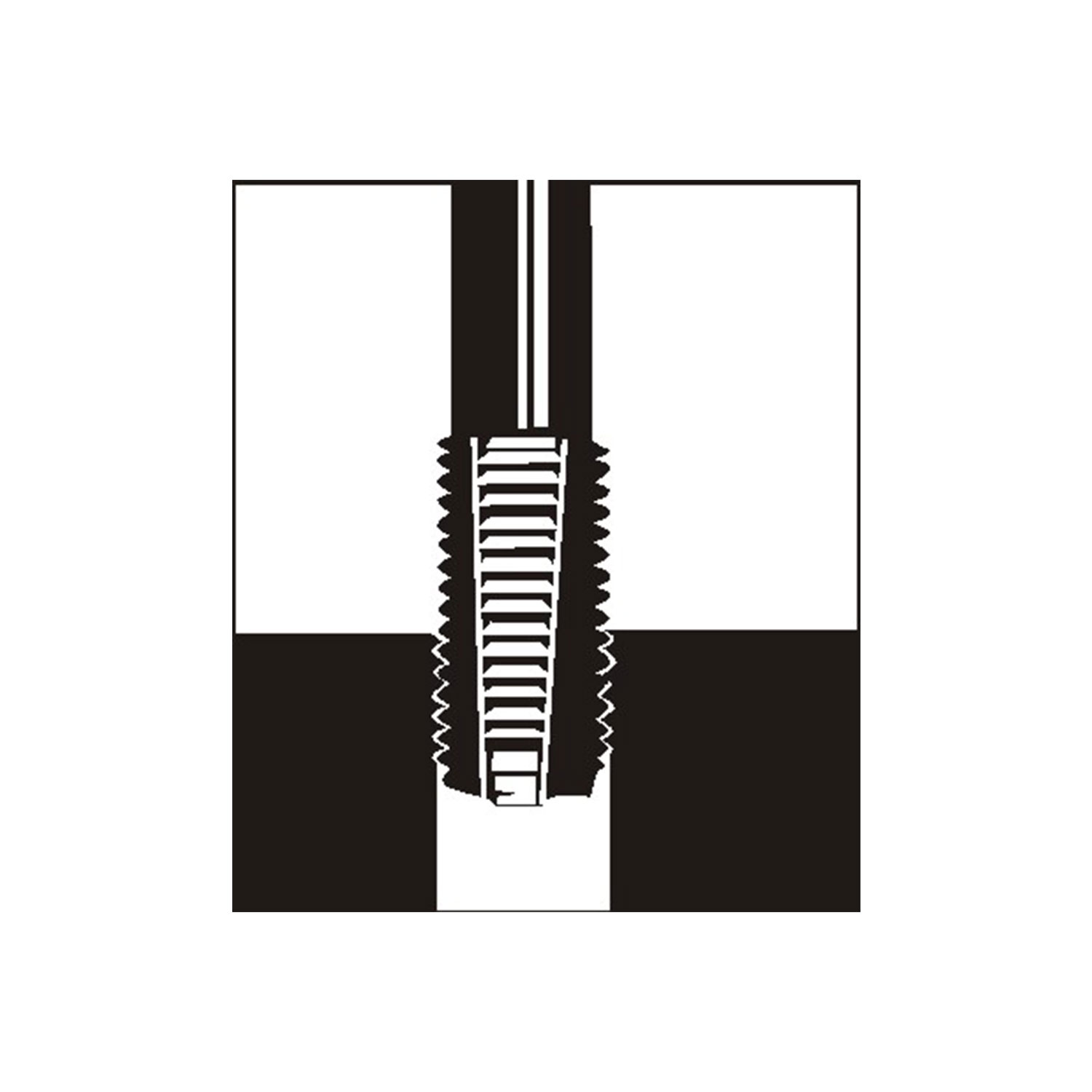

3. Cut the STI thread with the matching STI tap and keep the tool aligned to the bore axis.
4. Clean the prepared thread and remove chips so the insert seats without distortion.

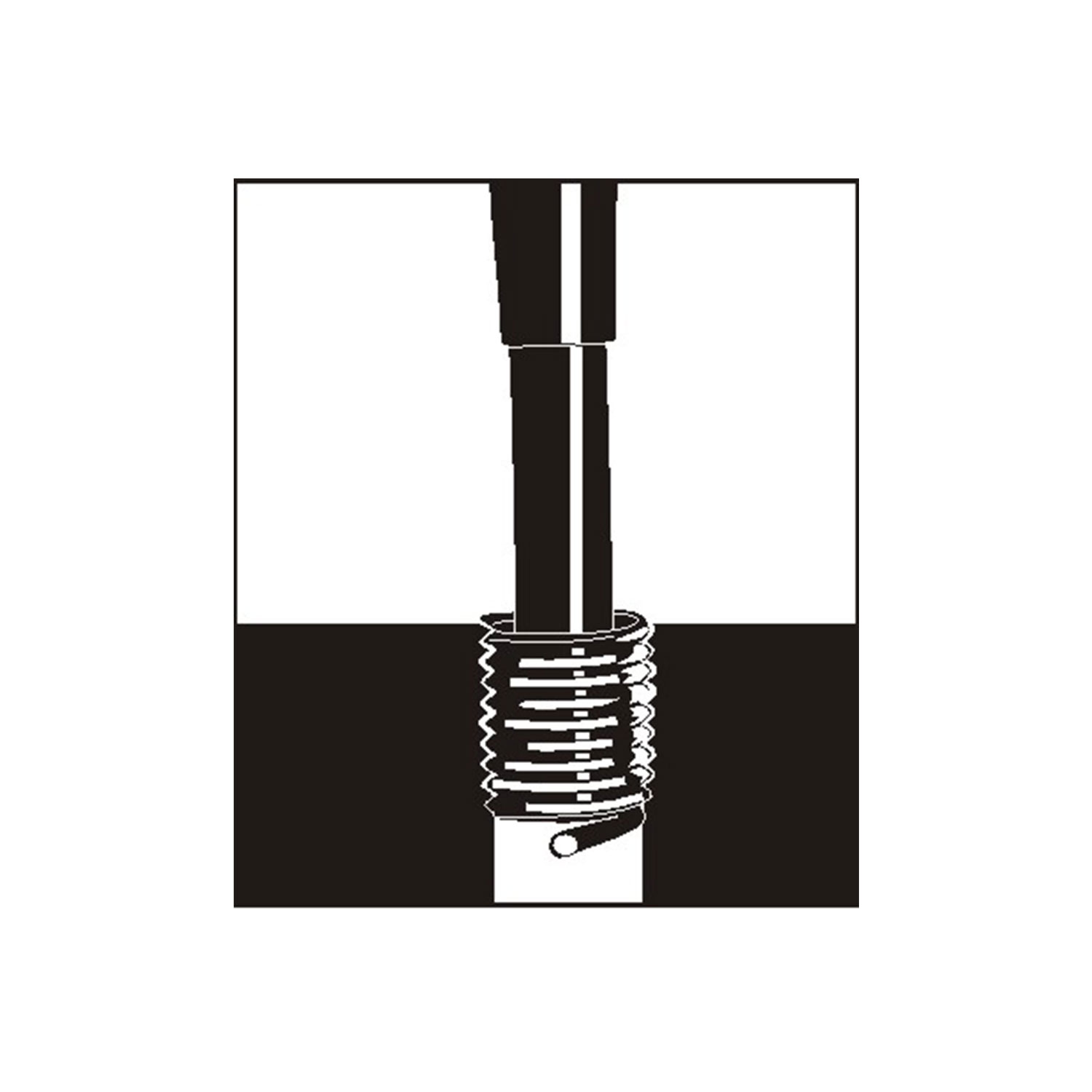

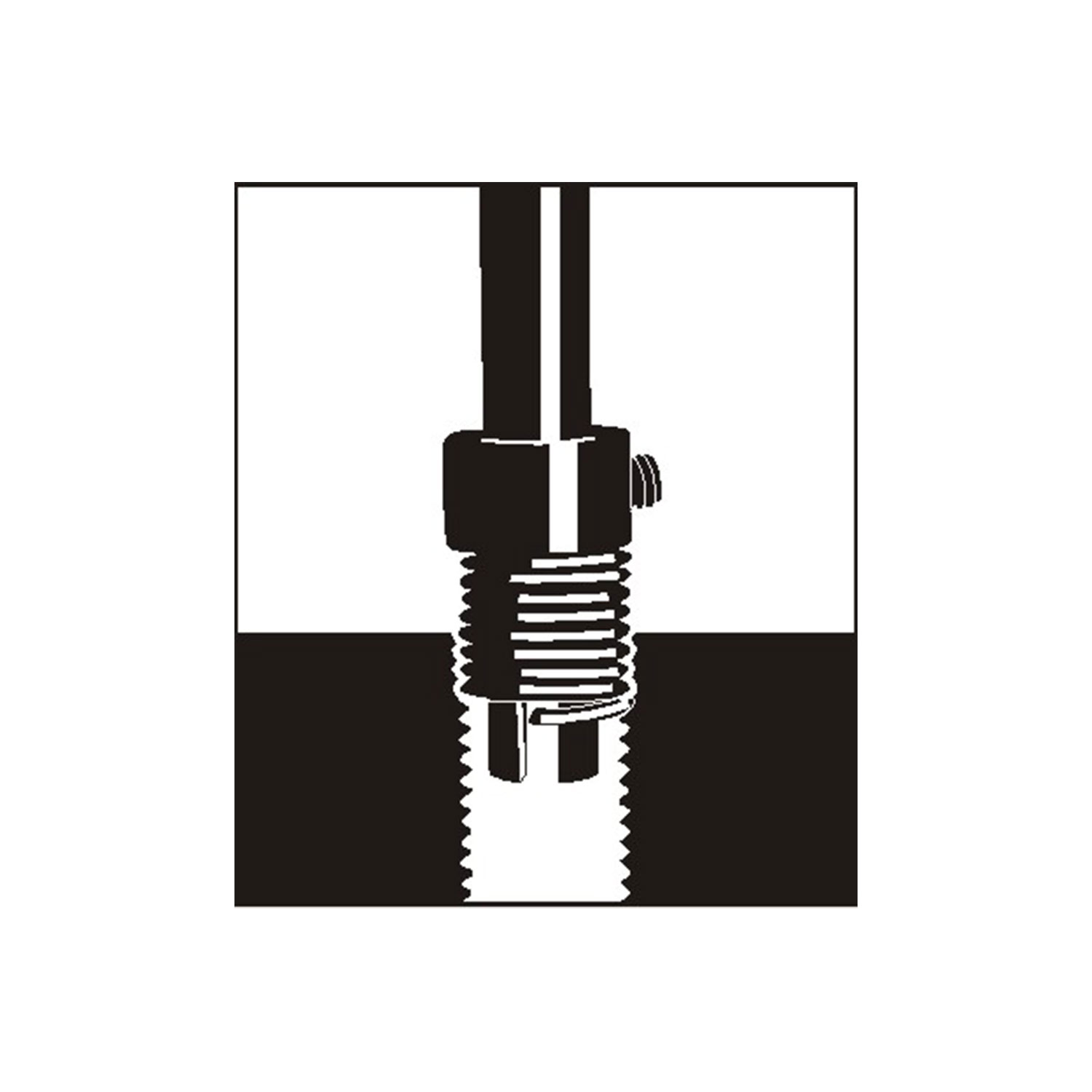

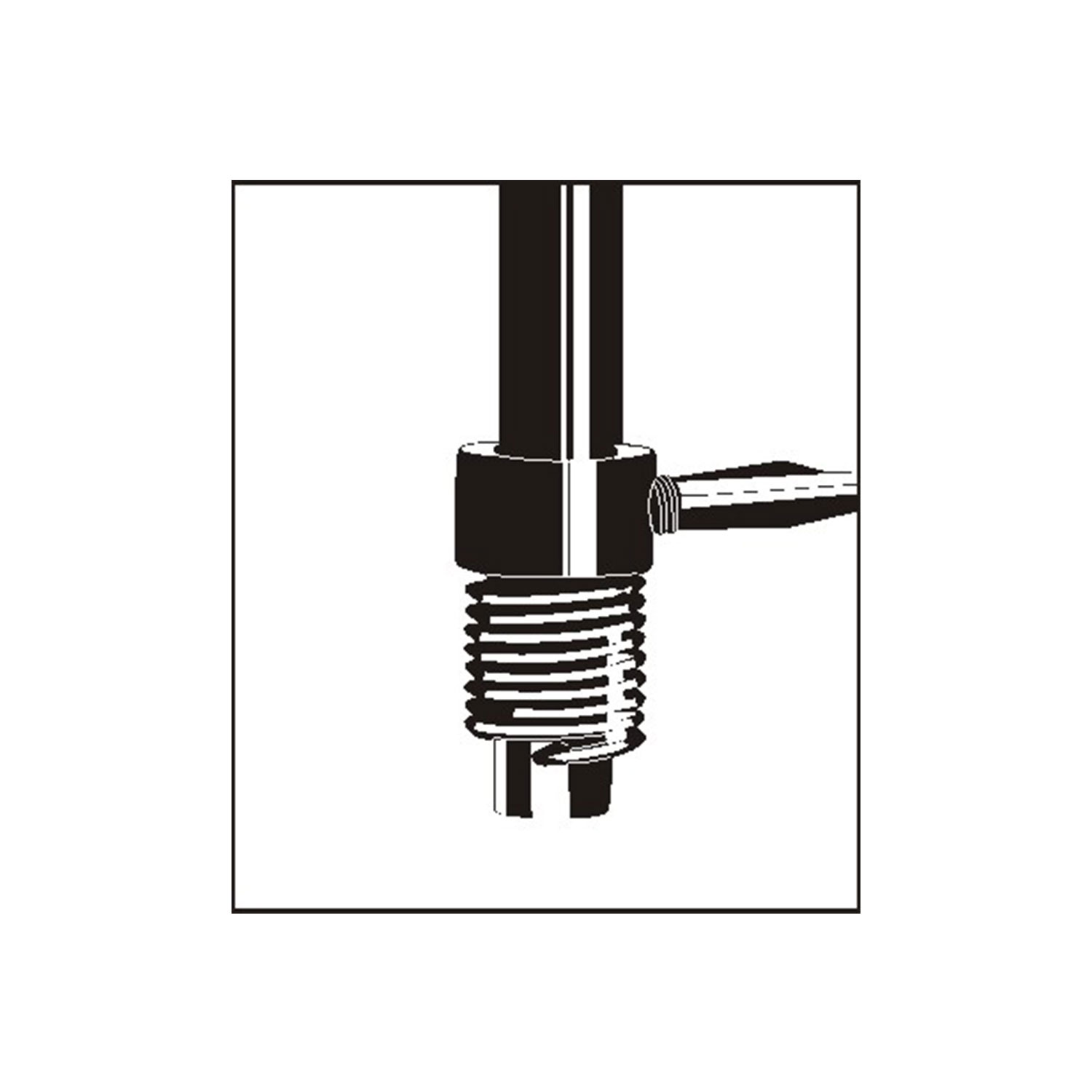

5. Install the insert with a suitable installation tool and stop when the insert sits at the required depth.
6. If applicable for the insert type, remove the drive feature according to your process standard.
7. Verify the repaired thread with a fastener or gauge before returning the part to service.

• 100 pieces V-COIL Wire thread insert Free running type S M 8 x 1.25 - 1.0 D (100 pcs.)

• System: Wire thread insert or repair component
• Thread system: Metric ISO

When is a wire thread insert the right repair approach?

Use it when the original internal thread is stripped or worn and you need a durable repair for repeated assembly. It is common in maintenance and rework of housings and components.

What does the thread designation in the product name mean?

Metric ISO identifies ISO metric threads defined by the M designation and used across general engineering.

Where can you find an overview of the V-COIL thread repair process?

Technical information V-COIL thread repair as PDF

What is an STI thread and why is it required?

STI is a larger internal thread used to accept the insert outer diameter. You cut it with an STI tap matched to the insert system so the insert seats correctly.

Where can you find technical information on wire thread inserts to DIN 8140?

Technical information wire thread inserts DIN 8140 as PDF

What checks should you do after installation?

Confirm that the insert is seated at the intended depth and that the fastener engages smoothly without binding. If your process requires it, remove the drive feature and inspect the first thread turns.

Can a repaired thread handle repeated tightening cycles?

A properly installed insert provides a wear-resistant thread interface and it is well suited for service parts that see repeated assembly.
