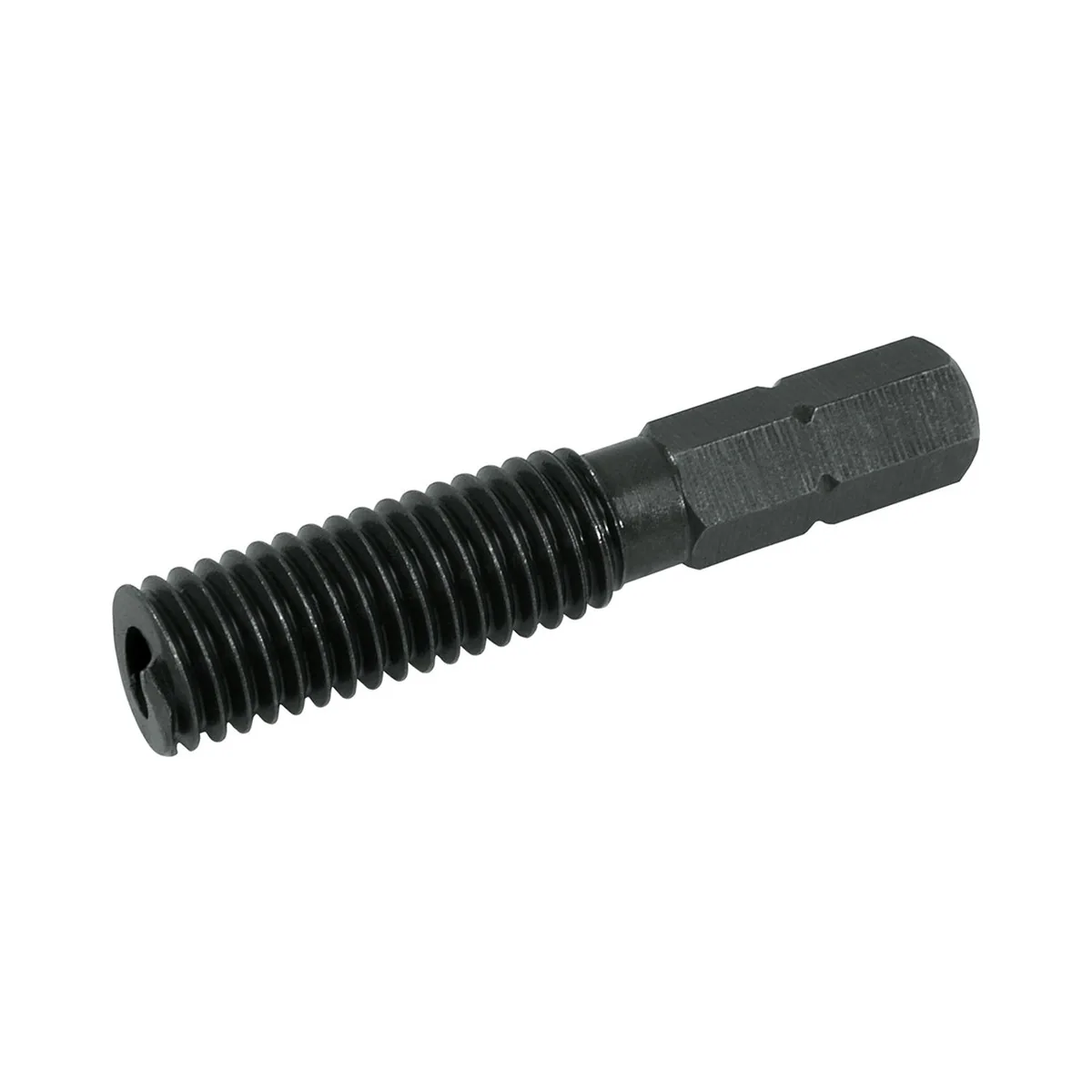

V-COIL Inserting Tool (Drive connector 1/4") UNC 5/16

Name: V-COIL Inserting Tool (Drive connector 1/4") UNC 5/16
Brand: VOLKEL
SKU: 08196
Price: 243200.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

V-COIL Inserting Tool (Drive connector 1/4") UNC 5/16 by VÖLKEL, item no. 08196, suitable for thread repair and insert installation.

SKU: 08196

243.200 đ

Stock status: Hết hàng

Price includes VAT

Description

V-COIL Inserting Tool (Drive connector 1/4"), UNC 5/16

The V-COIL inserting tool UNC 5/16 allows you to install wire thread inserts quickly, reliably and with full control. Thanks to the robust 1/4" square drive, you can use it with a ratchet, cordless drill or torque wrench – ideal for professional repairs, assembly work and industrial metal applications.

Application Area

For wire thread inserts with size UNC 5/16
Ideal for mechanical engineering, metalworking, automotive, maintenance and repair
Suitable for aluminium, steel, cast iron and technical plastics
Compatible with V-COIL and equivalent thread repair systems

Usage

Follow these steps when installing inserts:

Drill the core hole, cut the special thread and clean thoroughly.
Screw the insert completely onto the inserting tool.
Position the tool straight at the thread entrance.
Install the wire thread insert with controlled torque and remove the tool afterwards.

Step-by-Step Instructions

Prepare the core hole: Drill, cut and clean.
Attach the insert: Screw the wire insert onto the tool.
Align correctly: Position straight and without tilting.
Install the insert: Rotate smoothly by hand or with a tool.
Finish: Check the fit and remove the inserting tool.

Technical Data

Thread Size: UNC 5/16
Drive Connector: 1/4" square
Material: High-strength precision steel
Compatible with: V-COIL & equivalent systems
Article Number: 08196
EAN: 4022835081968

Frequently Asked Questions (FAQ)

1. What is this tool designed for?

This tool is specifically designed for installing UNC 5/16 wire thread inserts with maximum precision.

2. Can I use a cordless drill with this tool?

Yes, but use a low speed setting. For the best control, a ratchet or torque wrench is recommended.

3. Why does the insert not screw on smoothly?

In most cases the insert may be slightly bent. Replace it with a new one to avoid installation issues.

4. How do I ensure the insert is aligned correctly?

Make sure you position the tool straight and begin with slow, even pressure to avoid cross-threading.

5. Is the tool suitable for tight installation spaces?

Yes, its compact geometry makes it suitable even in limited-access areas.

6. How durable is the inserting tool?

The tool is manufactured from hardened precision steel, ensuring long-lasting dimensional stability.

7. Do I need to perform maintenance on the tool?

Simply clean it after use and apply a light oil film to prevent corrosion.

8. Are inserts from other brands compatible?

Yes, as long as the inserts follow the same UNC 5/16 specification and design.

Scope of Delivery

1× V-COIL Inserting Tool, 1/4", UNC 5/16 (Art. No. 08196)

Do you have questions or would you like a quote?
Use the contact form.

Specifications

Standard	Works Standard
Size	UNC 5/16
Drive connector	1/4"
EAN	4022835081968
Item number	08196
Application	UNC 5/16
