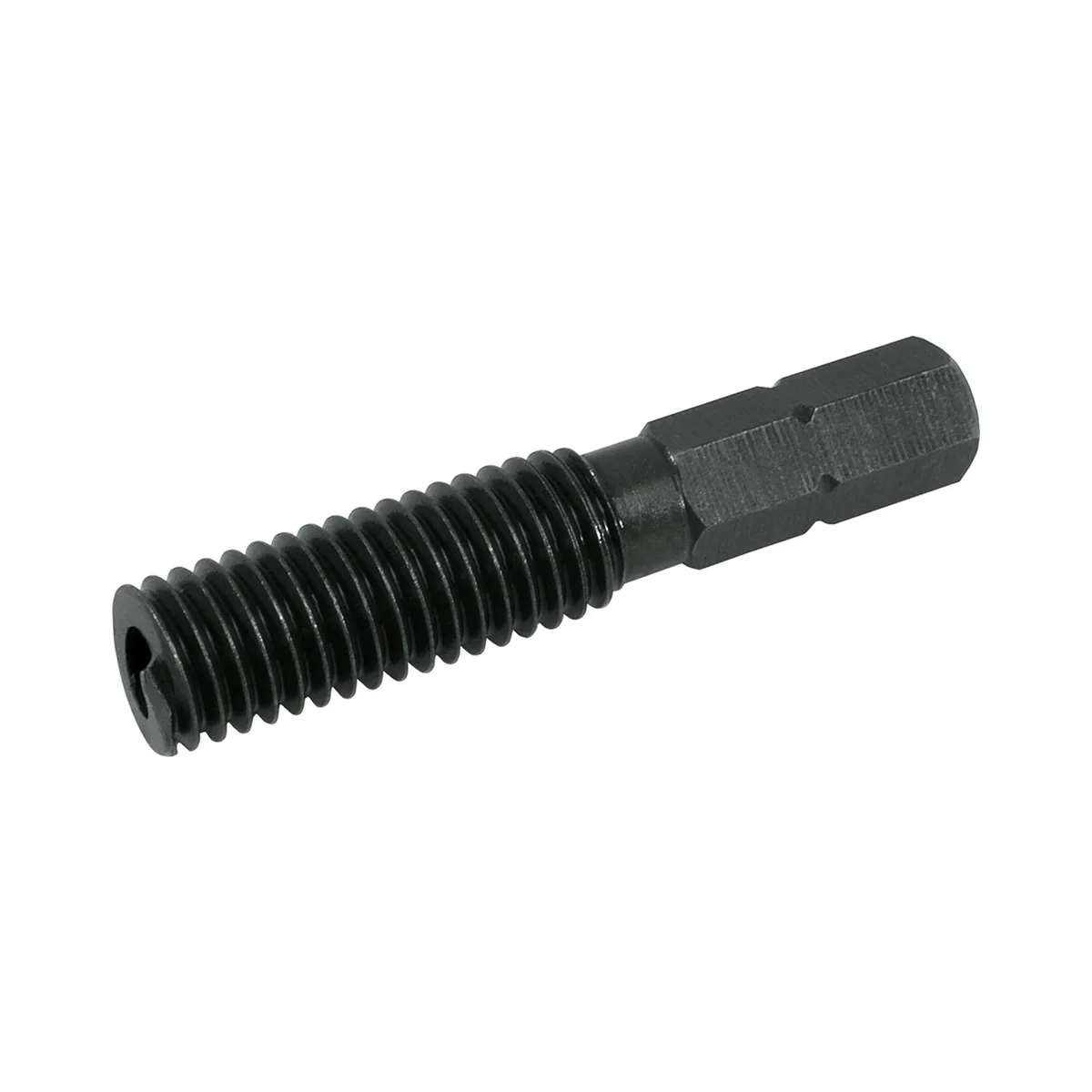

V-COIL Inserting Tool (Drive connector 1/4") M 12 × 1.5

Name: V-COIL Inserting Tool (Drive connector 1/4") M 12 × 1.5
Brand: VOLKEL
SKU: 08192
Price: 362000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews)

Sold: 0

Imported from: Germany

Origin: Made in Germany

V-COIL Inserting Tool (Drive connector 1/4") M 12 × 1.5 by VÖLKEL, item no. 08192, suitable for thread repair and insert installation.

SKU: 08192

362.000 đ

Price includes VAT

Description

V-COIL Inserting Tool (Drive Connector 1/4"), M 12 × 1.5

With the V-COIL inserting tool M 12 × 1.5, you can install wire thread inserts quickly, cleanly and with excellent repeat accuracy. The 1/4" square drive lets you work with ratchets, torque wrenches or compatible tools — ideal for workshop, repair and production environments.

Application Range

Installation of wire thread inserts in size M 12 × 1.5
Perfect for repair, maintenance and series production
Suitable for aluminium, steel and many other materials
Compatible with V-COIL and many equivalent insert systems

How to Use

Follow these steps for a clean and controlled installation:

Prepare the core hole and clean the thread thoroughly.
Fully screw the wire insert onto the inserting tool.
Align the tool with the thread entry and install the insert using your 1/4" drive.
Remove the tool once the insert is in its final position.

Step-by-Step Guide

Preparation: Drill the core hole, tap the thread and remove chips and oil.
Mounting: Screw the insert fully onto the tool.
Alignment: Position the tool straight at the hole entrance.
Insertion: Apply consistent torque until the insert reaches its seat.
Final Check: Remove the tool and verify alignment and positioning.

Technical Data

Size: M 12 × 1.5
Drive Connector: 1/4" square
Compatibility: V-COIL and equivalent wire thread inserts
Material: Precision steel
Item Number: 08192
EAN: 4022835081920

Frequently Asked Questions (FAQ)

1. Which inserts can you install with this tool?

The tool is designed for wire thread inserts in size M 12 × 1.5 and fits V-COIL and compatible systems.

2. Can you use the tool manually?

Yes — you can use it manually, but a 1/4" ratchet or torque wrench provides the most consistent results.

3. Does this tool remove existing inserts?

No, this tool is for installation only. Removing inserts requires a special extraction tool.

4. Do you need to break off the tang?

If your insert has a break-off tang, you must remove it after installation using the correct tang break-off tool.

5. What if the insert is not aligned correctly?

Check if the tapped thread is clean and undamaged. If necessary, remove the insert and install a new one.

6. How should you clean the internal thread before installation?

Use compressed air, a thread brush and a clean lint-free cloth to remove oil and debris.

7. Can the insert sit above the surface?

No — it must sit flush or slightly below the surface to ensure proper function.

8. How do you verify correct insert seating?

The insert should sit flush or slightly below the surface. Check visually or with a gauge if needed.

Scope of Delivery

1× V-COIL inserting tool, 1/4", M 12 × 1.5 (Item No. 08192)

Do you need help or want to request an offer?
Use the contact form.

Specifications

Standard	Works Standard
Size	M 12 x 1.5
Drive connector	1/4"
EAN	4022835081920
Item number	08192
Application	M 12 x 1.5
