V-COIL rapid Thread Repair Kits, UNC 5/16 x 18 - 1,5D

Name: V-COIL rapid Thread Repair Kits, UNC 5/16 x 18 - 1,5D
Brand: VOLKEL
SKU: 04408
Price: 1110400.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

V-COIL rapid Thread Repair Kits, UNC 5/16 x 18 - 1,5D by VÖLKEL, item no. 04408, suitable for thread repair and insert installation.

SKU: 04408

1.110.400 đ

Stock status: Hết hàng

Price includes VAT

Description

V-COIL rapid Thread Repair Kit UNC 5/16 x 18 – 1.5D

The V-COIL rapid Thread Repair Kit provides a quick, precise, and durable solution for restoring damaged internal UNC threads. The set combines stainless-steel inserts (Type S, 1.5D) with a rapid installation tool, an STI tap, and an STI twist drill – ideal for maintenance, assembly, and small-scale production.

Application

Repair of damaged or worn threads
Thread reinforcement in materials with low shear strength
Recovery of rejected parts
Creation of new, strong, and long-lasting threads
Ideal for maintenance, assembly, and small series
Thread inserts according to DIN 8140, ISO 2 (6H), Type S, stainless steel

Advantages

All tools with 1/4″ hex drive
Usable by hand or with a cordless drill
No manual adjustment needed during installation
Compact and easy to handle, even in tight spaces
Smaller and lighter than conventional repair systems
Corrosion and temperature resistant
Same price as the standard system
Functional and durable storage case

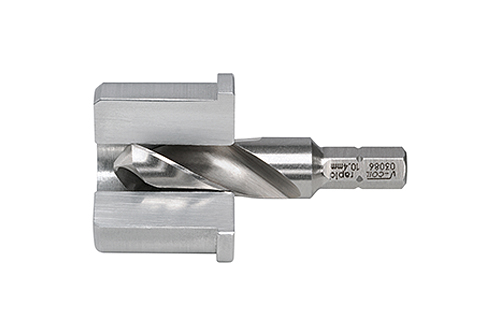

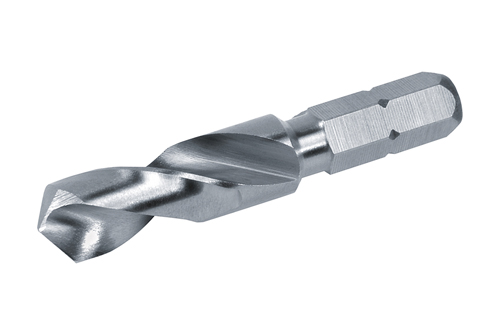

1× V-COIL rapid STI twist drill, 8.3 mm – VÖLKEL 03085

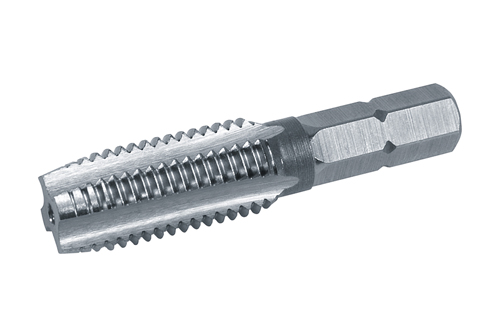

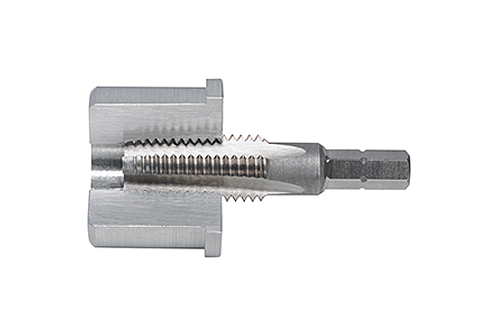

1× V-COIL rapid STI tap, Form D, HSS-G, 5/16 × 18 – VÖLKEL 03421

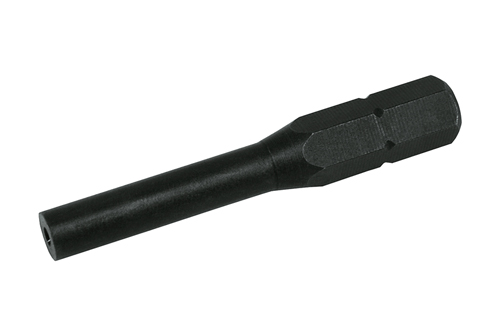

1× Tang break tool M 8 × 1.25, No. 11 – VÖLKEL 07095
10× Thread inserts Type S, free running UNC 5/16 × 18 – 08307

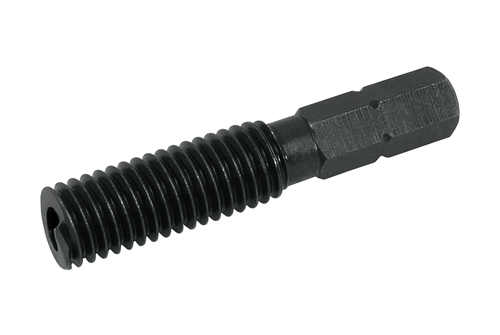

1× V-COIL rapid installation tool, 5/16 UNC – VÖLKEL 08196

Step-by-Step Instructions

1. Preparation: Drill out the damaged thread, deburr and clean the hole.
2. Tapping: Cut the new receiving thread using the STI tap.
3. Inserting: Install the insert using the rapid tool and align flush.
4. Tang removal: Break off the driving tang if present.
5. Checking: Verify the fit using a screw or thread gauge.

FAQ

What does UNC 5/16 × 18 mean?
UNC stands for Unified National Coarse, an inch-based coarse thread with 5/16 inch diameter and 18 threads per inch.

Can the kit be used with a cordless drill?
Yes, the 1/4″ hex drive allows both manual and powered use.

Are the inserts corrosion resistant?
Yes, they are made of high-quality stainless steel and are temperature- and corrosion-resistant.

Do I need to adjust the insert manually?
No, the rapid system requires no manual alignment during assembly.

Can I purchase replacement components?
Yes, inserts, drills, and tools are all available separately.

Questions about use or compatibility? Our team will be happy to help – use the contact form.

Specifications

Material	Wire Thread Inserts frostainless steel
Size	Diameter 6 x 1.0
Drive connector	Hexagon 1/4" inch
Packing	in plastic case
EAN	4022835043102
Item number	04408

Optional Accessories

SKU	Price VNĐ	Product name & short description

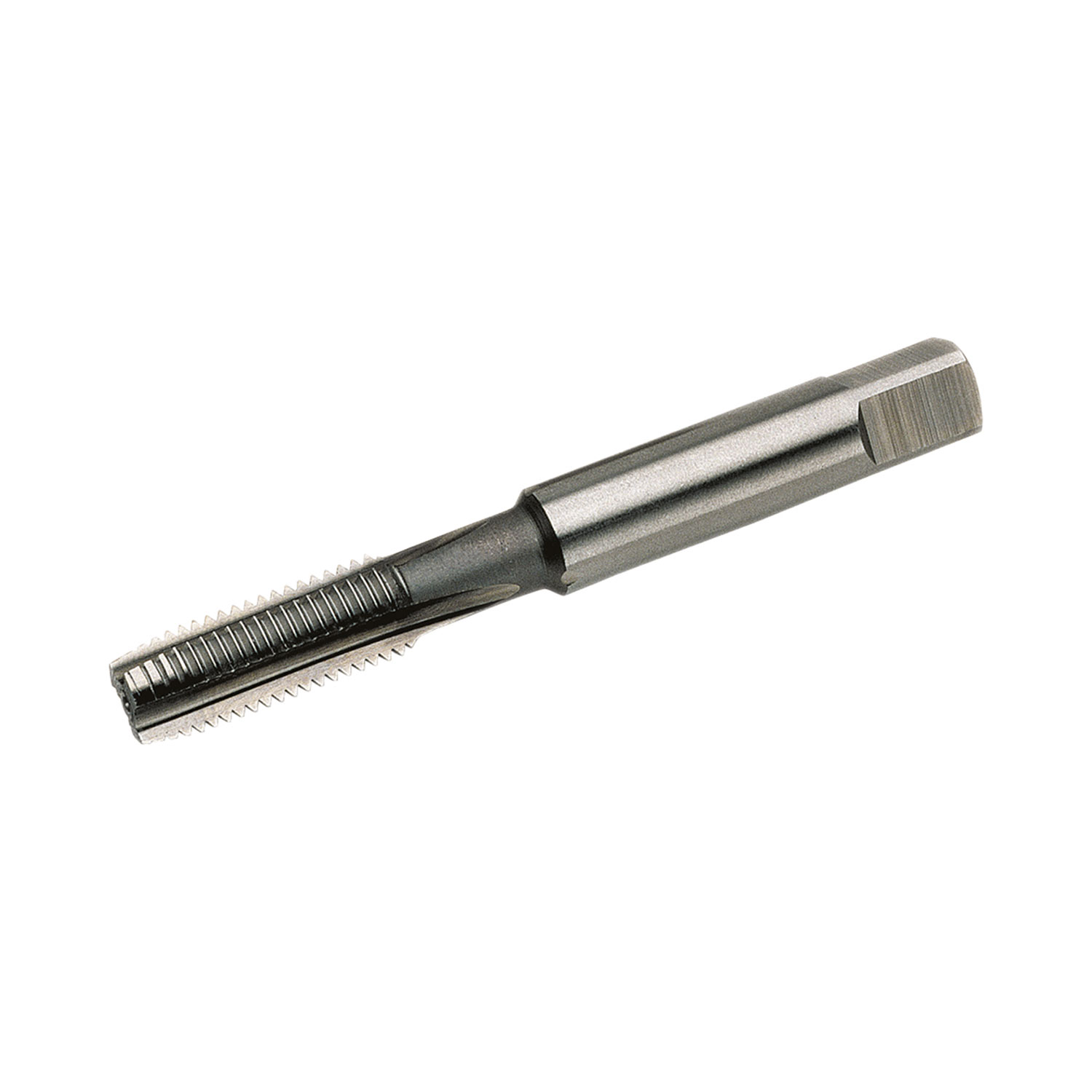

03108	227.200	STI Short Machine Tap ISO 529 Form D HSS-G - UNC 5/16 x 18 STI Short Machine Tap ISO 529 Form D HSS-G - UNC 5/16 x 18 by VÖLKEL, item no. 03108, suitable for cutting internal threads.
08208	8.960	V-COIL Wire thread insert Free running type S UNC 5/16 x 18 - 1.0 D (100 pcs.) V-COIL Wire thread insert Free running type S UNC 5/16 x 18 - 1.0 D (100 pcs.) by VÖLKEL, item no. 08208, suitable for thread repair and reinforcement.
08308	10.560	V-COIL Wire thread insert Free running type S UNC 5/16 x 18 - 1.5 D (100 pcs.) V-COIL Wire thread insert Free running type S UNC 5/16 x 18 - 1.5 D (100 pcs.) by VÖLKEL, item no. 08308, suitable for thread repair and reinforcement.
08408	11.200	V-COIL Wire thread insert Free running type S UNC 5/16 x 18 - 2.0 D (100 pcs.) V-COIL Wire thread insert Free running type S UNC 5/16 x 18 - 2.0 D (100 pcs.) by VÖLKEL, item no. 08408, suitable for thread repair and reinforcement.
08508	13.440	V-COIL Wire thread insert Free running type S UNC 5/16 x 18 - 2.5 D (100 pcs.) V-COIL Wire thread insert Free running type S UNC 5/16 x 18 - 2.5 D (100 pcs.) by VÖLKEL, item no. 08508, suitable for thread repair and reinforcement.
08608	16.320	V-COIL Wire thread insert Free running type S UNC 5/16 x 18 - 3.0 D (100 pcs.) V-COIL Wire thread insert Free running type S UNC 5/16 x 18 - 3.0 D (100 pcs.) by VÖLKEL, item no. 08608, suitable for thread repair and reinforcement.
19808	2.400.000	Precision Thread Plug Gauge Tol. 2B Unified coarse STI-Thread - UNC 5/16 x 18 Precision Thread Plug Gauge Tol. 2B Unified coarse STI-Thread - UNC 5/16 x 18 by VÖLKEL, item no. 19808, suitable for thread inspection and quality control.

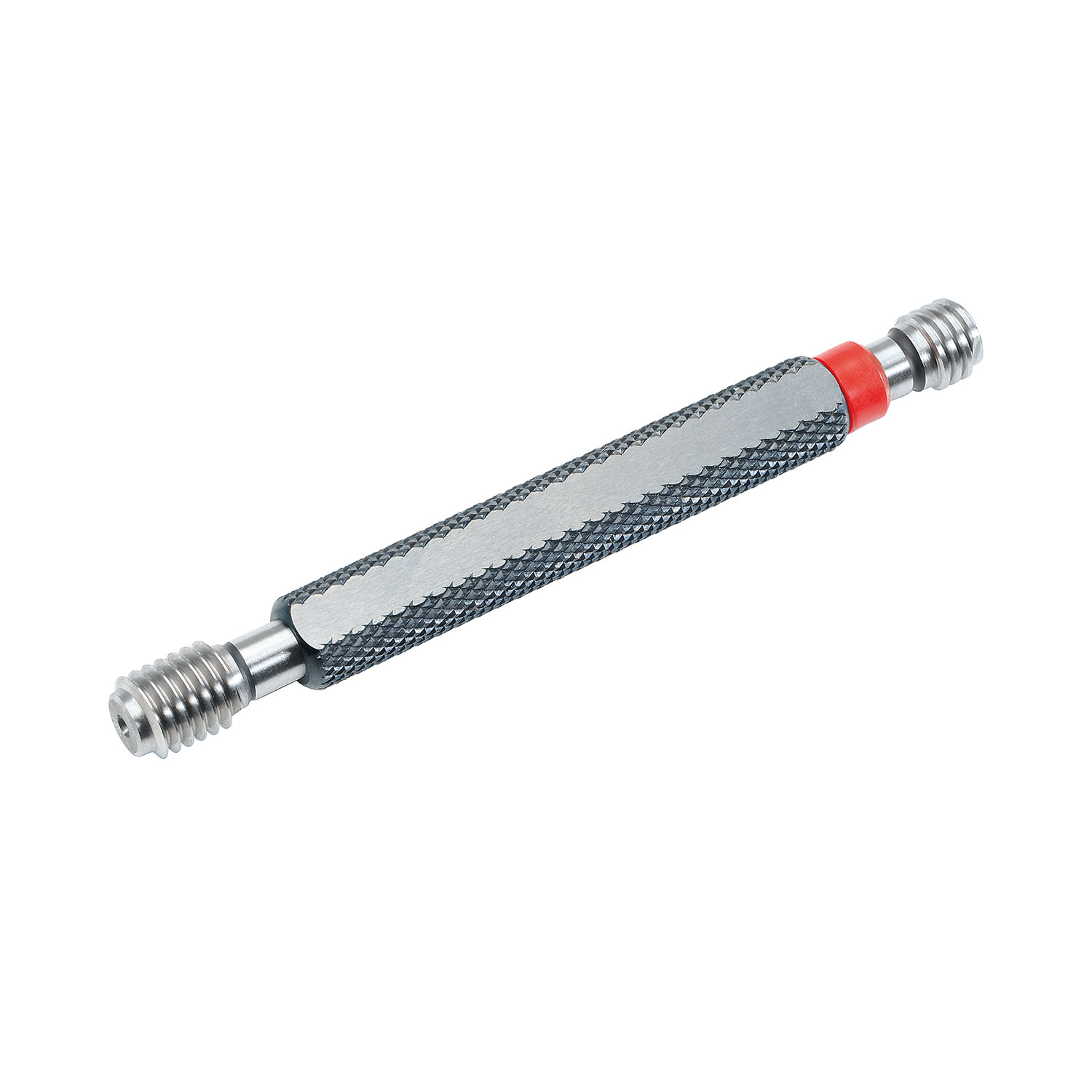

19908	2.880.000	Precision Thread Plug Gauge Tol. 3B Unified coarse STI-Thread - UNC 5/16 x 18 Precision Thread Plug Gauge Tol. 3B Unified coarse STI-Thread - UNC 5/16 x 18 by VÖLKEL, item no. 19908, suitable for thread inspection and quality control.
