Thread Repair Kits M 50 x 3.0 - 1.5D

• Thread repair and reinforcement in materials with low shear strength
• Recover expensive components instead of replacing them
• Clean, wear-resistant flanks – ideal for maintenance and installation
• Wire thread inserts: DIN 8140, Type S, ISO 2 (6H), stainless steel

Your advantages:

• Higher thread load capacity after repair
• Temperature and corrosion resistant
• Hand operation possible – no special machine required
• Sturdy, organized metal case

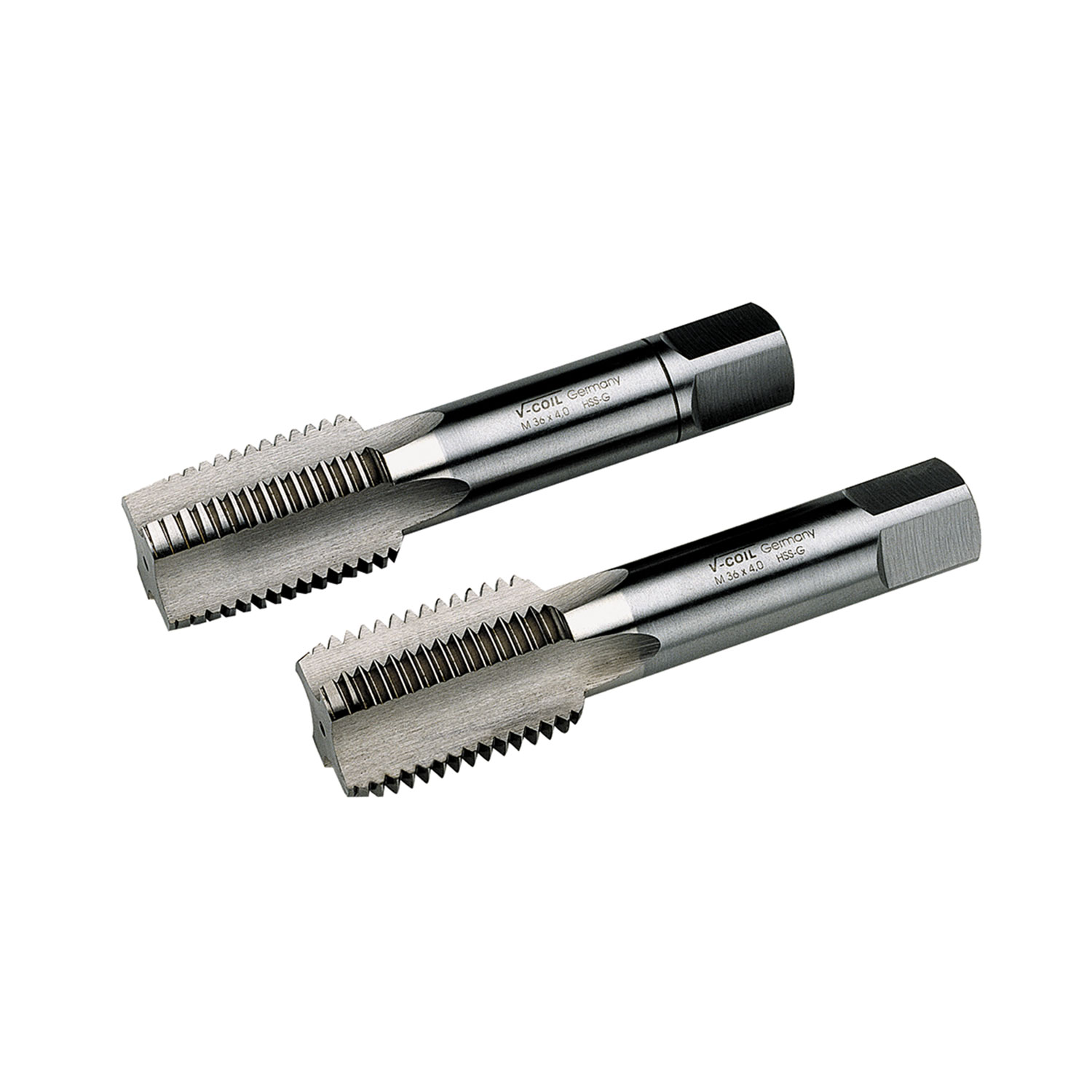

• 1× STI Hand Tap ISO 529 HSS-G – M 50 × 3.0 (03073)
• 10× V-COIL Wire thread insert, free-running Type S – M 50 × 3.0 – 1.5D (07387)
• 1× V-COIL Inserting Tool (Drive connector 3/4") – M 50 × 3.0 (08047)

• Nominal size: M 50 × 3.0
• Repair length: 1.5D
• Inserts: Stainless steel, Type S, DIN 8140, ISO 2 (6H)
• Use: Hand operation
• Packaging: Metal case
• Article No.: 04240

1. Prep: Drill out damaged thread, deburr edges, clean bore.
2. Cut STI thread: Use the STI hand tap M50 × 3.0 with cutting oil.
3. Install insert: Drive the V-COIL insert flush or slightly below the surface using the inserting tool.
4. Remove tang: Break off the driving tang with the proper tool.

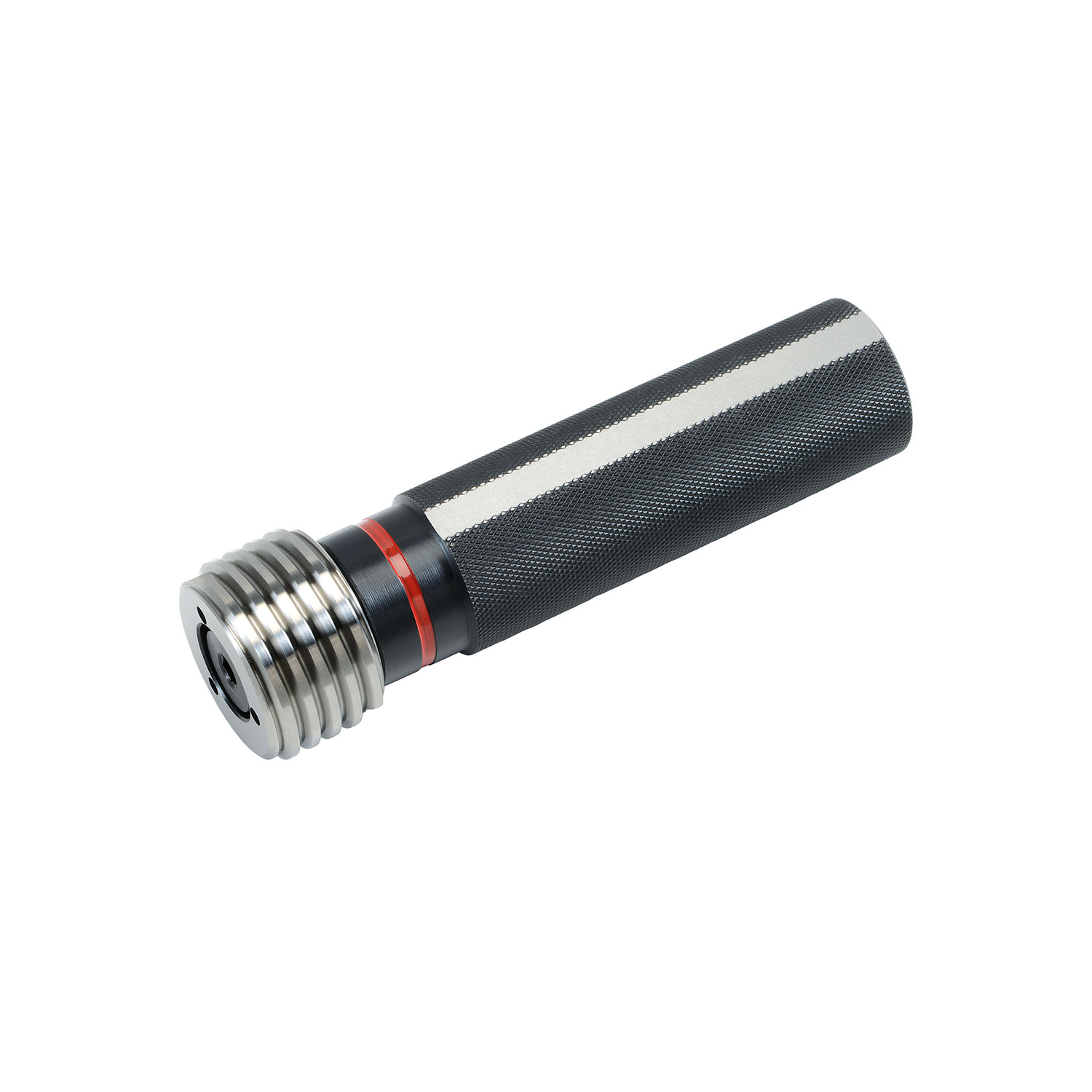

5. Verify: Check with a screw/gauge – done.

Does it work in aluminium?
Yes. Stainless inserts provide durable, load-bearing threads in light alloys.

What does 1.5D mean?
Insert length equals 1.5× nominal diameter – here 75 mm thread length.

Do I need a machine?
No. The set is designed for hand use.

Can I buy extra inserts?
Yes, inserts are available separately in different lengths.
