Thread Repair Kits M 48 x 3.0 - 1.5D

• Repair of damaged or worn-out threads
• Reinforcement of materials with low shear strength
• Recovery of defective parts or scrap reduction
• Creation of new, strong and long-lasting threads
• Ideal for maintenance, installation and repair tasks
• Wire thread inserts made of stainless steel, Type S, ISO 2 (6H), free running

Advantages:

• Increased load-bearing capacity after repair
• Corrosion and temperature resistance
• High stock availability for standard and special sizes
• For manual use with simple tools
• Delivered in a durable and functional metal case

1. Preparation: Drill out the damaged thread to the STI core diameter, chamfer slightly and clean the bore.
2. Tapping: Use the STI hand tap M48 × 3.0 with cutting oil to cut the new thread.
3. Inserting: Screw in the V-COIL insert until flush or slightly below the surface.
4. Breaking tang: Remove the driving tang using the supplied insertion tool.
5. Checking: Test with a bolt or thread gauge and clean the finished thread.

• Brand: V-COIL
• Nominal size: M 48 × 3.0
• Repair length: 1.5D
• Insert type: DIN 8140 / Type S / free running / stainless steel / ISO 2 (6H)
• Packaging: Metal case
• Article No.: 04239

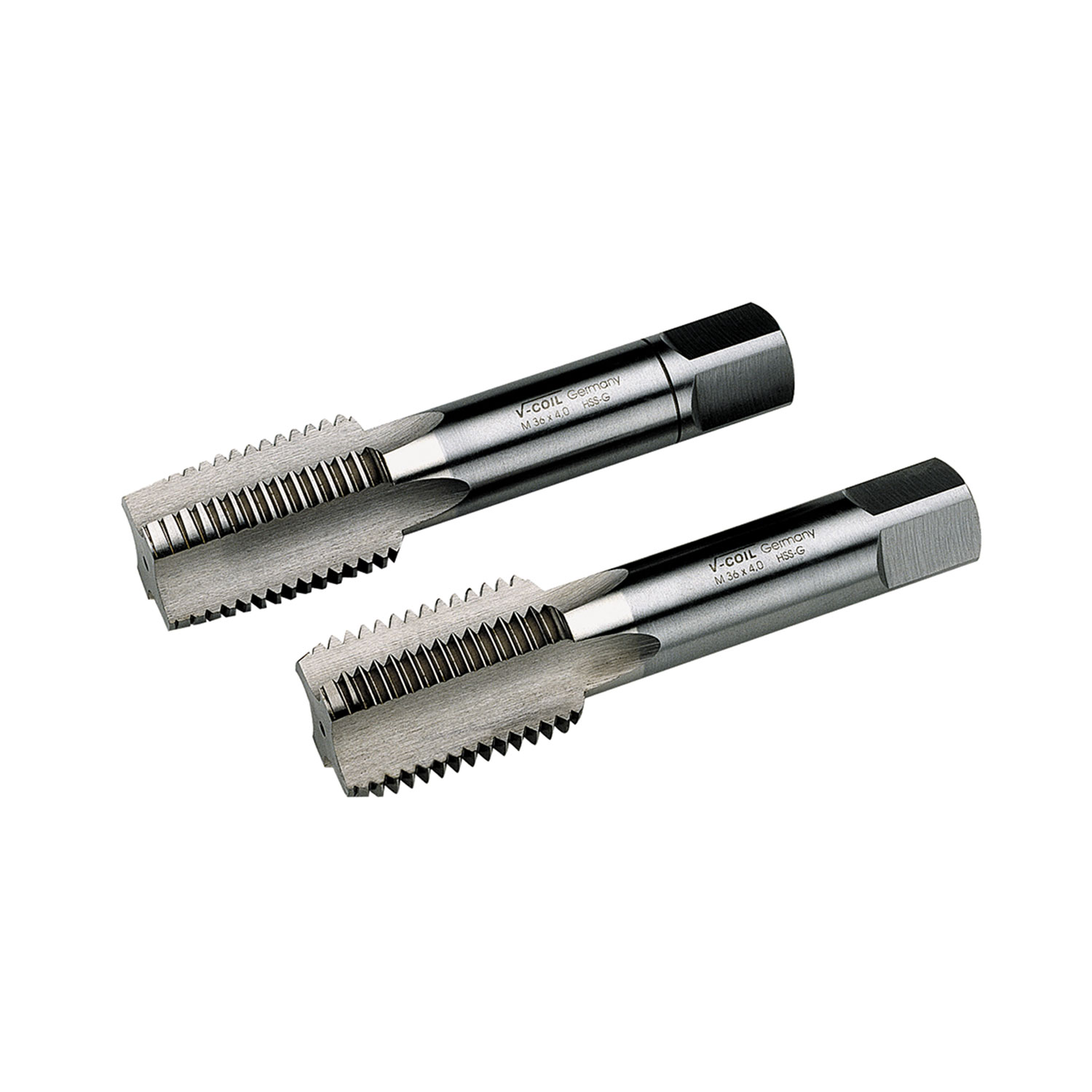

• 1× STI Hand Tap ISO 529 HSS-G – M 48 × 3.0 (03072)
• 10× V-COIL Wire Thread Insert Free Running Type S – M 48 × 3.0 – 1.5 D (07383)
• 1× V-COIL Inserting Tool (Drive Connector 3/4") – M 48 × 3.0 (08046)

Can it be used on aluminum or soft alloys?
Yes – the stainless steel inserts provide durable threads even in soft materials.

What does 1.5D mean?
It refers to the insert length being 1.5 times the thread diameter for optimal strength distribution.

Can the kit be used manually?
Yes, it’s designed for manual repair work using simple hand tools.

Are the inserts corrosion-resistant?
Yes, made from high-grade stainless steel, they are resistant to heat and corrosion.

Can I order spare inserts?
Yes, all V-COIL inserts are available separately in various sizes and lengths.
