Thread Repair Kits M 39 x 3.0 - 1.5D

Name: Thread Repair Kits M 39 x 3.0 - 1.5D
Brand: VOLKEL
SKU: 04232
Price: 15200000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Thread Repair Kits M 39 x 3.0 - 1.5D by VÖLKEL, item no. 04232, suitable for thread repair and insert installation.

SKU: 04232

15.200.000 đ

Stock status: Hết hàng

Price includes VAT

Description

V-COIL Thread Repair Kit M 39 x 3.0 – 1.5D

The V-COIL Thread Repair Kit M 39 x 3.0 – 1.5D is a complete solution for restoring or reinforcing damaged internal threads. It enables permanent repairs, strengthens soft materials and recovers rejected parts – creating new, strong and long-lasting threads ideal for maintenance, assembly and small batch production.

How it works: A special STI thread is tapped, into which a stainless steel wire insert is screwed. The result is a durable internal thread, often stronger than the original.

Application & Advantages

Repair of damaged or worn-out threads
Thread reinforcement for materials with low shear strength
Recovery of rejected parts and components
Creation of new, strong and durable internal threads
Ideal for maintenance, installation and small batch production
Wire Thread Inserts DIN 8140, Type S, free running, stainless steel, ISO 2 (6H)

Advantages:

Flexible use through various insert and drill sizes (up to M12)
High stock availability for standard and special sizes
Designed for manual thread cutting
Higher load capacity after repair due to improved thread strength
Corrosion and temperature resistance
Cost-efficient, attractive and functional metal case

Step-by-Step Instructions

Preparation: Drill out the damaged thread (according to drill chart), deburr edges and clean the hole.
Cut the STI thread: Use STI Hand Tap M 39 × 3.0 with cutting oil and maintain a steady feed.
Insert the coil: Screw in the V-COIL free-running insert using the inserting tool until flush or slightly below surface.
Remove the tang (if applicable): Break off the drive tang carefully using the tang removal tool.
Inspection: Check with a gauge or screw; clean the repaired thread.

Technical Specifications

Brand: V-COIL
Nominal size: M 39 x 3.0
Repair length: 1.5D
Inserts: DIN 8140, Type S, free running, stainless steel, ISO 2 (6H)
Material (inserts): Stainless steel
Packaging: Metal case
EAN: 4022835042327
Article No.: 04232

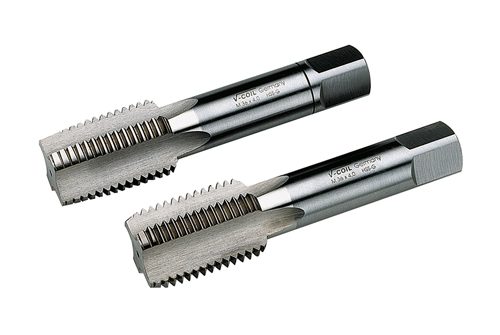

1× STI Hand Tap ISO 529 HSS-G – M 39 x 3.0 (03065)
10× V-COIL Wire Thread Insert, Free running, Type S – M 39 x 3.0 – 1.5D (07365)

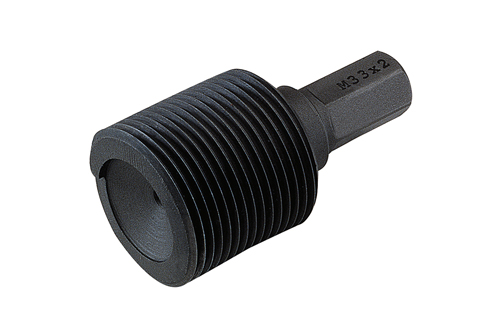

1× V-COIL Inserting Tool (Drive connector 3/4") – M 39 x 3.0 (08039)

Frequently Asked Questions (FAQ)

Can soft materials be repaired permanently?
Yes, the inserts reinforce the thread and improve strength even in soft metals and alloys.

What does 1.5D mean?
The insert length equals 1.5 times the nominal thread diameter.

Are the inserts corrosion-resistant?
Yes, they are made from stainless steel, ensuring both corrosion and temperature resistance.

Is any special tool required?
The kit includes the key tools – additional cutting oil and deburring tools are recommended.

Can I order replacement inserts?
Yes, V-COIL inserts are available separately in various lengths and sizes.

Questions about selection or use? Our team will be happy to assist – use the contact form.

Specifications

Material	Wire Thread Inserts frostainless steel
Size	M 39 x 3.0
Packing	in metal case
EAN	4022835040637
Item number	04232

Optional Accessories

SKU	Price VNĐ	Product name & short description
07365	458.240	V-COIL Wire thread insert Free running type S M 39 x 3.0 - 1.5 D (5 pcs.) V-COIL Wire thread insert Free running type S M 39 x 3.0 - 1.5 D (5 pcs.) by VÖLKEL, item no. 07365, suitable for thread repair and reinforcement.
08039	1.078.400	V-COIL Inserting Tool (Drive connector 3/4") M 39 x 3.0 V-COIL Inserting Tool (Drive connector 3/4") M 39 x 3.0 by VÖLKEL, item no. 08039, suitable for thread repair and insert installation.

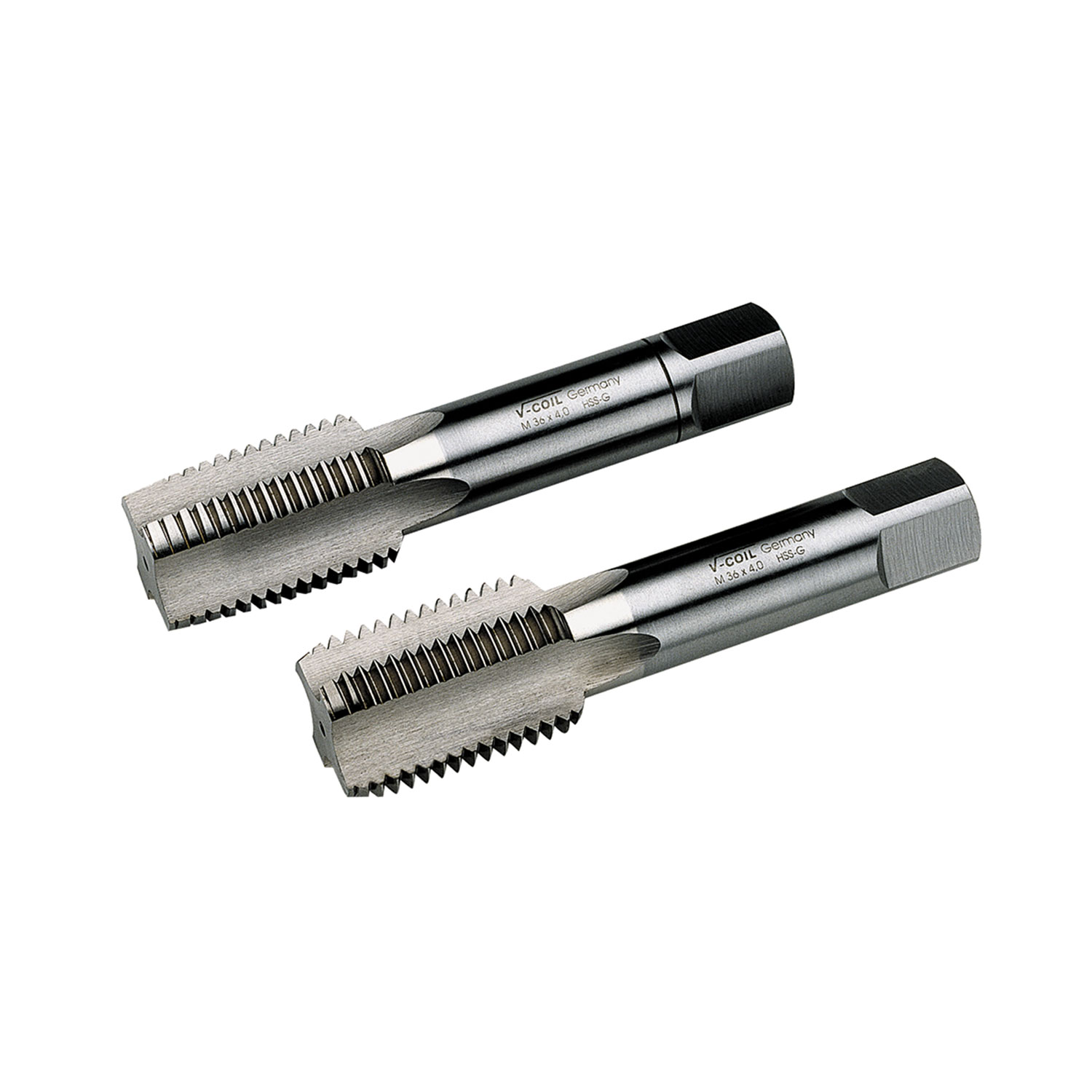

03065	8.284.800	STI Hand Tap ISO 529 HSS-G - M 39 x 3.0 STI Hand Tap ISO 529 HSS-G - M 39 x 3.0 by VÖLKEL, item no. 03065, suitable for cutting internal threads.

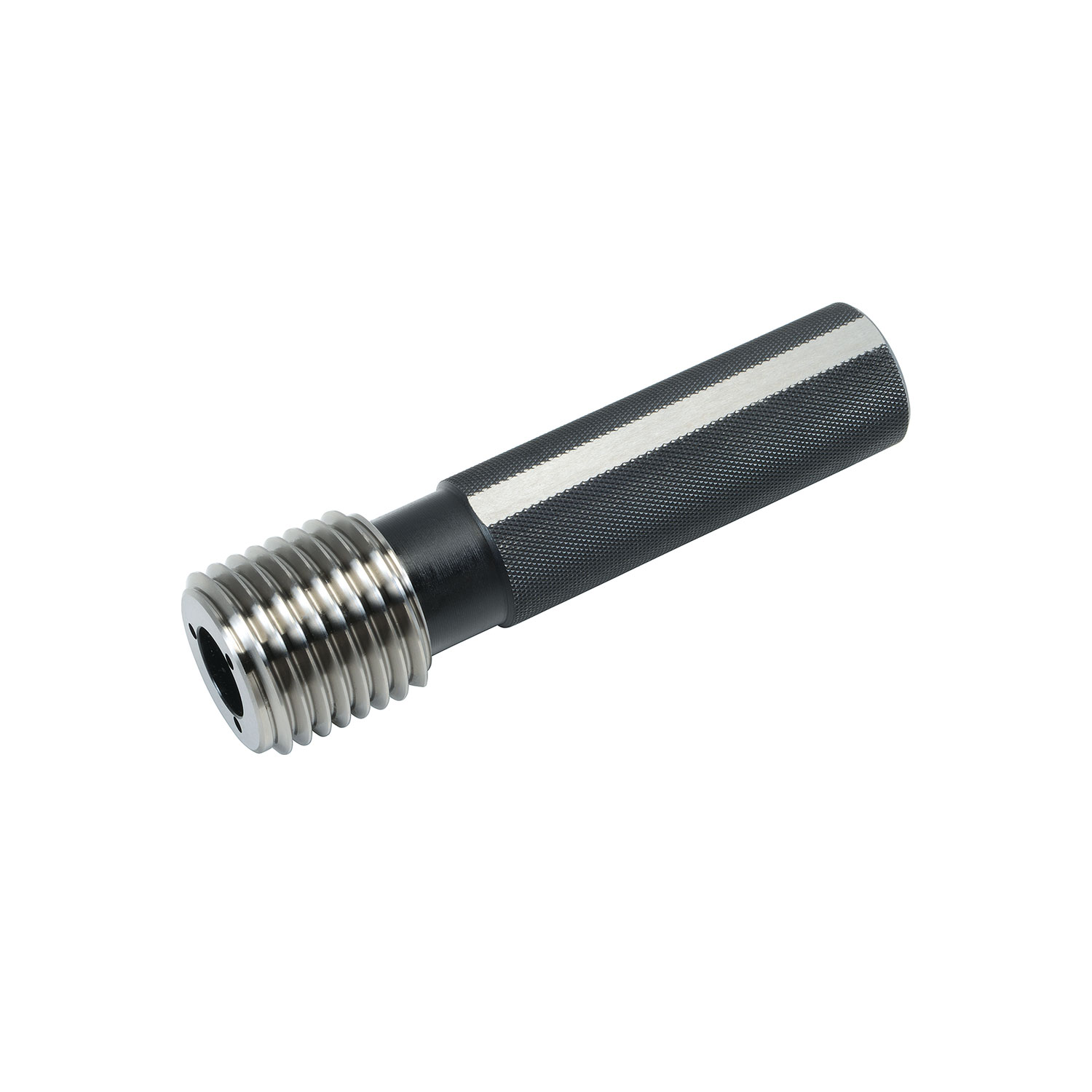

19658	2.672.000	Precision GO Thread Plug Gauge Tol. ISO1 (4H) metric-fine STI-Thread - M 39 x 3.0 Precision GO Thread Plug Gauge Tol. ISO1 (4H) metric-fine STI-Thread - M 39 x 3.0 by VÖLKEL, item no. 19658, suitable for thread inspection and quality control.

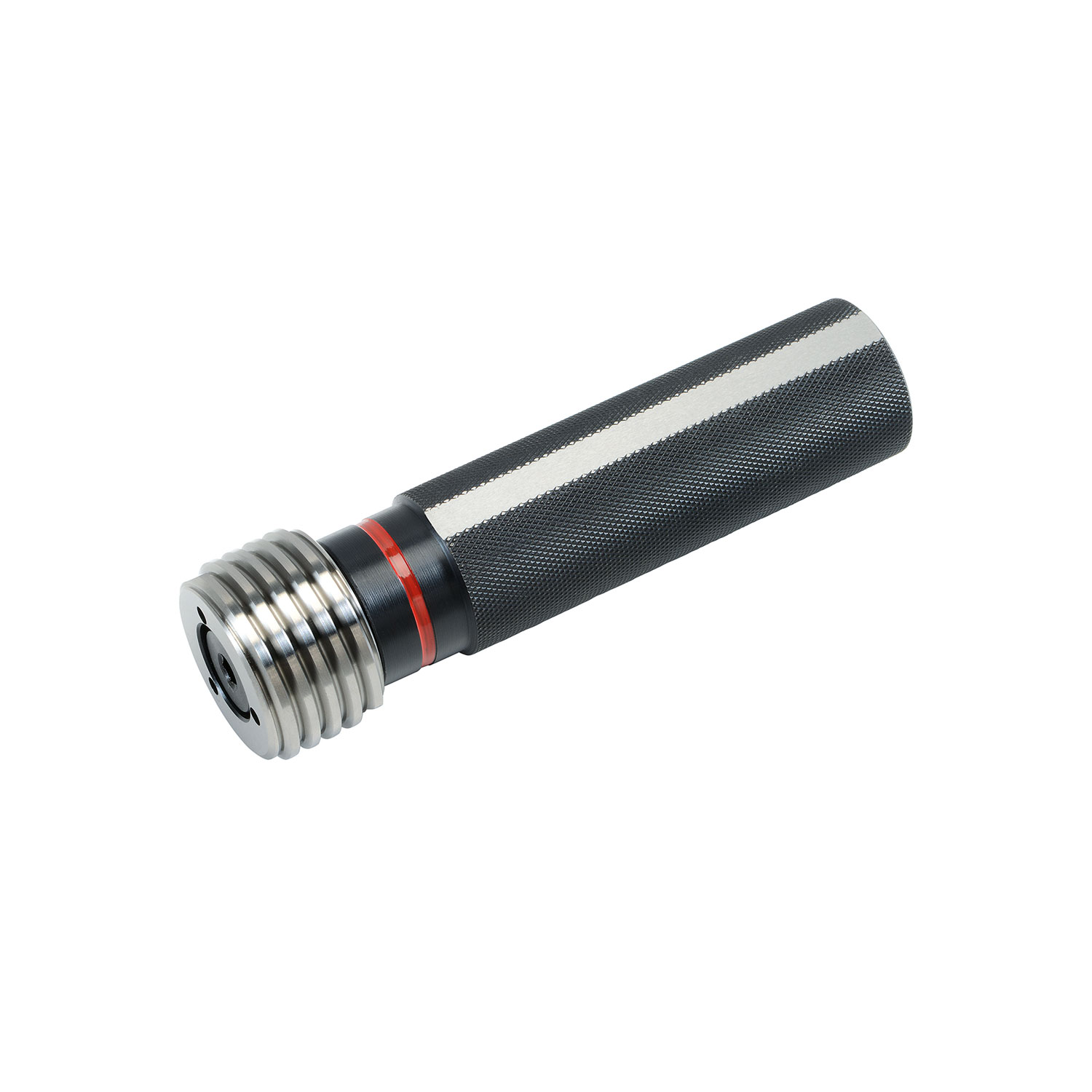

19659	2.672.000	Precision NOGO Thread Plug Gauge Tol. ISO1 (4H) metric-fine STI-Thread - M 39 x 3.0 Precision NOGO Thread Plug Gauge Tol. ISO1 (4H) metric-fine STI-Thread - M 39 x 3.0 by VÖLKEL, item no. 19659, suitable for thread inspection and quality control.
