Thread Repair Kits, BSW 1" - 1,5D

Name: Thread Repair Kits, BSW 1" - 1,5D
Brand: VOLKEL
SKU: 04152
Price: 2608000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews) • Sold 0

Thread Repair Kits, BSW 1" - 1,5D by VÖLKEL, item no. 04152, suitable for thread repair and insert installation.

SKU: 04152

2.608.000 đ

Stock status: Hết hàng

Price includes VAT

Description

V-COIL Thread Repair Kit, BSW 1" × 8 – 1.5D

The V-COIL Thread Repair Kit BSW 1" × 8 – 1.5D is designed for fast, precise and long-lasting restoration of damaged or worn internal Whitworth threads. The kit includes STI tap, inserting tool and stainless-steel free-running inserts — ideal for maintenance, service and workshop use.

Application

Thread repair of damaged or worn-out BSW 1" × 8 internal threads
Thread armour plating for materials with low shear strength (e.g. aluminium, castings, soft steels)
Recovery of rejected or scrapped components
Creation of new, strong and long-lasting internal threads
Ideal for maintenance, installation and small series production
Wire thread inserts according to DIN 8140, tolerance ISO 2 (6H), Type S – free running, stainless steel

Advantages

Flexible application through inserts and system tools
High availability for standard and special dimensions
Suitable for hand tapping
Higher thread load capacity after repair due to improved thread geometry
Temperature and corrosion resistant stainless-steel inserts
Cost-effective alternative to replacing components
Functional and durable storage case

Step-by-Step Instructions

Preparation: Clean the damaged thread and remove chips, paint or coating residues.
Check core hole: Ensure the correct STI core diameter. Drill if needed (drill not included).
Cut STI thread: Use the STI-Short Machine Tap BSW 1" × 8 and apply cutting oil. Keep the tool aligned.
Prepare insert: Mount the insert on the Inserting tool No. 23 and adjust the stop ring.
Install insert: Screw the insert into the STI thread until flush or slightly below surface level.
Break tang: Remove the driving tang cleanly using a suitable tool.
Final check: Test the repaired thread with a suitable BSW 1" × 8 bolt.

Full technical details can be found in the Technical Information V-COIL Thread Repair (PDF) .

Technical Data

Thread size: BSW 1" × 8
Repair length: 1.5D
Thread standard: British Standard Whitworth
Insert type: Type S – free running
Insert material: Stainless steel
Standard: DIN 8140, ISO 2 (6H)
STI Tap: STI-Short Machine Tap, Form D, HSS-G
Inserting tool: No. 23

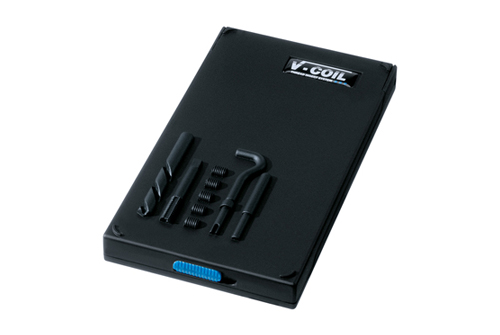

Packaging: Plastic case
Article number: 04152
Technical PDF: V-COIL Thread Repair – Technical Information

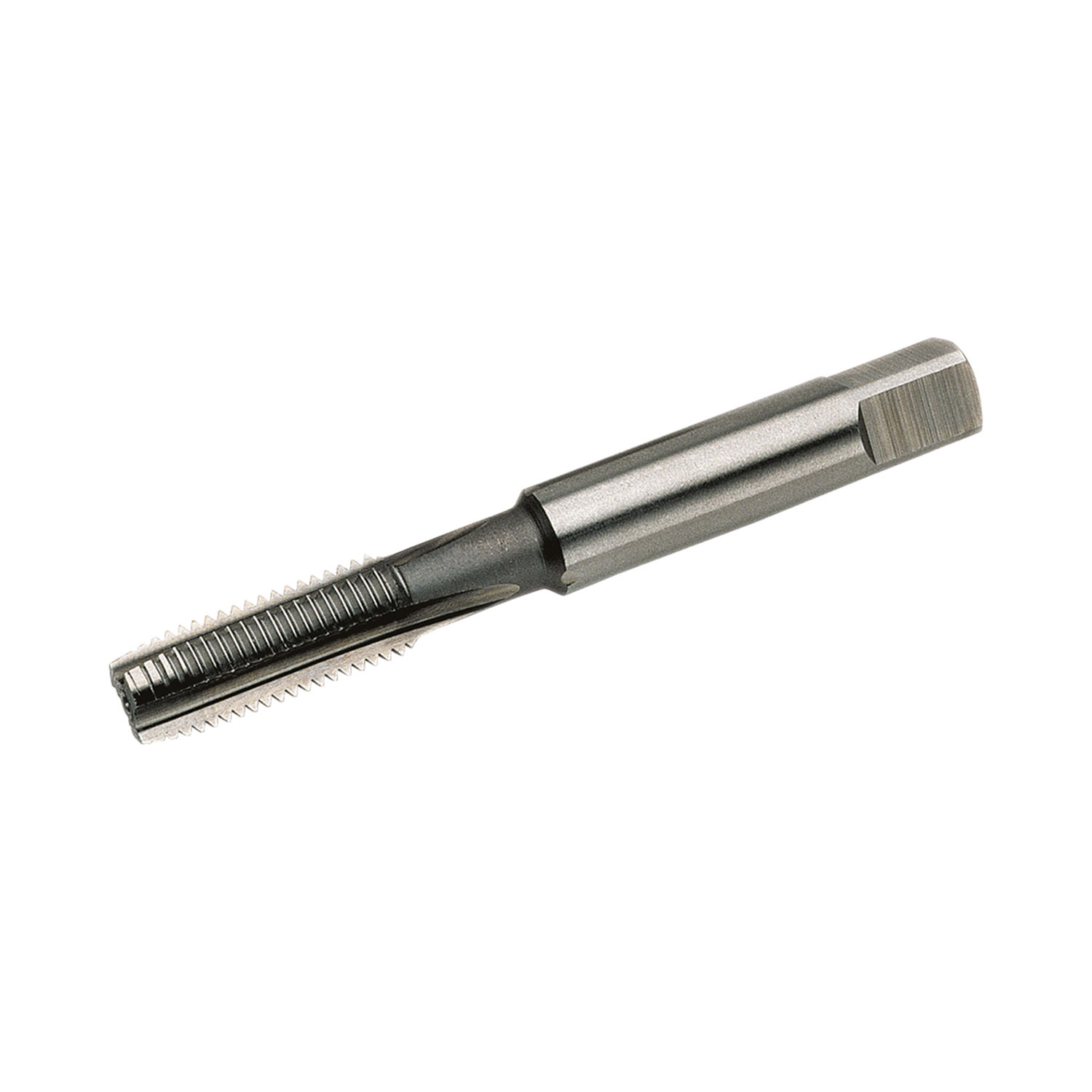

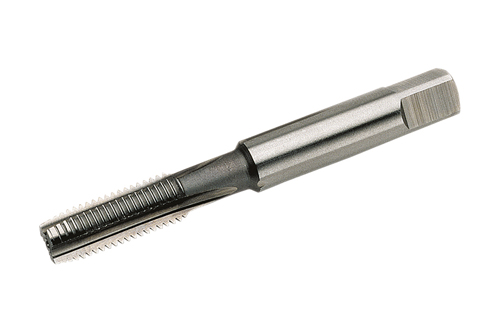

1× STI-Short Machine Tap, Form D, HSS-G, BSW 1" × 8 (03213)

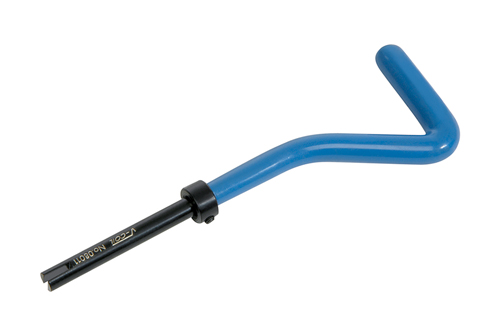

1× Inserting tool with locking ring, No. 23 (08023)
4× Wire thread inserts – Type S – free running – BSW 1" × 8 – 1.5D (08355)

FAQ

Where is BSW 1" × 8 typically used?
Mostly in machinery, industrial equipment and older British designs.

Can I repair blind and through holes?
Yes. Just ensure the insert length fits and the tang can be removed properly.

Is the repaired thread as strong as the original?
Often stronger — stainless-steel wire inserts significantly increase thread load capacity.

Do I need special machines?
No, the kit is suitable for hand use. Proper alignment and lubrication are key.

Are other thread sizes available?
Yes, V-COIL offers metric, BSW, BSF, UNC, UNF and special repair kits.

Questions or need a quotation?
Use the contact form.

Specifications

Material	Wire Thread Inserts frostainless steel
Size	Diameter BSW 1" x 8
Packing	in plastic case
EAN	4022835041528
Item number	04152

Optional Accessories

SKU	Price VNĐ	Product name & short description
08255	113.920	V-COIL Wire thread insert Free running type S BSW 1" x 8 - 1.0 D (10 pcs.) V-COIL Wire thread insert Free running type S BSW 1" x 8 - 1.0 D (10 pcs.) by VÖLKEL, item no. 08255, suitable for thread repair and reinforcement.
08355	160.640	V-COIL Wire thread insert Free running type S BSW 1" x 8 - 1.5 D (10 pcs.) V-COIL Wire thread insert Free running type S BSW 1" x 8 - 1.5 D (10 pcs.) by VÖLKEL, item no. 08355, suitable for thread repair and reinforcement.
08455	198.400	V-COIL Wire thread insert Free running type S BSW 1" x 8 - 2.0 D (10 pcs.) V-COIL Wire thread insert Free running type S BSW 1" x 8 - 2.0 D (10 pcs.) by VÖLKEL, item no. 08455, suitable for thread repair and reinforcement.
08555	237.120	V-COIL Wire thread insert Free running type S BSW 1" x 8 - 2.5 D (10 pcs.) V-COIL Wire thread insert Free running type S BSW 1" x 8 - 2.5 D (10 pcs.) by VÖLKEL, item no. 08555, suitable for thread repair and reinforcement.
08655	284.160	V-COIL Wire thread insert Free running type S BSW 1" x 8 - 3.0 D (10 pcs.) V-COIL Wire thread insert Free running type S BSW 1" x 8 - 3.0 D (10 pcs.) by VÖLKEL, item no. 08655, suitable for thread repair and reinforcement.
44255	652.800	V-COIL Wire thread inserts, Refill pack Free running type S BSW 1" x 8 - 1.0 D (5 pcs.) V-COIL Wire thread inserts, Refill pack Free running type S BSW 1" x 8 - 1.0 D (5 pcs.) by VÖLKEL, item no. 44255, suitable for thread repair and reinforcement.
44355	886.400	V-COIL Wire thread inserts, Refill pack Free running type S BSW 1" x 8 - 1.5 D (5 pcs.) V-COIL Wire thread inserts, Refill pack Free running type S BSW 1" x 8 - 1.5 D (5 pcs.) by VÖLKEL, item no. 44355, suitable for thread repair and reinforcement.
44455	1.075.200	V-COIL Wire thread inserts, Refill pack Free running type S BSW 1" x 8 - 2.0 D (5 pcs.) V-COIL Wire thread inserts, Refill pack Free running type S BSW 1" x 8 - 2.0 D (5 pcs.) by VÖLKEL, item no. 44455, suitable for thread repair and reinforcement.
