Thread Repair Kits, BSW 1/4 - 1,5D

• repair of damaged or worn-out threads
• thread reinforcement for materials with low shear strength
• recovery of rejected or worn components
• creating new highly durable and long-lasting internal threads
• perfect for maintenance, installation and small-series production
• wire thread inserts according to DIN 8140, ISO 2 (6H), Type S – free running, stainless steel

• flexible usability thanks to more inserts and drills for dimensions up to M12
• high stock availability for standard and special dimensions
• suitable for manual thread cutting
• increased thread load capacity due to improved thread properties
• temperature and corrosion resistance
• excellent price-to-performance ratio
• attractive and functional presentation case

1. Prepare the damaged thread: Clean the hole and remove chips, dirt and oil.

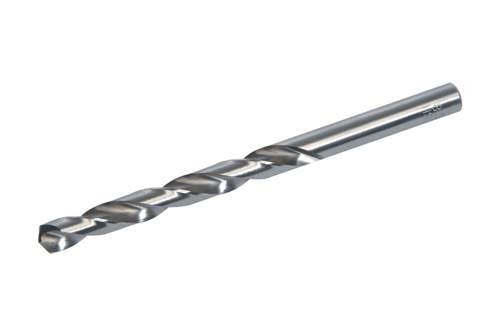

2. Drill the hole: Use the included STI Twist Drill 6.7 mm (00067) to create the correct pilot hole.

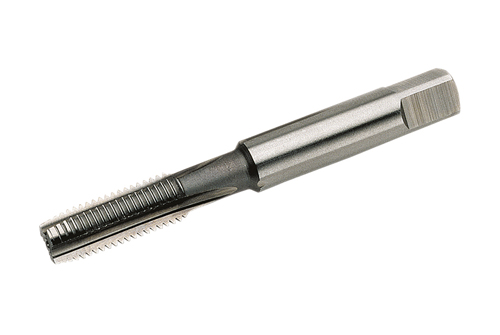

3. Cut the STI thread: With the STI-Short Machine Tap, ForD, HSS-G, BSW 1/4 × 20 (03203) cut the STI internal thread and clean the bore again.

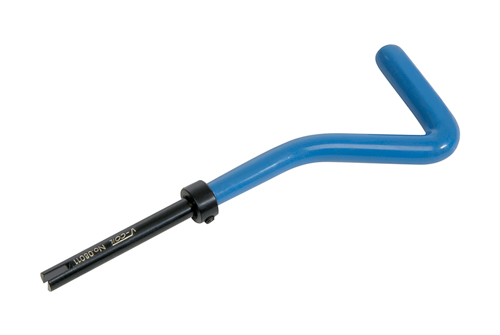

4. Install the insert: Screw one Wire Thread Insert BSW 1/4 × 20 – 1.5D (08343) onto the Inserting Tool with Locking Ring No. 9 (08009) and wind it into the thread until the correct depth is reached.

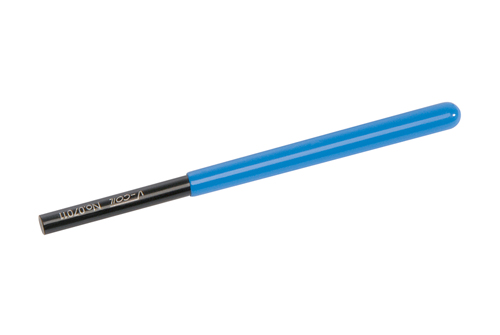

5. Break off the tang: Remove the driving tang with the Tang Break Tool No. 9 (07009).
6. Check the repaired thread: Test the installed insert with the corresponding screw or bolt to ensure smooth running.

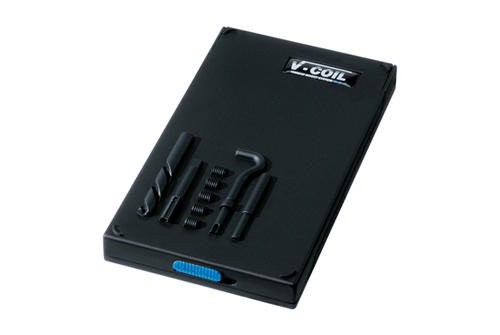

• 1× STI-Short Machine Tap, ForD, HSS-G, BSW 1/4 × 20 (03203)
• 1× Tang Break Tool No. 9 (07009)
• 1× Inserting Tool with Locking Ring No. 9 (08009)
• 20× Wire Thread Inserts – Type S – free running, BSW 1/4 × 20 – 1.5D (08343)
• 1× STI Twist Drill 6.7 mm (00067)

• Material: Stainless steel wire thread inserts
• Nominal Size: BSW 1/4 × 20
• Packaging: Plastic presentation case
• EAN: 4022835041436
• Article Number: 04143

What is this repair kit used for?

It is designed for restoring damaged BSW 1/4 × 20 internal threads and reinforcing low-strength materials.

Are the inserts stainless steel?

Yes — all wire thread inserts included in the kit are made from corrosion-resistant stainless steel.

Can I use this kit manually?

Absolutely. The tools included are designed for reliable manual installation.

How many repairs can I perform with one kit?

You can repair up to 20 threads with the included inserts.

Do I need extra tools?

Everything required for the repair is included. You may only need a drill, tap wrench or tool holder depending on your setup.

Can I reorder individual components?

Yes — every component such as inserts, taps, the drill, the inserting tool and tang break tool can be purchased separately.
