Precision Thread Plug Gauge - G (BSP) 1.1/8 x 11

Name: Precision Thread Plug Gauge - G (BSP) 1.1/8 x 11
Brand: VOLKEL
SKU: 16589
Price: 4808000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews)

Sold: 0

Imported from: Germany

Origin: Made in Germany

Precision Thread Plug Gauge - G (BSP) 1.1/8 x 11 by VÖLKEL, item no. 16589, suitable for thread inspection and quality control.

SKU: 16589

4.808.000 đ

Price includes VAT

Description

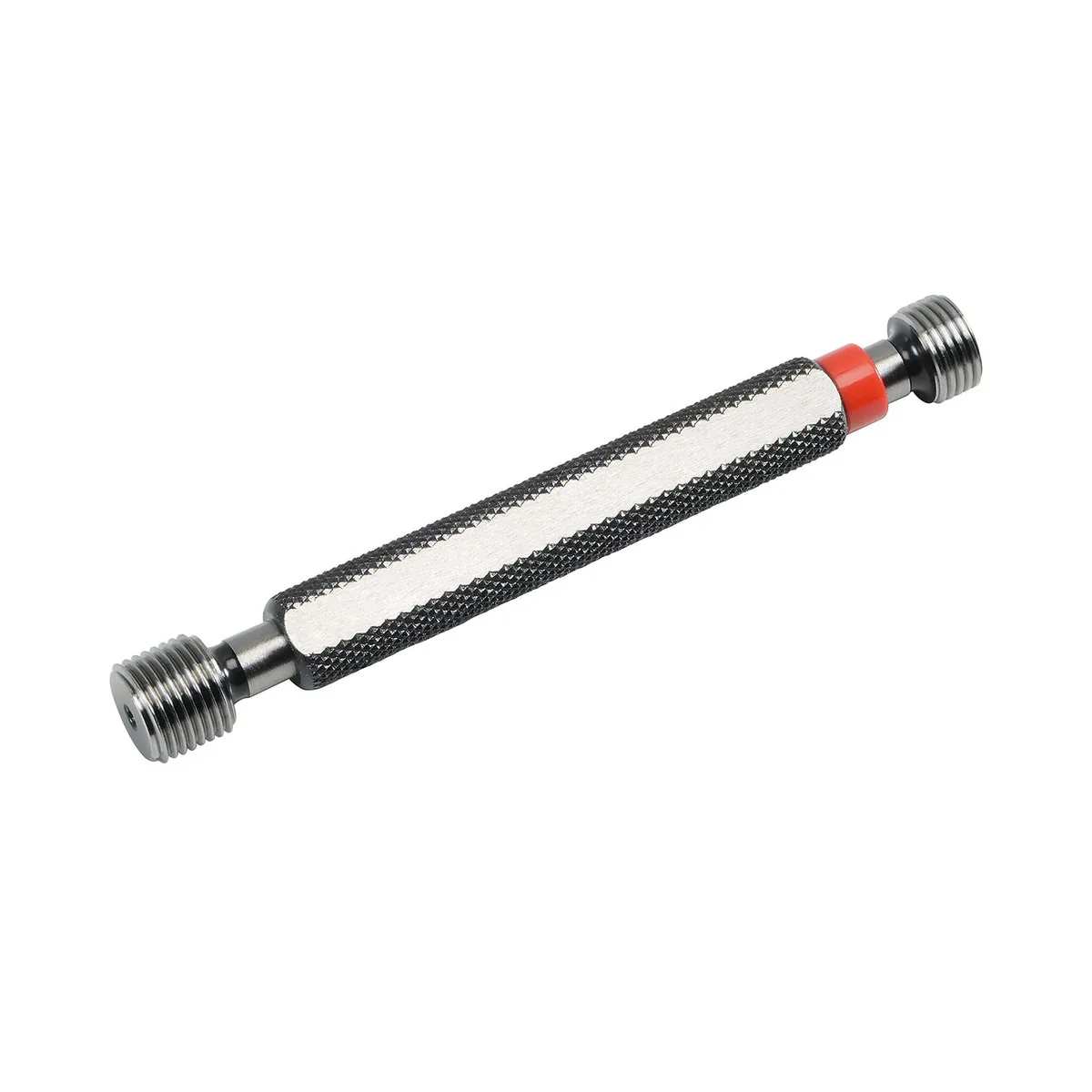

VÖLKEL Precision Thread Plug Gauge – G (BSP) 1.1/8" × 11 – DIN ISO 228

The VÖLKEL Precision Thread Plug Gauge is your trusted instrument for accurate and quick inspection of G (BSPP) parallel pipe threads in accordance with DIN ISO 228. Designed for use in manufacturing, inspection, and maintenance, it provides a clear GO/NO-GO assessment without complex measuring equipment.

The gauge combines both essential functions: The GO side must screw in easily by hand, confirming the minimum limit. The NO-GO side, marked with a red ring, must not turn more than two complete revolutions. Any deviation means the thread is out of tolerance.

BSP (British Standard Pipe) threads are widely used in hydraulic, pneumatic, and fluid systems. Unlike metric threads with a 60° flank angle, BSPP (G) threads use a 55° Whitworth profile and inch dimensions. They seal on the surface, not the flanks — meaning precision is critical to ensure leak-free fittings. The VÖLKEL plug gauge ensures you maintain that precision with every inspection.

On request, VÖLKEL issues a factory calibration certificate. Calibration is carried out in an independent laboratory, following DIN, ISO, and ANSI standards using IAC thread scanners to ensure traceability and compliance.

Applications & Advantages

Quick and reliable GO/NO-GO inspection of G (BSPP) internal threads
Fully compliant with DIN ISO 228 standards
Red ring marking for instant identification of NO-GO side
Perfect for production, inspection, or quality assurance
Reference temperature 20 °C for repeatable results
Factory calibration certificate available upon request

Technical Details

Thread Type	Pipe Thread, G (BSPP) – parallel, 55° Whitworth
Nominal Size	G 1.1/8" × 11 tpi
Standard	DIN ISO 228
Marking	NO-GO side with red ring
Reference Temperature	20 °C
EAN	4022835165897
Article Number	16589

Step-by-Step Instructions

Prepare: Clean the thread thoroughly to remove chips and oil.
GO Test: Screw in the GO side by hand — no tools or force required. Binding means undersized thread.
NO-GO Test: Insert the red-ring side. It must not exceed two full turns. More than two = reject.
Temperature: If possible, perform the inspection near 20 °C.
Record: Document result, temperature, and calibration reference in your QC records.

FAQ

Can I use this gauge for BSPT (tapered) threads?
No, this gauge is designed for parallel BSPP (G) threads only. BSPT (R) threads require a separate gauge.

How often should it be recalibrated?
Depending on usage, every 12–24 months. More frequently for heavy use or critical applications.

Why the “maximum 2 turns” rule for NO-GO?
It ensures the upper tolerance limit isn’t exceeded — more than two turns indicates an oversize thread.

What if the GO side won’t fit?
The thread is too tight or undersized. Possible causes: incorrect drilling, worn taps, or chip build-up.

How does a G thread seal?
G (BSPP) threads seal on the face using a gasket or O-ring, not on the thread flanks.
