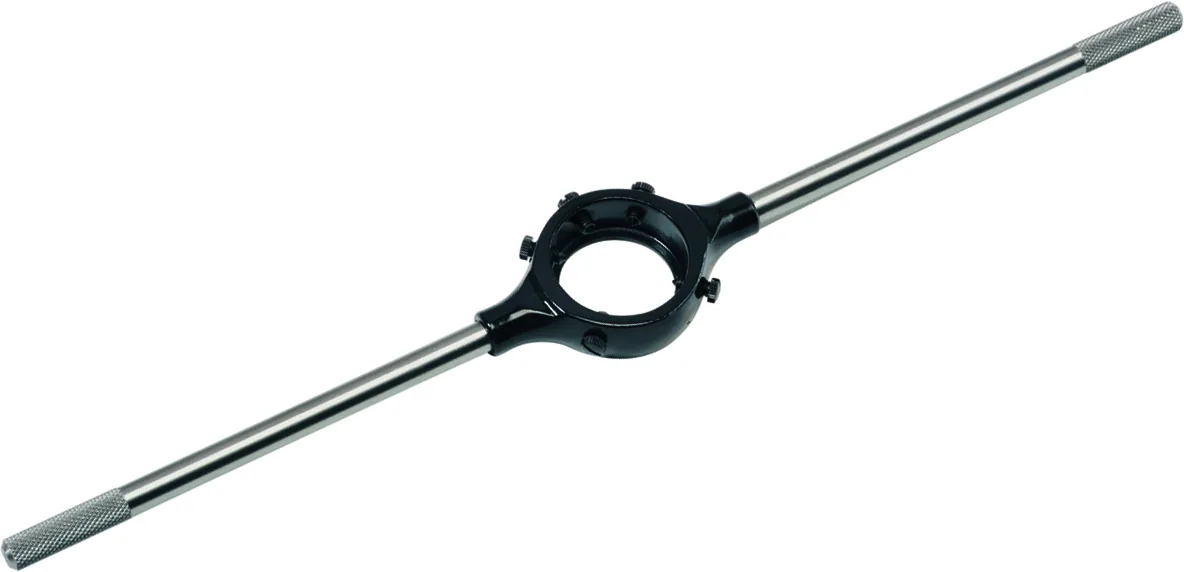

Tay quay bàn ren thép 65 x 25 mm

• For manual cắt ren of ren ngoài.
• For holding Bàn ren ngoài (tạo ren ngoài) with dimensions of 65 x 25 mm (Outer Diameter x Thickness).
• Ideal for workshops, assembly, and repair work.

A Tay quay bàn ren (also known as a Die Holder) consists of the following main components:

1. Central Body (Housing): This is the central part where the Bàn ren ngoài (tạo ren ngoài) is inserted.
2. Clamping Screws: These screws are used to firmly fix the die in the central body, preventing slippage during cắt ren.
3. Handles: The two long bars provide the necessary leverage and guidance to cut the ren ngoài evenly and with the correct force. The 630 mm length of this model ensures good ergonomics.

1. Prepare the die: Choose a suitable Bàn ren ngoài (tạo ren ngoài) (65 x 25 mm) for the desired thread and clean it.
2. Insert the die: Place the Bàn ren ngoài (tạo ren ngoài) into the central housing of the holder. Make sure it sits flat.
3. Fix the die: Tighten the Clamping Screws evenly and firmly to secure the die. Check that it is held securely before you begin cắt ren.
4. Lubricate the workpiece: Apply Kem cắt gọt ren or oil to the workpiece you want to thread (don't forget the chamfer).
5. Cut the thread: Place the Tay quay bàn ren straight onto the workpiece. Start with even pressure and turn slowly clockwise (for standard threads). Turn back briefly and regularly to break the chips and relieve the material.

• Standard: DIN 225 (DIN EN 22568)
• Material: thép Version
• Nominal size (Capacity): 65 x 25 mm (Die Outer Diameter x Thickness)
• Length: 630 mm
• EAN: 4022835152132
• Article Number: 15213

Q1: Up to what external diameter can I cut threads with this holder?

A1: The size of the ren ngoài is determined exclusively by the Bàn ren ngoài (tạo ren ngoài) you insert, not the holder itself. This holder can accommodate dies with an outer diameter of 65 mm and a thickness of 25 mm. The nominal thread size (e.g., M12 or 1/2") must be specified on the die itself.

Q2: What does the standard DIN 225 (DIN EN 22568) mean?

A2: This standard defines the dimensions and technical requirements for Tay quay bàn ren. It guarantees that the holder can precisely and securely accommodate standardized Bàn ren ngoài (tạo ren ngoài) of the corresponding size (here: 65 x 25 mm).

Q3: What is the advantage of the thép Version compared to cast versions?

A3: The thép Version typically offers higher strength and breaking load than cast variants. This is especially important for larger thread diameters or hard-to-machine materials, as higher forces are transmitted during cắt ren.

Q4: What happens if I don't clamp the die tight enough?

A4: If the Bàn ren ngoài (tạo ren ngoài) is not securely fixed with the Clamping Screwsit may twist in the central body during cắt ren. This leads to poor thread quality or damage to the die or the workpiece.

Q5: How do I maintain my Tay quay bàn ren?

A5: Clean the holder thoroughly after each use, removing chips and Kem cắt gọt ren/oil. Store it dry to prevent corrosion. The Clamping Screws and their threads should be lightly oiled occasionally to maintain smooth operation.
