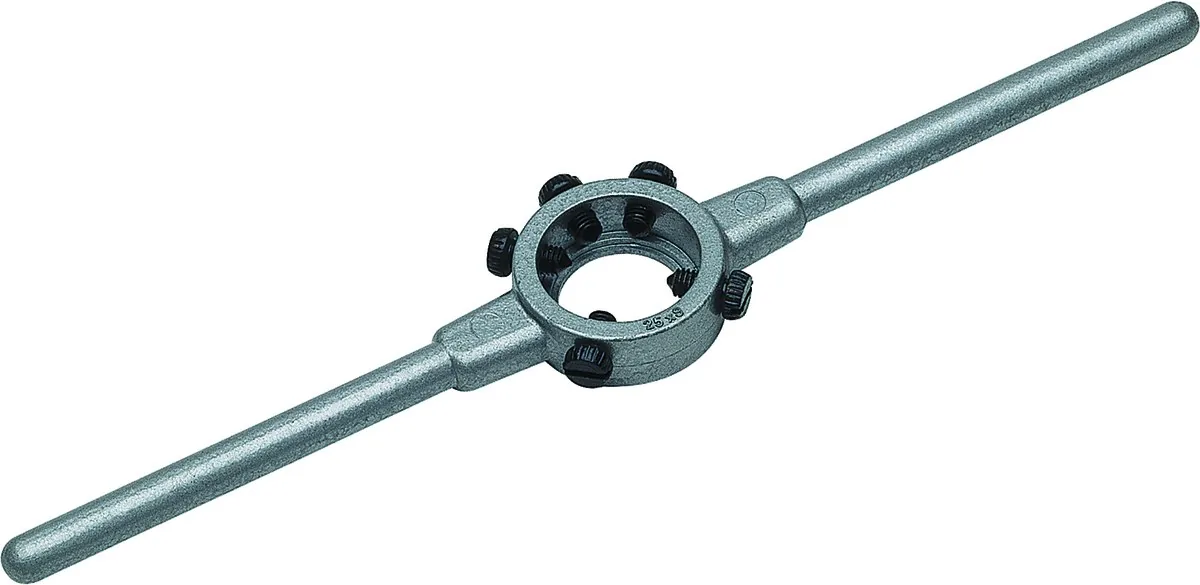

Tay quay bàn ren Zinc die cast 38 x 14 mm (5 chiếc)

Name: Tay quay bàn ren Zinc die cast 38 x 14 mm (5 chiếc)
Brand: VOLKEL
SKU: 15007
Price: 457000.0 VND
Availability: InStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

Tay quay bàn ren Zinc die cast 38 x 14 mm (5 chiếc) VÖLKEL, mã 15007, phù hợp cho giữ và vận hành taro hoặc bàn ren bằng tay.

SKU: 15007

457.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

Tay quay bàn ren Zinc die cast 38 x 14 mm (5 chiếc)

You use this die to cut or restore an ren ngoài on rods, studs, and repair shafts, with controlled alignment during the first turns.

A straight start and stable guidance matter more than force, especially when you repair a damaged ren ngoài.

Ứng dụng

Correct ren ngoài on studs and shafts when parts must be reused.
Process: manual driving or assisted driving depending on your holder and machine setup
Use: cắt ren, taro lại ren, and làm sạch ren depending on condition
Clean chips from the tool and hole regularly to reduce torque peaks and edge chipping.

Lưu ý Use cutting fluid suitable for the work material and keep the tool aligned during the first turns.

Lợi ích

Creates or restores ren ngoài without complex setup
Supports repair of studs and shafts for reuse
Straightforward handling with Tay quay bàn ren or holder
Useful for fitting work and maintenance rework
Suitable for routine use in metal fabrication and plant engineering service

Hạn chế

Not suitable for every work material without correct cutting fluid and stable alignment
Practical speed is limited by manual handling and by access conditions at the workpiece

Các bước thực hiện

Prepare the workpiece end with a lead in chamfer and remove burrs.
Clamp the workpiece and align the die square to the outside diameter.
Apply cutting fluid suitable for the work material.
Start the die with steady pressure and maintain straight guidance.
Advance with consistent turns and clear chips from the cutting area as needed.
Reverse to remove the die and clean the thread flanks after cutting.

Phạm vi cung cấp

1 chiếc Tay quay bàn ren Zinc die cast 38 x 14 mm

Đặc tính kỹ thuật

Product type: Die

Câu hỏi thường gặp (FAQ)

How do you select the correct thread designation for this product Match the thread designation in the product name to the mating fastener or component standard, then confirm that your workpiece material and process setup suit the tool type. If you work with mixed standards, separate your tooling by thread family to avoid mix ups. What holder or drive concept do you need Use a holder that clamps the tool concentrically and supports straight alignment to the workpiece axis. For manual work, choose a stable hand drive that lets you feel torque changes. For machine use, verify reverse capability and consistent feed. Which hole preparation checks matter most Prepare the entry edge, remove burrs, and keep the hole clean so the tool starts straight. In lỗ bít, confirm that there is enough depth for the tool lead and chip space. In lỗ thông, support chip evacuation out of the exit side. How do you reduce the risk of misalignment Start the tool with the axis visually aligned, then guide it through the first turns with low torque. Use stable workholding and avoid side load. If a thread feels tight early, remove the tool, clean chips, and inspect the entry. Can you use this in repair work Yes, for many workshop repairs you can use the tool to restore a usable thread when the base material is still intact. Clean damage first and avoid forcing, since distorted threads can increase torque and edge wear. For heavily stripped threads, a sửa ren insert system can be the better option. Where can you find the full VÖLKEL catalog section for this product family VD 23 catalog as PDF

Do you need help selecting or using the product?
Use the biểu mẫu liên hệ.

.accordion-container {margin-top:20px;border:1px solid #e0e0e0;border-radius:6px;overflow:hidden;} .accordion-item {border-bottom:1px solid #eee;} .accordion-item:last-child {border-bottom:none;} .accordion-header {padding:15px 20px;background:#f8f8f8;cursor:pointer;display:flex;justify-content:space-between;align-items:center;font-weight:600;color:#333;} .accordion-header h3 {margin:0;font-size:1.1em;} .accordion-header::marker, .accordion-header::-webkit-details-marker {display:none;} .accordion-header::after {content:'\25BC';font-size:0.8em;transition:transform 0.2s ease;margin-left:10px;} details[open] > summary.accordion-header::after {transform:rotate(-180deg);} .accordion-header:hover {background:#f0f0f0;} .accordion-content {padding:15px 20px;background:#fff;color:#555;line-height:1.6;} .accordion-content p, .accordion-content ul, .accordion-content ol, .accordion-content dl {margin-bottom:10px;} .accordion-content p:last-child, .accordion-content ul:last-child, .accordion-content ol:last-child, .accordion-content dl:last-child {margin-bottom:0;}

Thuyết minh kỹ thuật

Tiêu chuẩn	DIN 225 (DIN EN 22568)
Vật liệu	Zinc die cast
Kích thước	38 x 14 mm
Chiều dài	315 mm
EAN	4022835150077
Mã hàng	15007
Quy cách đóng gói	5
Phạm vi ứng dụng	38 x 14 mm
