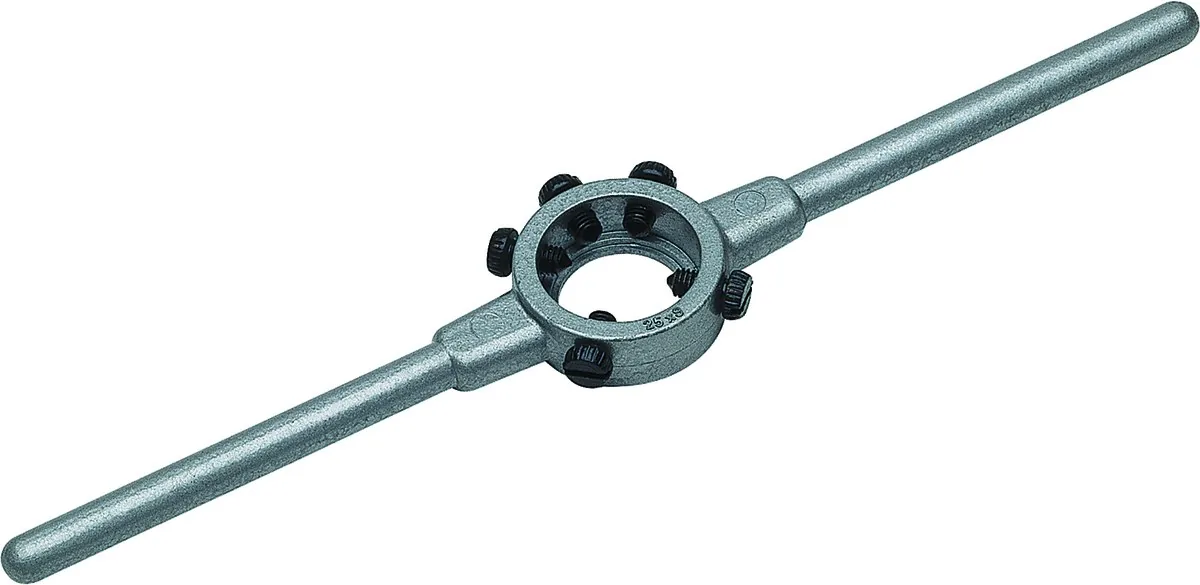

Tay quay bàn ren Zinc die cast 25 x 9 mm (5 chiếc)
Use this die when you need an ren ngoài for assemblies, fixtures, or repair work in mechanical engineering and plant service.
Selection depends on thread designation, workpiece material, and how you start and guide the die on the outside diameter.
- Correct ren ngoài on studs and shafts when parts must be reused.
- Process: manual driving or assisted driving depending on your holder and machine setup
- Use: cắt ren, taro lại ren, and làm sạch ren depending on condition
- Clean chips from the tool and hole regularly to reduce torque peaks and edge chipping.
Lưu ý Align the tool to the hole axis and avoid forcing, since torque spikes can damage the thread flanks.
- Creates or restores ren ngoài without complex setup
- Supports repair of studs and shafts for reuse
- Straightforward handling with Tay quay bàn ren or holder
- Useful for fitting work and maintenance rework
Hạn chế
- Sensitive to misalignment, especially during the first turns
- Not intended for high performance production cycles without validated process parameters
- Prepare the workpiece end with a lead in chamfer and remove burrs.
- Clamp the workpiece and align the die square to the outside diameter.
- Apply cutting fluid suitable for the work material.
- Start the die with steady pressure and maintain straight guidance.
- Advance with consistent turns and clear chips from the cutting area as needed.
- Reverse to remove the die and clean the thread flanks after cutting.
- 5x Tay quay bàn ren Zinc die cast 25 x 9 mm
- How do you select the correct thread designation for this product
- Match the thread designation in the product name to the mating fastener or component standard, then confirm that your workpiece material and process setup suit the tool type. If you work with mixed standards, separate your tooling by thread family to avoid mix ups.
- What holder or drive concept do you need
- Use a holder that clamps the tool concentrically and supports straight alignment to the workpiece axis. For manual work, choose a stable hand drive that lets you feel torque changes. For machine use, verify reverse capability and consistent feed.
- Which hole preparation checks matter most
- Prepare the entry edge, remove burrs, and keep the hole clean so the tool starts straight. In lỗ bít, confirm that there is enough depth for the tool lead and chip space. In lỗ thông, support chip evacuation out of the exit side.
- How do you reduce the risk of misalignment
- Start the tool with the axis visually aligned, then guide it through the first turns with low torque. Use stable workholding and avoid side load. If a thread feels tight early, remove the tool, clean chips, and inspect the entry.
- Can you use this in repair work
- Yes, for many workshop repairs you can use the tool to restore a usable thread when the base material is still intact. Clean damage first and avoid forcing, since distorted threads can increase torque and edge wear. For heavily stripped threads, a sửa ren insert system can be the better option.
- Where can you find the full VÖLKEL catalog section for this product family
- VD 23 catalog as PDF
