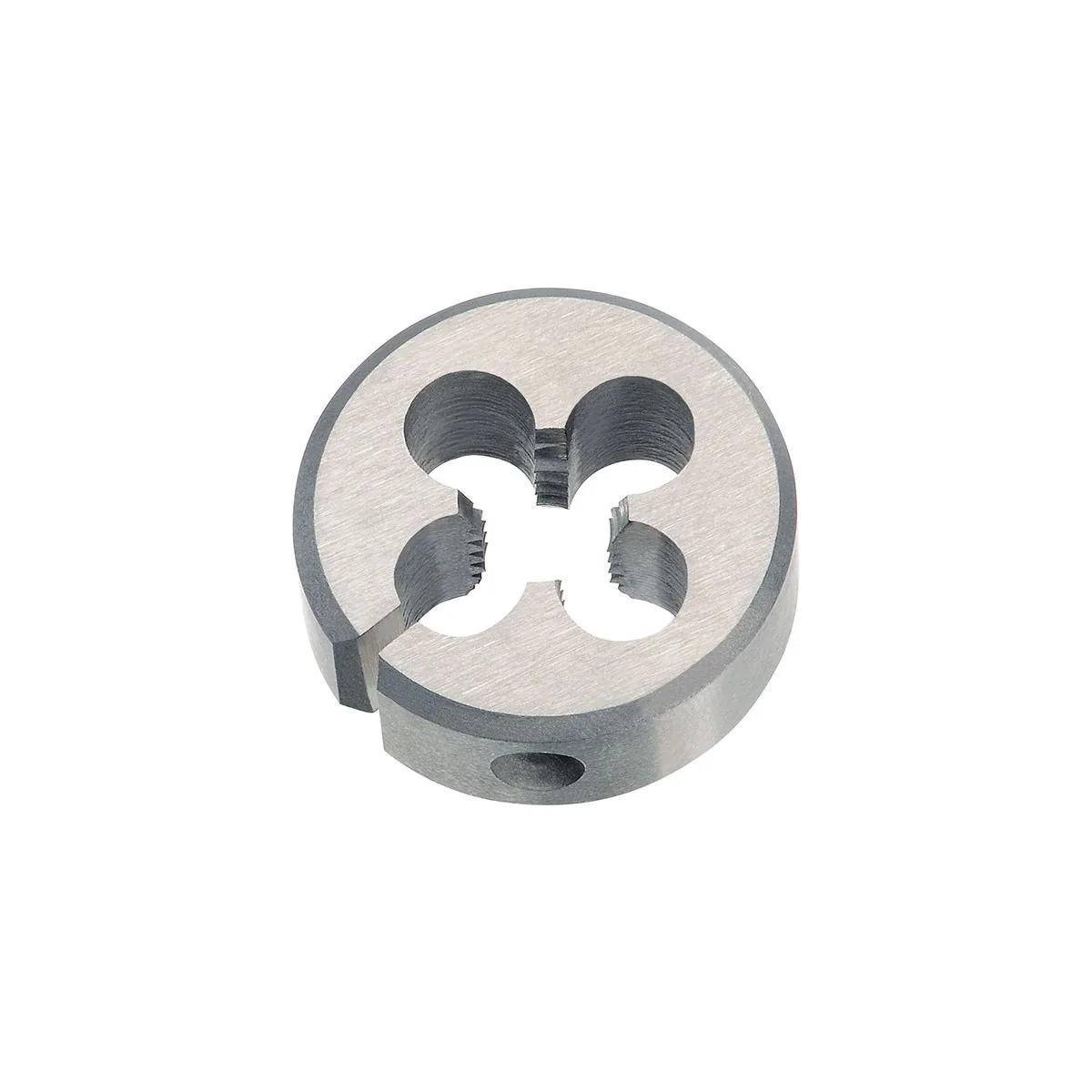

The round HSS die M 10 x 1.0 according to JIS B-4451 is ideal for general use on machinable materials up to 800 N/mm² as well as unalloyed and low-alloy steels. The slotted Form A ensures smooth cutting and efficient chip removal. Outside diameter: 25 mm.
| Thread Type | Metric ISO Thread DIN 13 |
| Standard | JIS B-4451 |
| Form | Form A – slotted |
| Material | HSS |
| Size | M 10 x 1.0 |
| Outer Diameter | 25 mm |
| Article Number | 90056 |
| EAN | 4022835900566 |
Which materials is the die suitable for?
For well-machinable materials up to 800 N/mm² and unalloyed or low-alloy steels.
Which die holder do I need?
A die holder for 25 mm outside diameter is required (15010).
Is the die adjustable?
Yes, Form A is slotted, allowing slight adjustment of the cutting size.
Which standard does it meet?
JIS B-4451, cutting metric ISO threads according to DIN 13.
What is the die made from?
High-quality HSS for strong durability and precision.
Questions about selection or use? Contact us via the contact form.
| Type of thread | metric-fine ISO-thread |
|---|---|
| Standard | JIS B-4451 |
| Form | splitted version (Form A) |
| Material | HSS |
| Tolerance | 6g |
| Size | M 10 x 1.0 |
| Outer diameter | 25.0 mm |
| EAN | 4022835900566 |
| Item number | 90056 |
| Thread standard | DIN 13 |
| Rec. Bolt diameter | 9.88 mm |
