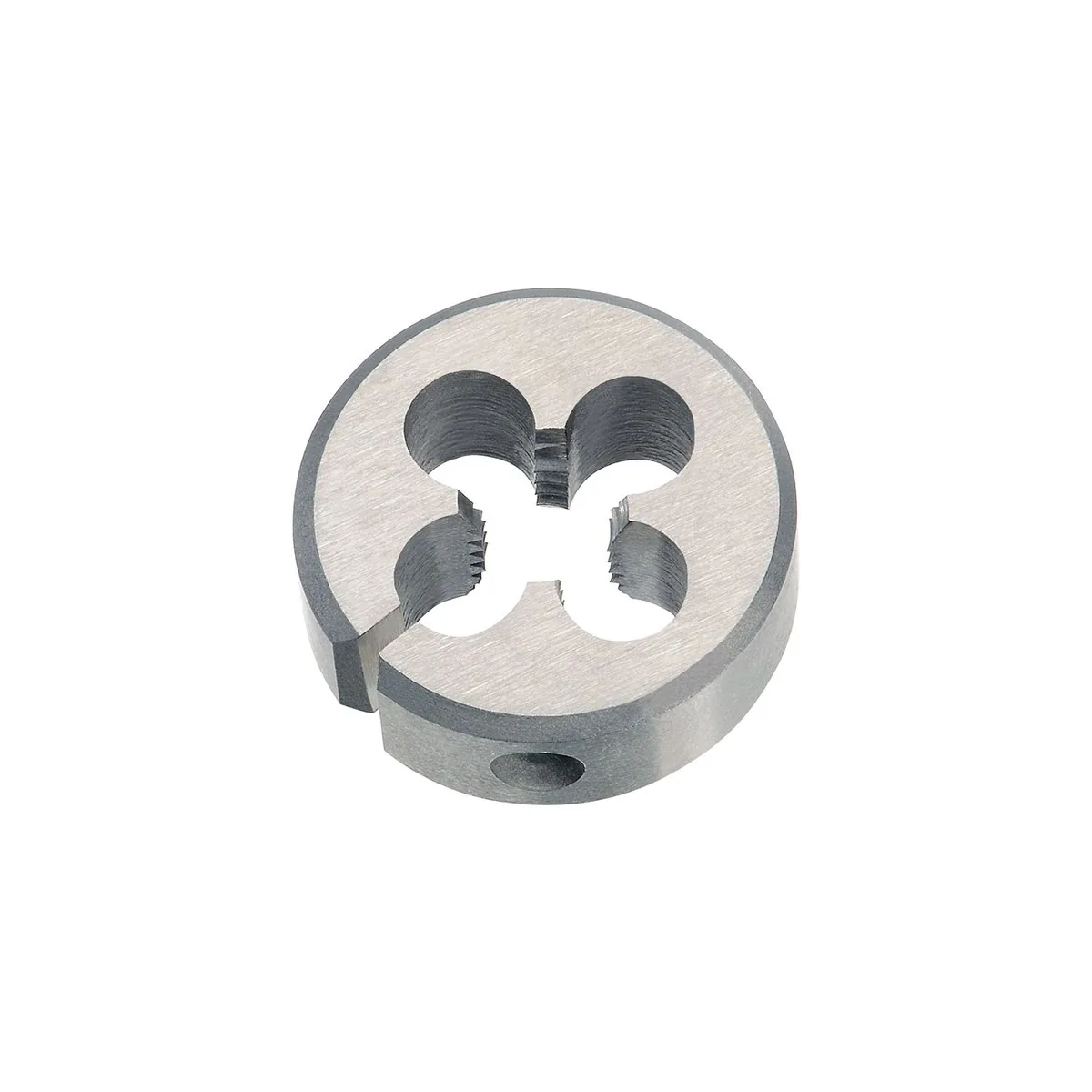

Round Die BS 1127 HSS - BA 2 x 31.35

This die is specialized for the unique BA2 thread, which is the standard for the connection between the barrel and shaft on darts. It is manufactured in Form H according to standard BS 1127 and is made of high-quality HSS-G steel. The die is used in a die stock to cut the precise external thread on the shaft. A perfect addition for the repair or manufacturing of darts.

In our assortment, you will also find suitable taps for the internal thread in the barrel:

• HSSE Tap BA2
• HSSE-PM Tap BA2

The die is suitable for general use under the following conditions:

• For easily machinable materials up to 800 N/mm².
• Optimal for unalloyed and low-alloy steels.
• Suitable for hand threading.
• For manufacturing and repairing external threads.

Here's how you cut an external thread on a dart shaft:

1. Prepare: Securely clamp the workpiece (e.g., the shaft) in a vice. The diameter should correspond to the core diameter of the thread.
2. Position: Place the die with the appropriate die stock straight on the end face of the workpiece.
3. Cut the thread: Turn the die with firm pressure and a uniform motion clockwise into the material. After half a turn, turn a quarter turn back to break the chips.
4. Clean: Remove all chips and clean the newly cut thread.
5. Test: Check the fit of the external thread by carefully screwing on a dart barrel.

• Thread Type: BA-thread BS 93
• Standard: BS 1127
• Form: Form H
• Material: HSS-G
• Nominal Dimension: Nominal BA 2
• Outer Diameter: 20.6 x 6.35 mm
• EAN: 4022835890027
• Article Number: 89002

What is the difference between a tap and a die?

A tap is used for manufacturing internal threads (e.g., in the dart barrel). A die is used for manufacturing external threads (e.g., on the dart shaft).

Which materials is this die suitable for?

This die is optimized for easily machinable materials with a tensile strength up to 800 N/mm², especially unalloyed and low-alloy steels.

Can I use this die to create other threads?

The die is designed exclusively for the specialized BA2 thread, as it has a unique geometry and a special flank angle.

What does "HSS-G" mean?

HSS-G stands for "High-Speed Steel Ground". It denotes a high-quality high-speed steel with a ground finish, which provides a precise cutting edge and a good service life.

How do I ensure the cut thread fits perfectly?

Make sure to position the die straight at the beginning. Use cutting oil and break the chips regularly by briefly reversing the direction of rotation. The final check with the matching internal thread in the dart barrel gives you certainty.
