Round Die DIN 223 (DIN EN 22568) HSSE VAP - M 14 x 0.75

Name: Round Die DIN 223 (DIN EN 22568) HSSE VAP - M 14 x 0.75
Brand: VOLKEL
SKU: 56837
Price: 1960000.0 VND
Availability: OutOfStock

★ 0.0 (0 reviews)

Sold: 0

Imported from: Germany

Origin: Made in Germany

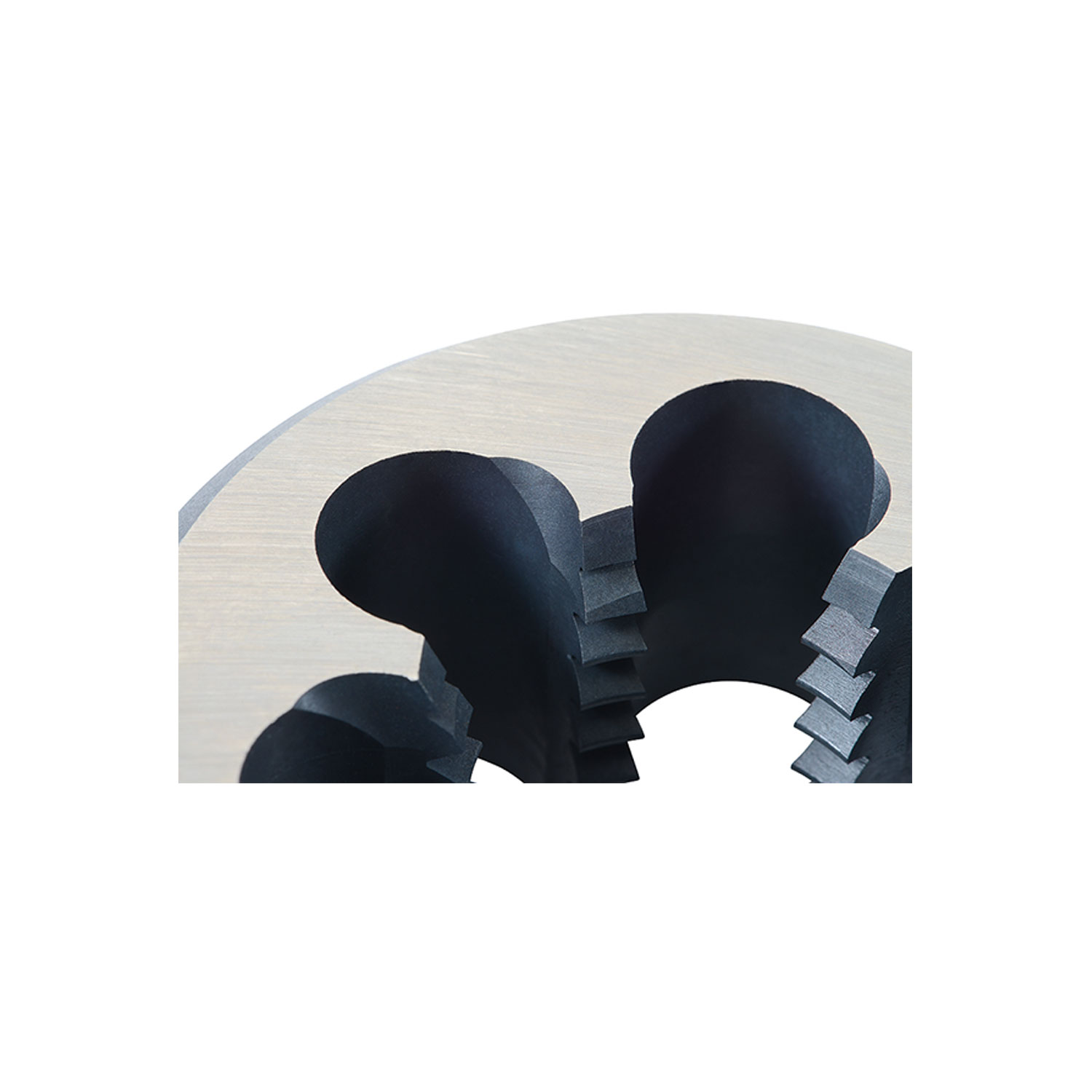

Round Die DIN 223 (DIN EN 22568) HSSE VAP - M 14 x 0.75 by VÖLKEL, item no. 56837, suitable for cutting external threads.

SKU: 56837

1.960.000 đ

Price includes VAT

Description

Round Die DIN 223 (DIN EN 22568) HSSE VAP - M 14 x 0.75

With Round Die DIN 223 (DIN EN 22568) HSSE VAP - M 14 x 0.75 you create a thread interface that must assemble without force. Preparation of the hole or blank and steady alignment are the practical checkpoints for repeatable threads.

M identifies an ISO metric thread system, typically selected by matching the nominal diameter and pitch in the specification. DIN 223 / DIN EN 22568 indicates the referenced standard family or tool standard named in the product designation. HSSE denotes cobalt alloyed HSS, commonly used for more demanding threading conditions. VAP denotes a vaporized surface, often used to reduce sticking tendency and support tool life.

Application

Round Die use in repair and small batch work, including service workshops and mechanical engineering.
Thread production on prepared holes or blanks where alignment is controlled by a holder, guide, or machine spindle.
Process: manual driving or assisted driving depending on your holder and machine setup
Use: thread cutting, re tapping, and thread cleaning depending on condition
Use suitable lubrication and remove chips regularly so cutting edges do not pack up.
Thread system context: match the tool to the M specification stated on the part or drawing.

Note Clean threads and tools before use, apply suitable lubrication for cutting operations, and stop if resistance rises sharply.

Benefits

Direct selection by thread designation such as M when stated reduces setup mistakes.
Suitable for workshop processes where alignment and controlled engagement are practical priorities.
Supports consistent thread quality when you use steady feed and lubrication.
Works well for maintenance tasks where parts must be reworked to the drawing requirement.

Drawbacks

Not suitable for materials or hardness outside the typical range for the named tool material and execution.
Not intended for high performance production without a validated process and rigid machine conditions.

Step by step

Inspect the blank and remove burrs so the die can start square to the axis.
Mount the die in a suitable die holder and secure it so it cannot tilt under load.
Align the holder to the workpiece axis and apply suitable cutting lubricant.
Start the thread with steady rotation and maintain axial alignment without side force.
Reverse briefly to clear chips from the cutting edges, then continue with steady feed.
Continue until required engagement is reached, then back the die off fully.
Clean the thread and the die, then protect the tool from corrosion before storage.

Scope of supply

1 piece Round Die DIN 223 (DIN EN 22568) HSSE VAP - M 14 x 0.75

Technical features

Product type: Round Die
Standard: DIN 223 / DIN EN 22568
Thread designation: M
Tool material or execution: HSSE / VAP

Frequently asked questions (FAQ)

How do you decide between a hand tap and a machine tap for this thread? You choose by the driving method and the stability of the setup. Hand taps support controlled manual work, while machine taps support guided or powered driving with stable alignment. Where do you find technical notes for round dies? This document covers setup, alignment, and use of round dies: Technical information round dies as PDF What do you check before you start cutting the thread? Confirm the thread designation, the hole preparation, and the workpiece material. Keep alignment square to the axis and plan lubrication and chip evacuation. How do you reduce the risk of a tapered or oversize thread? Maintain alignment, avoid side load, and use steady feed. Clean chips from the cutting geometry and verify the first part against the specification. Where do you find the matching catalog for additional variants and reference data? Use the catalog for additional information and product family context: VD 23 catalog as PDF How do you choose the correct drill preparation without guessing values? Use a drill size chart that matches the thread system and the tool type. For inch based threads, confirm that the notation is interpreted correctly before drilling.

Do you need help selecting or using the product?
Use the contact form.

Specifications

Type of thread	metric-fine ISO-thread
Standard	DIN 223 (DIN EN 22568)
Form	solid version (Form B) High Performance
Material	HSSE
Tolerance	6g
Size	M 14 x 0.75
Outer diameter	38.0 mm
EAN	4022835568377
Item number	56837
Thread standard	DIN 13
Coating	VAP
Rec. Bolt diameter	13.90 mm
