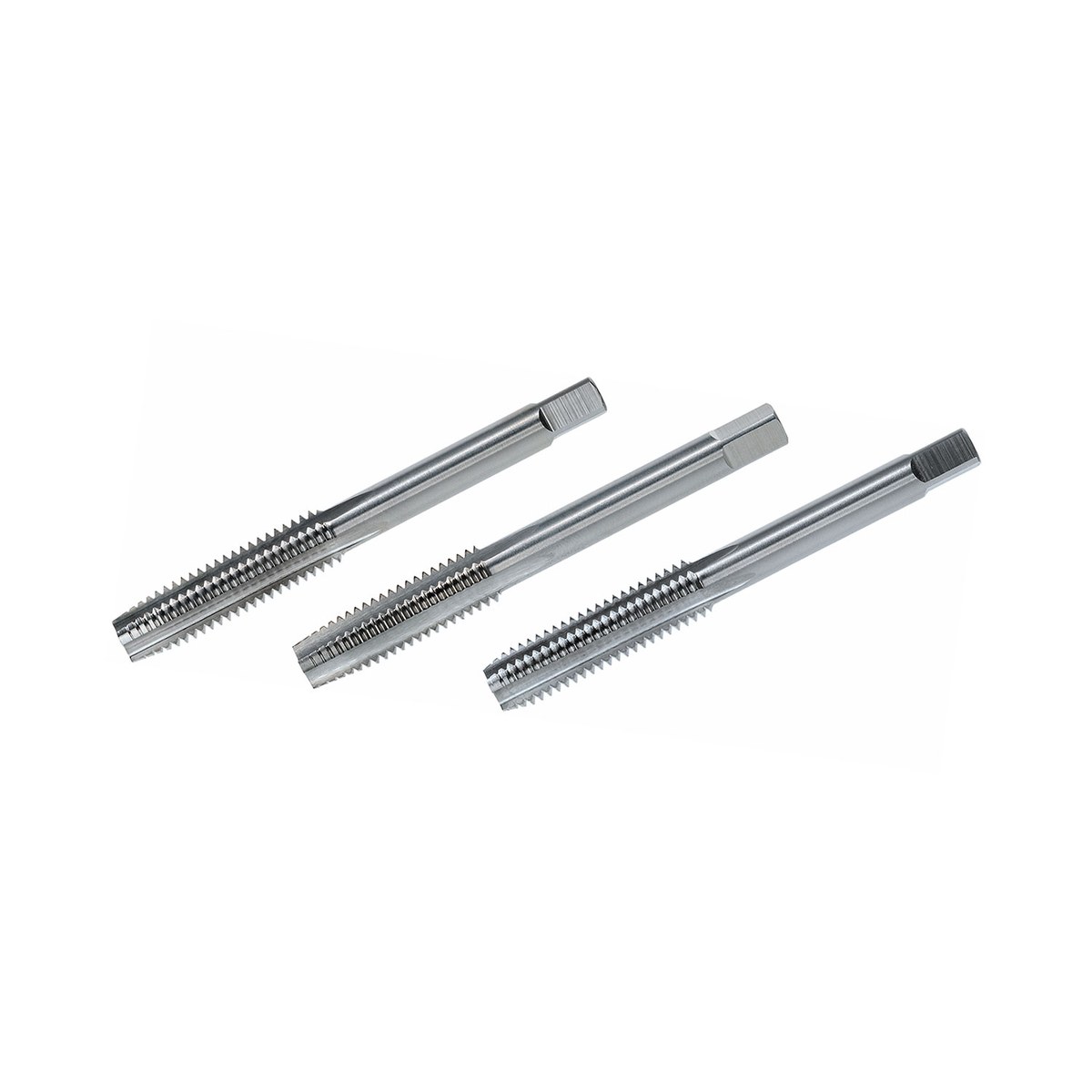

Mũi taro ren tay (tạo ren trong) set of 3 chiếc JIS B-4430 HSS-G - UNC 3/8 x 16

• Create ren trong during repair work or low volume production where manual tapping is practical.
• Process: manual driving or assisted driving depending on your holder and machine setup
• Use: cắt ren, taro lại ren, and làm sạch ren depending on condition
• Use cutting fluid suitable for the material and keep the tool square to the hole axis.

Lưu ý Keep the setup clean and check the thread with a gauge or mating part after cutting.

• Manual control over torque and alignment during cắt ren
• Suitable for workshop repair, maintenance, and low volume production
• Practical for starting threads in assembled or hard to fixture parts
• Ground tool geometry can support consistent cutting action

• High torque applications can require stronger tooling and rigid fixturing
• Manual operation is slower than automated production methods

1. Prepare the hole with the correct pre machining and add a small entry chamfer.
2. Secure the workpiece so it cannot move during tapping.
3. Clamp the tap in a suitable Tay quay taro and bring it to the hole axis squarely.
4. Apply a cutting fluid matched to the workpiece material.
5. Start the first turns with steady pressure while keeping alignment.
6. Advance with controlled torque and reverse slightly at intervals to clear chips from the flutes.
7. Continue until the required thread depth is reached, then back out smoothly.
8. Clean the thread and inspect fit with a gauge or mating part.

• 3 chiếc Mũi taro ren tay (tạo ren trong) set of 3 chiếc JIS B-4430 HSS-G - UNC 3/8 x 16

• Product type: Mũi taro ren tay (tạo ren trong) Set
• Standard: JIS B-4430
• Tool material: HSS-G
• Thread designation: UNC 3/8 x 16
• Thread system: UNC

How do you select the correct thread designation for this tool
Match the designation UNC 3/8 x 16 to the drawing and mating part, then confirm that the hole type and process match the tool design.

Which holder is typically used for manual tapping
A Tay quay taro that clamps the square shank is the typical choice, and you keep the tool axis aligned to the hole to reduce side load.

How do you reduce the risk of tap breakage
Keep alignment, use suitable lubrication, avoid side loading, and clear chips from the flutes so torque does not rise suddenly.

Which workpiece materials are typical for this threading tool
cắt ren tools are commonly used in steels, cast iron, and many non ferrous alloys, but you should adapt Chất bôi trơn cắt gọt ren choice and process control for hard, sticky, or abrasive materials.

What does UNC mean in the thread designation
UNC means Unified National Coarse, an inch based thread series often used in North American designs.

Do you need lubrication and how do you manage chips
Use a cutting fluid suitable for the material to reduce friction, and clear chips from the flutes during the process to keep torque stable.

Where can you find additional technical information for selection and standards
For an overview of threading tools and related standards, refer to the VD 23 catalog as PDF.
