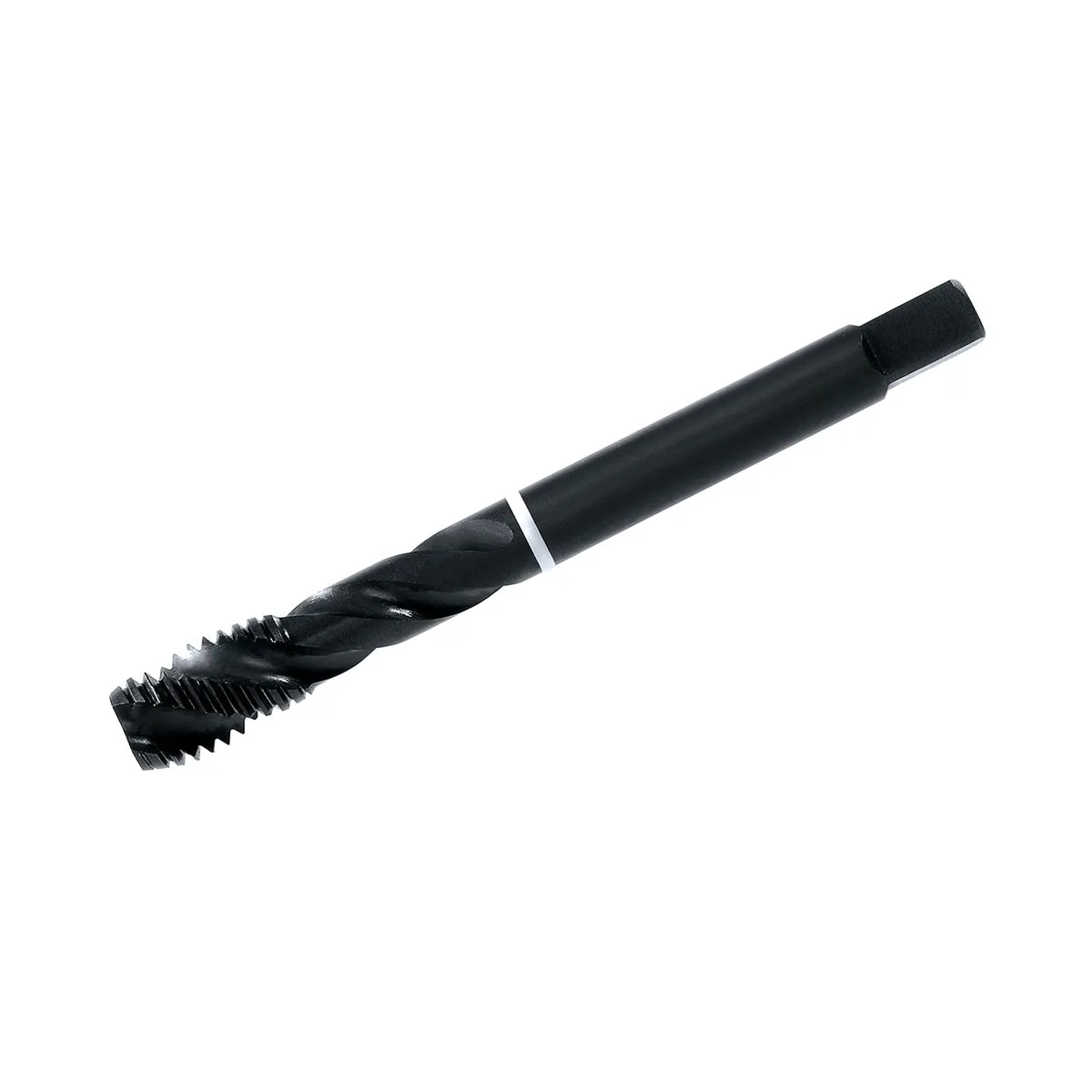

Mũi taro máy WHITE RING JIS B-4430 Form C 39° Spiral Flute HSSE VAP - M 10 x 1.5

Name: Mũi taro máy WHITE RING JIS B-4430 Form C 39° Spiral Flute HSSE VAP - M 10 x 1.5
Brand: VOLKEL
SKU: 91263
Price: 628000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

Mũi taro máy WHITE RING JIS B-4430 Form C 39° Spiral Flute HSSE VAP - M 10 x 1.5 VÖLKEL, mã 91263, phù hợp cho gia công ren trong.

SKU: 91263

628.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

Mũi taro máy WHITE RING JIS B-4430 Form C 39° Spiral Flute HSSE VAP - M 10 x 1.5

This Mũi taro máy is designed for consistent ren trong production in workshop and manufacturing settings. You select the thread designation from the product name and plan the process around the material and the hole condition.

For lỗ bít you verify the available run out space and choose a geometry that supports reliable chip transport. In lỗ thông you focus on stable guidance and consistent coolant delivery.

Ứng dụng

Cutting of ren trong in steels and common engineering materials within the limits of the chosen execution
Use for series work, repair tasks, and general machining in mechanical engineering and metal fabrication
Suitable for lỗ thông and lỗ bít depending on the geometry stated in the product name
Use with a tapping chuck or suitable collet holder to keep axial alignment during the tapping cycle
Process: manual driving or assisted driving depending on your holder and machine setup
Use: cắt ren, taro lại ren, and làm sạch ren depending on condition

Lưu ý For consistent results you verify thread designation on the drawing and match it to the execution in the product name.

Lợi ích

Clear variant identification via standard and form in the product name
Suitable for workshop and series processes when lubrication and alignment are controlled
Supports rework and maintenance tasks without changing the workpiece design
Defined cutting geometry supports predictable thread form

Hạn chế

Tool life can drop in very hard or abrasive materials if the selected execution is not matched to the application
Not suitable for high performance applications when process parameters are not optimised

Các bước thực hiện

Confirm the thread designation, standard, and execution in the product name against your drawing and material specification.
Prepare the pre hole and entry chamfer according to your process specification and remove burrs from the opening.
Clamp the tap in a tapping chuck or suitable collet holder and set up the cycle so feed stays synchronised with rotation.
Apply a suitable cutting Chất bôi trơn cắt gọt ren or coolant for the workpiece material and ensure the entry area is wet.
Start the cut with the tool aligned to the hole axis and keep the alignment stable through the first turns or revolutions.
Continue the pass while monitoring torque and remove the tool if chips accumulate and increase cutting resistance.
Retract the tool, clean chips from the flutes, and inspect the thread before the part moves to the next operation.

Phạm vi cung cấp

Scope of supply is not specified in the provided data.

Đặc tính kỹ thuật

Type: Mũi taro máy
Standard: JIS B-4430
Thread system: ISO metric
Execution: Form C
Flute style: Spiral flute
Helix angle: 39°
Tool material: HSS
Coating: VAP
Tolerance class: ISO metric ren trong tolerance 6H

Câu hỏi thường gặp (FAQ)

How do you match the execution in the product name to your application? You select the variant by standard, form, and thread system as stated in the product name. Then you align the choice with your material and the hole condition so the process stays stable. Which holder type do you typically use with this tap? You typically use a tapping chuck or a suitable collet holder so the tap runs concentrically and stays aligned. If your process needs axial compensation, you choose a holder that provides it. How do you reduce the risk of broken taps and damaged threads? You keep the tool aligned, use a suitable Chất bôi trơn cắt gọt ren, and monitor torque so you can stop before overload. You also remove chips from the flutes and avoid starting on burrs or hard scale. Where can you find additional process notes for machine tapping? Use the PDF for consolidated notes on selection and handling. Technical information machine taps as PDF Do you need cutting Chất bôi trơn cắt gọt ren or coolant for this tap? Yes, you use a Chất bôi trơn cắt gọt ren or coolant matched to the workpiece material to reduce friction and to control heat. Stable lubrication also helps keep thread flank quality consistent. How do you maintain and store the tap after use? You clean chips from the flutes, dry the tool, and apply a light corrosion protection film. You store it so cutting edges are protected from contact and impact. Where can you find additional technical data and the full range? Use the catalog for overview tables and selection guidance. VD 23 catalog as PDF

Do you need help selecting or using the product?
Use the biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	metric ISO-thread
Tiêu chuẩn	JIS B-4430
Form	Form C
Vật liệu	HSSE
Tolerance	OH3
Kích thước	M 10 x 1.5
Overall length (L1)	75 mm
Thread length (L2)	16 mm
Core hole diameter (D1)	8.5 mm
Shank diameter (D2)	7.0 mm
Drive connector	5.5 mm
EAN	4022835912637
Mã hàng	91263
Type of flute	39° Spiral Flute
Phạm vi ứng dụng	for blind holes
Chuẩn ren	DIN 13
Coating	VAP
