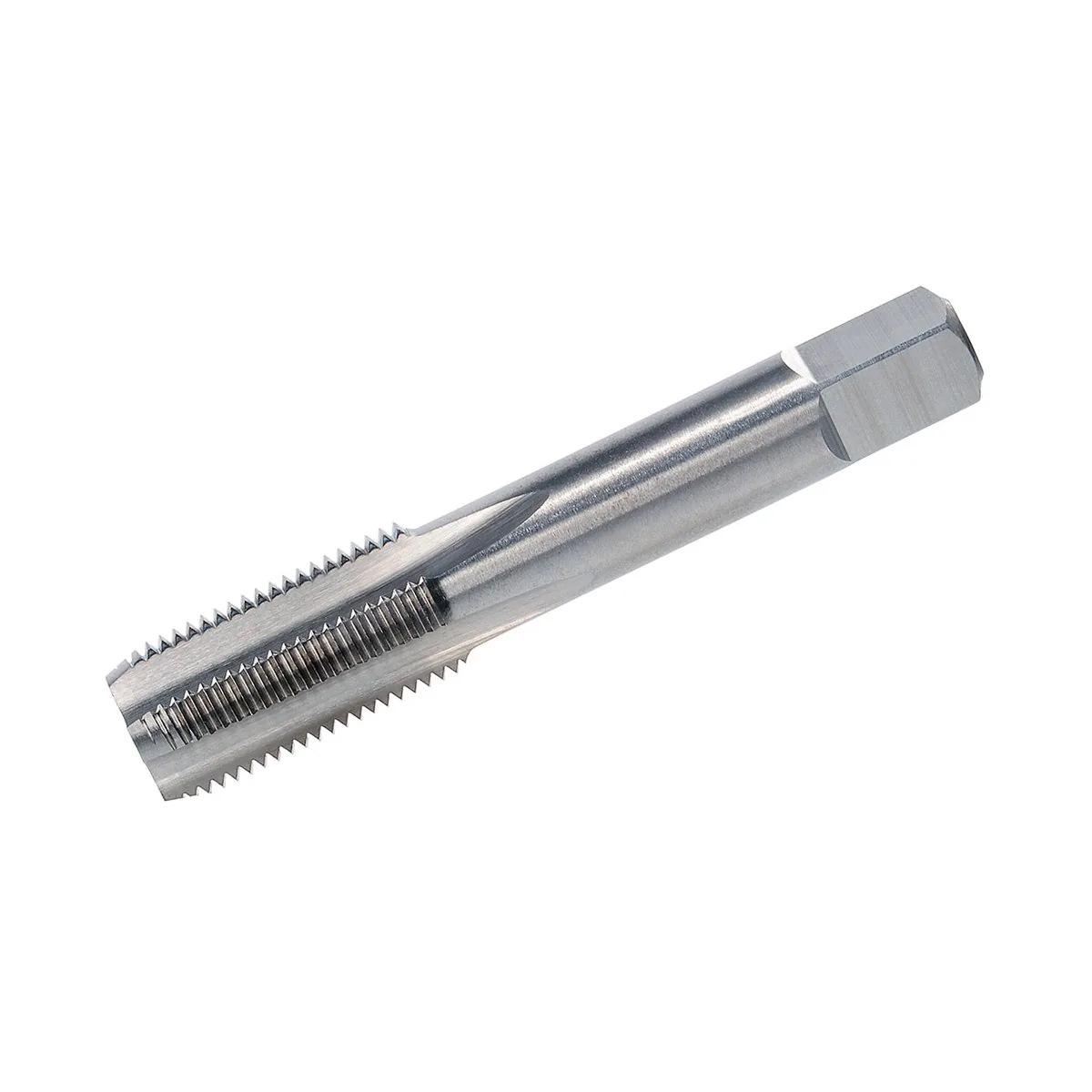

Mũi taro máy Bottoming ISO 529 Form C HSS-G - Rc (BSPT) 7/8 x 14

• Cutting of ren trong in steels and common engineering materials within the limits of the chosen execution
• Use for series work, repair tasks, and general machining in mechanical engineering and metal fabrication
• Suitable for lỗ thông and lỗ bít depending on the geometry stated in the product name
• Use with a tapping chuck or suitable collet holder to keep axial alignment during the tapping cycle
• Process: manual driving or assisted driving depending on your holder and machine setup
• Use: cắt ren, taro lại ren, and làm sạch ren depending on condition

Lưu ý Keep the tool clean and lightly oiled after use to prevent corrosion and to protect cutting edges.

• Defined cutting geometry supports predictable thread form
• Clear variant identification via standard and form in the product name
• Suitable for workshop and series processes when lubrication and alignment are controlled
• Supports rework and maintenance tasks without changing the workpiece design

• Tool life can drop in very hard or abrasive materials if the selected execution is not matched to the application
• Not suitable for high performance applications when process parameters are not optimised

1. Confirm the thread designation, standard, and execution in the product name against your drawing and material specification.
2. Prepare the pre hole and entry chamfer according to your process specification and remove burrs from the opening.
3. Clamp the tap in a tapping chuck or suitable collet holder and set up the cycle so feed stays synchronised with rotation.
4. Apply a suitable cutting Chất bôi trơn cắt gọt ren or coolant for the workpiece material and ensure the entry area is wet.
5. Start the cut with the tool aligned to the hole axis and keep the alignment stable through the first turns or revolutions.
6. Continue the pass while monitoring torque and remove the tool if chips accumulate and increase cutting resistance.
7. Retract the tool, clean chips from the flutes, and inspect the thread before the part moves to the next operation.

Scope of supply is not specified in the provided data.

• Type: Mũi taro máy
• Standard: ISO 529
• Thread system: BSPT
• Execution: Form C
• Lead type: Bottoming
• Tool material: HSS-G
• Surface finish: Ground

How do you match the execution in the product name to your application? You select the variant by standard, form, and thread system as stated in the product name. Then you align the choice with your material and the hole condition so the process stays stable. Which holder type do you typically use with this tap? You typically use a tapping chuck or a suitable collet holder so the tap runs concentrically and stays aligned. If your process needs axial compensation, you choose a holder that provides it. How do you reduce the risk of broken taps and damaged threads? You keep the tool aligned, use a suitable Chất bôi trơn cắt gọt ren, and monitor torque so you can stop before overload. You also remove chips from the flutes and avoid starting on burrs or hard scale. Where can you find additional process notes for machine tapping? Use the PDF for consolidated notes on selection and handling. Technical information machine taps as PDF Do you need cutting Chất bôi trơn cắt gọt ren or coolant for this tap? Yes, you use a Chất bôi trơn cắt gọt ren or coolant matched to the workpiece material to reduce friction and to control heat. Stable lubrication also helps keep thread flank quality consistent. How do you maintain and store the tap after use? You clean chips from the flutes, dry the tool, and apply a light corrosion protection film. You store it so cutting edges are protected from contact and impact. Where can you find additional technical data and the full range? Use the catalog for overview tables and selection guidance. VD 23 catalog as PDF
