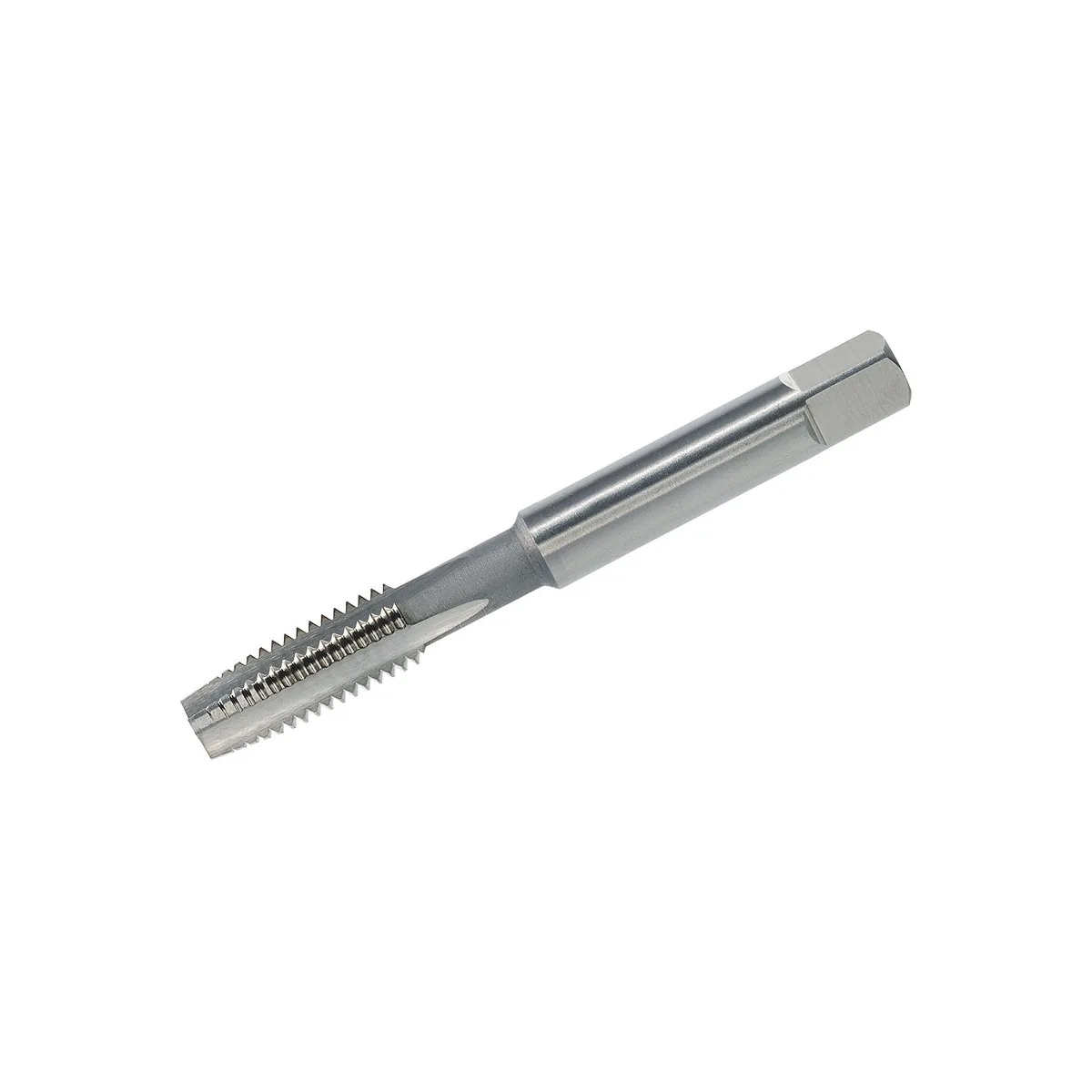

Mũi taro ren tay (tạo ren trong) Taper ISO 529 Form A HSS-G - BSF 2" x 7

Name: Mũi taro ren tay (tạo ren trong) Taper ISO 529 Form A HSS-G - BSF 2" x 7
Brand: VOLKEL
SKU: 85454-1
Price: 6878000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Anh

Xuất xứ: Anh

Mũi taro ren tay (tạo ren trong) Taper ISO 529 Form A HSS-G - BSF 2" x 7 VÖLKEL, mã 85454-1, phù hợp cho gia công ren trong.

SKU: 85454-1

6.878.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

Mũi taro ren tay (tạo ren trong) Taper ISO 529 Form A HSS-G - BSF 2" x 7

You use Mũi taro ren tay (tạo ren trong) Taper ISO 529 Form A HSS-G - BSF 2" x 7 to generate threads during manufacturing, maintenance, or repair work. Correct results depend on matching the tool to the specified thread designation and keeping the tool aligned to the axis.

BSF means British Standard Fine, a Whitworth based fine inch thread series used on legacy designs and fittings. ISO 529 indicates the referenced standard family or tool standard named in the product designation. HSS-G indicates high speed thép with a ground execution, typically chosen for controlled cutting and consistent geometry.

Ứng dụng

Mũi taro ren tay (tạo ren trong) use in repair and small batch work, including service workshops and mechanical engineering.
Thread production on prepared holes or blanks where alignment is controlled by a holder, guide, or machine spindle.
Process: manual driving or assisted driving depending on your holder and machine setup
Use: cắt ren, taro lại ren, and làm sạch ren depending on condition
Use suitable lubrication and remove chips regularly so cutting edges do not pack up.
Thread system context: match the tool to the BSF specification stated on the part or drawing.

Lưu ý Clean threads and tools before use, apply suitable lubrication for cutting operations, and stop if resistance rises sharply.

Lợi ích

Direct selection by thread designation such as BSF when stated reduces setup mistakes.
Suitable for workshop processes where alignment and controlled engagement are practical priorities.
Supports consistent thread quality when you use steady feed and lubrication.
Works well for maintenance tasks where parts must be reworked to the drawing requirement.

Hạn chế

Not suitable for materials or hardness outside the typical range for the named tool material and execution.
Not intended for high performance production without a validated process and rigid machine conditions.

Các bước thực hiện

Prepare the hole or existing thread so entry is clean and burr free.
Select a suitable holder and ensure the tool is aligned square to the thread axis.
Apply suitable cutting Chất bôi trơn cắt gọt ren and start the cut with steady rotation.
Maintain even feed without side force so the tool follows the axis.
Reverse briefly to clear chips from the flutes, then continue with controlled engagement.
Stop when required depth is reached, then back the tool out completely.
Clean the thread and tool, then protect the tool from corrosion for storage.

Phạm vi cung cấp

1 chiếc Mũi taro ren tay (tạo ren trong) Taper ISO 529 Form A HSS-G - BSF 2" x 7

Đặc tính kỹ thuật

Product type: Mũi taro ren tay (tạo ren trong)
Standard: ISO 529
Thread designation: BSF
Tool material or execution: HSS-G

Câu hỏi thường gặp (FAQ)

How do you decide between a Mũi taro ren tay (tạo ren trong) and a Mũi taro máy for this thread? You choose by the driving method and the stability of the setup. Mũi taro ren tay (tạo ren trong) support controlled manual work, while machine taps support guided or powered driving with stable alignment. Where can you find detailed technical notes for Mũi taro ren tay (tạo ren trong)? Use this reference for handling principles, selection logic, and typical workshop checks: Technical information Mũi taro ren tay (tạo ren trong) as PDF What do you check before you start cutting the thread? Confirm the thread designation, the hole preparation, and the workpiece material. Keep alignment square to the axis and plan lubrication and chip evacuation. How do you translate inch based thread notation to metric workshop references? Use this conversion table for fast unit assignment in daily work: Inch to mm conversion table as PDF How do you reduce the risk of a tapered or oversize thread? Maintain alignment, avoid side load, and use steady feed. Clean chips from the cutting geometry and verify the first part against the specification. Where do you find the matching catalog for additional variants and reference data? Use the catalog for additional information and product family context: VD 23 catalog as PDF

Do you need help selecting or using the product?
Use the biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	British Standard Fine Thread
Tiêu chuẩn	ISO 529
Form	Form A
Vật liệu	HSS-G
Tolerance	medium
Kích thước	BSF 2" x 7
Overall length (L1)	175 mm
Thread length (L2)	47 mm
Core hole diameter (D1)	47.0 mm
Shank diameter (D2)	35.5 mm
Drive connector	28.0 mm
Mã hàng	85454-1
Type of flute	straight fluted
Phạm vi ứng dụng	for through holes
Chuẩn ren	BS 84
