Trang chủ Mũi taro ren Mũi taro ren tay (tạo ren trong) Bottoming ISO 529 Form C HSS-G - BSF 7/16 x 18

Mũi taro ren

Mũi taro ren tay (tạo ren trong) Bottoming ISO 529 Form C HSS-G - BSF 7/16 x 18

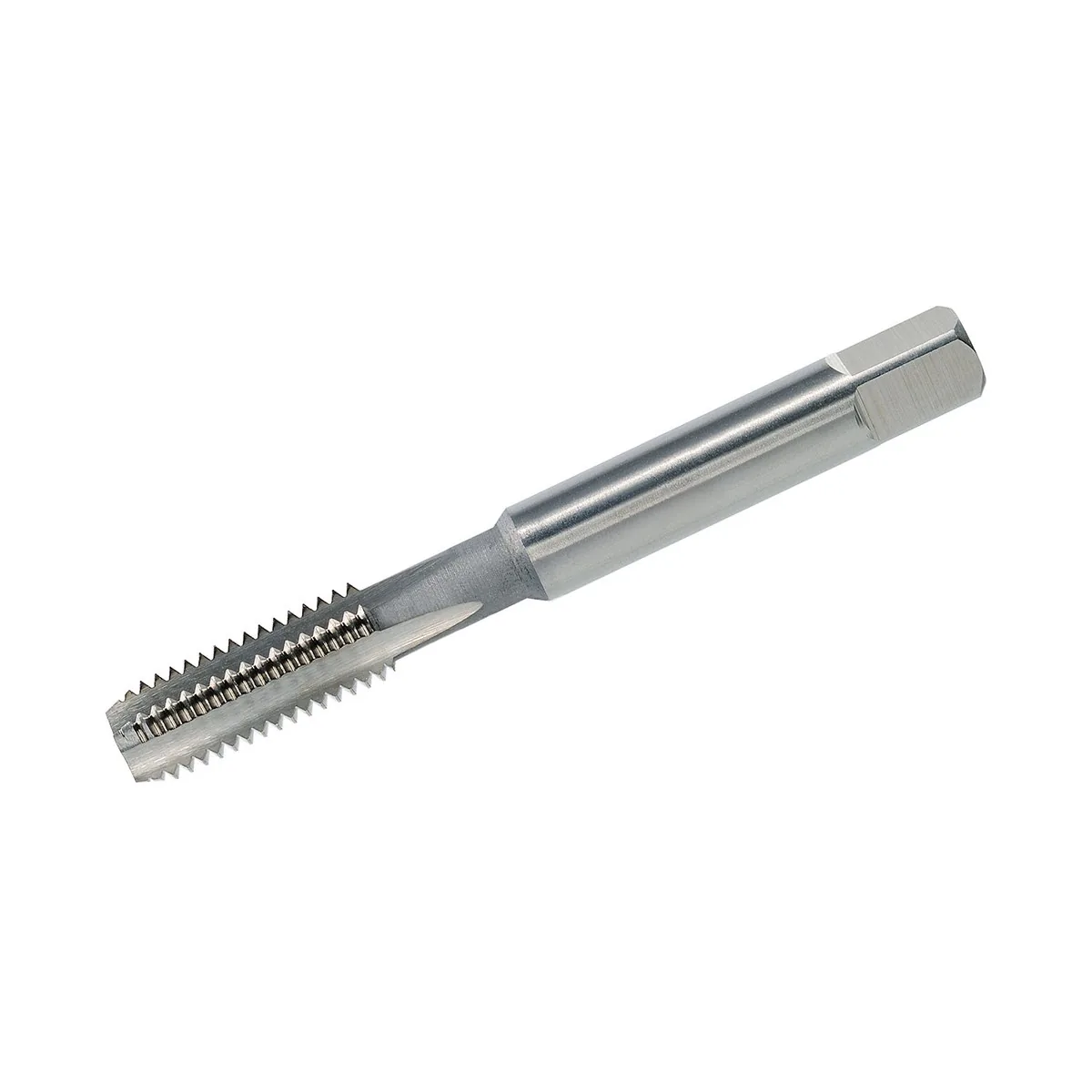

Name: Mũi taro ren tay (tạo ren trong) Bottoming ISO 529 Form C HSS-G - BSF 7/16 x 18
Brand: VOLKEL
SKU: 85420-3
Price: 299000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Anh

Xuất xứ: Anh

Mũi taro ren tay (tạo ren trong) Bottoming ISO 529 Form C HSS-G - BSF 7/16 x 18 VÖLKEL, mã 85420-3, phù hợp cho gia công ren trong.

SKU: 85420-3

299.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

Mũi taro ren tay (tạo ren trong) Bottoming ISO 529 Form C HSS-G - BSF 7/16 x 18

Use this tool to create an ren trong for fasteners and fittings in metalworking and maintenance work. Hand tapping is useful for repair work, prototyping, and controlled cutting in short runs.

Tool alignment at the start influences thread straightness, torque, and final fit. BSF indicates a Whitworth form inch thread with a finer series, common in maintenance and retrofit work. HSS G indicates a ground high speed thép tool, typically used when you need consistent cutting geometry.

Ứng dụng

Cut ren trong in drilled holes for fasteners, fittings, and mechanical assemblies.
Use in mechanical engineering, metal fabrication, and maintenance work where controlled threading is required.
Start the tap square to the hole to reduce risk of cross starting and uneven flank load.
Process: manual driving or assisted driving depending on your holder and machine setup
Use: cắt ren, taro lại ren, and làm sạch ren depending on condition

Lưu ý For consistent results, deburr the entry and keep the cutting area clean during use.

Lợi ích

Controlled ren trong cutting with direct process feedback
Suitable for repair work, prototyping, and general workshop machining
Supports repeatable thread fit when the pre hole and alignment are correct
Applicable across maintenance and production environments

Hạn chế

Not suitable for brittle or abrasive materials without adapted cutting strategy and tool choice.
Manual or guided threading can be slow for high throughput applications.

Các bước thực hiện

Prepare the hole with a correct core diameter and a clean entry chamfer.
Secure the workpiece and align the tool square to the hole axis.
Apply suitable cutting Chất bôi trơn cắt gọt ren for the material and process.
Start the tool with controlled torque until it is guided by the thread form.
Advance with steady turns or a guided feed while keeping alignment constant.
Withdraw the tool at intervals and clear chips from the flutes.
Continue until the required thread depth is reached, then remove the tool fully.
Clean the thread and check fit with a matching screw or gauge.

Phạm vi cung cấp

1 chiếc Mũi taro ren tay (tạo ren trong) Bottoming ISO 529 Form C HSS-G - BSF 7/16 x 18

Đặc tính kỹ thuật

Tool type: Mũi taro ren tay (tạo ren trong)
Reference standard: ISO 529
Thread system: BSF
Material or coating: HSS-G

Câu hỏi thường gặp (FAQ)

How do you confirm that the thread system matches the mating part? Match the designation on the tool to the drawing and the mating fastener or gauge. For inch and pipe threads, confirm thread family and fit class before you start machining. What does the designation BSF 7/16 x 18 mean on this tool? It defines the thread family and size that the tool is designed to produce or inspect. Use it only on matching parts and avoid mixing similar inch series. Where can you find technical information for Mũi taro ren tay (tạo ren trong)? Use this document for handling concepts and selection basics. Technical information Mũi taro ren tay (tạo ren trong) as PDF How do taper and second Mũi taro ren tay (tạo ren trong) differ in use? A taper lead starts gently and helps alignment, while a second lead engages more quickly after starting. Select based on access, hole type, and how the thread is started. Where can you find a conversion table for inch and metric units? Use this table when you assign inch thread designations to metric workshop documentation. Inch to mm conversion table as PDF How do the material and coating designations affect selection? These designations describe tool material and surface treatment. Use them to match wear resistance and toughness needs to your material and process, without changing thread geometry. What are common causes of poor thread quality? Misalignment at the start, an incorrect pre hole, or insufficient lubrication can increase torque and damage flanks. Clean chips from the tool and verify setup rigidity. Where can you find catalog information for this product family? Use the product catalog for overview tables and selection context. VD 23 catalog as PDF

Do you need help selecting or using the product?
Use the biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	British Standard Fine Thread
Tiêu chuẩn	ISO 529
Form	Form C
Vật liệu	HSS-G
Tolerance	medium
Kích thước	BSF 7/16 x 18
Overall length (L1)	82 mm
Thread length (L2)	22 mm
Core hole diameter (D1)	9.5 mm
Shank diameter (D2)	8.0 mm
Drive connector	6.3 mm
Mã hàng	85420-3
Type of flute	straight fluted
Phạm vi ứng dụng	for blind holes
Chuẩn ren	BS 84
