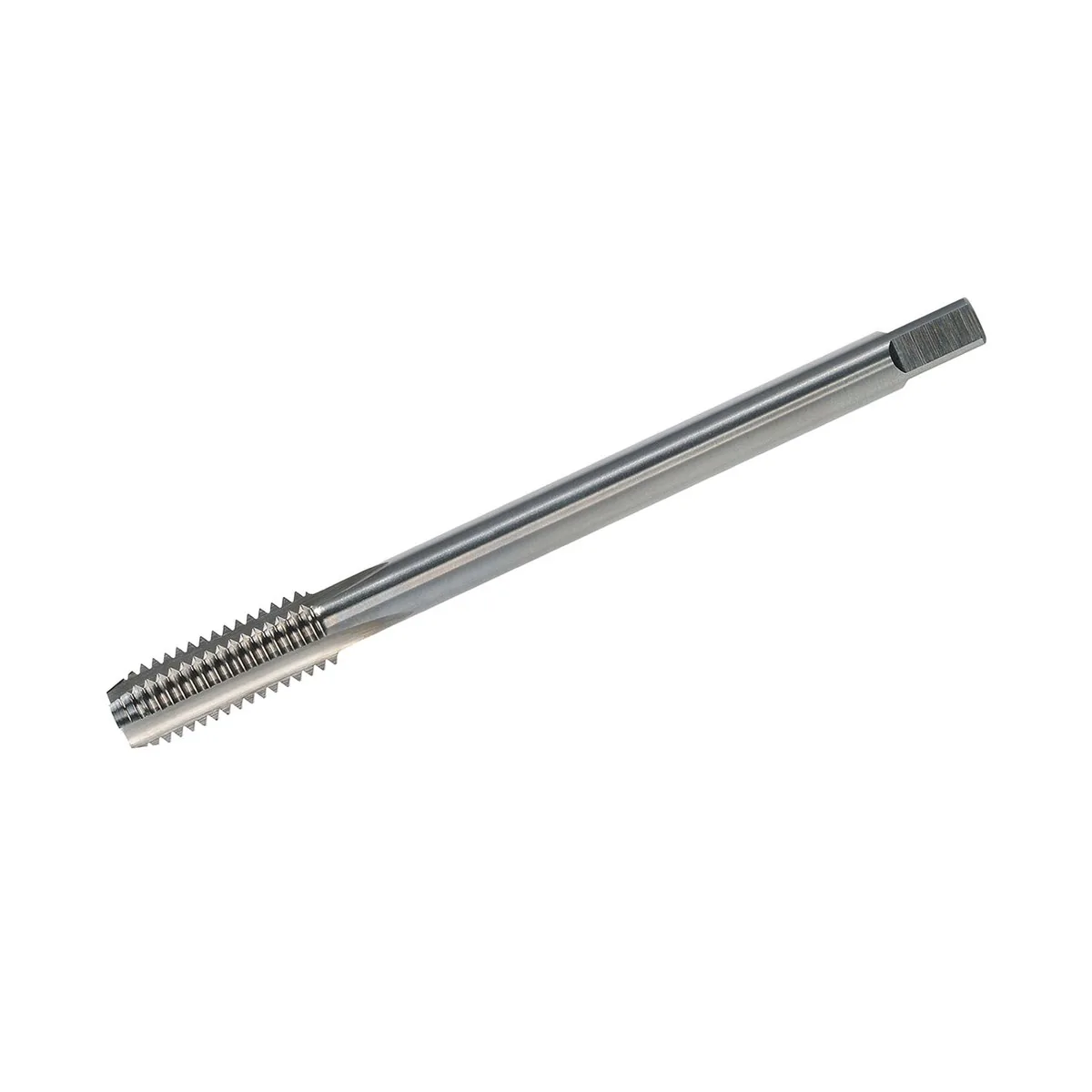

Mũi taro máy DIN 374 Form C HSSE - BSC 3/8 x 26

Name: Mũi taro máy DIN 374 Form C HSSE - BSC 3/8 x 26
Brand: VOLKEL
SKU: 79422
Price: 3919000.0 VND
Availability: OutOfStock

★ 0.0 (0 đánh giá)

Đã bán: 0

Nhập khẩu từ: Đức

Xuất xứ: Đức

Mũi taro máy DIN 374 Form C HSSE - BSC 3/8 x 26 VÖLKEL, mã 79422, phù hợp cho gia công ren trong.

SKU: 79422

3.919.000 đ

Giá đã bao gồm VAT

Vui lòng liên hệ để được báo giá và tình trạng hàng.

Mô tả

Mũi taro máy DIN 374 Form C HSSE - BSC 3/8 x 26

Use this Mũi taro máy for ren trong production in workshop processes where repeatability and clean lead-in are required. The execution follows DIN 374. The thread designation is BSC 3/8 x 26.

When the tool is specified with spiral flute or spiral point geometry, use that as your selection cue for chip transport direction and hole type.

Ứng dụng

Cut ren trong in pre-drilled holes using a controlled machine process.
Use a Mũi taro máy holder, collet system, or tapping attachment suited to the tap shank and drive.
Process: manual driving or assisted driving depending on your holder and machine setup.
Use: cắt ren, taro lại ren, and làm sạch ren depending on condition.

Lưu ý Use cutting fluid suited to the workpiece material and keep the tool clean and protected after use.

Lợi ích

Enables controlled chip transport when cutting fluid and reversal are managed
Fits typical tap holding systems appropriate to the tool type
Makes selection easier by referencing standard, form, and thread designation
Supports stable cutting edges for frequent use in service operations
Reduces risk of cross-threading when the tool is started square

Hạn chế

Limited suitability for very hard materials unless a dedicated execution is specified
Not suitable for uncontrolled hand tapping without a guided holder

Các bước thực hiện

Confirm the thread designation and ensure the workpiece hole is prepared and free of burrs.
Secure the workpiece so the hole axis is stable during the tapping cycle.
Mount the tap in a suitable Mũi taro máy holder and check that the tool runs true.
Apply cutting fluid suited to the workpiece material.
Align the tool to the hole axis before you start the tapping cycle.
Run the tapping cycle with controlled feed and observe chip evacuation.
Reverse out under control when the required thread depth is reached.
Clean the thread and the tool, then protect the cutting edges for storage.

Phạm vi cung cấp

Scope of supply is not specified in the provided product data for this item.

Đặc tính kỹ thuật

Tool type: Mũi taro máy
Standard: DIN 374
Chamfer form: Form C
Tool material: HSSE
Thread system: BSC

Câu hỏi thường gặp (FAQ)

When should you use a Mũi taro máy instead of a Mũi taro ren tay (tạo ren trong) Use a Mũi taro máy when you can guide the tool with a machine spindle and a suitable tap holder, and when you want controlled feed that matches the thread pitch. What holder type do you need for this tap Use a Mũi taro máy holder, collet system, or tapping chuck that supports the tap shank and keeps alignment to the hole axis stable. What preparation is required before you tap the thread Prepare the core hole to the correct size for the thread designation, remove burrs, and add a small lead-in chamfer so the tap can start without side load. How do you control chips and cutting fluid during tapping Use cutting fluid suited to the workpiece material and clear chips regularly, especially in deeper holes or tougher materials, to prevent chip packing and tool overload. Where can you find additional technical information for this execution Use the following PDF for reference on machine tapping basics: Technical information machine taps as PDF How do you reduce risk of tap breakage Keep alignment stable, avoid side load at entry, and stop if torque rises sharply so you can inspect hole preparation, lubrication, and chip evacuation. Where can you find more product and application information in the VÖLKEL catalog Use this catalog for additional details and related items: VD 23 catalog as PDF How do you inspect the thread after tapping Check that the thread is clean, that the start is not damaged, and that the functional fit matches the mating component used in your assembly.

Do you need help selecting or using the product?
Use the biểu mẫu liên hệ.

Thuyết minh kỹ thuật

Loại ren	British Cycle Thread
Tiêu chuẩn	DIN 374
Form	Form C
Vật liệu	HSSE
Tolerance	medium
Kích thước	BSC 3/8 x 26
Overall length (L1)	90 mm
Thread length (L2)	16 mm
Core hole diameter (D1)	8.6 mm
Shank diameter (D2)	7.0 mm
Drive connector	5.5 mm
EAN	4022835794226
Mã hàng	79422
Type of flute	straight fluted
Phạm vi ứng dụng	for through and blind holes
Chuẩn ren	BS 813
